7-pin trailer plug EPTA14

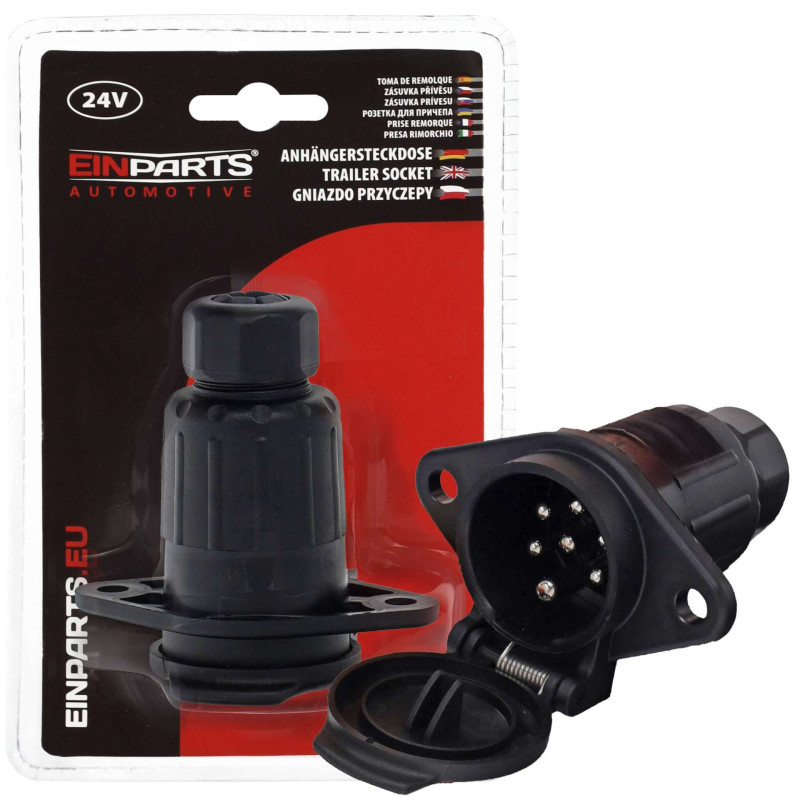

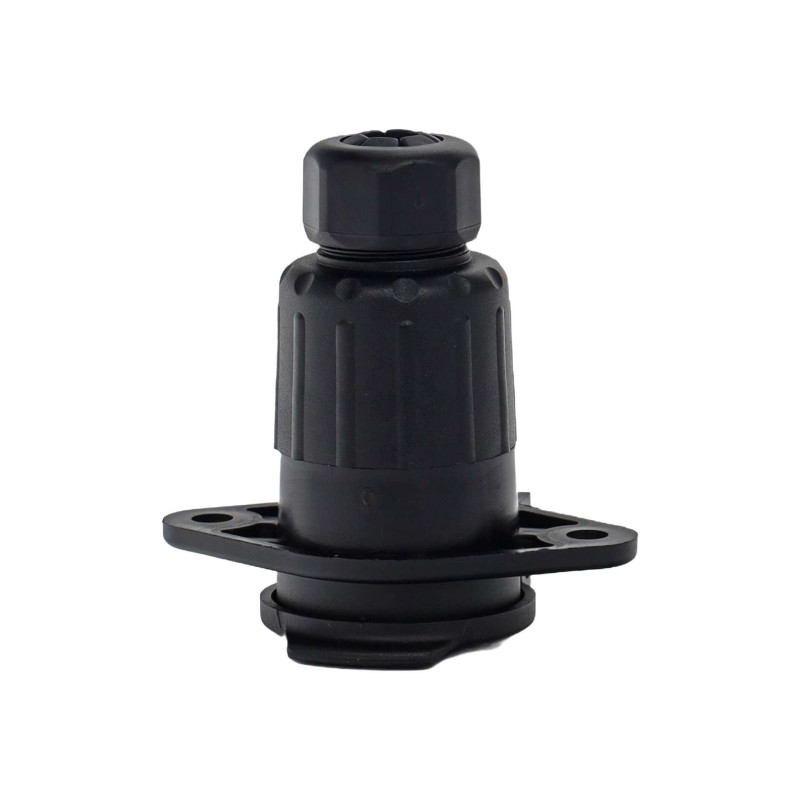

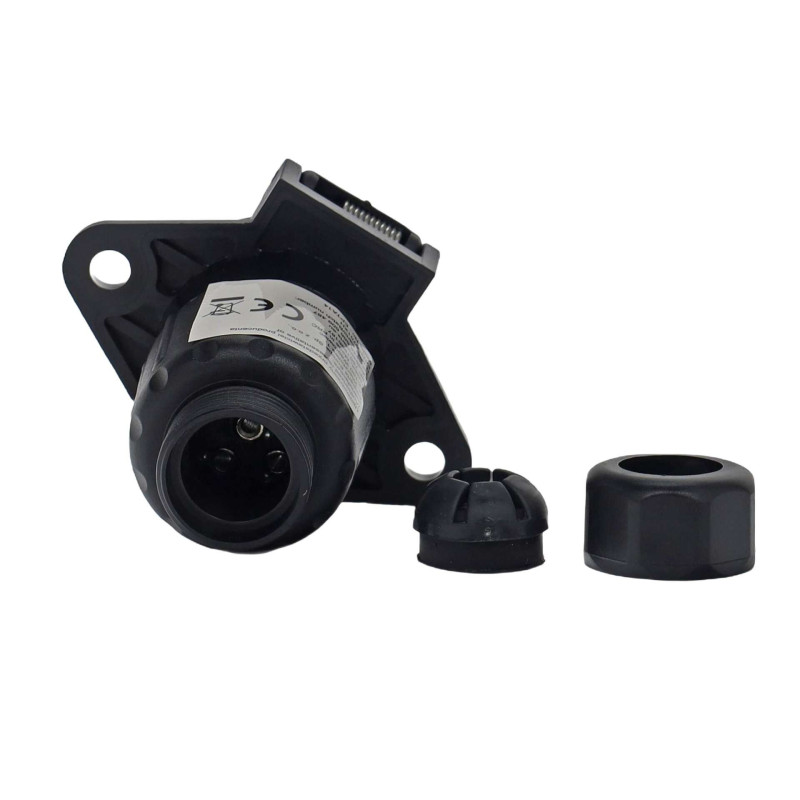

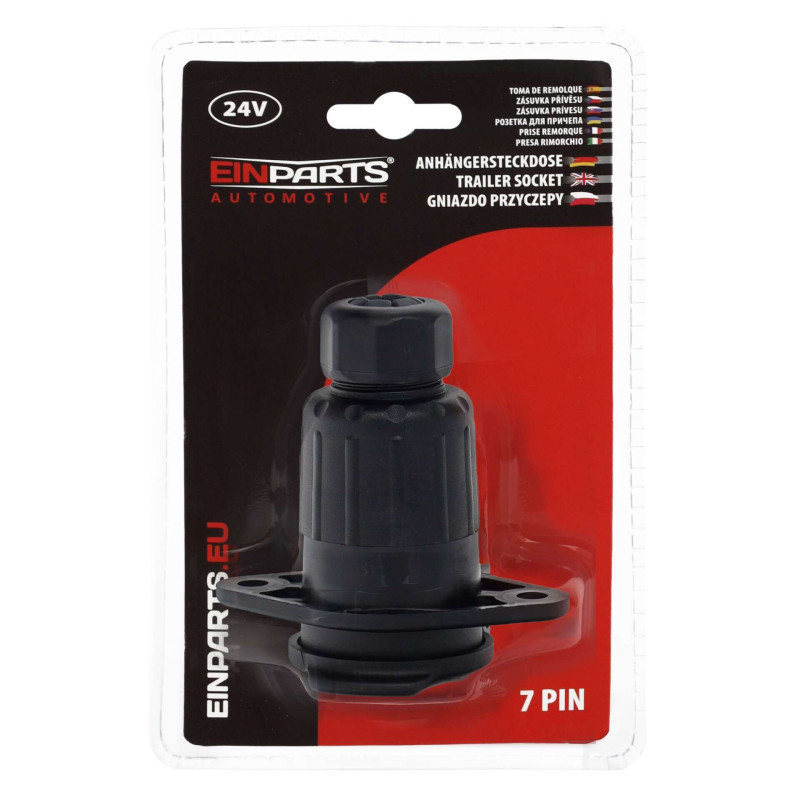

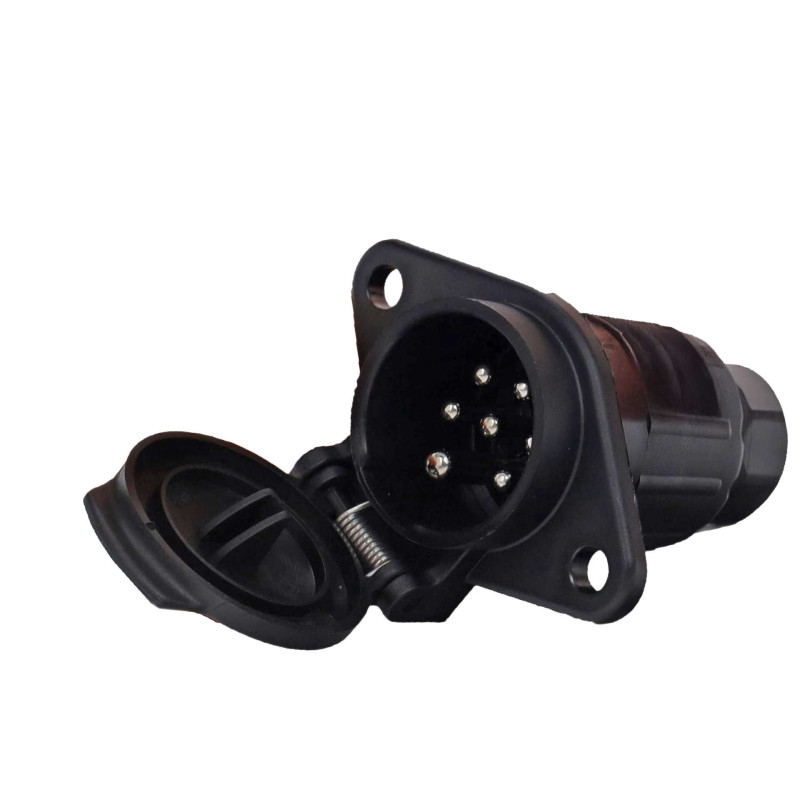

EPTA14 Trailer socket 24V 7-pin type NGelectric socket 24V 7-pin type N intended for connecting the installation of a truck, tractor, utility machine or other vehicle with a trailer or semi-trailer operating in a 24V installation. Type N, compliant with the standard ISO 1185 / 24N, supports basic lighting functions such as turn signals, position lights, and brake lights. This model features a plastic housing, a spring-loaded protective flap, and mounting holes for screwing the socket to the vehicle. A rear cable entry helps protect the wiring harness, and a lockable flap protects the connector from dirt, dust, and moisture when the socket is not in use. 24V 7-pin Type N connector diagram (ISO 1185 / 24N):

• Pin 1 (31) - Function: ground - Wire: white
• Pin 2 (58L) - Function: left position lights / left side marker lights - Wire: black
• Pin 3 (L) - Function: Left turn signal - Wire: Yellow
• Pin 4 (54) - Function: Brake Lights - Wire: Red
• Pin 5 (R) - Function: Right Turn Signal - Wire: Green
• Pin 6 (58R) - Function: right position lights / right side marker lights - Wire: brown
• Pin 7 - Function: Auxiliary/Trailer Brake - Wire: Blue

Type: 24V trailer/semi-trailer socket type N Voltage: 24V Number of pins: 7-pin Standard: ISO 1185 / 24N Material: plastic Color: black Housing: closed with a spring flap Mounting: mounting holes Application: trailers, semi-trailers, trucks, utility machines
