7-pin trailer connector EPTA11

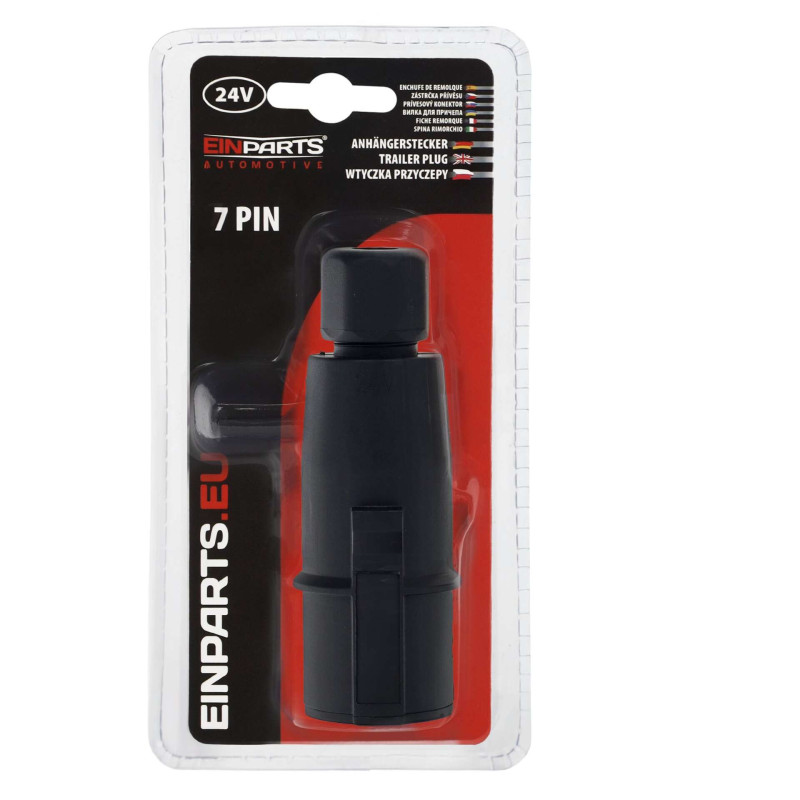

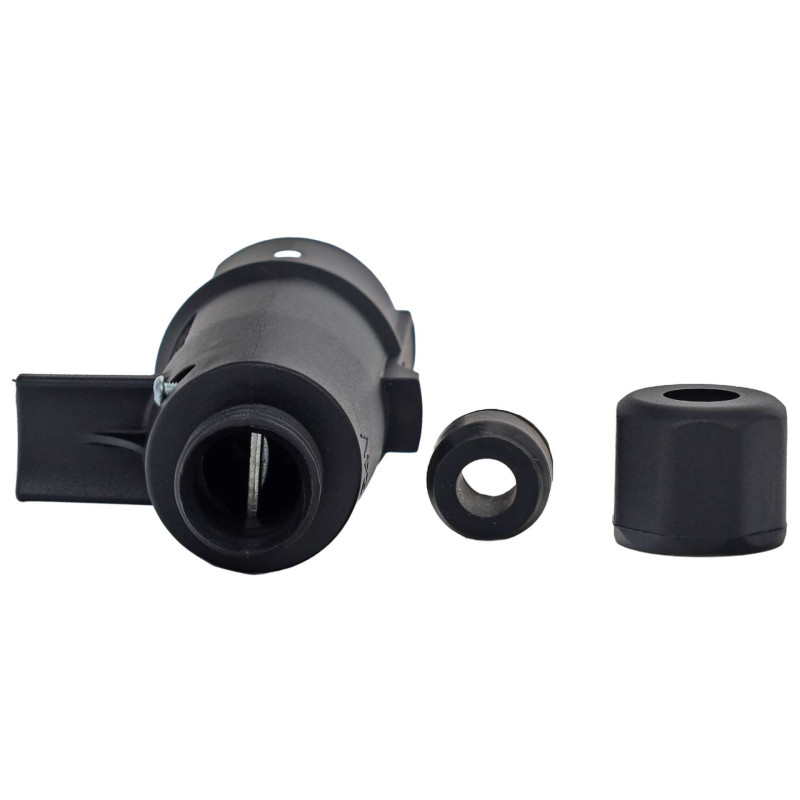

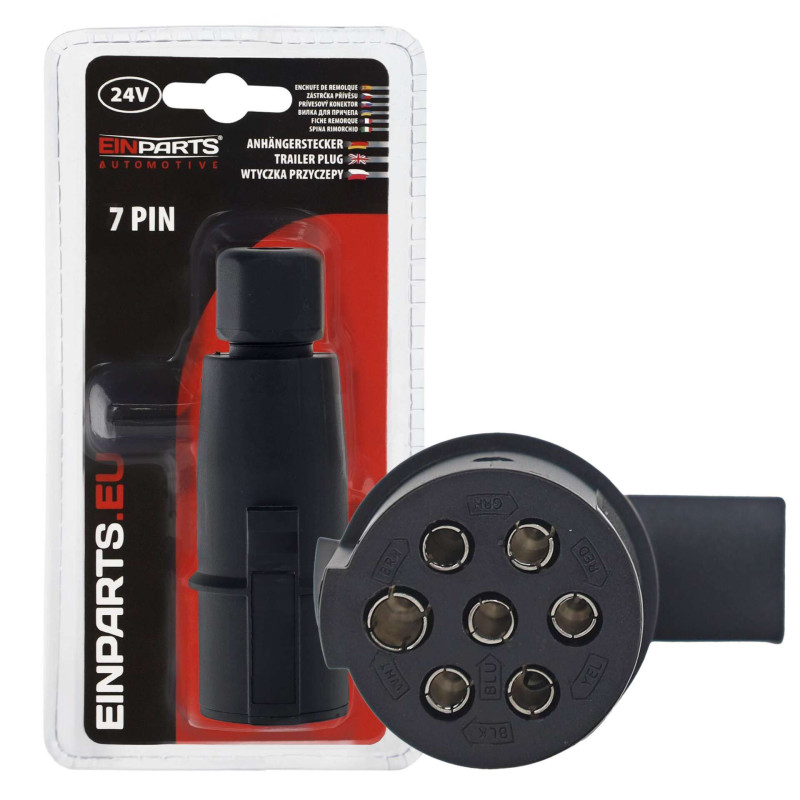

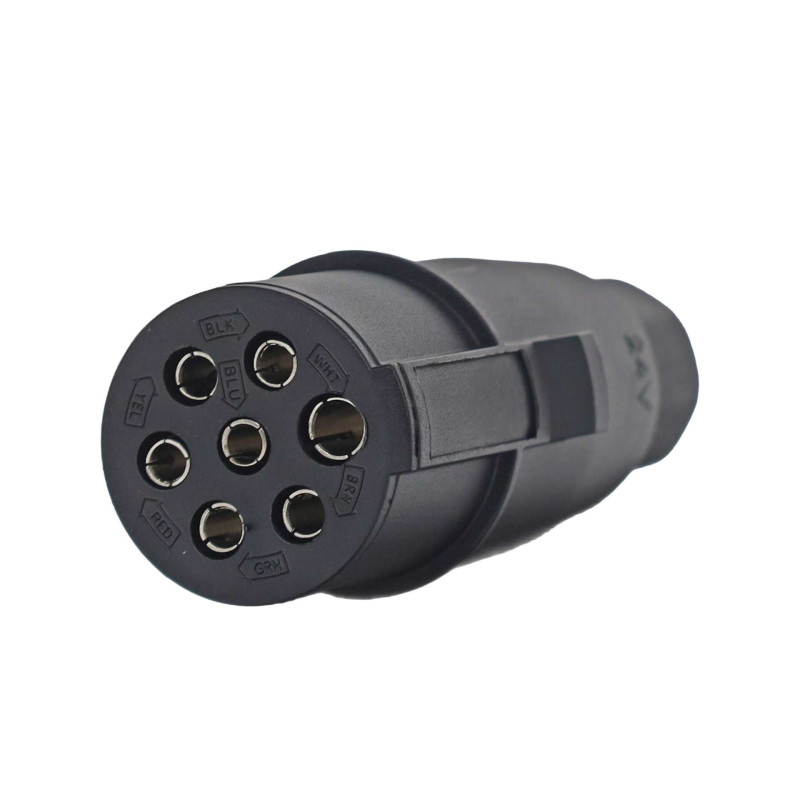

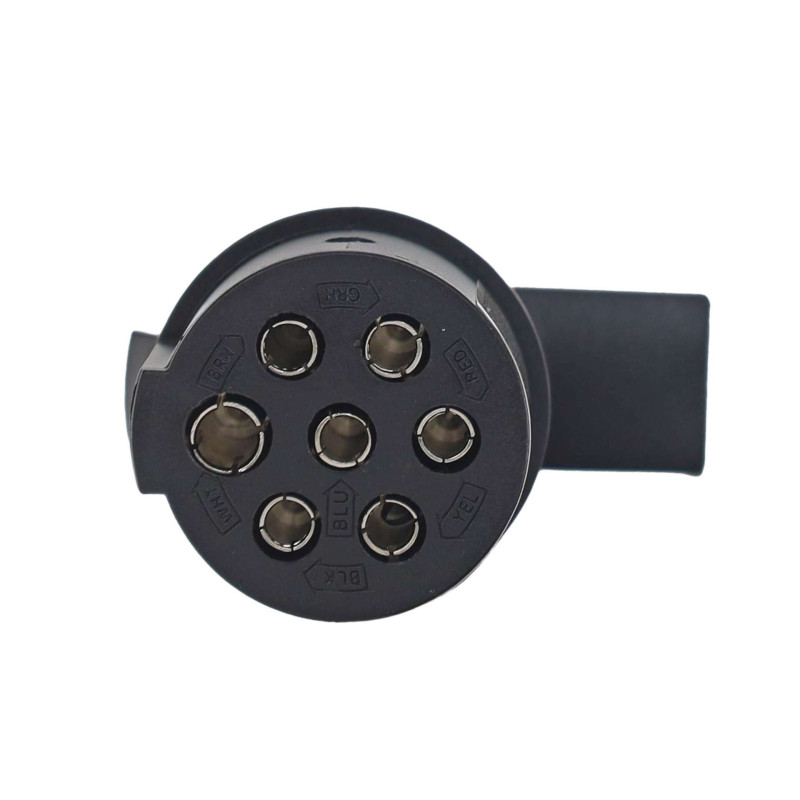

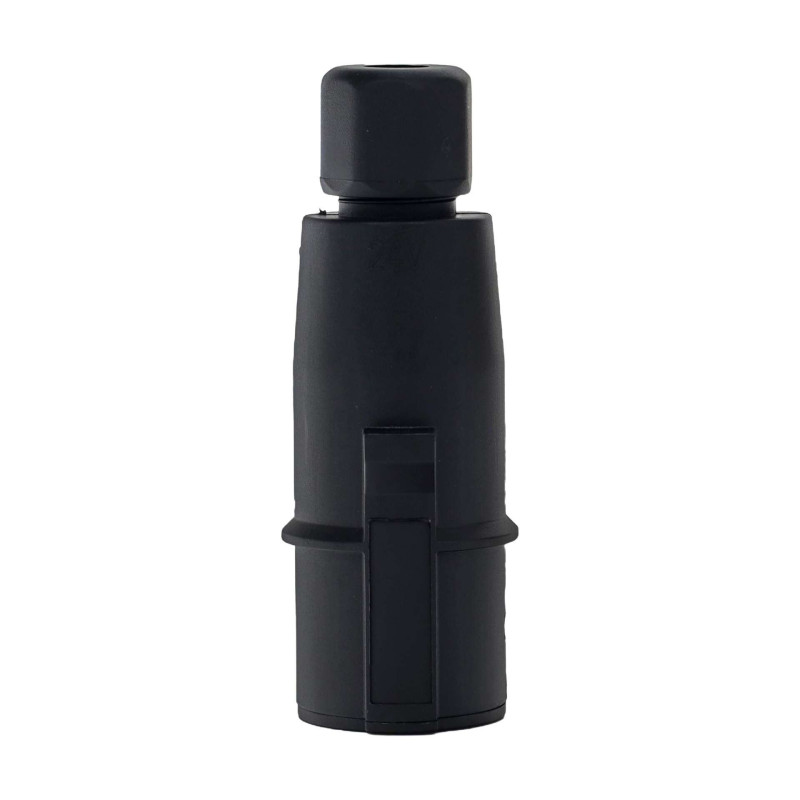

EPTA11 Trailer plug 24V 7-pin type NElectrical plug 24V 7-pin type N Designed to connect a trailer, semi-trailer, or utility vehicle's electrical system to the vehicle's electrical socket. This socket operates in a 24V system. Type N, compliant with the standard ISO 1185 / 24N, supports basic lighting functions. These include turn signals, position lights, and brake lights. The model has a plastic housing and a rear cable entry that helps protect the wiring harness. Color-coded pins facilitate correct wiring during installation or when replacing a damaged plug. 24V 7-pin Type N connector diagram (ISO 1185 / 24N):

• Pin 1 (31) - Function: ground - Wire: white
• Pin 2 (58L) - Function: left position lights / left side marker lights - Wire: black
• Pin 3 (L) - Function: Left turn signal - Wire: Yellow
• Pin 4 (54) - Function: Brake Lights - Wire: Red
• Pin 5 (R) - Function: Right Turn Signal - Wire: Green
• Pin 6 (58R) - Function: right position lights / right side marker lights - Wire: brown
• Pin 7 - Function: Auxiliary/Trailer Brake - Wire: Blue

Type: 24V trailer/semi-trailer plug type N Voltage: 24V Number of pins: 7-pin Standard: ISO 1185 / 24N Material: plastic Color: black Cable fastening: cable gland Application: trailers, semi-trailers, trucks, utility machines
