3-phase adapter with 1-phase plug

Three-phase to single-phase electrical adapter CEE 32A, 5-pole to 3-pole

This CEE 32A adapter is designed to connect a single-phase 230 V electrical device with a blue CEE 32A (3-pole) connector to a red CEE 32A (5-pole) three-phase mains socket.

The adapter allows you to use a single phase with a neutral wire and ground from a three-phase 400 V CEE 32A socket, so the connected device receives 230 V single-phase power.

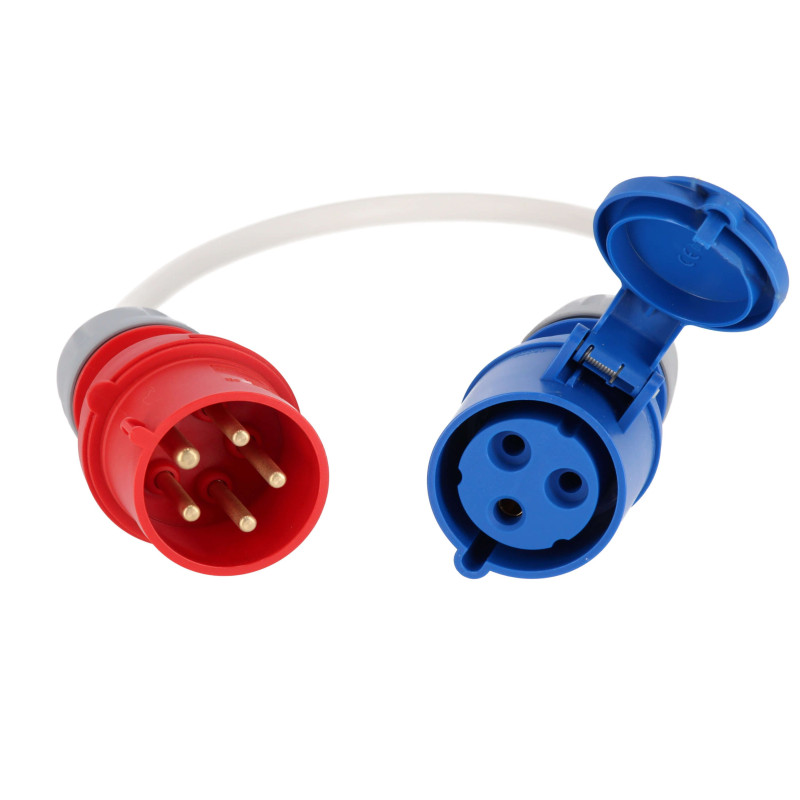

One side of the adapter is a red CEE 32A 5-pole plug (3P+N+E), designed to connect to a three-phase electrical outlet. The other side is a blue CEE 32A 3-pole connector (P+N+E), designed for single-phase 230 V devices.

Technical data
Adapter type: three-phase to single-phase
Input: CEE 32A, 5-pole (3P+N+E), 400 V, red
Output: CEE 32A, 3-pole (P+N+E), 230 V, blue
Rated current: up to 32 A
Power supply: 400 V three-phase → 230 V single-phase
Connection to three-phase network: red CEE 32A 5-pole plug
Single-phase connector: blue CEE 32A 3-pole connector
Cable: short adapter cable
Color: red and blue, according to the CEE connector standard
Where is it used?

The adapter can be used to connect a device that has a single-phase blue CEE 32A connector to a three-phase CEE kai electrical outlet.

Suitable for various electrical equipment, construction and repair equipment, workshop equipment, generators, electrical distribution equipment and other equipment that requires 230 V single-phase power supply.

Important

Although the adapter input is connected to a 400 V three-phase socket, the output uses a single phase with a neutral wire, so a single-phase device is supplied with 230 V.

Before use, it is necessary to make sure that the electrical network, CEE connectors, cable and connected device are suitable for a load of 32 A. The adapter must not be used above its nominal current of 32 A.
