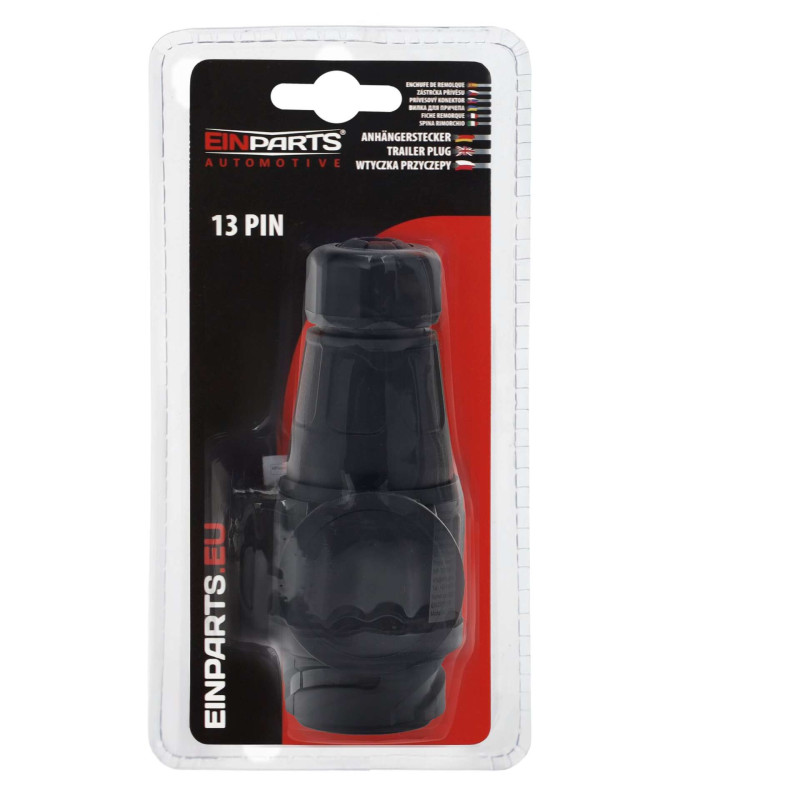

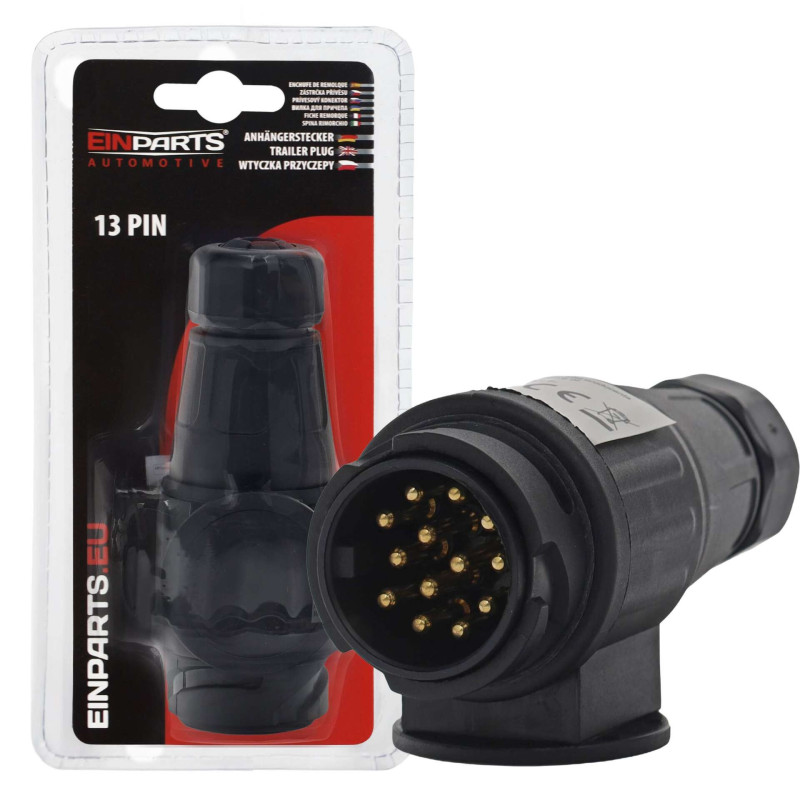

13-pin trailer plug EPTA13

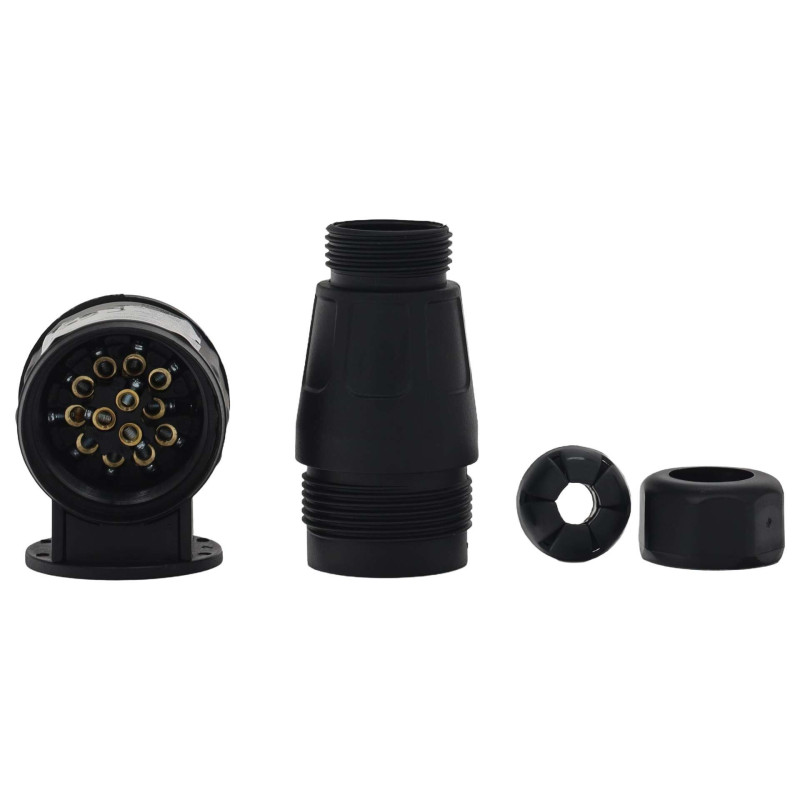

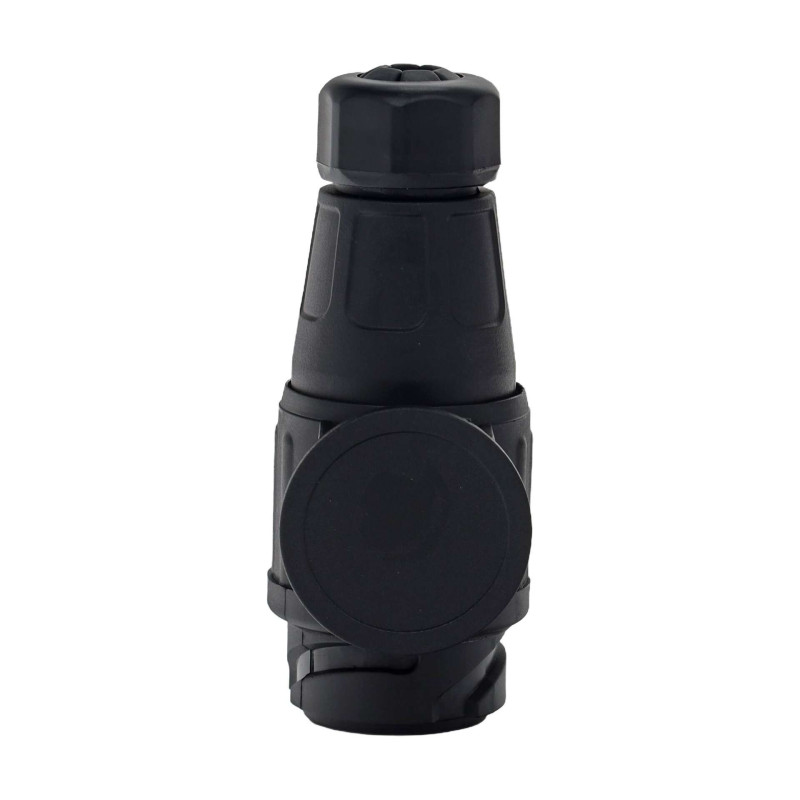

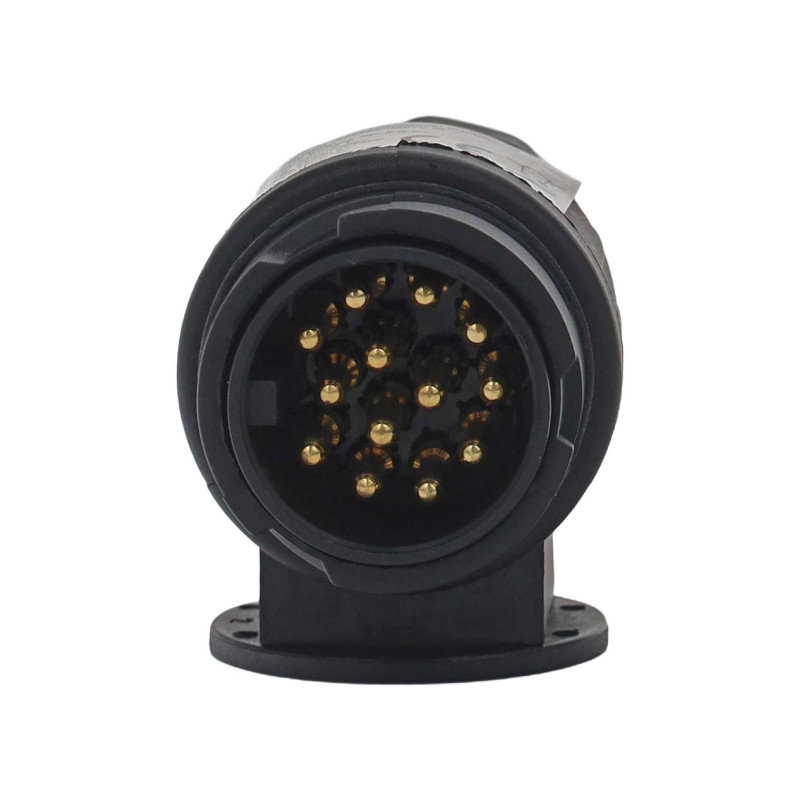

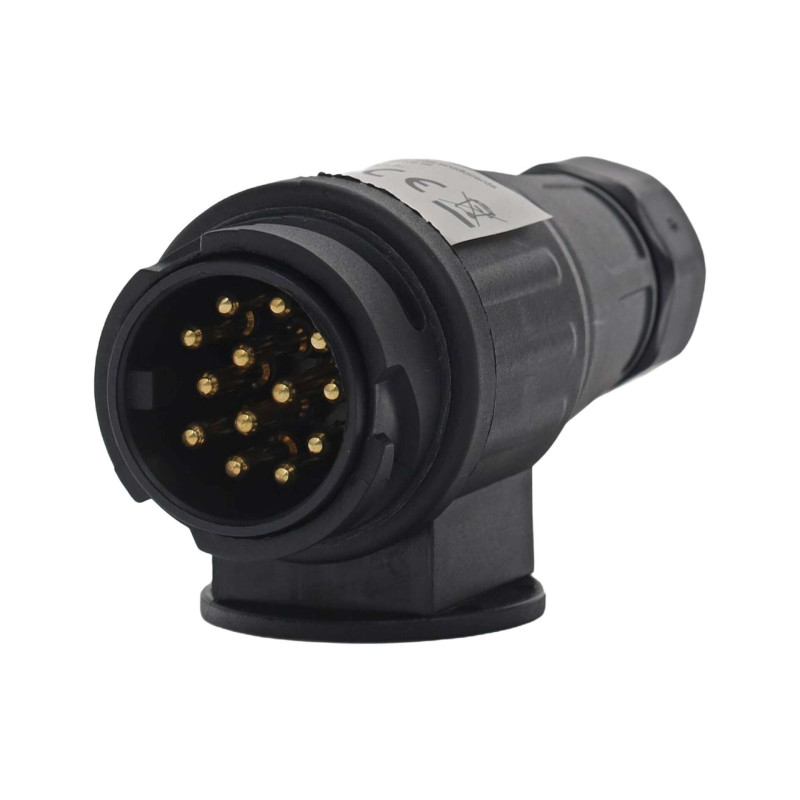

EPTA13 12V 13-pin Trailer PlugUniversal electrical plug designed to connect the installation of a trailer, flatbed trailer, caravan or bicycle rack to the vehicle's towbar socket. Connector 13-pin It allows for more functions than a standard 7-pin system, including additional circuits used in caravans and other applications. This model features a plastic housing and a twisted cable gland that helps protect the wiring harness. This plug is useful when repairing an installation, replacing a damaged connector, or making a new electrical connection to a trailer. 13-pin connector diagram (ISO 11446 compliant):

• Pin 1 (L) - Function: left turn signal - Wire: yellow
• Pin 2 (54G) - Function: Rear Fog Light - Wire: Blue
• Pin 3 (31) - Function: ground for pins 1-8 - Wire: white
• Pin 4 (R) - Function: Right Turn Signal - Wire: Green
• Pin 5 (58R) - Function: right side lights - Wire: brown
• Pin 6 (54) - Function: Brake Lights - Wire: Red
• Pin 7 (58L) - Function: left side lights - Wire: black
• Pin 8 - Function: Reversing light - Wire: Gray
• Pin 9 - Function: 12V DC power supply - Wire: brown-blue
• Pin 10 - Function: 12V ignition power supply - Wire: brown-red
• Pin 11 - Function: ground for pin 10 - Wire: white-red
• Pin 12 - Function: Reserve/Trailer Signal - Wire: No standard color
• Pin 13 - Function: ground for pin 9 - Wire: white and black

Type: trailer plug Voltage: 12V Number of pins: 13-pin Standard: ISO 11446 Material: plastic Color: black Cable fastening: twisted cable gland Application: transport trailers, tow trucks, caravans, bicycle racks
