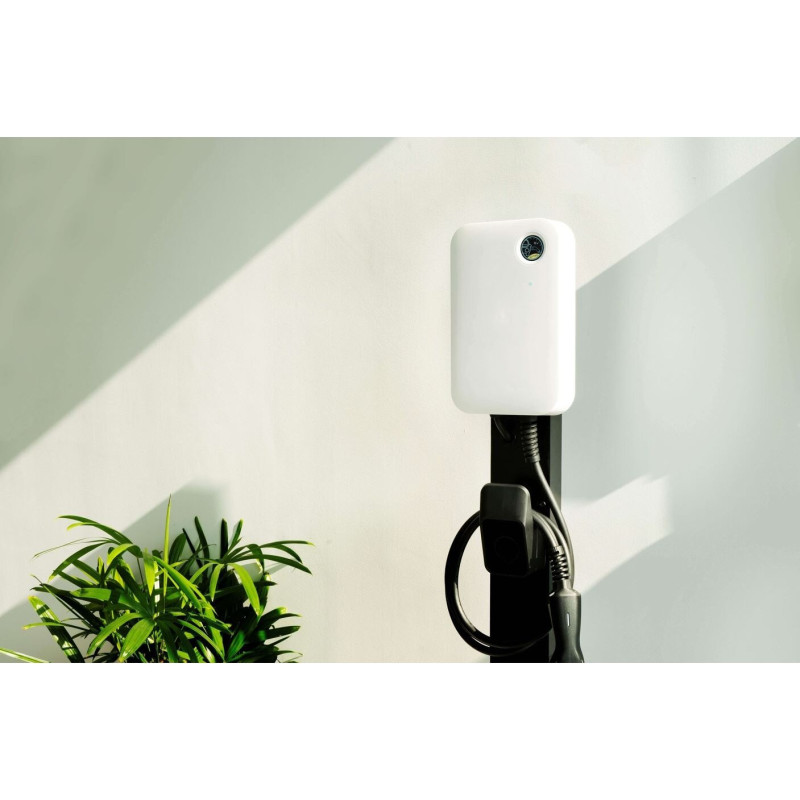

11 kW 3-Phase wallbox charging station WB20 with Wi-Fi function

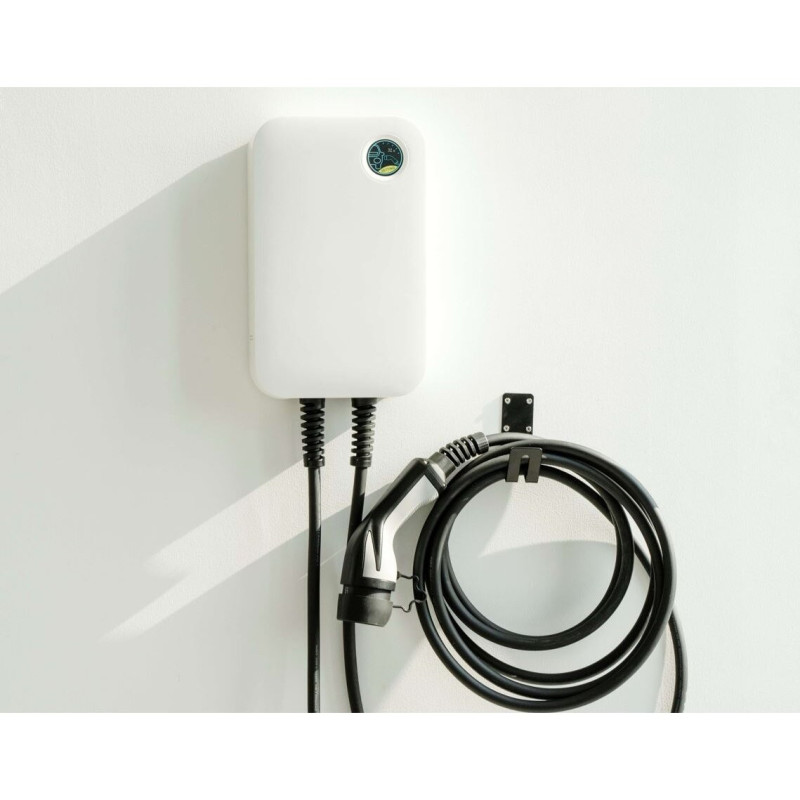

WB20 charging station 3-phase, 11 kW with type 2 cable - 5m long.

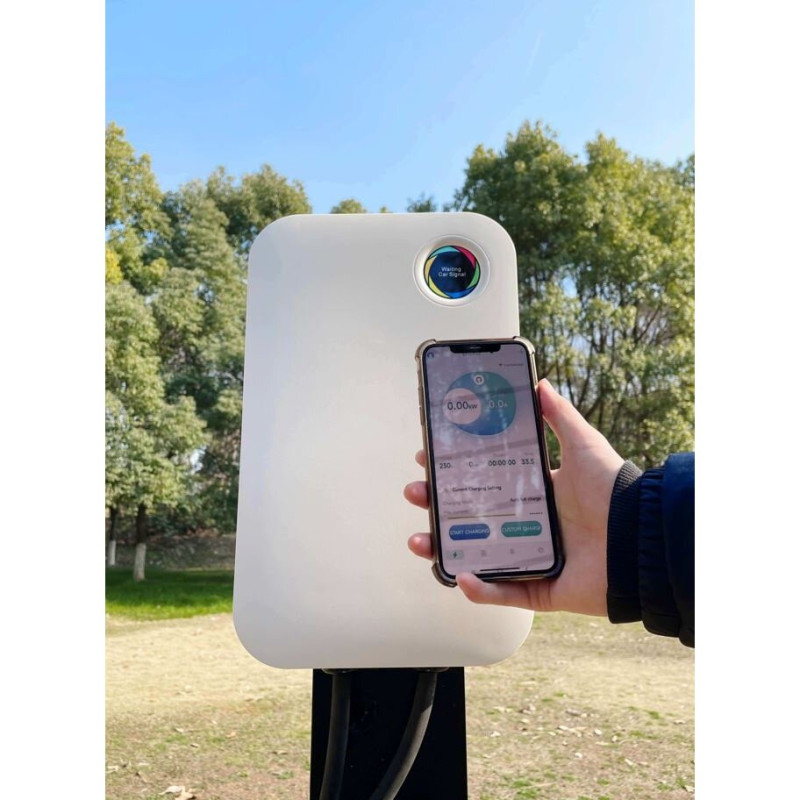

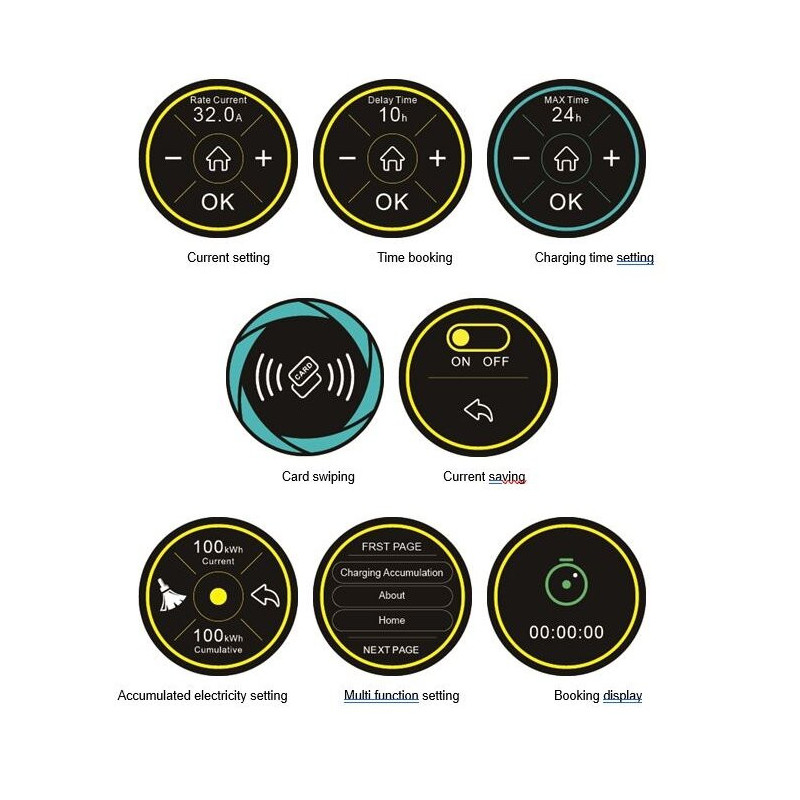

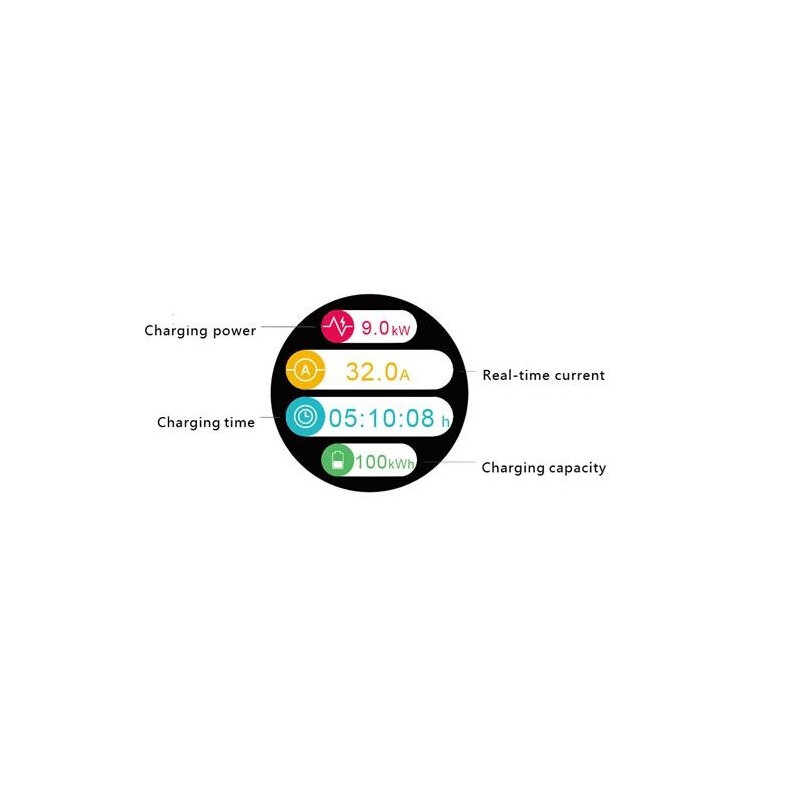

It is very convenient to control charging functions, such as duration, power and other settings, and see consumption history via the LCD screen. The station can be controlled via Wi-Fi and an app.

Body material: ABS+PC Plastic body

The power cord is connected from the bottom of the station

Charging interface Charging connector

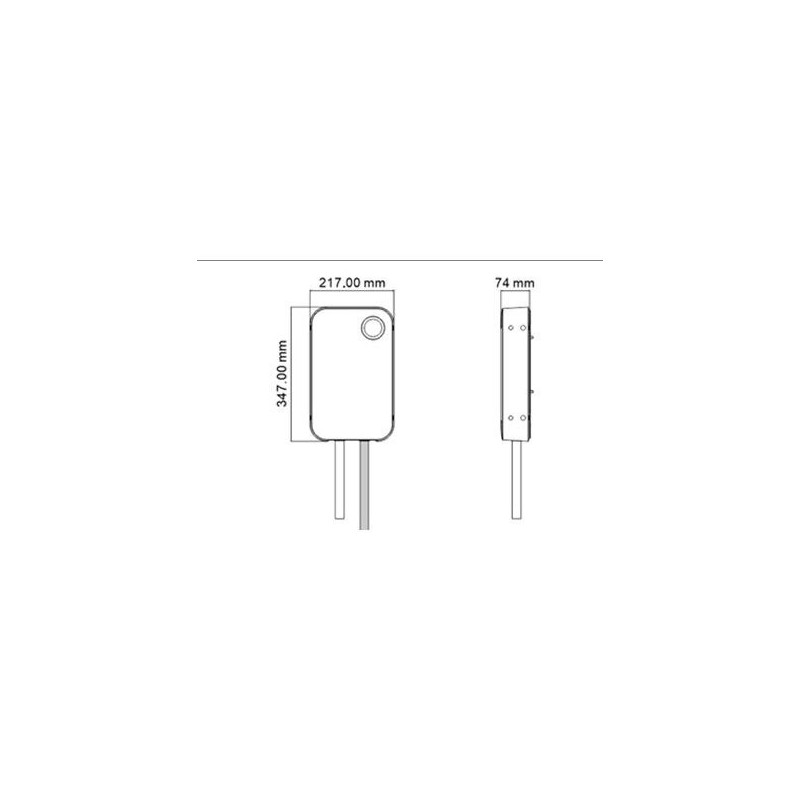

charging station dimensions 347*217*74mm

Weight 5-9kg

input voltage 230V/400V AC Three-phase five-wire system
(phase A, phase B, phase C, neutral, PE)

Input current 16A

Frequency 50Hz /60Hz

Maximum power 11 KW

Measurement function Yes

Measurement accuracy class 2

Output voltage 230V/400V AC

Output current 16 A

Standby power ≤10W

Standard EN 61851-1:2019

MTBF 100,000 hours

Operating temperature -25 ～+55

Operating humidity 5%～95%

Altitude ＜2000m

IP rating IP66

Security guards:

Surge protection Yes

Low voltage protection Yes

Overload protection Yes

Short circuit protection Yes

Leakage protection Yes

Ground fault protection Yes

Overheating protection Yes

Lightning protection Yes

LED light Yes

RFID Only available with RFID version

APP is only available with APP version

Touchscreen Yes

OUR PRACTICAL ADVICE

If you have a single-phase charging electric car or a plug-in hybrid car (which accept up to 7kW per 1 phase), It is important to choose the right charging station to ensure the most efficient charging. EVvaidai recommends choosing 22 kW electric car charging station.

Even when using single-phase charging, a 22 kW station will allow you to optimally use the available three-phase electrical input. In this case, if your electrical input is three-phase (22 kW) and the station is also 22 kW, you can achieve approximately 7 kW charging power.

This is an efficient and productive solution for those seeking maximum charging power for their electric or hybrid car.
