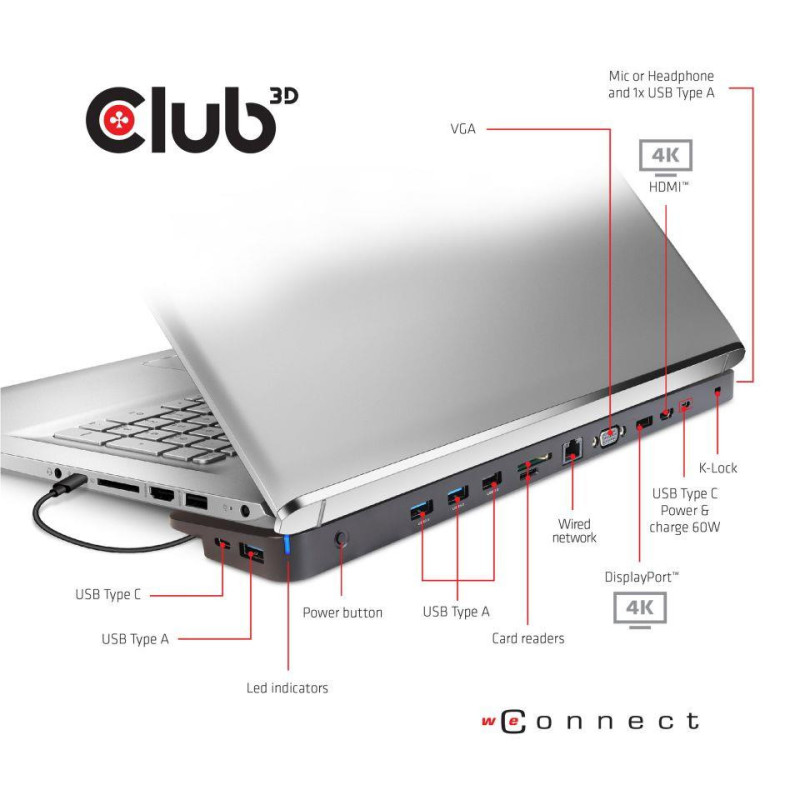

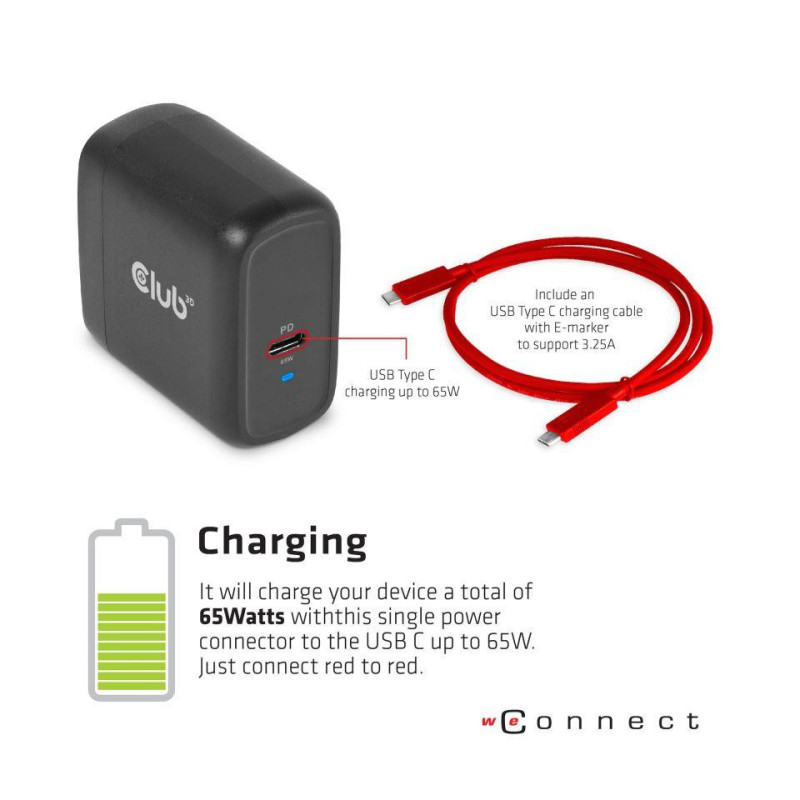

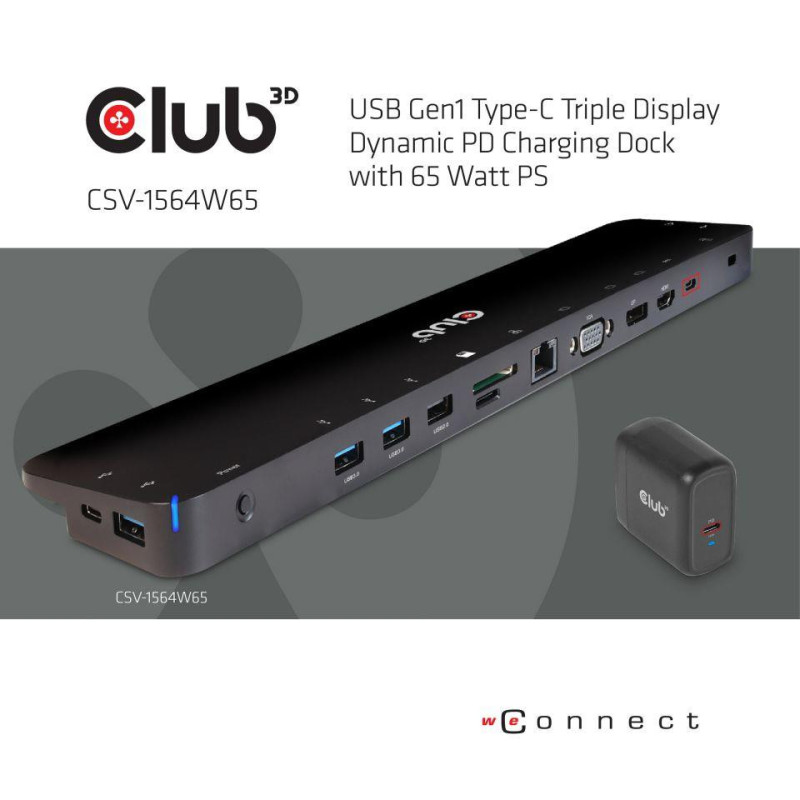

The Club 3D CSV-1564W65 USB Gen1 Type-C Triple Display Dynamic PD Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travelers. The Three different Video ports (HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images or videos on 3 different displays simultaneously under MST mode. The USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the host. The USB Type-C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD power Adapter, no need to carry your notebooks' power supply. So in general the user is traveling lighter. The Micro SD and SD/MMC ports allow you to read the information in the memory card onto the host. The 3.5mm audio port allows enjoying the music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP Alt mode supported hosts (PC, laptop, mobile phone, etc.), Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power. For Video Signal the source device needs to support DisplayPort™ Alt Mode.
| Aukštis | 20 mm |
| Ausinių jungtis | 3,5 mm |
| Bruto svoris | 0.56 kg |
| Darniosios sistemos (DS) kodas | 8473 3020 |
| Eterneto LAN duomenų perdavimo norma | 1000 Mbit/ai |
| Ethernet LAN (RJ-45) portų kiekis | 1 |
| Ethernet LAN jungtis | Taip |
| HD tipas | 4K Ultra HD |
| HDMI portų kiekis | 1 |
| Ilgis | 75 mm |
| Integruotas kortelių skaitytuvas | Taip |
| Jungtinis ausinių / mikrofono prievadas | Taip |
| Kiekis pakuotėje | 1 vnt |
| Kintamosios srovės adapteris | Taip |
| Maitinimas | 100 W |
| Maitinimo jungtis | C tipo USB |
| Maitinimo šaltinio tipas | AC |
| Maksimali skaitmeninė raiška | 4096 x 2160 pikseliai |
| Maksimalus atnaujinimo dažnis | 60 Hz |
| Mikrofonas, line-in jack | Ne |
| Model | CSV-1564W65 |
| Neto svoris | 0.372 kg |
| Palaikomos MAC operacinės sistemos | Taip |
| Palaikomos "Windows" operacinės sistemos | Taip |
| Plastikinės pakuotės svoris | 5 g |
| Plotis | 350 mm |
| Popieriaus / kartono pakuotės svoris | 239 g |
| Pridėti kabeliai | C tipo USB |
| Priimančioji sąsaja | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Produkto spalva | Juoda |
| Ryšio technologija | Prijungimas |
| Shipping Box Depth | 37.5 cm |
| Shipping Box Height | 8 cm |
| Shipping Box Weight | 0.56 kg |
| Shipping Box Width | 11 cm |
| Suderinamos atminties kortelės | MicroSD (TransFlash) |
| Summary | CLUB3D UNIVERSAL USB Gen1 Type-C Triple Display Dynamic PD Charging Dock with 65 Watt PS ( VGA, HDMI, DP, ETHERNET). Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, Headphone connectivity: 3.5 mm. Ethernet LAN data rates: 1000 Mbit/s, Copper ethernet cabling technology: 1000BASE-TX, Networking standards: IEEE 802.3. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), HD type: 4K Ultra HD. Power source type: AC, Power connector: USB Type-C, Power supply: 100 W. Width: 350 mm, Depth: 75 mm, Height: 20 mm |
| Svoris | 616 g |
| Tinklo standartai | IEEE 802.3 |
| Unit Box Height | 0.08 |
| Unit Box Length | 0.375 |
| Unit Box Width | 0.11 |
| Unit Brutto Volume | 0.0033 cubm |
| USB 2.0 portų kiekis | 2 |
| USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius | 2 |
| USB 3.2 (3.1 1 kart.) C tipo prievadų skaičius | 2 |
| Varinių eterneto kabelių technologija | 1000BASE-TX |
| Vendor Homepage | https://www.club-3d.com/en/detail/2576/usb_gen1_type_c_triple_display_dynamic_pd_charging_dock_with_65_watt_ps/ |
| VGA (D-Sub) portų kiekis | 1 |
| Vieneto aukštis | 8 cm |
| Vieneto gylis | 37.5 cm |
| Vieneto plotis | 11 cm |
| Vienetų skaičius vienoje siuntimo dėžėje | 1 |
| "DisplayPort" kiekis | 1 |
| "USB Power Delivery" | Taip |
| "USB PowerShare" | Taip |
