NB ACC DOCKING STATION 10IN1 / USB-C 140W CSV-2550 CLUB3D
Product reference:
2-8719214473389
NB ACC DOCKING STATION 10IN1 / USB-C 140W CSV-2550 CLUB3D
Product reference:
2-8719214473389
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 5
business days

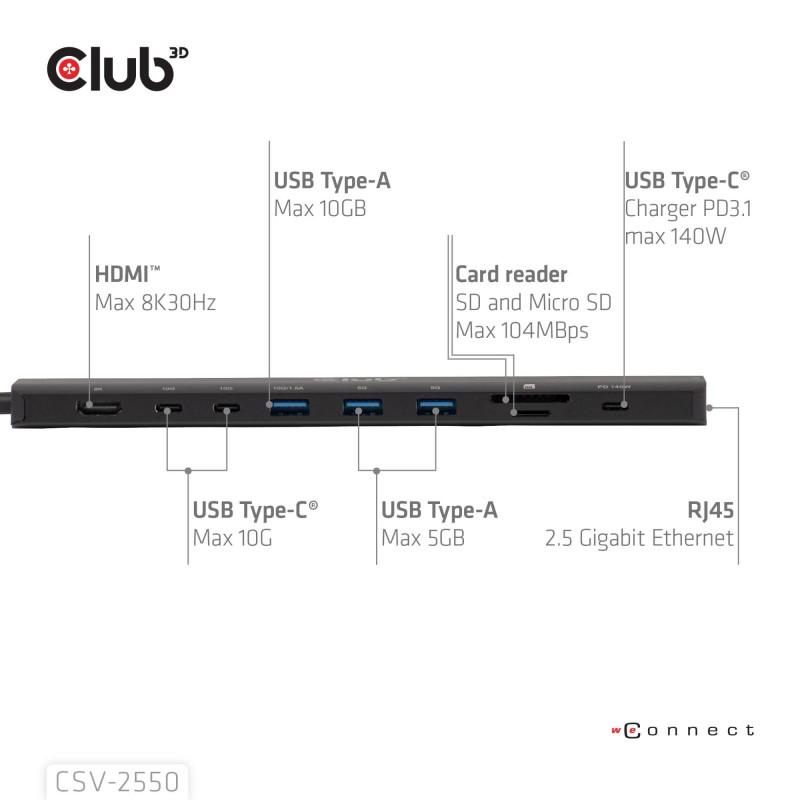

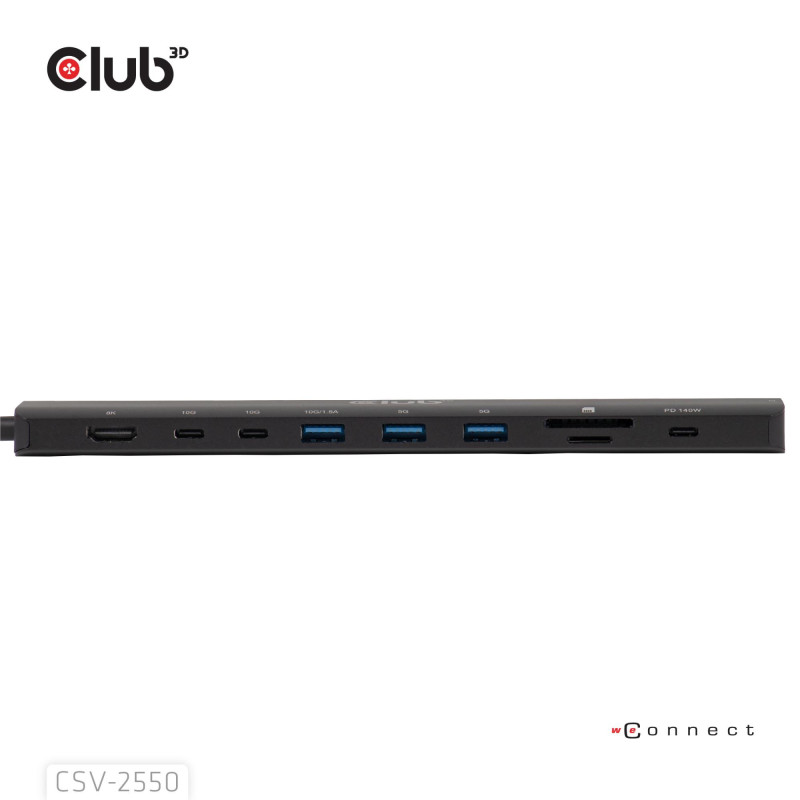

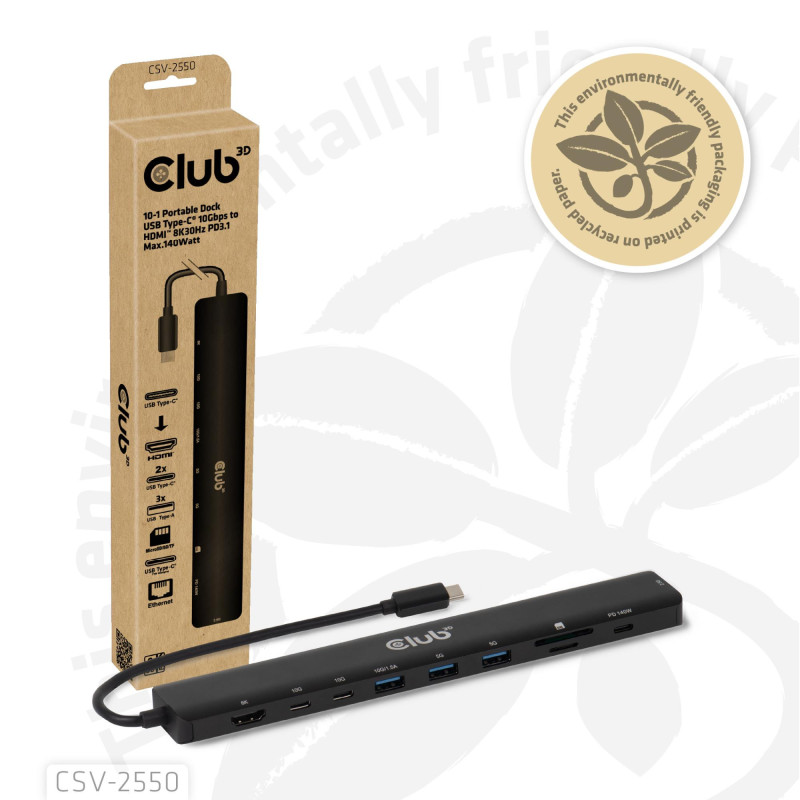

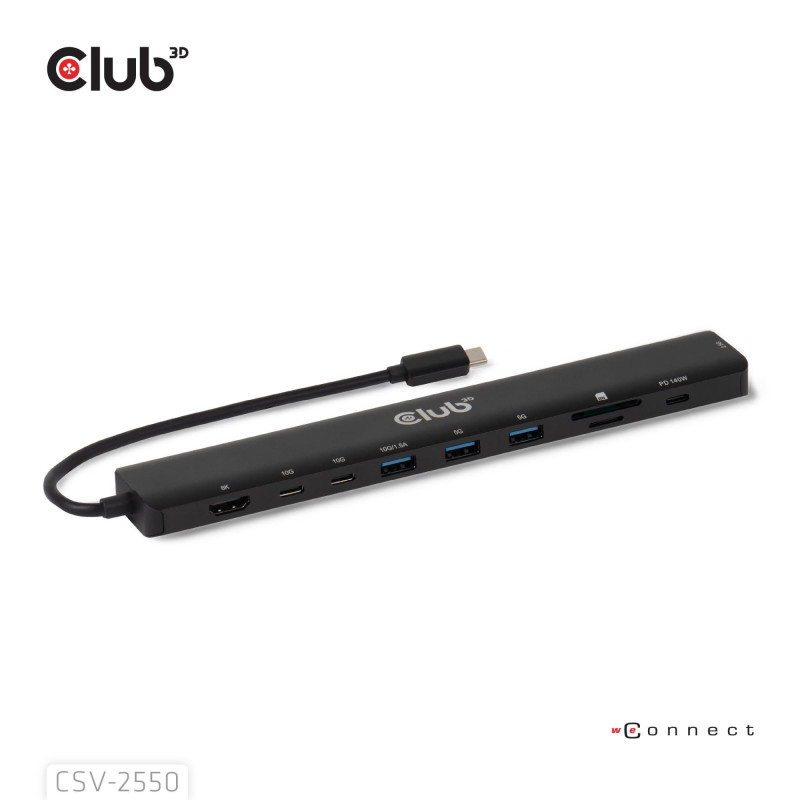

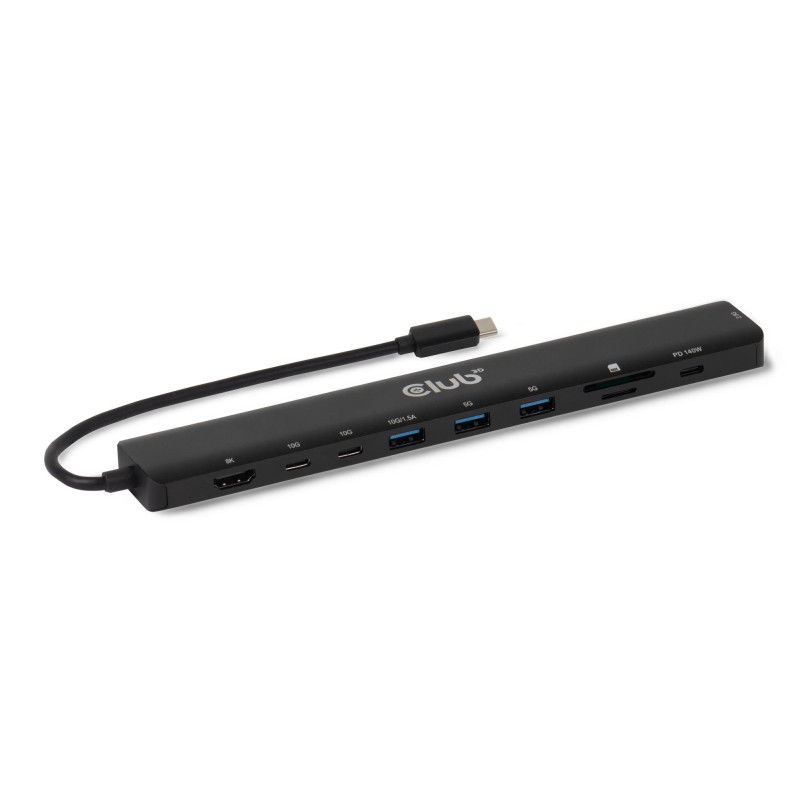

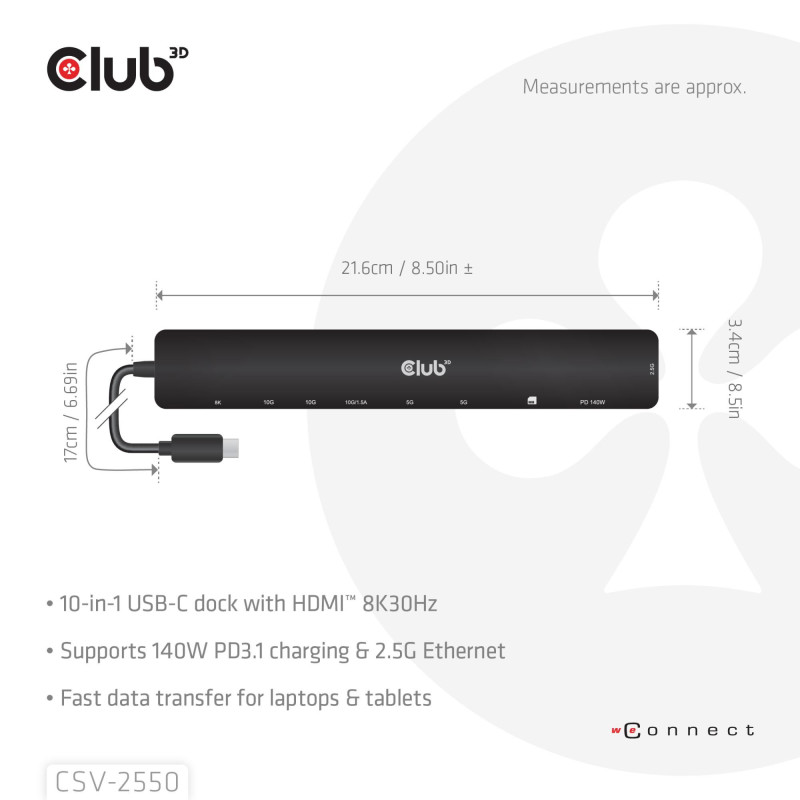

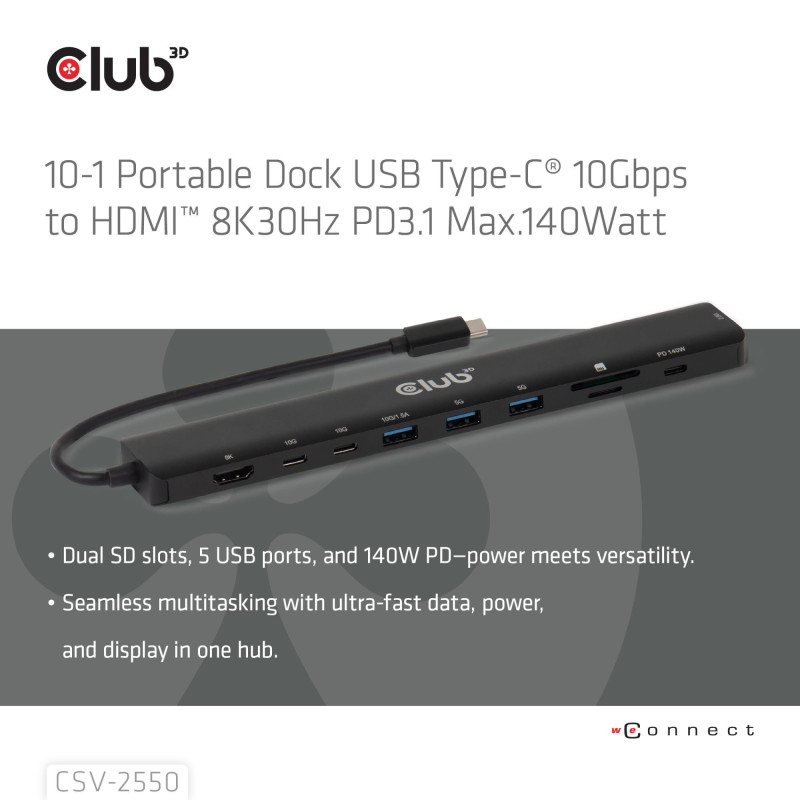

The Club 3D CSV-2550 is a 10-1 Portable Dock USB-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt, providing an ideal solution for extending the port of USB-C® or Thunderbolt™® host (PC/Laptop/Mobile phone, etc.), especially for those host with a single USB-C® port. This hub enables to output HDMI™ with max 8K30Hz or 4K144Hz high refresh rate for more natural and smoother visual experience at the meanwhile transfer USB 10Gbps data. 3x USB Type-A and 2x USB-C® data ports allow you to connect 5 USB devices simultaneously. SD/Micro SD allow to insert 2 card slots simultaneously for data transmission or for reading/writing information on the host. RJ45 port allows the host to get access to 2.5 Gigabit Ethernet. Besides, the USB-C® female supports PD 3.1 with max 140W PD Charging. It can work on all DP Alt mode supported USB-C® hosts.
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash)/SD |
| Compliance certificates | CE/Federal Communications Commission (FCC)/RoHS |
| Connectivity technology | Wired |
| Data transfer rate | 10 Gbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10/100/1000/2500 Mbit/s |
| Harmonized System (HS) code | 8473 3020 |
| HD type | 8K Ultra HD |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Host interface | USB Type-C |
| Maximum digital resolution | 7680 x 4320 pixels |
| Maximum refresh rate | 120 Hz |
| Microphone in | No |
| Model | CSV-2550 |
| Package depth | 32 mm |
| Package height | 35 mm |
| Package weight | 154 g |
| Package width | 70 mm |
| Paper/cardboard packaging weight | 42 g |
| Plastic packaging weight | 3 g |
| Power connector | USB Type-C |
| Power source type | USB |
| Product colour | Black |
| Quantity per pack | 1 pc(s) |
| Summary | CLUB3D 10-1 Portable Dock USB Type-C® 10Gbps to HDMI™ 8K30Hz PD3.1 Max.140Watt. Connectivity technology: Wired, Host interface: USB Type-C, USB Power Delivery up to: 140 W. Ethernet LAN data rates: 10,100,1000,2500 Mbit/s. Product colour: Black, Compatible memory cards: MicroSD (TransFlash), SD, Data transfer rate: 10 Gbit/s. Power source type: USB, Power connector: USB Type-C, USB cable length: 0.19 m. Weight: 109 g |
| Unit Box Height | 0.35 |
| Unit Box Length | 0.07 |
| Unit Box Width | 0.035 |
| Unit Calculated Volume | 0.0008575 cubm |
| Unit Calculated Weight | 0.16 kg |
| Units per Shipping Box | 1 |
| USB 3.0 | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB cable length | 0.19 m |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 W |
| Vendor Homepage | https://www.club-3d.com/shop/csv-2550-1406#attr=1313,1314,1315,1316,1317,1318,1320,1321,1322,1323,2169,2570,2829,1324,1325 |
| Weight | 109 g |
