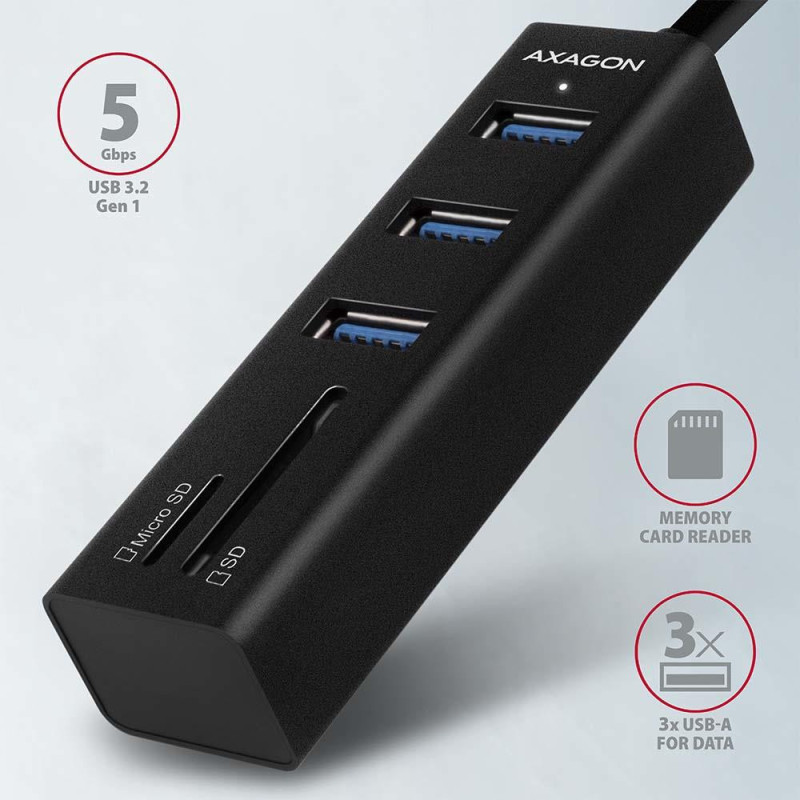

Metal USB 3.2 Gen 1 (USB 3.0) multi-port hub AXAGON HMA-CR3A connects up to three USB devices to laptop or computer and also adds SD / microSD card reader.

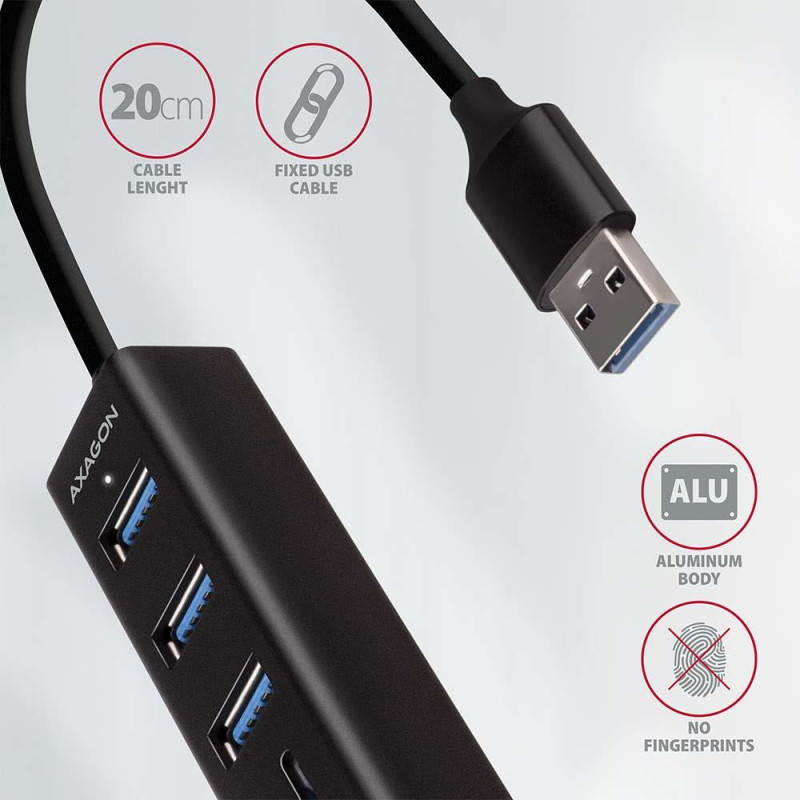

The metal hub body is made of aluminum and provides perfect mechanical protection for frequent carrying. Elegant finely structured body surface against fingerprint. Rubber pads prevent slipping up on the table. Permanently fixed 20 cm long USB cable is ideal for users of mobile devices.

This compact multiport hub also handles the permanent connection of several external drives. Thanks to the fast USB 3.2 Gen 1 interface is transfer speed up to 5Gb/s. The hub will also charge phones and tablets with a current up to 1.5A/5V. So hub can easily charge an Android smartphone, Apple iPhone, Apple iPad etc.

Card reader supports all current versions of SD and microSD cards including SDXC and microSDXC with capacity up to 2TB. High data transfer speed ensured by USB 3.2 Gen 1 interface. The card reader enables simultaneous handling of cards in both slots and direct copying between them.

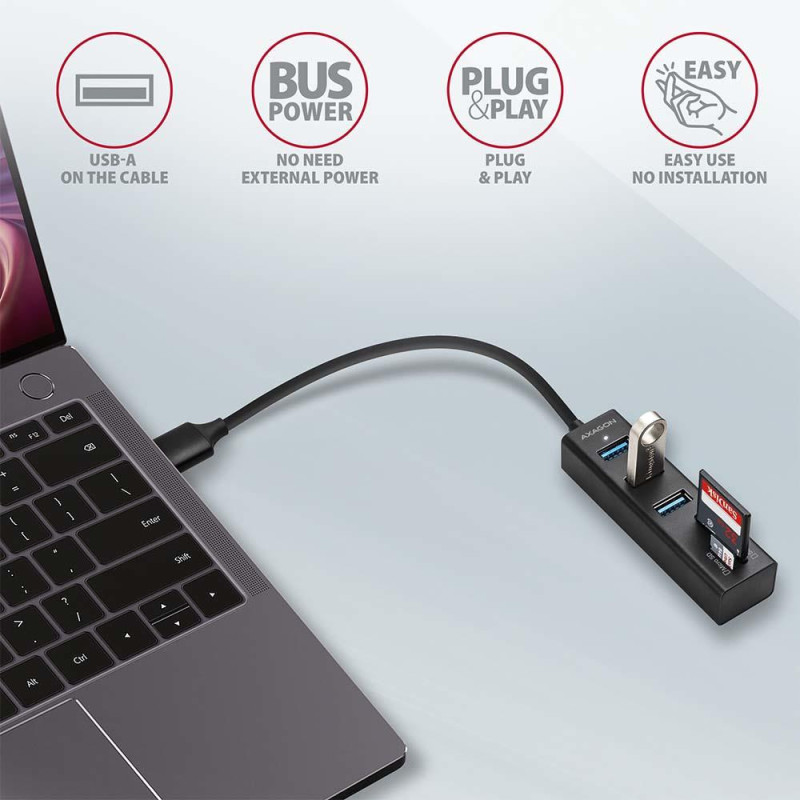

The USB multi-port hub is the ideal accessory for ultrabooks with a small number of USB-A ports and missing card reader. The hub does not even frighten to connect with phones using the appropriate OTG or USB-A > USB-C adapter. You can connect a flash drive, keyboard, mouse and card reader to your phone or tablet.

Input:
• 1x USB 3.2 Gen 1 / SuperSpeed USB port, USB-A male connector.
• Backward compatible with USB 3.1 Gen 1 / USB 3.0 / USB 2.0 and USB 1.1.
• Connecting USB type A male connector on a fixed 20 cm long cable.

Output:
• 3x SuperSpeed USB port, USB-A female connectors.
• Support transfer rates 5.000 / 480 / 12 / 1.5 Mb/s (SuperSpeed / High / Full / Low speed).
• The total bandwidth / transfer rate of the box is given by the USB 3.2 Gen 1 interface (theoretically up to 5 Gbit/s).
• USB hub handle the permanent connection of several external drives.

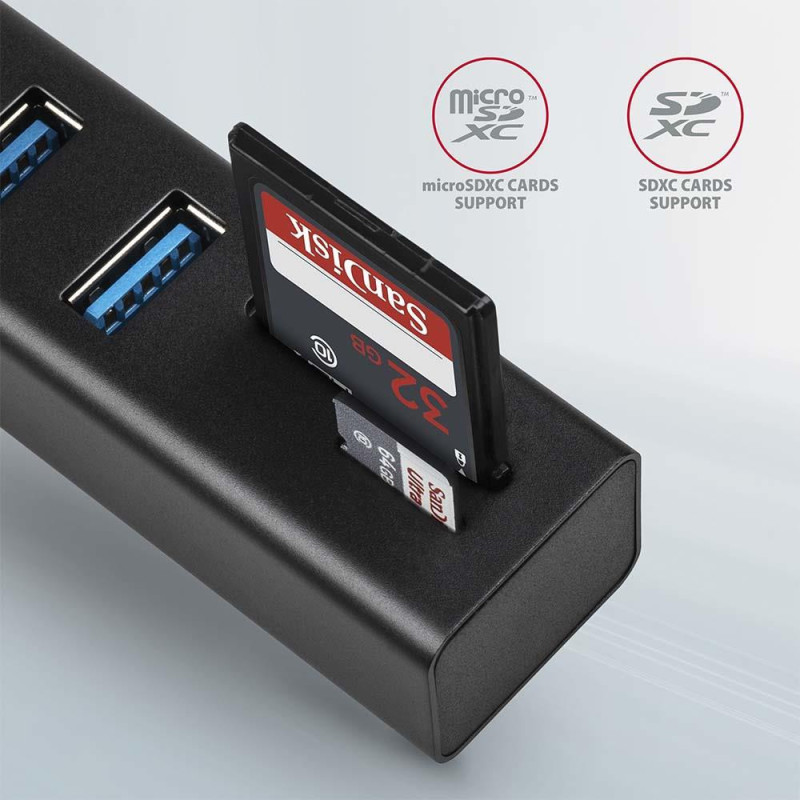

Card reader - two slots:
• Micro SD slot: microSD / microSDHC / microSDXC / TransFlash,
• SD slot: SecureDigital / SDHC / SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, with adapter - miniSD, microSD / microSDHC / microSDXC, MMC Micro.

The reader supports the following flash card specifications:
• SD 1.0 / 1.1 (SD - Secure Digital, up to 2GB).
• SD 2.0 (SDHC - Secure Digital High Capacity, up to 32GB).
• SD 3.0 (SDXC - Secure Digital eXtended Capacity, up to 2TB).
• MMC and eMMC 3.x / 4.0 / 4.1 / 4.2 / 4.3 / 4.4 / 4.5 / 5.0 (8-bit).
• Support for SD 3.01 and SD Jukebox applications (CPRM functions).
• Ultra High Speed UHS-I support (SDR12/SDR25/SDR50/DDR50/SDR104) speeds up to 104 MB/s.
• Supports ECC (Error Correction Code) function and CRC (Cyclic Redundancy Check) function.
• 2 LUN - in file managers, the reader is indicated as two disk drives.
• FAT 12 / 16 / 32, NTFS, exFAT (FAT 64) file formats support.

Other features:
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• Sleep mode support.
• The high quality shielded cable ensures high communication speed and minimal undesirable interference.
• White LED indicates the connection to the computer's USB port.
• Power supply via USB bus (USB bus power).
• Dimensions 84 x 24 x 18 mm.
• Weight 42 g (incl. cable).
• USB cable length 20 cm.

Power / Charging:
• USB power is sufficient to connect low-power USB devices (mouse, keyboard, card reader, flash drive, etc.) or self-powered (printer, scanner, 3.5" external drive) to all four ports.
• The USB hub can also handle the permanent connection of several external drives simultaneously.
• Charge mobile devices (including iPad) with current up to 1.5A in each of the hub ports. The total charging current (which is divided into ports) reaches up to 2.8A at 5V (depending on the capabilities of the computer's USB port).

Supported OS:
• MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32 and 64-bit versions of Windows OSs), MacOS X 10.4.x and later, Linux with kernel 2.6.x and later, Android most versions.
• Note: Drivers are included with supported operating systems and are installed completely automatically. No other drivers need to be installed and are not even available.

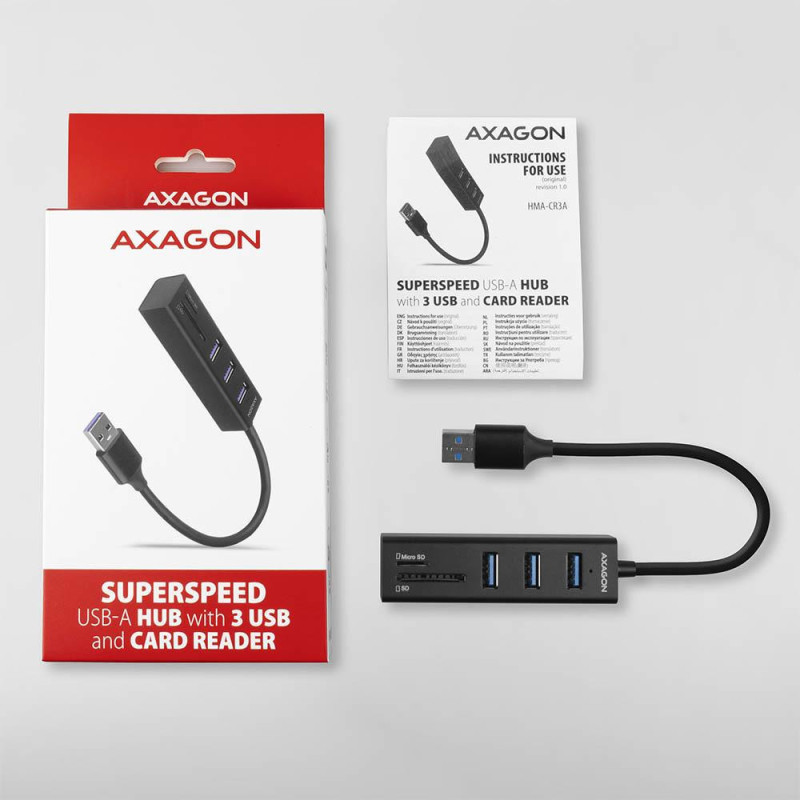

Package contains:
• SuperSpeed USB multi port hub with fixed 20 cm long USB cable,
• printed installation manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,

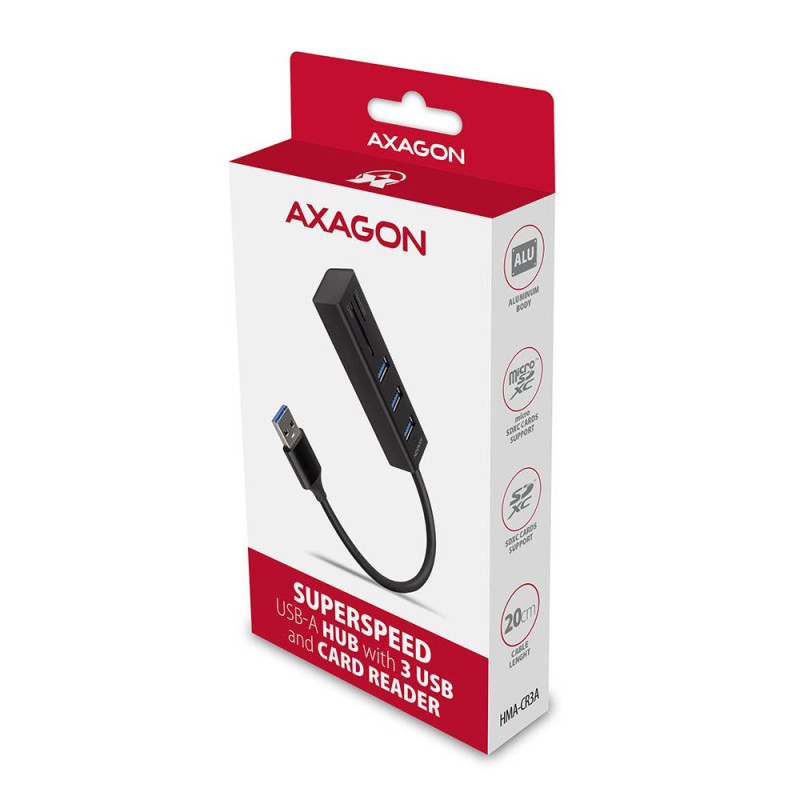

• packed in a cardboard box with a hanging hole.


Atitikties sertifikatai RoHS
Aukštis 84 mm
Bruto svoris 0.09 kg
Duomenų perdavimo sparta 5 Gbit/s
Ethernet LAN jungtis Ne
Garantinis laikotarpis 2 metai
Hot-Plug palaikymas Taip
Ilgis 18 mm
Instrukcija Taip
Integruotas kortelių skaitytuvas Taip
Jungtinis ausinių / mikrofono prievadas Ne
Kabelio ilgis 0.2 m
Kabelio tipas Round cable
Kiekis pakuotėje 1 vnt
Kilmės šalis Kinija
Kitos palaikomos operacinės sistemos Taip
Korpuso medžiaga Aliuminis
LED indikatoriai Taip
Lizdo sąsajos USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Maitinimo jungtis USB A tipo
Maitinimo šaltinio tipas USB
Mikrofonas, line-in jack Ne
Model HMA-CR3A
Modelio suderinamumas Universalus
Neto svoris 0.042 kg
Paketo svoris 78 g
Pakuotės aukštis 203 mm
Pakuotės gylis 28 mm
Pakuotės plotis 100 mm
Palaikoma operacinė sistema "Linux" Taip
Palaikomos MAC operacinės sistemos Taip
Palaikomos mobiliosios operacinės sistemos Taip
Palaikomos serverio valdymo sistemos Taip
Palaikomos "Windows" operacinės sistemos Taip
Plotis 24 mm
Pridėti kabeliai USB A tipo
Priimančioji sąsaja USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Produkto spalva Juoda
Ryšio technologija Vielinis
Sertifikavimas CE, RoHS
Shipping Box Depth 3 cm
Shipping Box Height 20 cm
Shipping Box Weight 0.09 kg
Shipping Box Width 10 cm
Suderinamos atminties kortelės MicroSD (TransFlash)/MicroSDHC/MicroSDXC/MiniMMC/MiniSD/MiniSDHC/MMC/MMC Mobile/RS-MMC/SD/SDHC/SDXC
Summary Axagon HMA-CR3A Metal USB 3.2 Gen 1 multi-port hub with three USB ports and card reader. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A. Product colour: Black, Compatible memory cards: MMC, MMC Mobile, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniMMC, MiniSD, MiniSDHC, RS-MMC,..., Data transfer rate: 5 Gbit/s. Power source type: USB, Power connector: USB Type-A, USB cable length: 0.2 m. Width: 24 mm, Depth: 18 mm, Height: 84 mm. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 28 mm
Svoris 42 g
Unit Box Height 0.2
Unit Box Length 0.03
Unit Box Width 0.1
Unit Brutto Volume 0.0006 cubm
USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius 3
USB kabelio ilgis 0.2 m
Vendor Homepage https://www.axagon.eu/en/produkty/hma-cr3a
Vieneto aukštis 20 cm
Vieneto gylis 3 cm
Vieneto plotis 10 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
Įmontuotas mikrofonas Ne
Įmontuotas ventiliatorius Ne
Įmontuoti garsiakalbiai Ne
"Plug and Play" funkcija Taip
"USB Power Delivery" Ne
