I / O HUB USB-C 6IN1 / 0.2M HMC-6H4A AXAGON
Product reference: 2-8595247907028

I / O HUB USB-C 6IN1 / 0.2M HMC-6H4A AXAGON

Product reference: 2-8595247907028
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
29,63 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

Multiport USB-C 3.2 Gen 1 hub AXAGON HMC-6H4A expands your laptop, computer or phone with six ports. You can easily and quickly connect up to four USB devices and HDMI display to your computer at the same time via the double-sided USB-C connector. You also get the possibility to supply laptop using Power Delivery technology. The USB-C hub will provide you with a simple and compact 6in1 docking station for notebook like MacBook Pro.

The USB hub offers four USB outputs with standard USB-A connectors. The hub can also handle permanent connection of several external drives simultaneously. Transfer rate up to 5Gb/s thanks to the fast USB 3.2 Gen 1 interface.

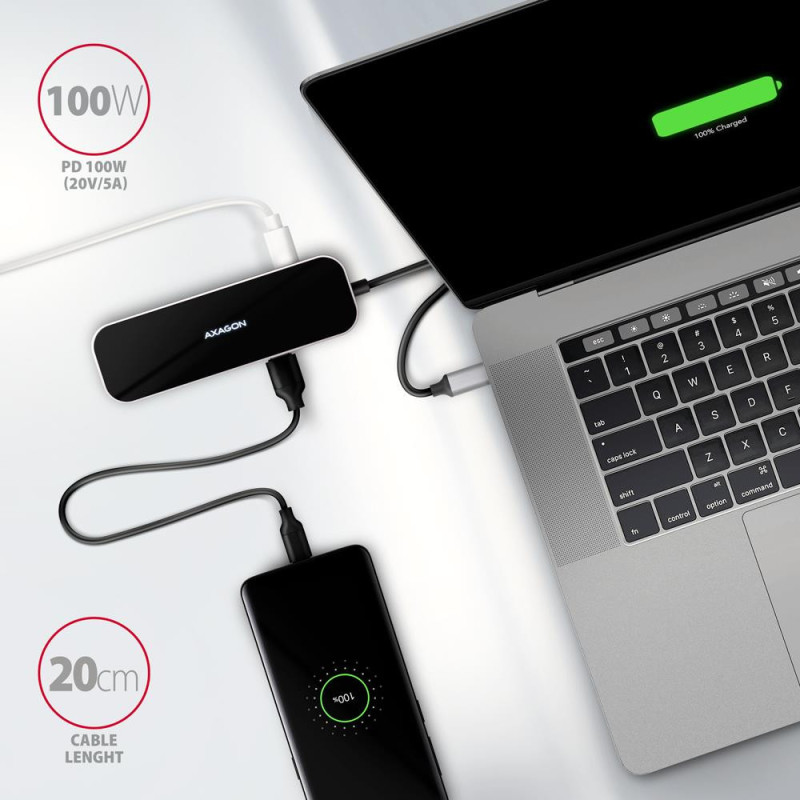

USB-C connector is dedicated to power up a mobile phone or laptop using Power Delivery 3.0 technology by power up to 100W. Connect the USB-C Power Delivery charger to the hub and connect the hub to the laptop. This saves one USB-C port. The condition is a laptop with Power Delivery charging support from the USB-C port and a suitable PD charger.

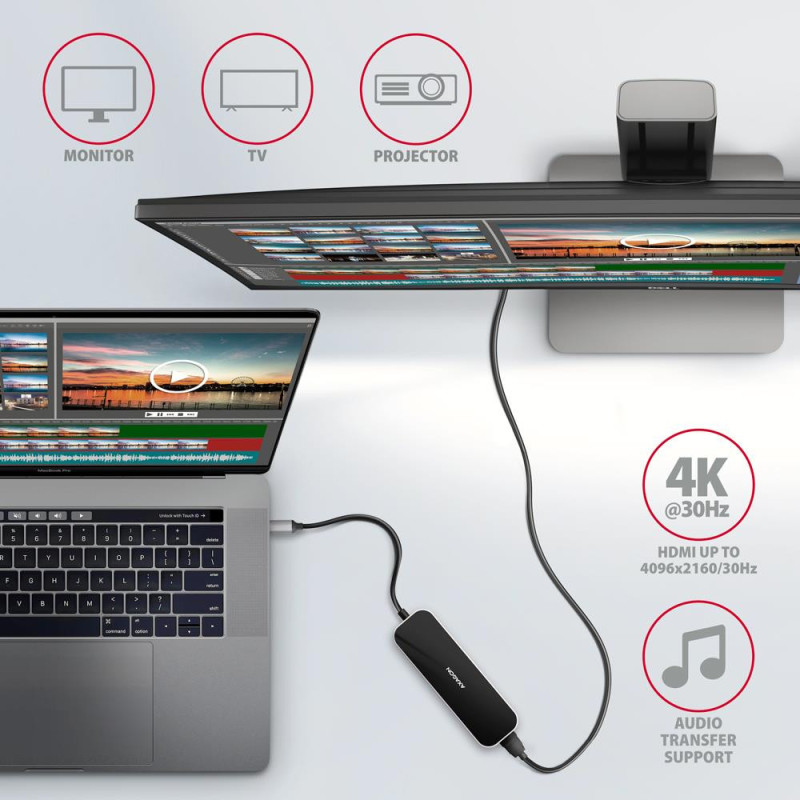

HDMI output provides high quality image up to 4K/30Hz Ultra HD resolution and supports multi-channel audio transmission. Popular gaming resolution WQHD 2560 x 1440px at 60Hz or FullHD 1920 x 1080px at 60, 100 and 120Hz max. are also supported. DisplayPort Alternate Mode (DP Alt Mode) enabled USB-C port or Thunderbolt 3 port is necessary for the proper function of video output.

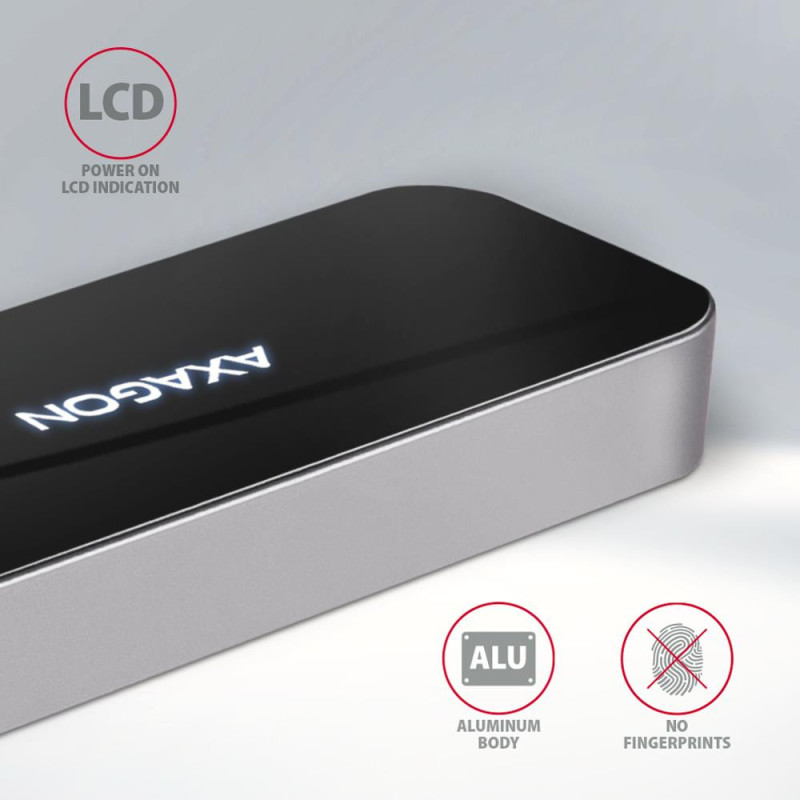

Elegant aluminum body ensures mechanical resistance and quality cooling. The glossy upper part with a decent backlit logo underlines the premium look of the hub.

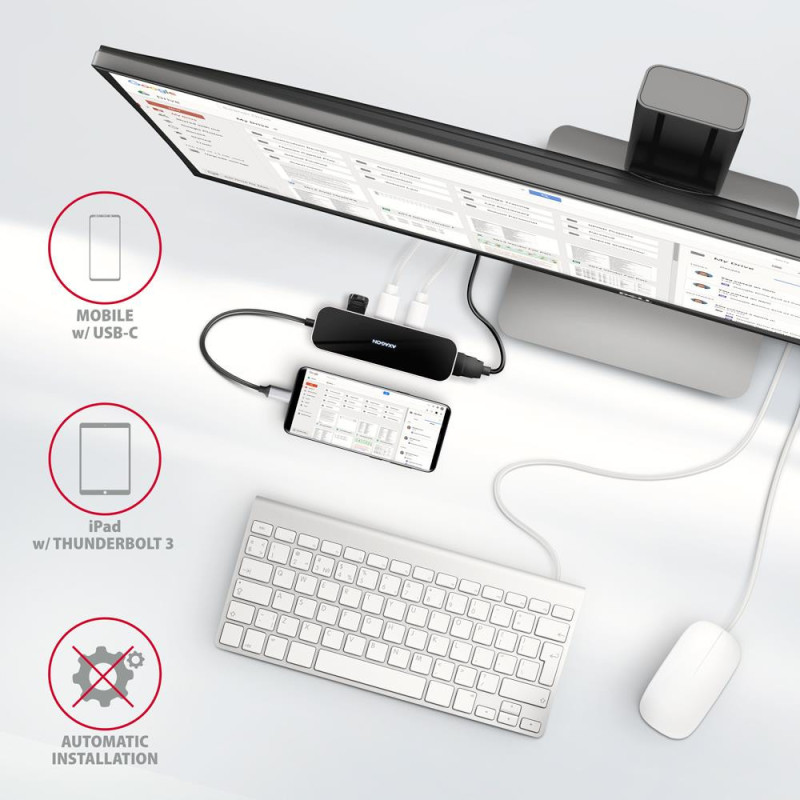

Port replicator is an ideal accessory for laptops without USB-A connectors and video output. You can use your current USB peripherals without having to purchase new ones. Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is very simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running. The hub does not afraid of connection to phones with a USB-C connector. You can connect a flash drive, keyboard, mouse, monitor, TV or projector to your phone.

Input:

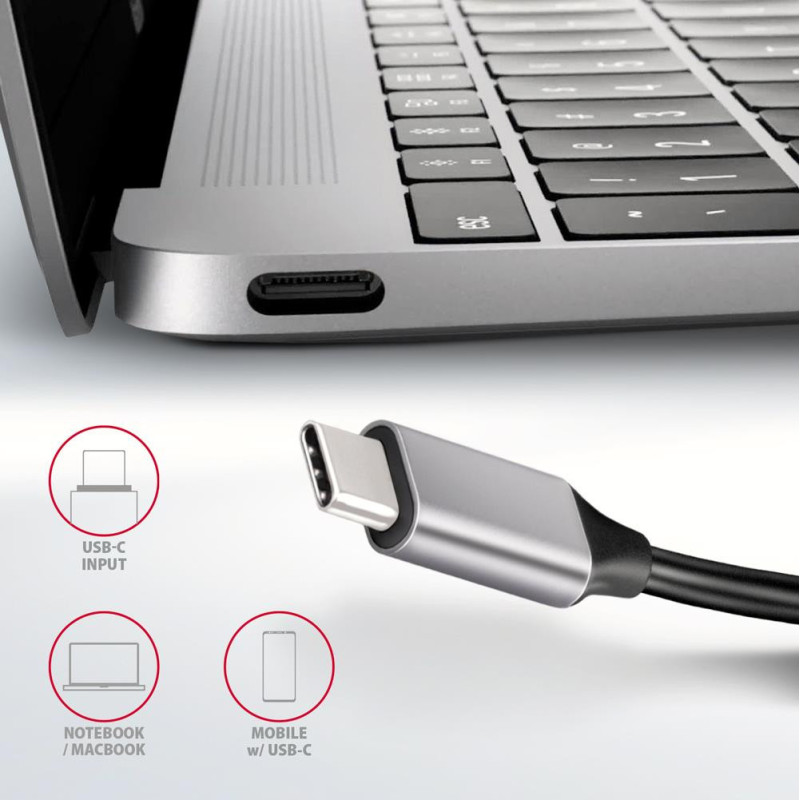

• 1x USB 3.2 Gen 1 / SuperSpeed USB port, USB-C male connector.
• Backward compatible with USB 3.1 Gen 1 / USB 3.0 and USB 2.0.
• Compatible with Thunderbolt 3.
• Connecting USB type C male connector on a fixed 20cm long cable.

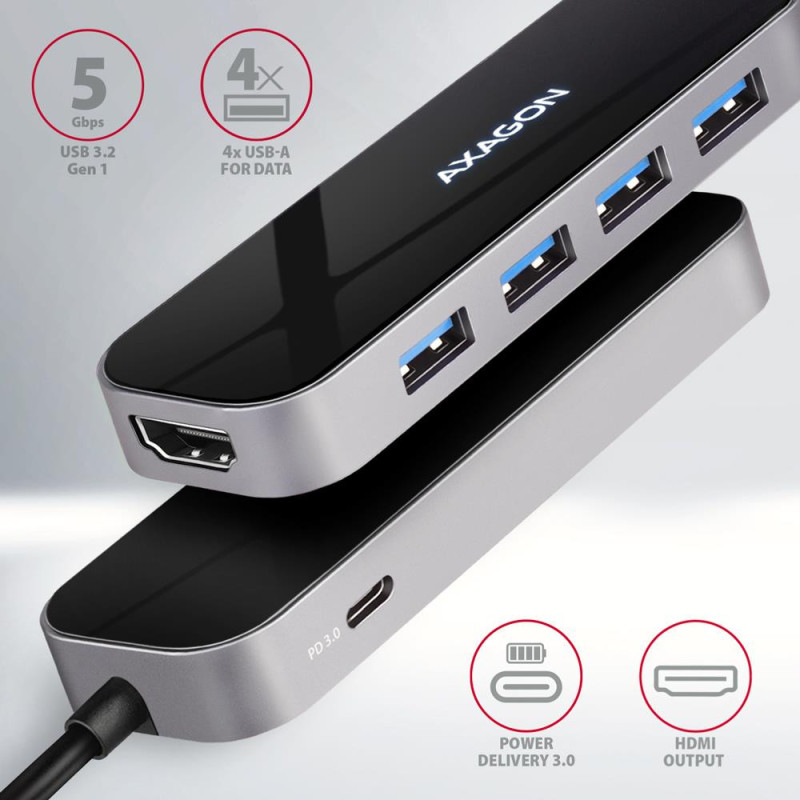

USB outputs:
• 4x SuperSpeed USB port, USB-A female connector.
• 1x USB type C Power Delivery port (only charging), USB-C female connector.
• Supports transmission rates 5.000 / 480 / 12 / 1.5 Mb/s (SuperSpeed / High / Full / Low speed).
• The total bandwidth / transmission rate of the box is determined by the USB 3.2 Gen 1 interface used (theoretically up to 5 Gbit/s).
• USB-C hub can handle the connection of several external drives at the same time.

HDMI output:
• HDMI.
• HDMI A (F) female connector.
• Maximum supported resolution 4K / 4096 x 2160 at 30 Hz.
• WQHD resolution 2560 x 1440 at 60 Hz max.
• FullHD resolution 1920 x 1080 at 60, 100, 120 Hz max.
• DisplayPort Alternate Mode (DP Alt Mode) enabled USB-C port or Thunderbolt 3 port is necessary for the proper function of video output. At the same time, support from the device (laptop, phone) and the operating system is required. The video output function will not be available without these requirements.
• HPD (Hot-Plug-Detect) support.
• TMDS (Transition Minimized Differential Signalling) support.
• HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection) support.
• Support up to 8-channel LPCM audio, compressed audio (AC-3, DTS) and HBR audio formats.
• Support sampling rate up to 192kHz and up to 24-bit audio - depends on source and end device, i.e. laptop/phone and TV/monitor/ AV receiver.

Power Delivery:
• Power Delivery 3.0 support - device power supply from the wall charger via USB-C hub.
• Maximum power supply power via PD USB-C hub output 100W - 20V/5A.
• Required PD support from the device (laptop, phone) and a suitable PD wall charger.

Other features:
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• Standby mode support.
• Power via USB bus - USB bus power or from PD wall charger.
• Heavy-duty aluminum body for better hub cooling. Higher surface hub temperature is not a problem - the heat generated by the hub operation is better dissipated and transferred to the surroundings.
• The backlight of the logo indicates with a permanent glow that the hub is connected to the computer.
• The high quality shielded cable ensures high communication speed and minimal undesirable interference.
• Dimensions 110 x 35 x 12 mm.
• Weight 54 g (incl. cable).
• USB cable length 20 cm.

Supported operating systems:
• Microsoft Windows 10 / 11, Mac OS, Linux, Android and Chrome OS.
Compatibility depends on used OS and support from device manufacturer.
• Note 1: Drivers are included with supported operating systems and are installed automatically. No other drivers need to be installed.
• Note 2: DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (notebook, phone) manufacturer.

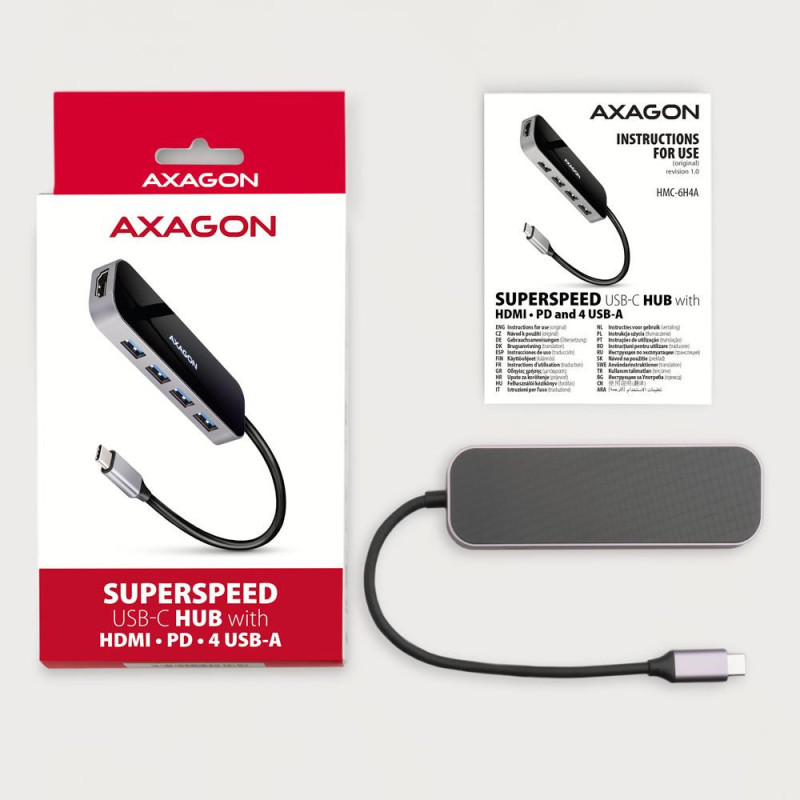

Package contains:
• USB-C hub with fixed 20 cm long cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
• packed in a cardboard box with a hanging hole.


Atitikties sertifikatai CE/RoHS
Aukštis 13 mm
Belaidis įkrovimas Ne
Bruto svoris 0.1 kg
DC įėjimo lizdas Ne
Duomenų perdavimo sparta 5 Gbit/s
Ethernet LAN jungtis Ne
Garantinis laikotarpis 2 metai
HD tipas 4K Ultra HD
HDCP Taip
HDCP versija 1.4/2.3
HDMI portų kiekis 1
HDMI versija 2.3
Hot-Plug palaikymas Taip
Ilgis 35 mm
Instrukcija Taip
Integruotas kortelių skaitytuvas Ne
Jungtinis ausinių / mikrofono prievadas Ne
Kiekis pakuotėje 1 vnt
Kilmės šalis Kinija
Kitos palaikomos operacinės sistemos Taip
LED indikatoriai Taip
Lizdo sąsajos HDMI/USB 3.1 (3.1 Gen 1) Type-A/USB 3.1 (3.1 Gen 1) Type-C
Maitinimo jungtis C tipo USB
Maitinimo šaltinio tipas USB
Maksimali skaitmeninė raiška 4096 x 2160 pikseliai
Maksimalus atnaujinimo dažnis 120 Hz
Mikrofonas, line-in jack Ne
Model HMC-6H4A
Modelio suderinamumas Universalus
Neto svoris 0.054 kg
Paketo svoris 91 g
Pakuotės aukštis 28 mm
Pakuotės gylis 100 mm
Pakuotės plotis 203 mm
Palaikoma operacinė sistema "Linux" Taip
Palaikomos MAC operacinės sistemos Taip
Palaikomos mobiliosios operacinės sistemos Taip
Palaikomos serverio valdymo sistemos Taip
Palaikomos "Windows" operacinės sistemos Windows 10/Windows 11
Plotis 110 mm
Pridėti kabeliai C tipo USB
Priimančioji sąsaja USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Produkto spalva Juoda/Pilka
Ryšio technologija Vielinis
Sertifikavimas CE, RoHS
Shipping Box Depth 3 cm
Shipping Box Height 20 cm
Shipping Box Weight 0.1 kg
Shipping Box Width 10 cm
Summary Axagon HMC-6H4A USB 3.2 Gen 1 hub, 4x USB-A, HDMI 4k/30Hz, PD 100W, 20cm USB-C cable. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 100 W. Product colour: Black, Grey, Data transfer rate: 5 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C, USB cable length: 0.2 m. Windows operating systems supported: Windows 10, Windows 11. Width: 110 mm, Depth: 35 mm, Height: 13 mm
Svoris 54 g
Unit Box Height 0.2
Unit Box Length 0.03
Unit Box Width 0.1
Unit Brutto Volume 0.0006 cubm
USB 3.0 3
USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius 4
USB 3.2 (3.1 1 kart.) C tipo prievadų skaičius 1
USB kabelio ilgis 0.2 m
USB maitinimo tiekimas iki 100 W
USB maitinimo šaltinio peržiūra 3.0
Vendor Homepage https://www.axagon.eu/en/produkty/hmc-6h4a
Vieneto aukštis 20 cm
Vieneto gylis 3 cm
Vieneto plotis 10 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
Įkrovimo funkcija Taip
Įmontuotas mikrofonas Ne
Įmontuotas ventiliatorius Ne
Įmontuoti garsiakalbiai Ne
"Plug and Play" funkcija Taip
"USB Power Delivery" Taip
"USB Type C DisplayPort Alternate Mode" Taip
