I / O HUB USB-C 5IN1 / 0.13M HMC-5G21 AXAGON
Product reference: 2-8595247909060

I / O HUB USB-C 5IN1 / 0.13M HMC-5G21 AXAGON

Product reference: 2-8595247909060
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
36,98 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

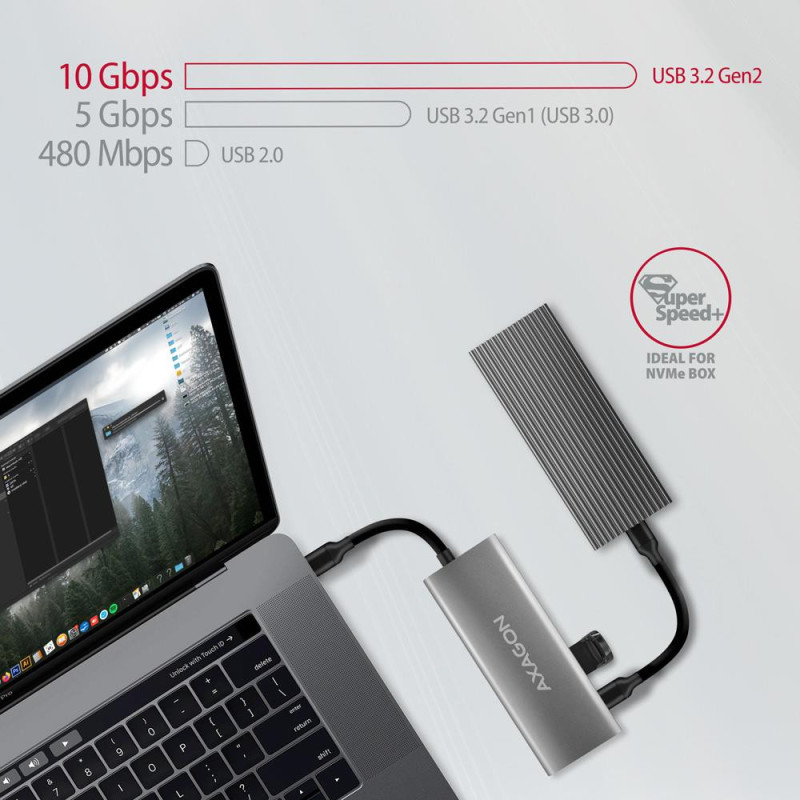

The multi-port USB-C 10Gbps AXAGON HMC-5G21 SPEEDSTER 5in1 hub expands your notebook, computer, or phone with five ports. Connection is made via a 13 cm USB-C cable. This gives you immediate access to a 4K monitor connection and other USB peripherals. It also allows you to power your notebook using Power Delivery technology. Compatibility with Thunderbolt 3/4/5 also provides a simple and compact docking station for laptops like the Apple MacBook Air or Pro.

Two USB-A 10Gbps outputs allow connection of external drives, flash drives, mouse, printer, and other USB accessories. USB ports also charge mobile phones and tablets with a current of up to 1.5A. The hub is also equipped with a combined USB-C port that can be used for data transfer (USB 10Gbps) or for charging a notebook using a Power Delivery charger. With a suitable PD charger, you can power not only your notebook but also the hub itself with up to 60W power using Power Delivery 3.0 technology.

The HDMI output allows connection of an external monitor, TV, or projector with resolutions up to 4K/30Hz Ultra HD, 2K/60Hz Quad HD, or 1080p/120Hz Full HD and multi-channel audio transmission.

For proper video output functionality, the notebook must have a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) or a Thunderbolt 3 and higher port.

The compact and slim aluminum body not only looks great but also ensures mechanical durability and passive cooling. You'll also appreciate the finely textured surface that resists fingerprints.

The USB-C hub is an ideal accessory for laptops without USB-A connectors or video output. This allows you to use your existing USB peripherals without buying new ones. Thanks to Plug and Play and Hot Plug functions, connecting the hub is very simple without complicated installation, and peripherals can be connected or disconnected while the computer is running. The hub can also be connected to phones with a USB-C connector. You can connect a flash drive, keyboard, mouse, monitor, TV, or projector to your phone.

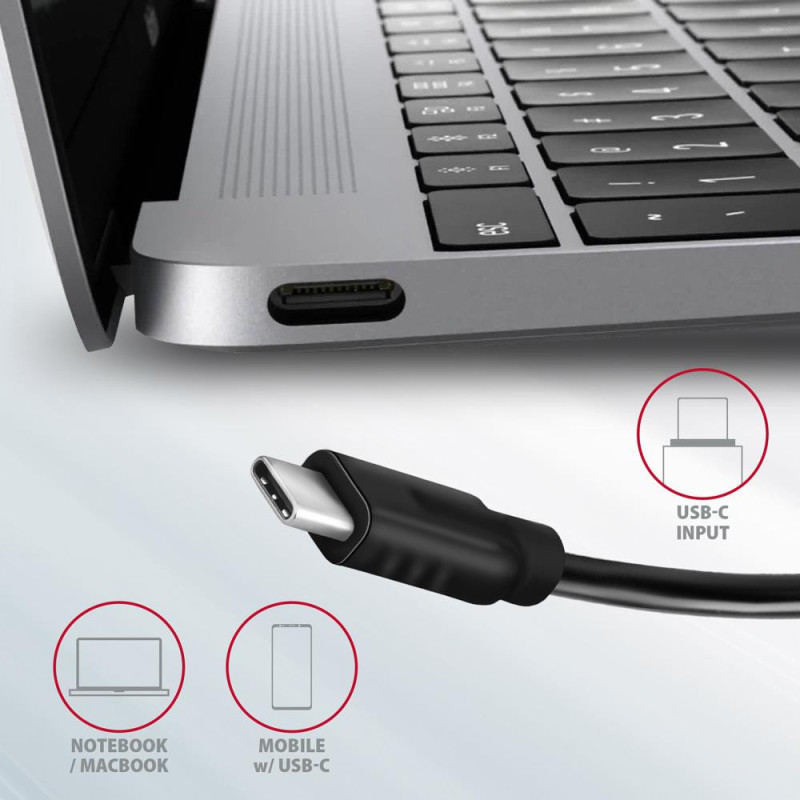

Input (connection to notebook):
• USB 10Gbps (USB 3.2 Gen 2), USB-C male connector.
• Compatible with USB 3.2 Gen 1, USB4, and Thunderbolt 3/4/5.

Input (power):
• USB Power Delivery 3.0 - 60W port, USB-C female connector.
• Notebook power via wall adapter through USB-C hub.
• PD power must be supported by both the notebook (phone) and the charger.

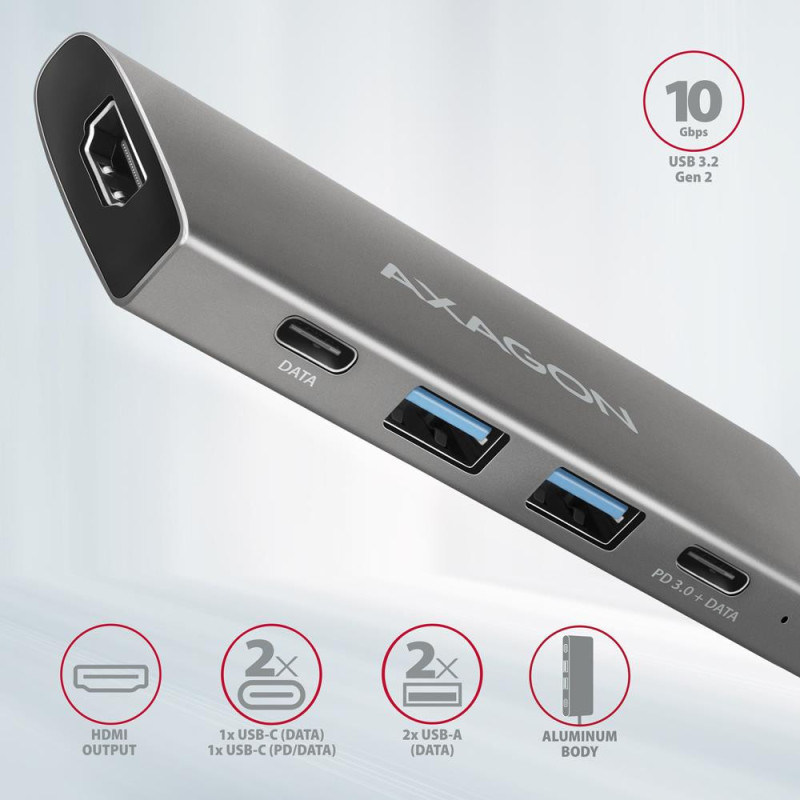

USB outputs:
• 2× USB 10Gbps ports, USB-A female connector.
• 1× USB 10Gbps port, USB-C female connector.
• 1× USB 10Gbps port for data transfer or Power Delivery charging, USB-C female connector.
• The USB-C hub can connect several external drives at the same time.

HDMI output:
• 1× HDMI port, HDMI A female connector.
• 4K / UHD resolution 4096 × 2160 at up to 30Hz.
• 2K / QHD resolution 2560 ×1 440 at up to 60Hz.
• 1080p / FHD resolution 1920 × 1080 at up to 120Hz.
• Support for the above max resolutions and frequencies requires connection to a computer with DisplayPort version 1.4.
• For video output to work, the hub must be connected to a USB-C port that supports DisplayPort Alternate Mode (DP Alt Mode) or to a USB-C port with Thunderbolt 3/4/5 support. A suitable OS is also required. Without this support, the video output will not be available.
• HPD (Hot-Plug-Detect) support.
• TMDS (Transition Minimized Differential Signaling) support.
• Full HDCP 1.4 and 2.2 (High-bandwidth Digital Content Protection) support.
• Support for up to 8-channel LPCM audio.
• Support for sampling rates up to 192kHz and up to 24-bit audio - depends on the source and destination devices, i.e., notebook/phone and TV/monitor/AV receiver.

Other features:
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• Power-saving mode support.
• Power via USB bus - bus power, or PD charger.
• Durable aluminum body for better hub cooling.
• Blue LED indicates hub connection to the computer (steady light), or brighter when connected to a Power Delivery charger.
• High-quality shielded cable ensures high communication speed and minimal interference.
• Dimensions 105 × 40 × 12 mm.
• Weight 60 g (including cable).
• USB cable length 13 cm.

Supported operating systems:
• Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS, and Android.
• Compatibility depends on the operating system and device manufacturer support.
• DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated operating systems and also depends on device support (notebook, phone).
• Proper product functionality may also be affected by graphics card drivers. It is recommended to download the latest drivers.

Package contents:
• USB-C hub with fixed 13 cm cable,
• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA.
• packed in cardboard box with hanging hole.


Atitikties sertifikatai CE/RoHS
Aukštis 12 mm
Belaidis įkrovimas Ne
Bruto svoris 0.09 kg
DC įėjimo lizdas Ne
Duomenų perdavimo sparta 10 Gbit/s
Ethernet LAN jungtis Ne
Garantinis laikotarpis 2 metai
HD tipas 4K Ultra HD
HDCP Taip
HDCP versija 1.4
HDMI portų kiekis 1
Hot-Plug palaikymas Taip
Ilgis 40 mm
Instrukcija Taip
Integruotas kortelių skaitytuvas Ne
Išėjimo srovė 3 A
Jungtinis ausinių / mikrofono prievadas Ne
Kiekis pakuotėje 1 vnt
Kilmės šalis Kinija
Kitos palaikomos operacinės sistemos Taip
Koncentratoriaus svoris 60 g
Korpuso medžiaga Aliuminis
LED indikatoriai Taip
Lizdo sąsajos HDMI/USB 3.2 Gen 1 (3.1 Gen 1) Type-C/USB 3.2 Gen 2 (3.1 Gen 2) Type-A
Maitinimo jungtis C tipo USB
Maitinimo šaltinio tipas USB
Maksimali skaitmeninė raiška 4096 x 2160 pikseliai
Maksimalus atnaujinimo dažnis 120 Hz
Mikrofonas, line-in jack Ne
Model HMC-5G21
Modelio suderinamumas Universalus
Neto svoris 0.06 kg
Paketo svoris 101 g
Pakuotės aukštis 25 mm
Pakuotės gylis 93 mm
Pakuotės plotis 190 mm
Palaikoma operacinė sistema "Linux" Taip
Palaikomos MAC operacinės sistemos Taip
Palaikomos mobiliosios operacinės sistemos Taip
Palaikomos serverio valdymo sistemos Taip
Palaikomos "Windows" operacinės sistemos Taip
Plotis 105 mm
Pridėti kabeliai C tipo USB
Priimančioji sąsaja USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Produkto spalva Pilka
Ryšio technologija Vielinis
Sertifikavimas CE, RoHS
Shipping Box Depth 19 cm
Shipping Box Height 2 cm
Shipping Box Weight 0.09 kg
Shipping Box Width 9.5 cm
Stebulės matmenys (P x G x A) 105 x 40 x 12 mm
Summary Axagon HMC-5G21 USB 10Gbps hub, 2x USB-A, 2x USB-C, HDMI 4k/30Hz, PD 60W, USB-C cable. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 60 W. Product colour: Grey, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C, Output current: 3 A. Width: 105 mm, Depth: 40 mm, Height: 12 mm. Quantity per pack: 1 pc(s), Package width: 190 mm, Package depth: 93 mm
Svoris 60 g
Unit Box Height 0.02
Unit Box Length 0.19
Unit Box Width 0.095
Unit Brutto Volume 0.000361 cubm
USB 3.2 2 kart. (3.1 2 kart.) A tipo prievadų skaičius 2
USB 3.2 2 kart. (3.1 2 kart.) C tipo prievadų skaičius 2
USB kabelio ilgis 0.13 m
USB maitinimo tiekimas iki 60 W
USB maitinimo šaltinio peržiūra 3.0
Vendor Homepage https://www.axagon.eu/en/produkty/hmc-5g21
Vieneto aukštis 2 cm
Vieneto gylis 19 cm
Vieneto plotis 9.5 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
Įkrovimo funkcija Taip
Įmontuotas mikrofonas Ne
Įmontuotas ventiliatorius Ne
Įmontuoti garsiakalbiai Ne
"Plug and Play" funkcija Taip
"USB Power Delivery" Taip
"USB Type C DisplayPort Alternate Mode" Taip
