I / O HUB USB-C 4IN1 / 0.15M HMC-H3A AXAGON
Product reference: 2-8595247908698

I / O HUB USB-C 4IN1 / 0.15M HMC-H3A AXAGON

Product reference: 2-8595247908698
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
21,33 €
Product in warehouse

Guarantee
24 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

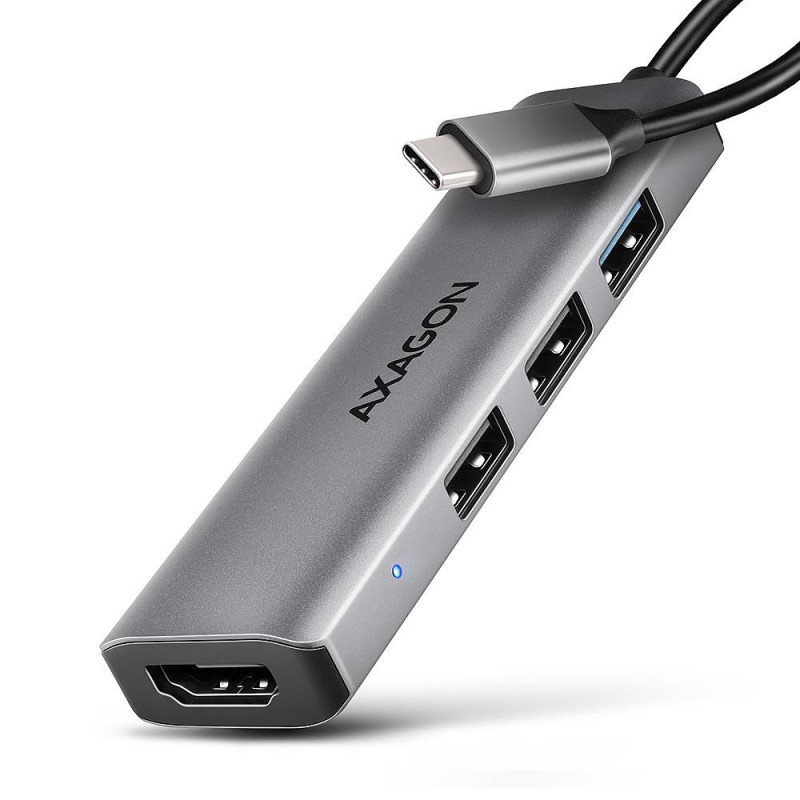

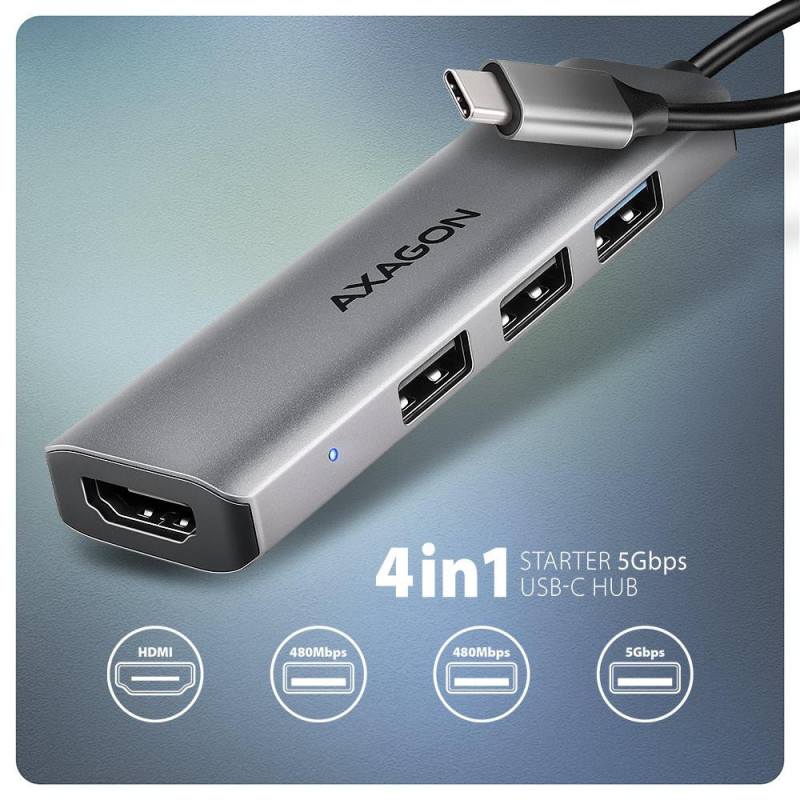

The multi-port USB-C 5Gbps AXAGON HMC-H3A STARTER 4in1 hub expands your laptop, computer or phone with four ports. Connect your laptop to the hub via a 15 cm long USB-C cable. You immediately have connectors to connect a monitor and three USB devices at the same time.

The USB hub offers three USB outputs, two with USB-A 480Mbps and the third with USB-A 5Gbps. Transfer rate is up to 5Gb/s thanks to USB 3.2 Gen 1 interface. The hub can also handle permanent connection of several external drives simultaneously.

The HDMI output enables the connection of an external monitor, TV or projector with a resolution of up to 4K/30Hz Ultra HD, 2K/60Hz Quad HD or 1080p/120Hz Full HD and the transmission of multi-channel audio.

The compact and slim aluminium body not only looks great, but also provides mechanical durability and passive cooling. You will also be pleased with the finely textured surface, which does not leave fingerprints.

USB-C hub is an ideal accessory for laptops without USB-A connectors and video output. You can use your current USB peripherals without having to purchase new ones. Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is very simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running.

For the hub to function properly, your laptop's USB-C port must support video output (DisplayPort Alternate Mode or Thunderbolt 3, 4 and above).

The hub can easily connect to phones with a USB-C connector. For example, you can connect a flash drive, keyboard, mouse, display, TV or projector to the phone.

Input (computer, tablet or phone connection):
• USB 5Gbps (USB 3.2 Gen 1 / USB 3.0), USB-C male connector.
• Compatible with USB 10Gbps, USB4, Thunderbolt 3/4.

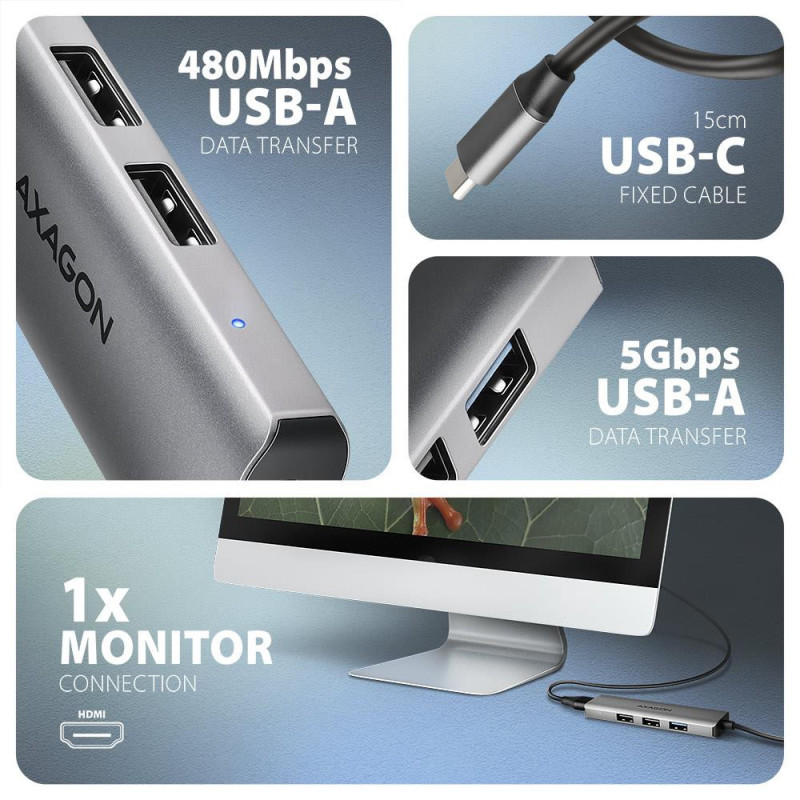

USB outputs:
• 2x USB 480Mbps port, USB-A female connector.
• 1x USB 5Gbps port, USB-A female connector.
• USB-C hub can handle the connection of several external drives at the same time.

Video outputs:
• 1x HDMI port, HDMI A female connector.

Maximum supported resolution:
• 1 monitor - up to 4K/30Hz Ultra HD, 2K/60Hz Quad HD, 1080p/120Hz Full HD.

Video features:
• For Apple devices running macOS, the maximum refresh rate is usually limited to 60Hz.
• DisplayPort Alternate Mode (DP Alt Mode) enabled USB-C port or Thunderbolt 3 port is necessary for the proper function of video output. A suitable updated OS and up-to-date graphics drivers are also required.
• HPD (Hot-Plug-Detect) support.
• TMDS (Transition Minimized Differential Signalling) support.
• HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection) full support.
• Up to 8-channel LPCM audio, compressed audio (AC-3, DTC) and HBR audio format support.
• Supports sample rates up to 192 kHz and up to 24-bit audio - depends on the source and destination device, i.e. laptop/phone and TV/monitor/AV receiver.

Other features:
• Possibility to connect your device while running thanks to the Hot Plug support.
• Full Plug and Play support.
• Standby mode support.
• Power supply via USB bus (USB bus power).
• The blue LED indicates with constant light the hub connection to the computer.
• High quality shielded cable ensures fast communication speed and minimal unwanted interference.
• Dimensions 11 x 95 x 26 mm (H x W x D).
• Weight 34 g (incl. cable).
• USB-C cable 15 cm long for connecting the hub to a laptop.

Supported operating systems:
• Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
• Compatibility depends on the operating system and device manufacturer support.
• DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (notebook, tablet, phone).
• Graphics card drivers may also affect the correct operation of the product. We recommend downloading the latest version of drivers.

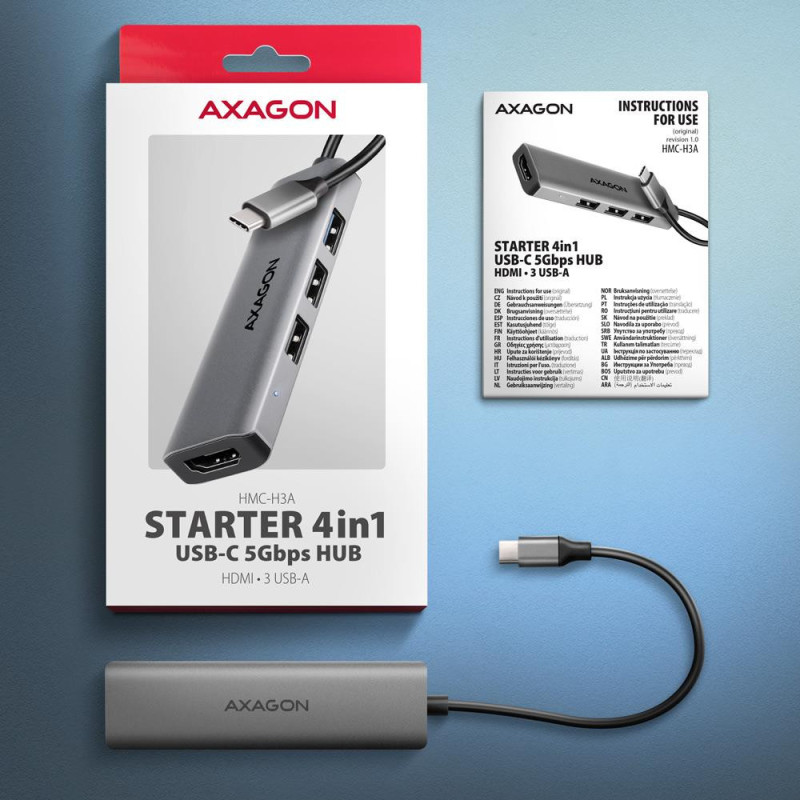

Package contains:
• USB-C hub with fixed 15 cm long cable,
• multilingual manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA,

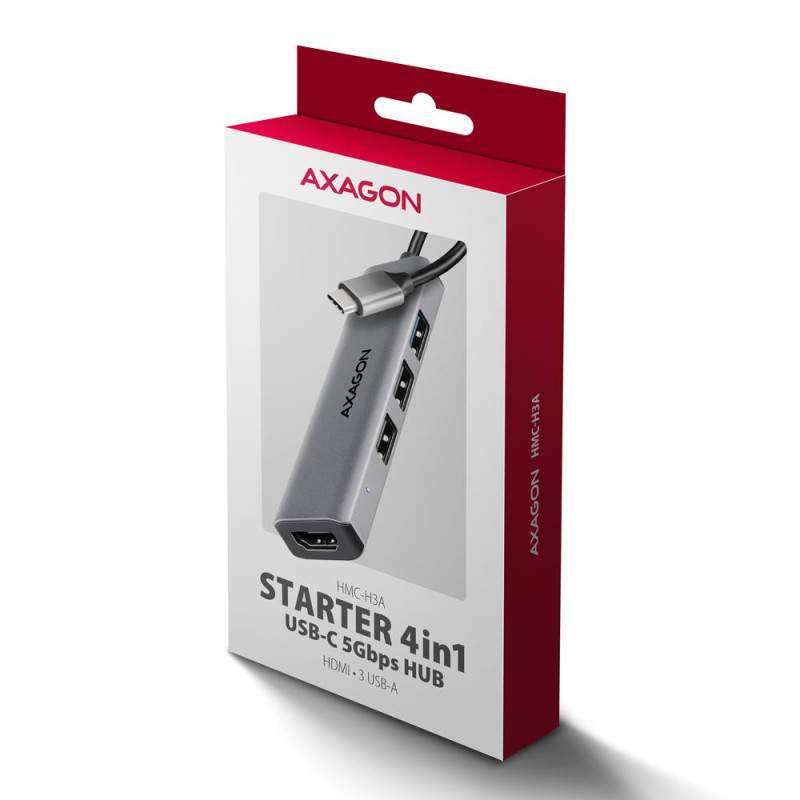

• packed in a cardboard box with a hanging hole.


Atitikties sertifikatai CE/RoHS
Aukštis 26 mm
Belaidis įkrovimas Ne
Bruto svoris 0.08 kg
DC įėjimo lizdas Ne
Duomenų perdavimo sparta 5 Gbit/s
Garantinis laikotarpis 2 metai
HDCP Taip
HDCP versija 1.4/2.3
HDMI portų kiekis 1
Hot-Plug palaikymas Taip
Ilgis 95 mm
Instrukcija Taip
Integruotas kortelių skaitytuvas Ne
Jungtinis ausinių / mikrofono prievadas Ne
Kiekis pakuotėje 1 vnt
Kilmės šalis Kinija
Kitos palaikomos operacinės sistemos Taip
Korpuso medžiaga Aliuminis
LED indikatoriai Taip
Lizdo sąsajos HDMI/USB 2.0/USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Maitinimo jungtis C tipo USB
Maitinimo šaltinio tipas USB
Maksimali skaitmeninė raiška 4096 x 2160 pikseliai
Maksimalus atnaujinimo dažnis 120 Hz
Mikrofonas, line-in jack Ne
Model HMC-H3A
Modelio suderinamumas Universalus
Neto svoris 0.034 kg
Paketo svoris 80 g
Pakuotės aukštis 28 mm
Pakuotės gylis 99 mm
Pakuotės plotis 203 mm
Palaikoma operacinė sistema "Linux" Taip
Palaikomos MAC operacinės sistemos Taip
Palaikomos mobiliosios operacinės sistemos Taip
Palaikomos serverio valdymo sistemos Taip
Palaikomos "Windows" operacinės sistemos Taip
Plotis 11 mm
Pridėti kabeliai C tipo USB
Priimančioji sąsaja USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Produkto spalva Sidabras
Ryšio technologija Vielinis
Sertifikavimas CE, RoHS
Shipping Box Depth 3 cm
Shipping Box Height 20 cm
Shipping Box Weight 0.08 kg
Shipping Box Width 10 cm
Suderinamumas universal
Summary Axagon HMC-H3A USB 5Gbps hub, 3x USB-A, HDMI 4k/30Hz, 15cm USB-C cable. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, HDCP version: 1.4/2.3. Product colour: Silver, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: USB, Power connector: USB Type-C, USB cable length: 0.15 m. Width: 11 mm, Depth: 95 mm, Height: 26 mm. Quantity per pack: 1 pc(s), Package width: 203 mm, Package depth: 99 mm
Svoris 34 g
Unit Box Height 0.2
Unit Box Length 0.03
Unit Box Width 0.1
Unit Brutto Volume 0.0006 cubm
USB 2.0 portų kiekis 2
USB 3.2 (3.1 1 kart.) A tipo prievadų skaičius 1
USB kabelio ilgis 0.15 m
Vendor Homepage https://www.axagon.eu/en/produkty/hmc-h3a
Vieneto aukštis 20 cm
Vieneto gylis 3 cm
Vieneto plotis 10 cm
Vienetų skaičius vienoje siuntimo dėžėje 1
Įkrovimo funkcija Taip
Įmontuotas mikrofonas Ne
Įmontuotas ventiliatorius Ne
Įmontuoti garsiakalbiai Ne
"Plug and Play" funkcija Taip
"USB Type C DisplayPort Alternate Mode" Taip
