EAN: 6941565935533

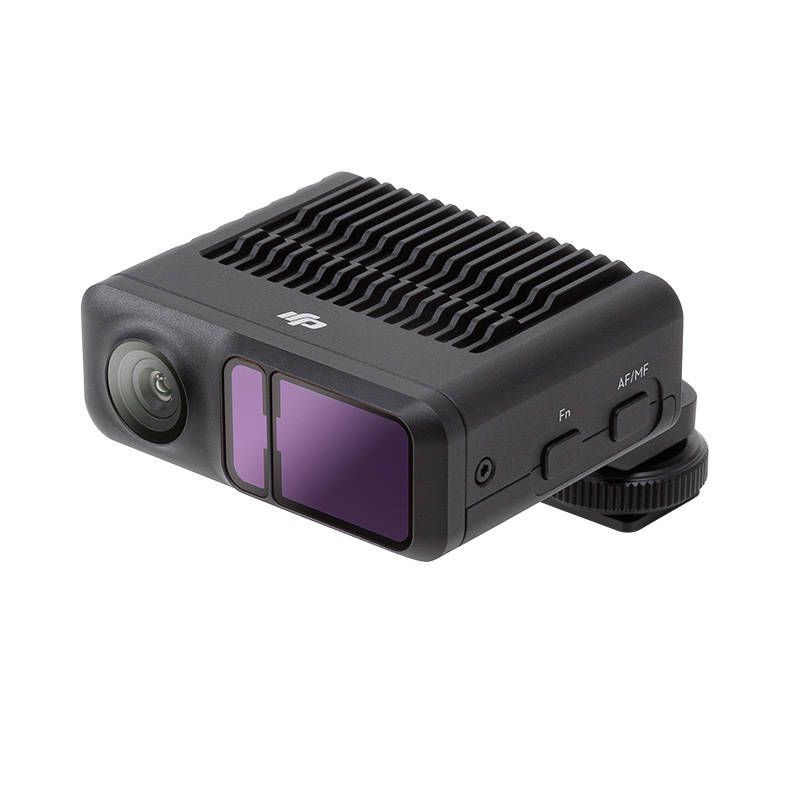

DJI LiDAR Range Finder for DJI RS 3 Pro


Make it easy to adjust focus even in low-light conditions. The LiDAR range finder can display up to 43,200 distance points and features a detection range of up to 14m. What's more, its performance is not dependent on the texture of the object's surface. It also has a built-in camera with a focal length equivalent of 30mm, whose field of view (FOV) reaches 70°. This means it will work perfectly in a variety of scenarios. When you combine it with the new DJI RS Focus Motor (2022), you gain the ability to use autofocus on manual lenses. In addition, with the LiDAR rangefinder, the DJI RS 3 Pro supports ActiveTrack Pro mode, which offers greater efficiency in identifying and tracking selected objects.




In the box



  • DJI LiDAR Range Finder x1

  • MCC cable (USB-C, 30cm) x1

  • LiDAR Control Cable (USB-C, 30cm) x1



Specification
































































Brand DJI
Name DJI LiDAR Range Finder
Available ports Cold shoe, 1/4"-20 mounting hole, USB-C, USB-C Power/CVBS/CAN Data
Resolution (image sensor) 448x298 on touchscreen
Field of view (FOV) 57.4° (horizontal), 44.6° (vertical), 70.1° (diagonal)
Focal length equivalent 30mm
Resolution (ToF sensor) 240x180
Detection range of ToF sensor 0.5-14m
Distance error (ToF sensor) 1%
Machine learning Can recognize up to 5 objects simultaneously and select one of them to track.
Identification range Up to 9m
Power consumption 6.8W
Input voltage 7-16V
Operating temperature -20-45°C
Dimensions 66x57x24mm (D x S x W)
Weight About 130g
Mounting plate height 30mm
Lenses that do not require calibration DZOFILM Vespid Cyber 35/50/75mm
Compatibility DJI RS 3 Pro





Height17.000 cm.
Width9.000 cm.
Depth7.000 cm.
Weight Gross325 g.
