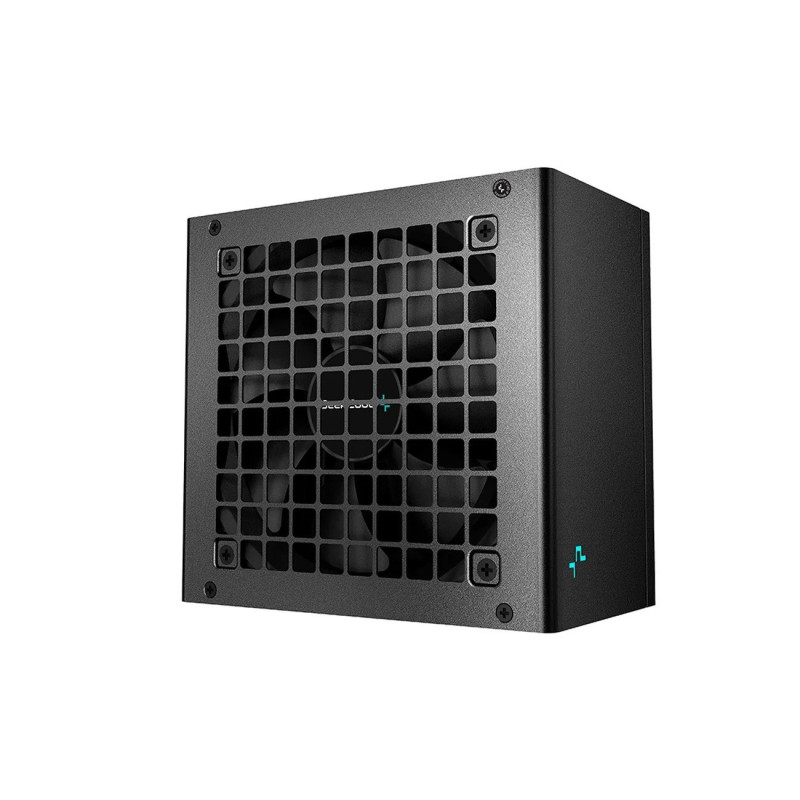

Deepcool PK750D 750W Bronze Power Supply
Product reference:
6-R-PK750D-FA0B-JGEU
Deepcool PK750D 750W Bronze Power Supply
Deepcool PK750D 750W Bronze Power Supply
Product reference:
6-R-PK750D-FA0B-JGEU
Deepcool PK750D 750W Bronze Power Supply
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
6 - 11
business days
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Fan diameter | 12 cm |
| Fan location | Top |
| Power protection features | Over voltage, Surge & inrush protection (SIP), Under voltage, Over current, No load operation, Overheating, Surge protection, Over power |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Input current | 10 - 5 A |
| Efficiency | 85% |
| Combined power (-12V) | 3.6 W |
| Combined power (+12V) | 750 W |
| Hold time | 16 ms |
| Power Factor Correction (PFC) type | Active |
| Total power | 800 W |
| Combined power (+5V) | 120 W |
| Combined power (+3.3V) | 120 W |
| Max output current (-12V) | 0.3 A |
| Power Good signal delay range | 100 - 150 ms |
| Max output current (+12V) | 62.5 A |
| Max output current (+3.3V) | 20 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 2.5 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Depth | 140 mm |
| Height | 86 mm |
| Width | 150 mm |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.4 |
| Bearing technology | HDB |
| Mean time between failures (MTBF) | 100000 h |
| Certification | CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH |
| Compliance certificates | RoHS, WEEE |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Non-Modular |
| Motherboard power cable length | 50 cm |
| Motherboard power connector | 20+4 pin ATX |
| SATA power cable length | 400 mm, 500, 700, 600 mm |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | 2 |
| Number of SATA power connectors | 8 |
