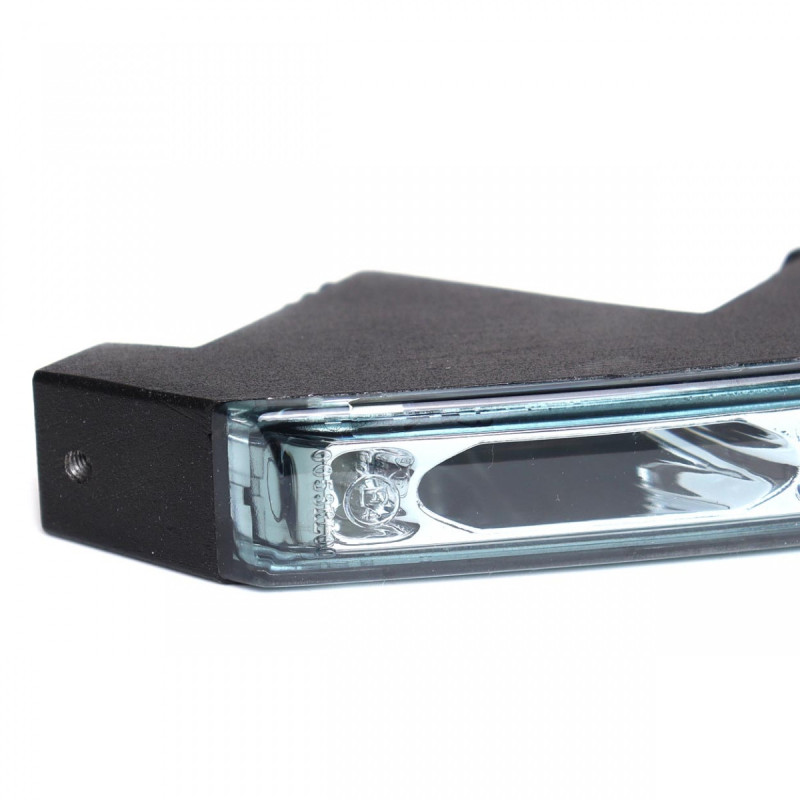

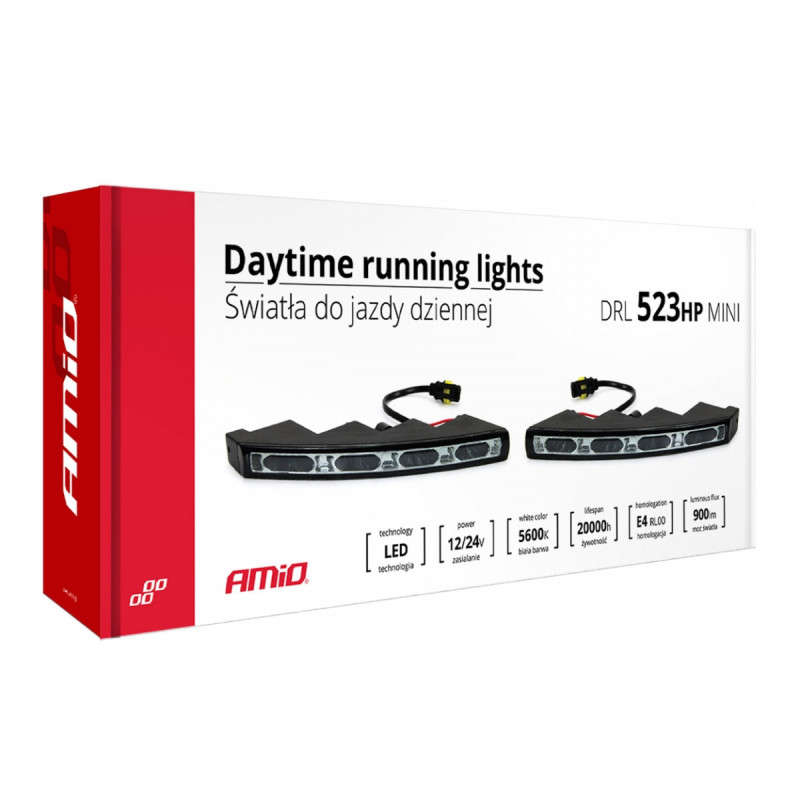

Daytime running lights DRL 523HP mini AMIO-01526

The 523 Mini model is specifically designed for the growing number of new vehicles with more rounded bumper lines. Based on the standard NSSC 523HP lamp, it is shorter, further enhancing its versatility while maintaining excellent lighting performance (4x1.5W LEDs). The innovative combination of reflector and lens provides improved visibility from a distance, while the aluminum plate ensures efficient heat dissipation.

Some important advantages:

• Aluminum housing with heatsink

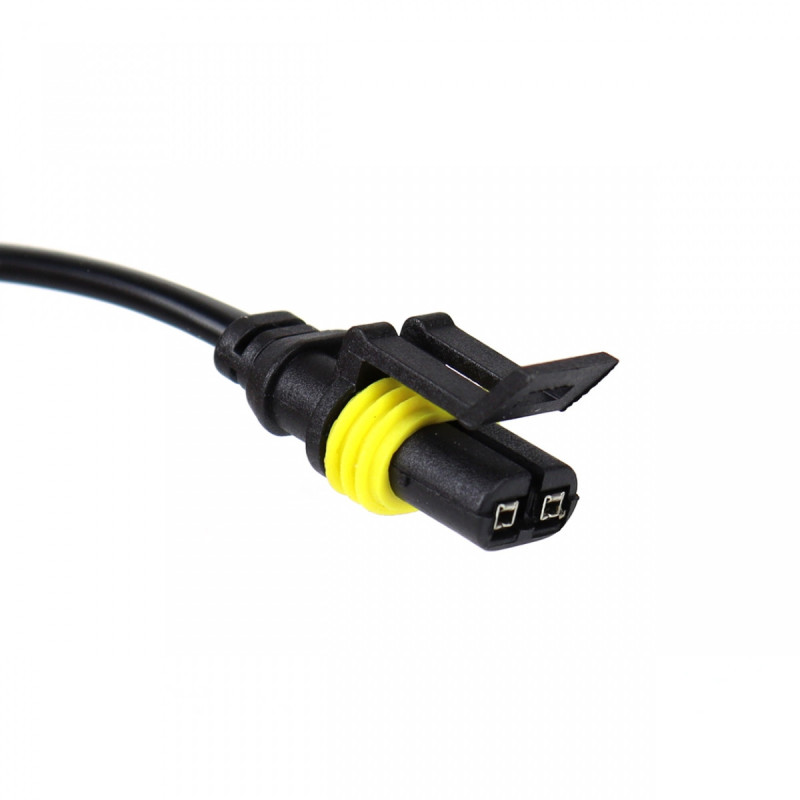

• Strong cables
• 4 Super bright LEDs

Full specifications:

Luminous flux

1200

Diodes

4 x SMD 1.5W (per lamp)

Dimensions (width/height/depth)

216 x 22 x 60

Total power consumption

12W

Tension

12/24V

Homologation

RL00, E4. Approved for road use based on RCE87

Heat sink

Yes

Water resistance

Yes

Mounting bracket

Yes

Vent with pressure regulation in the lamp

Yes

Automatic switch included

Yes

Machine joints

Yes

Reflector

With a long, oblique light surface

Guarantee

Yes

Front glass

PE (safe and compliant with EU requirements)
