Thermaltake AW420 AIO

Thermaltake AW420 AIO. Type: Liquid cooling kit, Fan diameter: 14 cm, Rotational speed (min): 500 RPM, Rotational speed (max): 2000 RPM, Maximum air pressure: 3.57 mmH2O. Product colour: Black

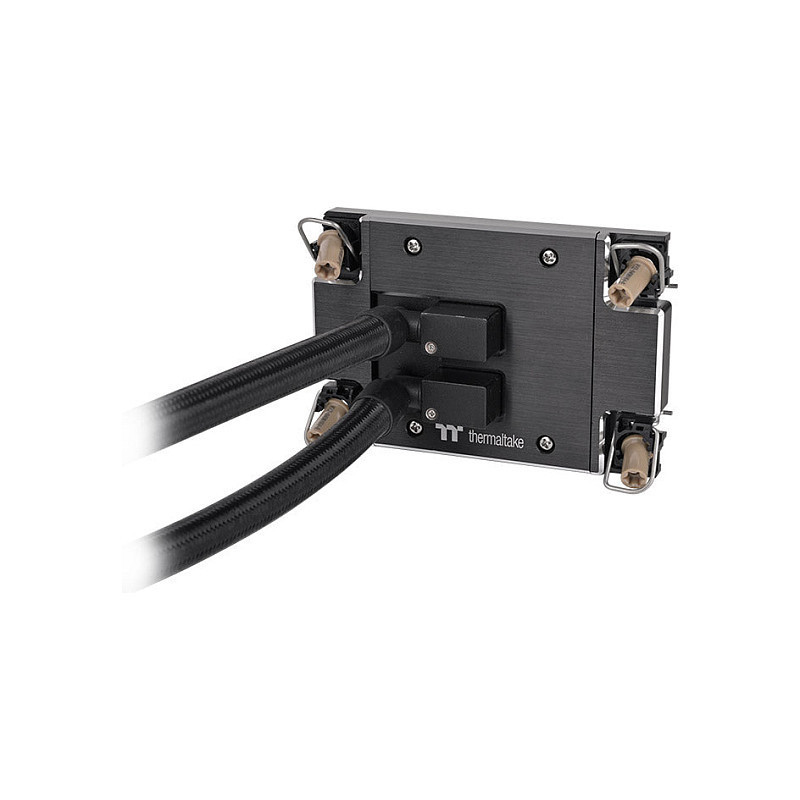

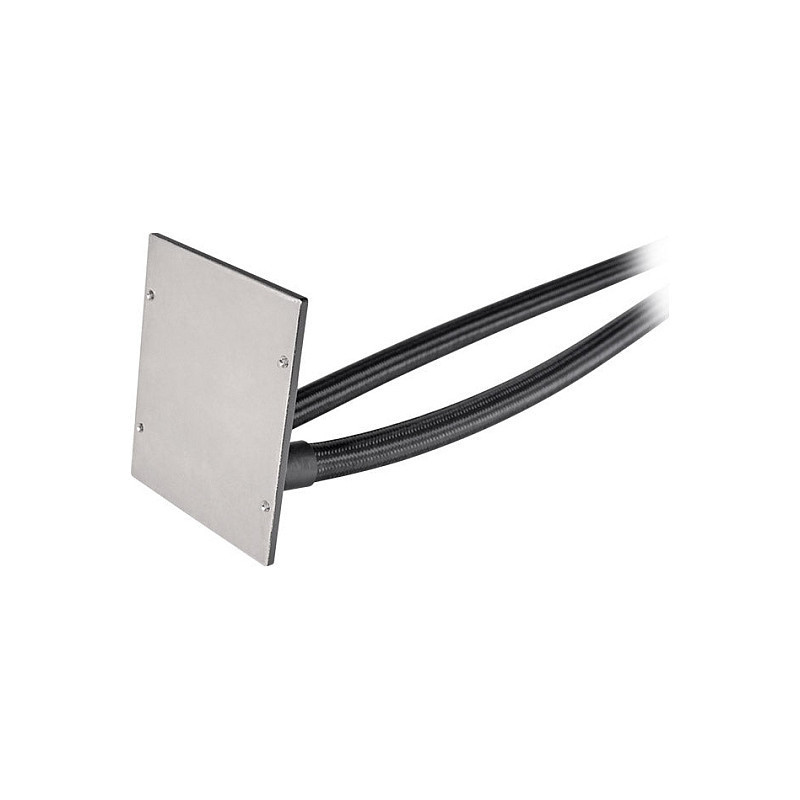

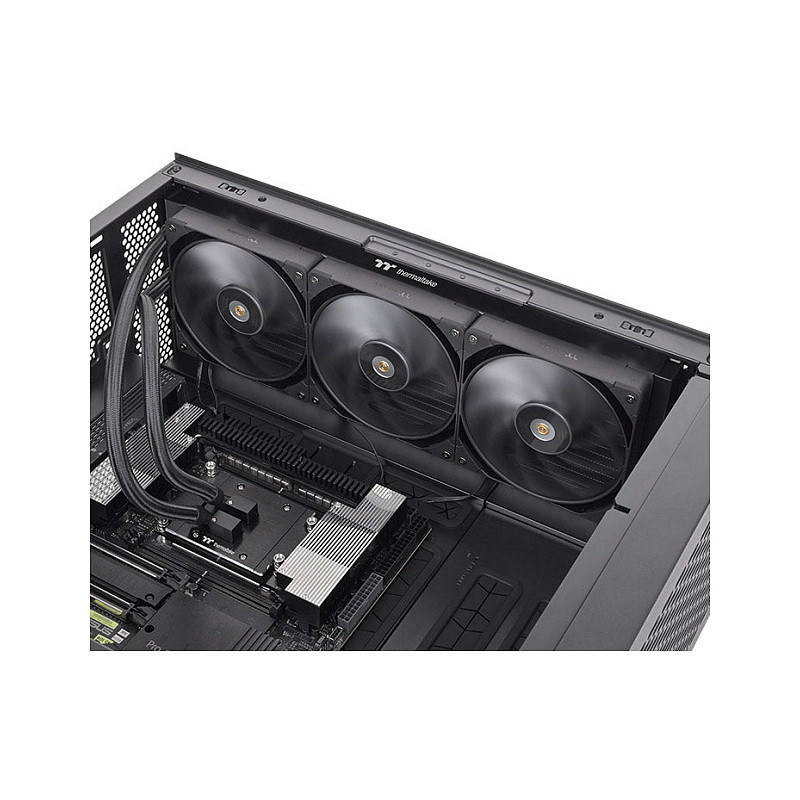

The AW420 AIO Liquid Cooler provides premium cooling performance for workstation configurations, supporting Intel LGA4677 and AMD sTR5/SP6 sockets. It features a nickel-plated copper water block for excellent heat dissipation and three TOUGHFAN 14 Pro fans with high static pressure. It is an ideal cooling solution for intensive tasks like 3D rendering and AI computing. Its all-black aesthetic design combines performance and style for the ultimate workstation experience.

Performance

Suitable location: Processor
Type: Liquid cooling kit
Fan diameter: 14 cm
Supported processor sockets: LGA 4677 (Socket E), SP6
Rotational speed (min): 500 RPM
Rotational speed (max): 2000 RPM
Maximum airflow: 119.6 cfm
Maximum air pressure: 3.57 mmH2O
Feature: Pulse-width modulation (PWM) support
Fan noise level (max): 31.6 dB
Pump connector: 3-pin
Pump motor speed: 4000 RPM

Design

Product colour: Black
Material: Aluminium, Cooper, Rubber

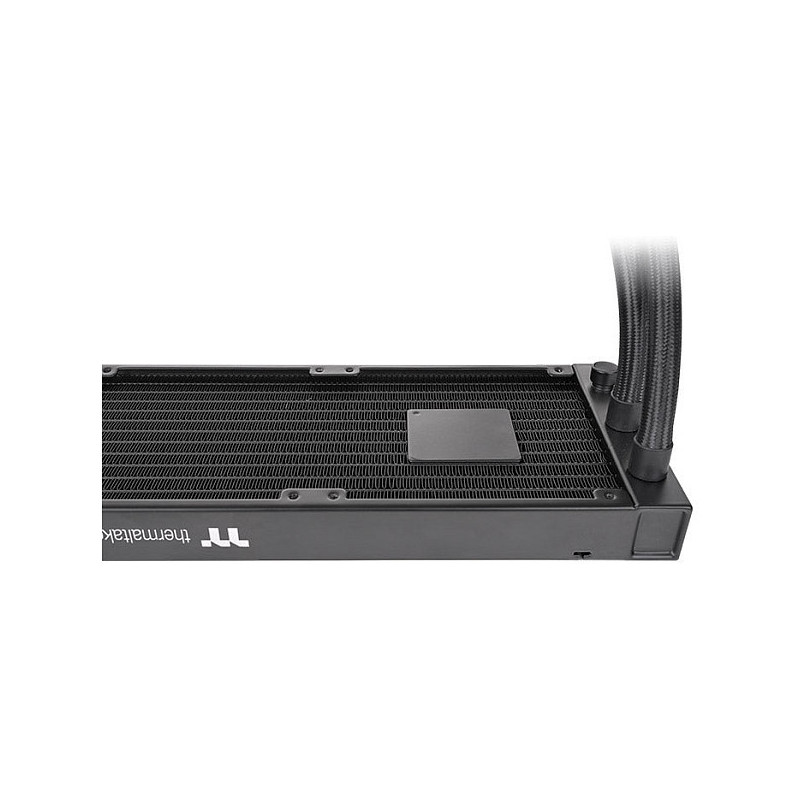

Radiator material: Aluminum

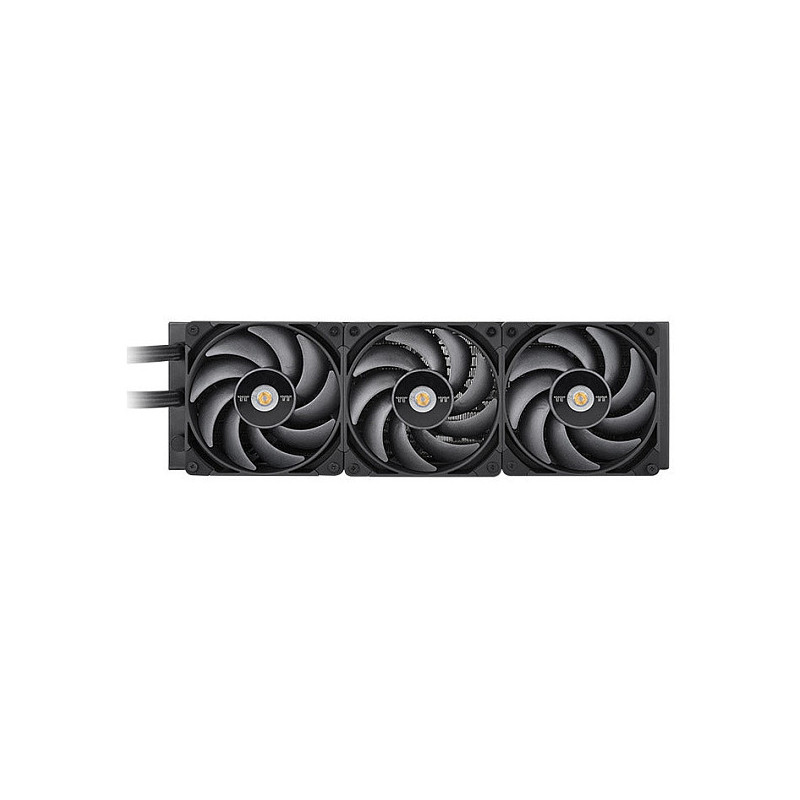

Number of fans: 3 fan(s)
Number of fan blades: 9
Number of heat pipes: 2
Fan connector: 4-pin
Water block material: Copper

Power

Rated voltage: 12 V
Starting voltage: 6 V
Pump voltage: 12 V
Fan voltage: 12 V

Weight & dimensions

Radiator width: 45.6 cm
Radiator depth: 13.8 cm
Radiator height: 2.7 cm
Tube length: 46 cm
Fan dimensions (W x D x H): 140 x 140 x 25 mm

Packaging content

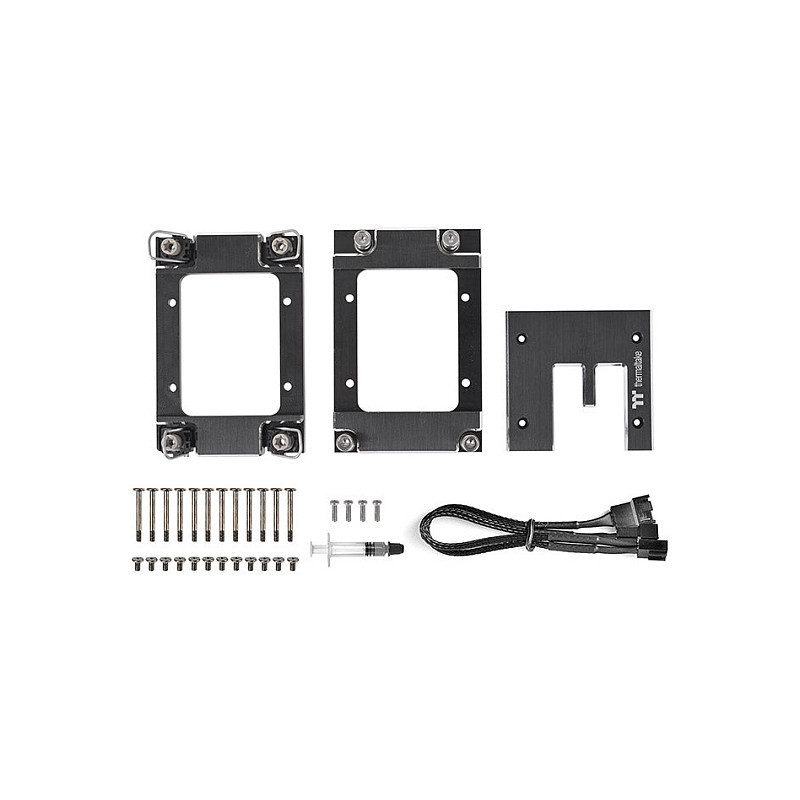

Feature: Mounting kit
Feature: Screws included
