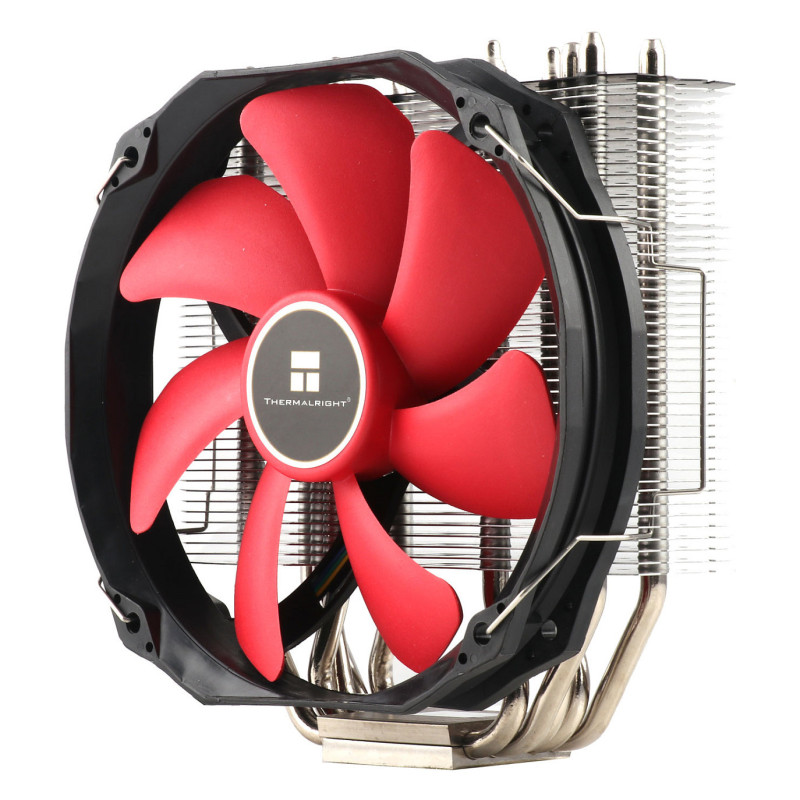

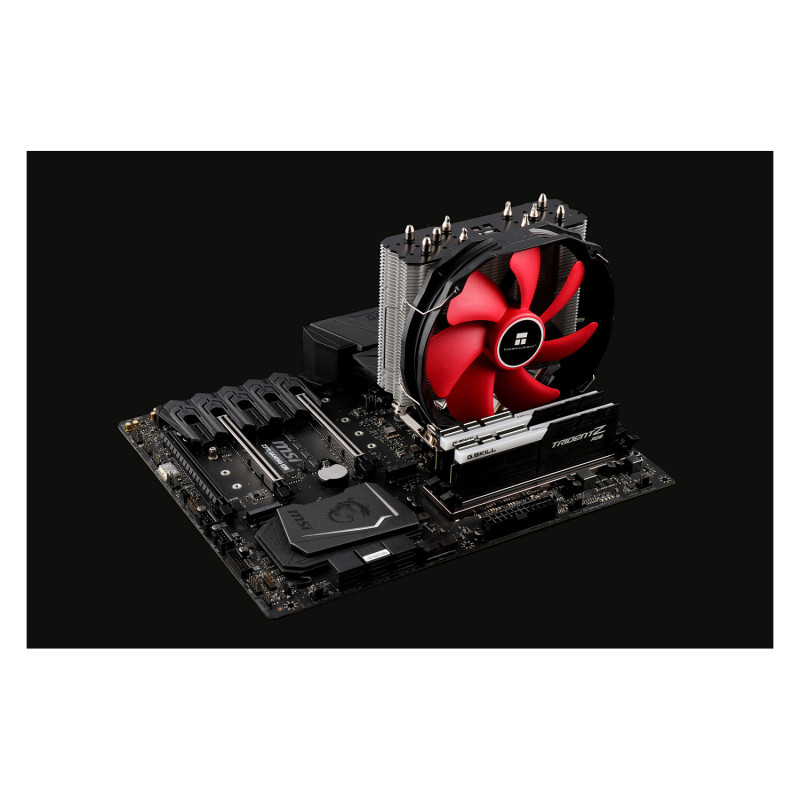

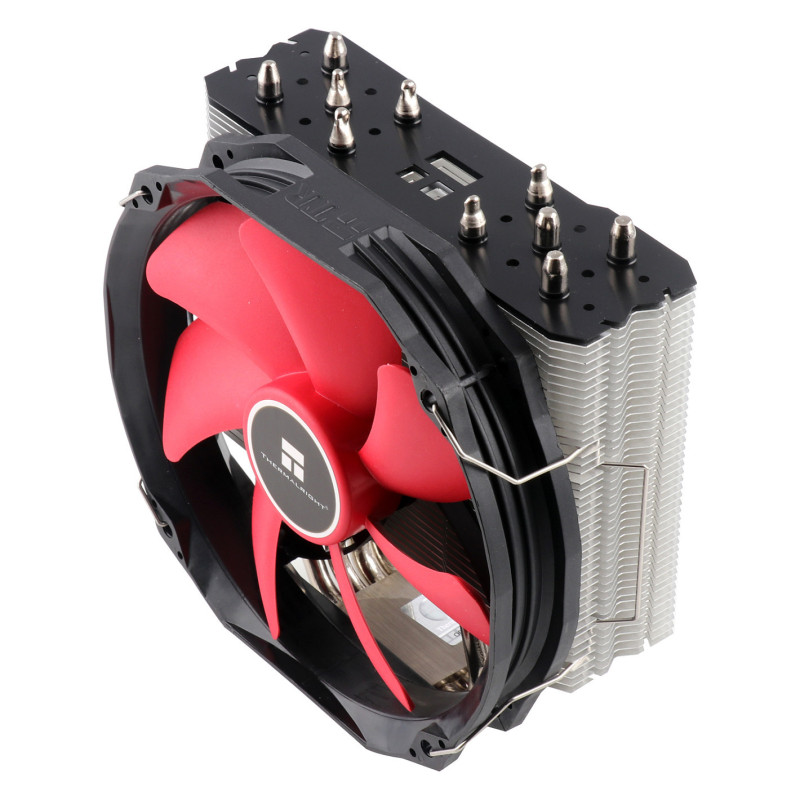

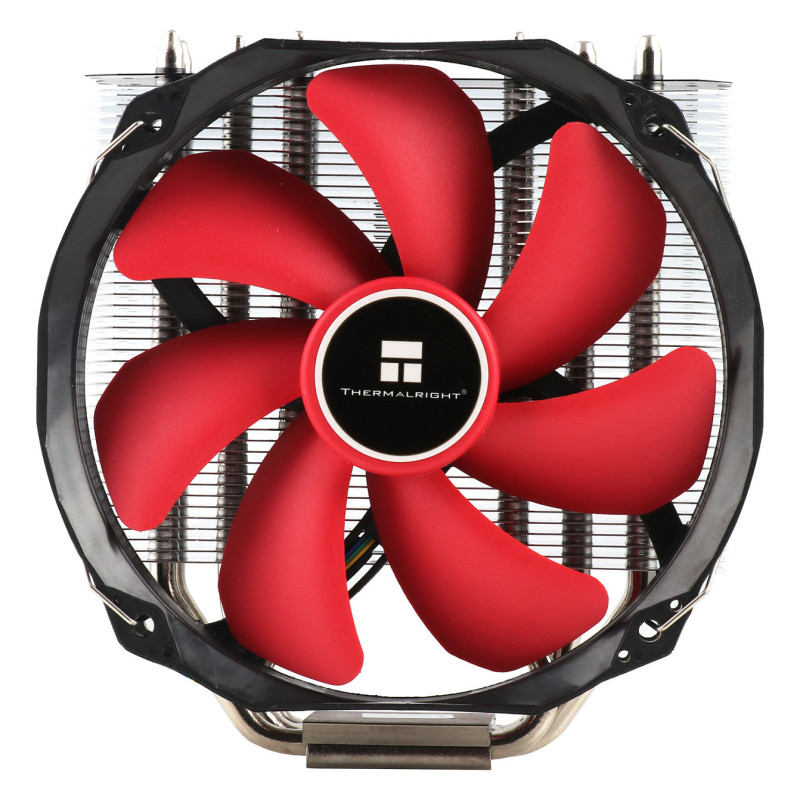

Thermalright TA140 computer cooling system

Thermalright TA140. Type: Air cooler, Fan diameter: 14 cm, Bearing type: Sleeve bearing. Product colour: Grey, Red

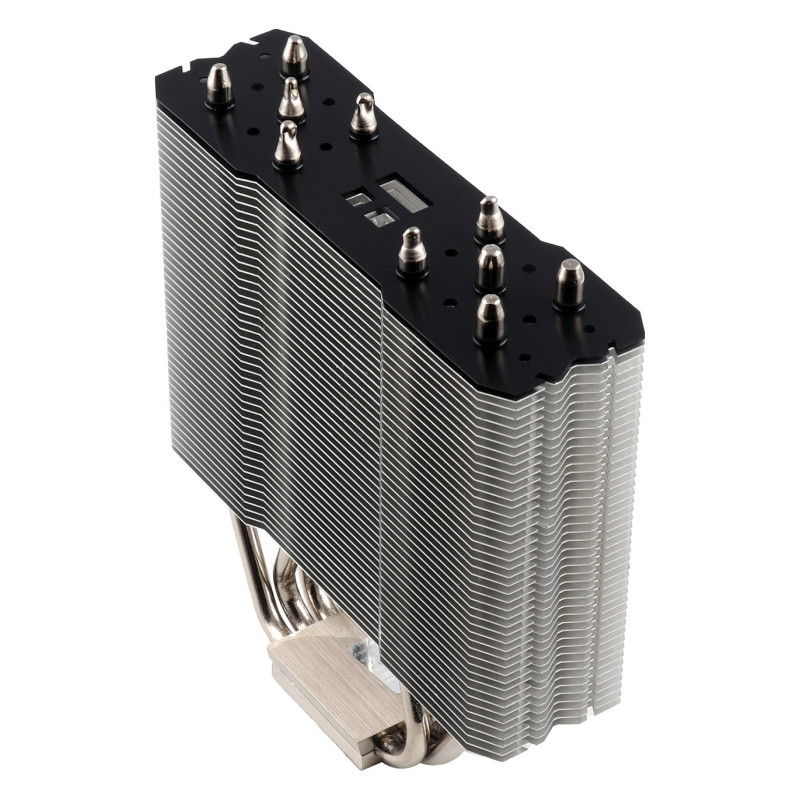

The TA140 is the most powerful 140mm cooler. We use the premium fin on the top and the extra premium heat pipe. The wide spacing of the aluminum fins and the large cooling surface guarantee a far-above-average performance, even at the lowest fan speed and noise. The special air symmetrical design of the cooling lamellas serves to minimize the air resistance and contributes measurably to efficient heat dissipation.

Performance

Suitable location: Processor
Type: Air cooler
Fan diameter: 14 cm
Minimum airflow (imperial): 28.32 cfm
Maximum airflow: 84.97 cfm
Feature: Pulse-width modulation (PWM) support
Bearing type: Sleeve bearing
Fan noise level (min): 17 dB
Fan noise level (max): 23 dB
Fan speed (min): 600 RPM
Fan speed (max): 1500 RPM

Design

Product colour: Grey, Red

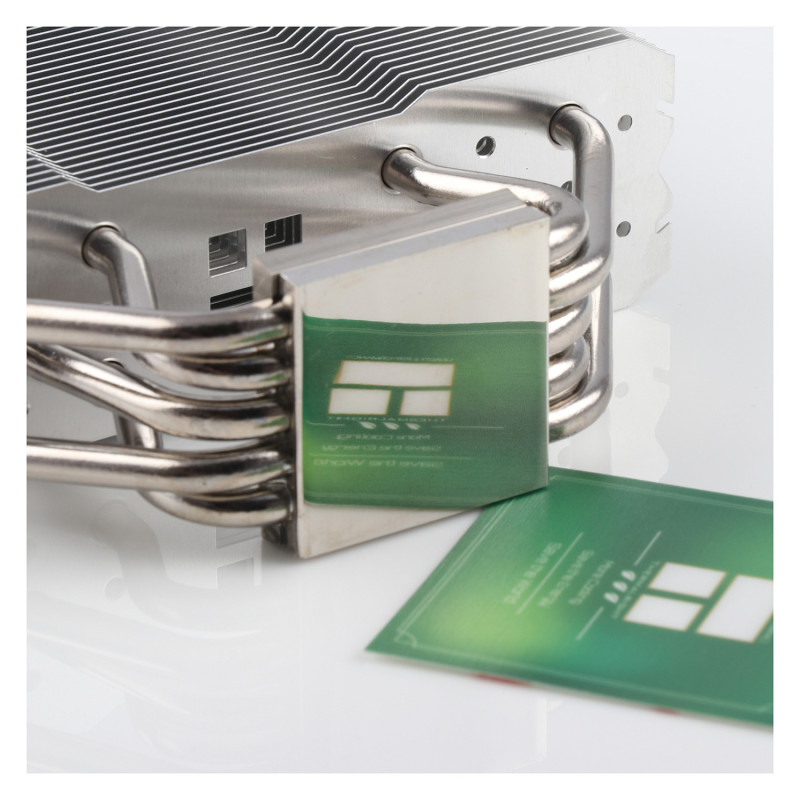

Base plate material: Copper
Number of fans: 1 fan(s)
Number of fins: 45
Fins material: Aluminium

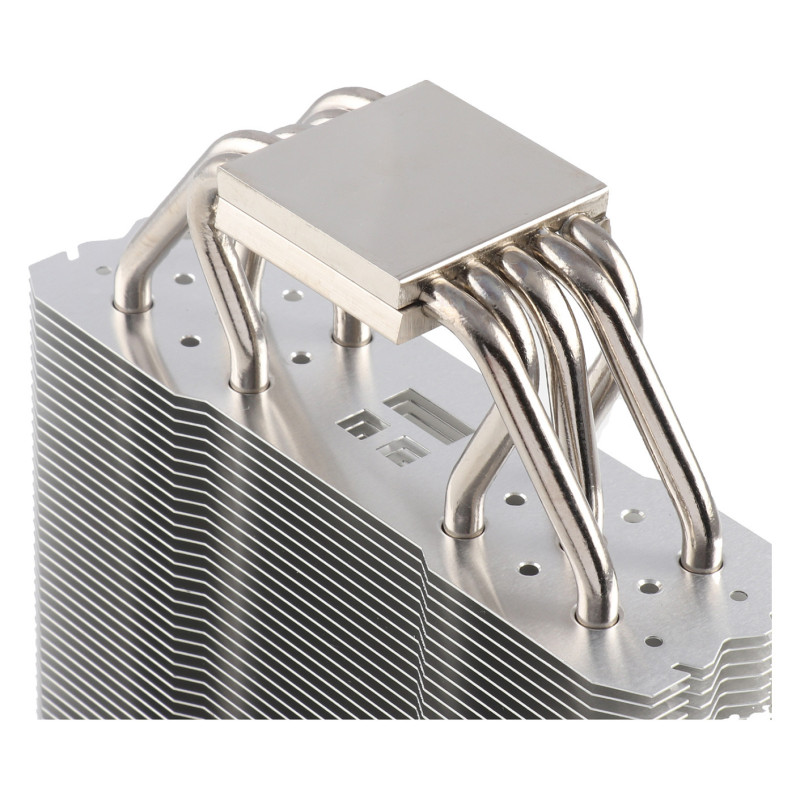

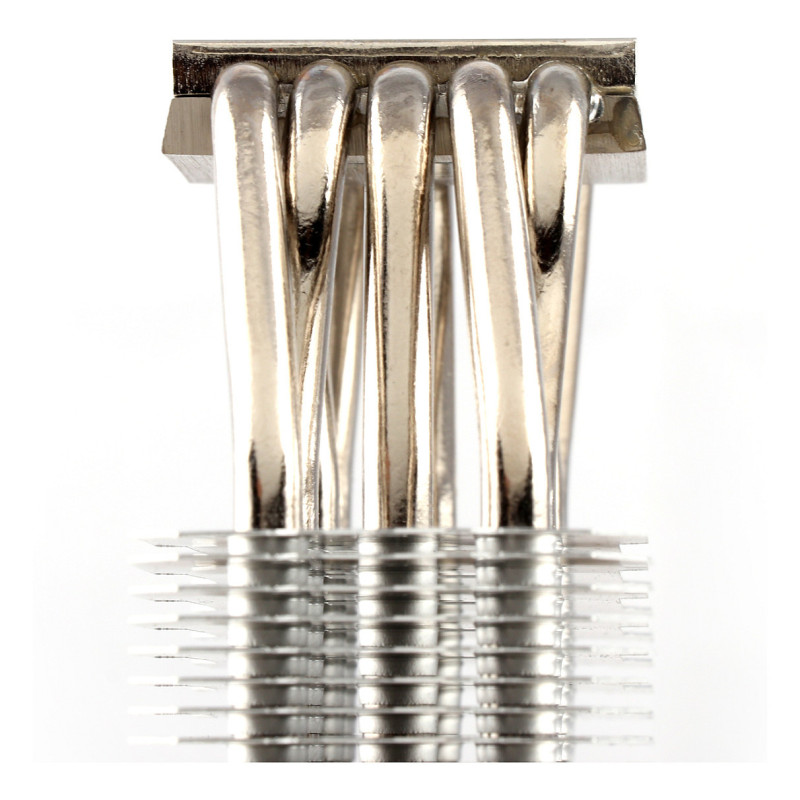

Number of heat pipes: 5
Fan connector: 4-pin

Weight & dimensions

Radiator width: 4.2 cm
Radiator depth: 14 cm
Radiator height: 15.9 cm
Fan dimensions (W x D x H): 152 x 140 x 26.5 mm
Fan weight: 160 g
Heat pipes diameter: 6 mm
