Thermalright HR-02 Plus

Thermalright HR-02 Plus. Type: Heatsink/Radiator, Fan diameter: 14 cm, Rotational speed (max): 1500 RPM, Bearing type: Fluid Dynamic Bearing (FDB). Product colour: Silver, White

Classic fanless heatsink Classic meticulous workmanship.
THERMALRIGHT's signature mirror-treated copper base creates a classic heatsink texture.

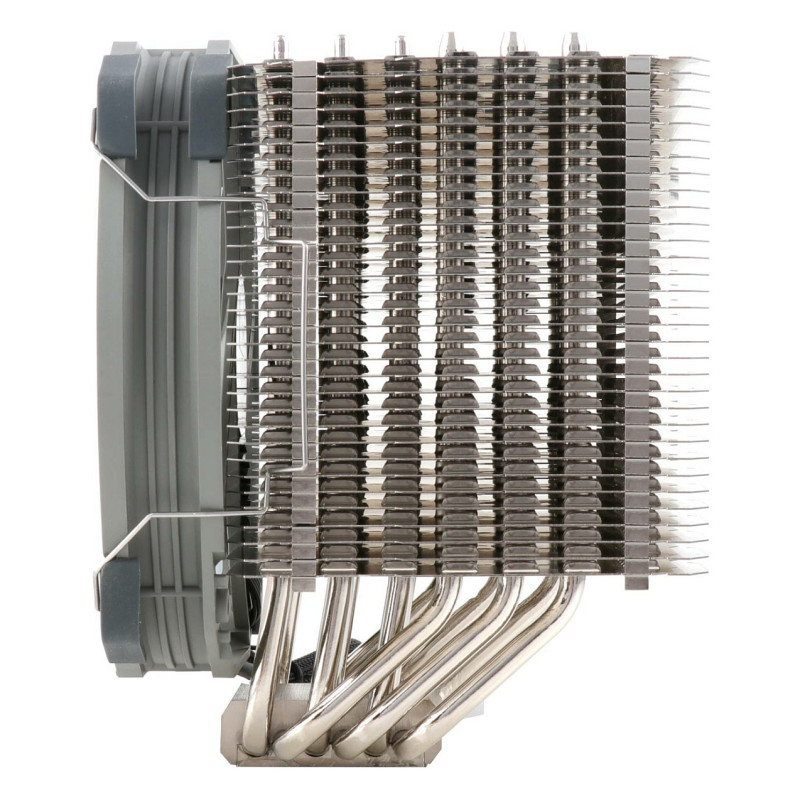

HR-02 Plus has a huge heat dissipation area
Widened and enlarged fins mean a larger air contact area. The aluminum fins can exchange more heat with the surrounding air, allowing waste heat to quickly leave the aluminum fin surface.

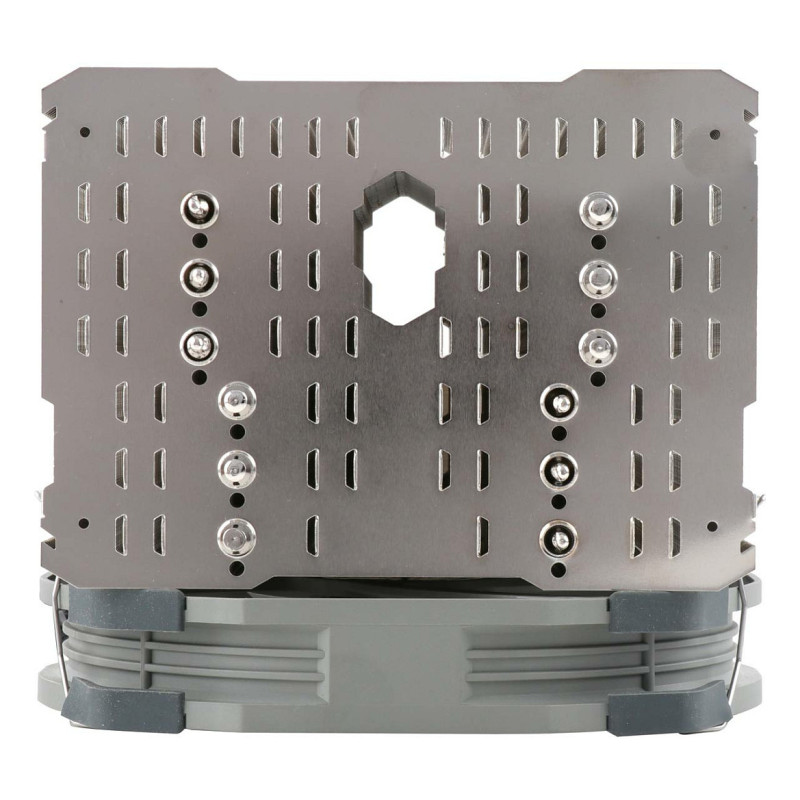

HR-02 Plus's unique vertical hole technology. From the above, you can see that the fins of HR-02 Plus are all cut holes. This is THERMALRIGHT patented vertical hole technology.

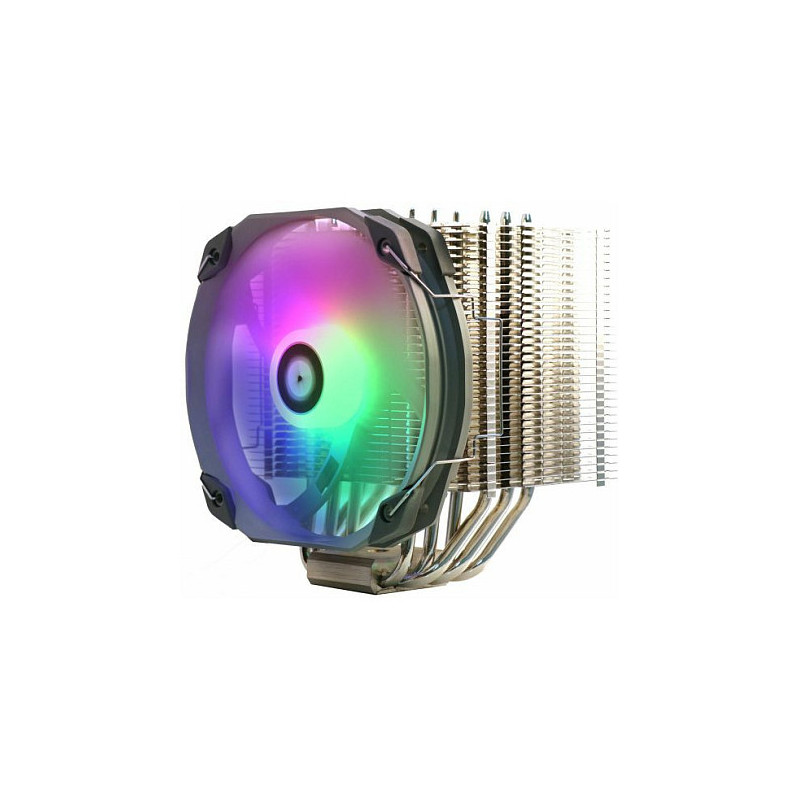

The fanless king of the air cooler is now back with a powerful ARGB fan.

Performance

Suitable location: Processor
Type: Heatsink/Radiator
Fan diameter: 14 cm
Rotational speed (max): 1500 RPM
Noise level (high speed): 25.6 dB
Maximum airflow: 77.8 cfm
Bearing type: Fluid Dynamic Bearing (FDB)
Fan noise level (max): 25.6 dB
Quantity per pack: 1 pc(s)
Fan speed (max): 1500 RPM

Design

Product colour: Silver, White
Material: Copper, Nickel
Number of fans: 1 fan(s)
Number of fan blades: 7
Number of fins: 32
Number of heat pipes: 6
Feature: Illumination LED
Illumination colour: Blue, Green, Red

Weight & dimensions

Radiator width: 10.2 cm
Radiator depth: 14 cm
Radiator height: 16.2 cm
Weight: 760 g
Fan dimensions (W x D x H): 152 x 27 x 140 mm
Fan thickness: 2.7 cm
Fan weight: 150 g
Heat pipes diameter: 6 mm
