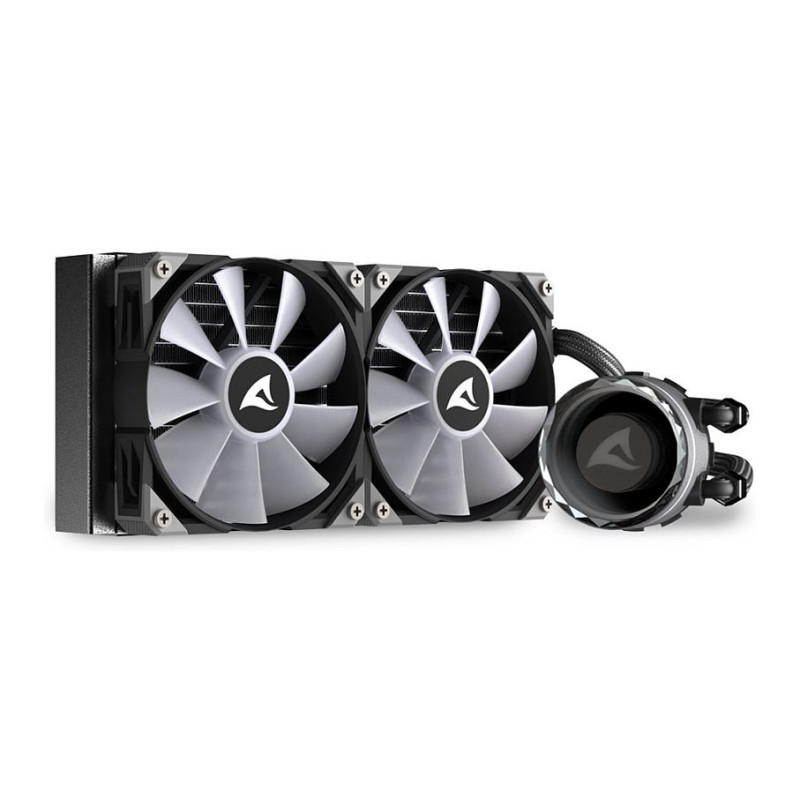

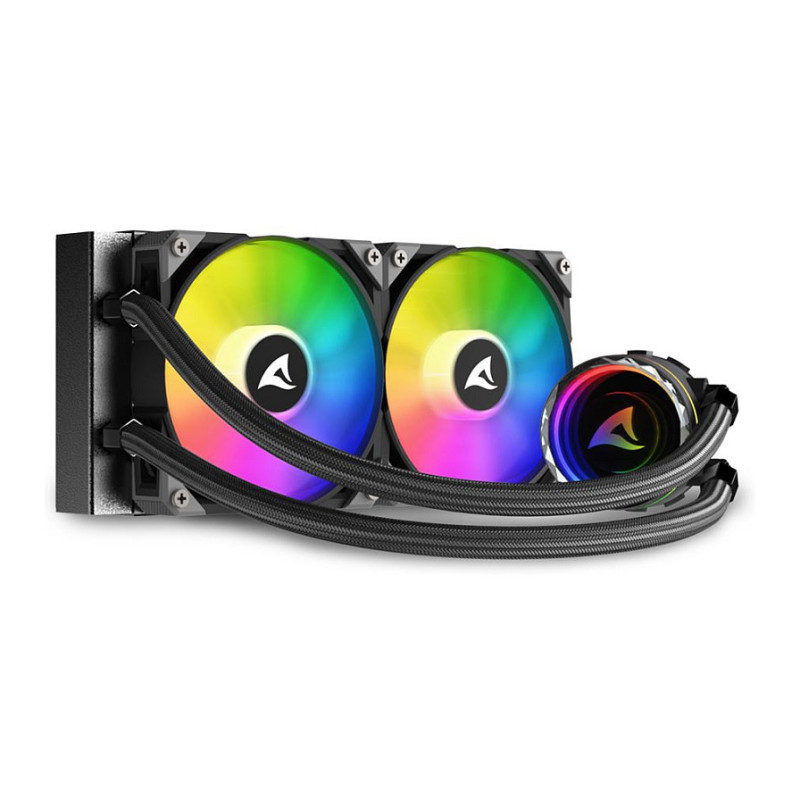

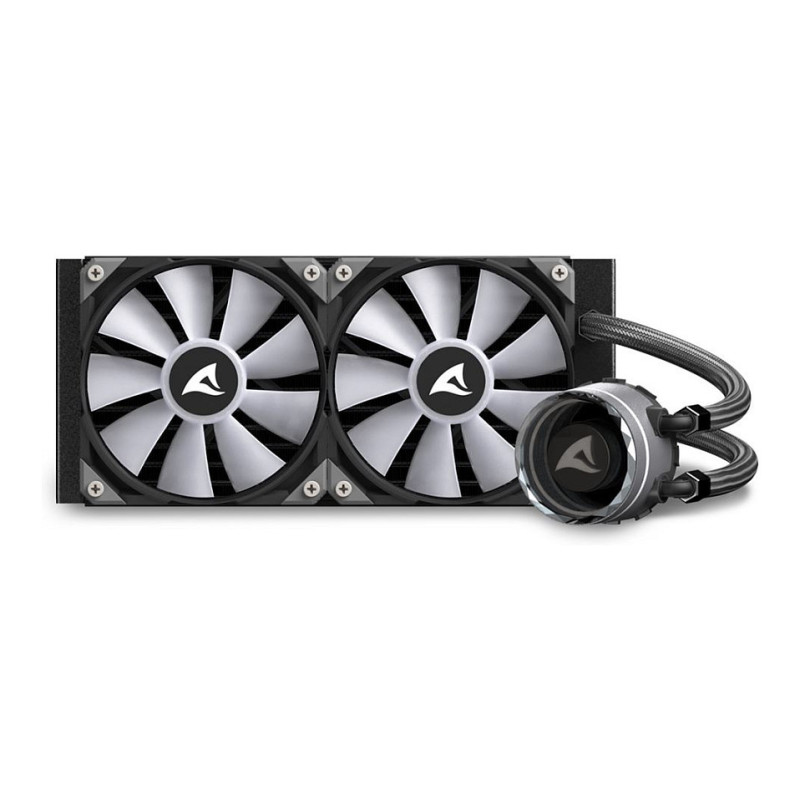

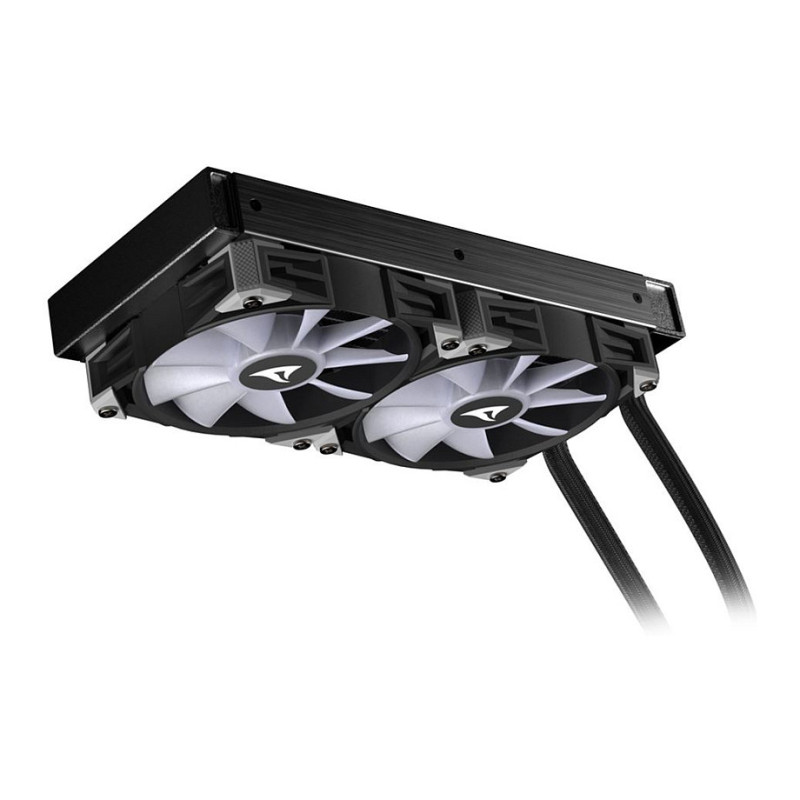

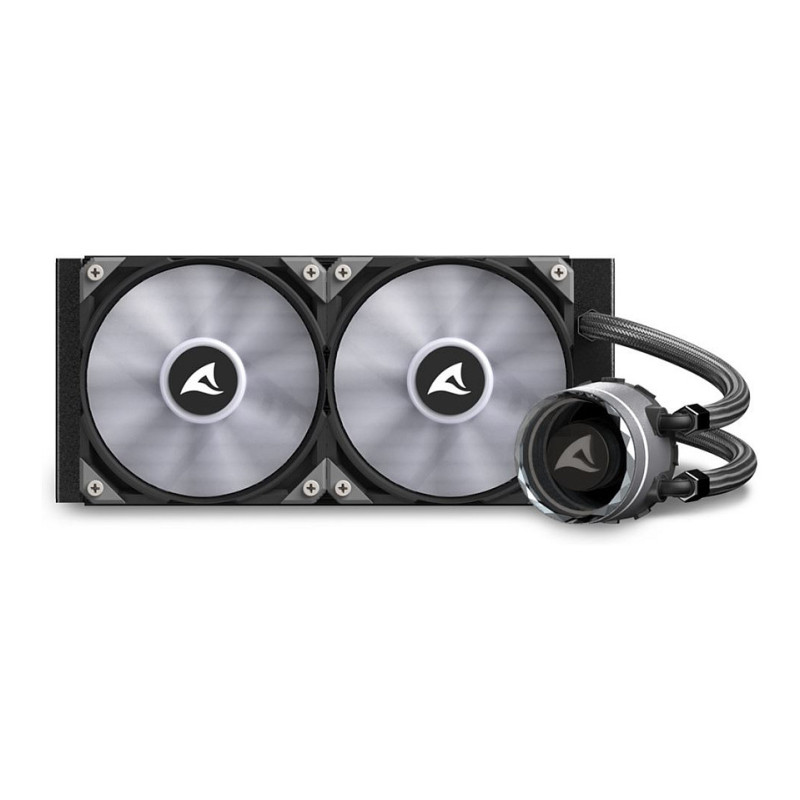

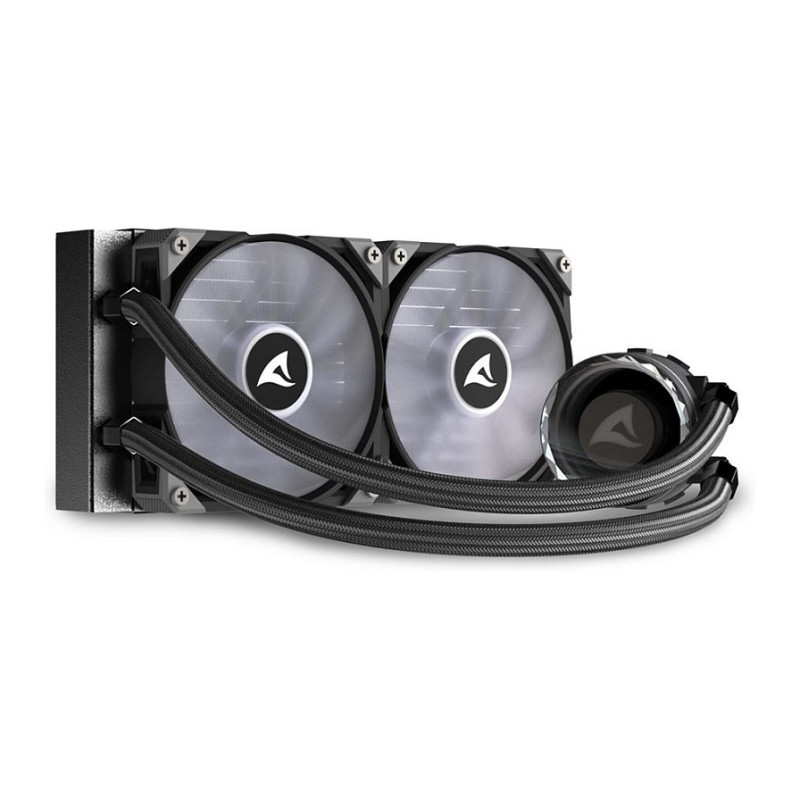

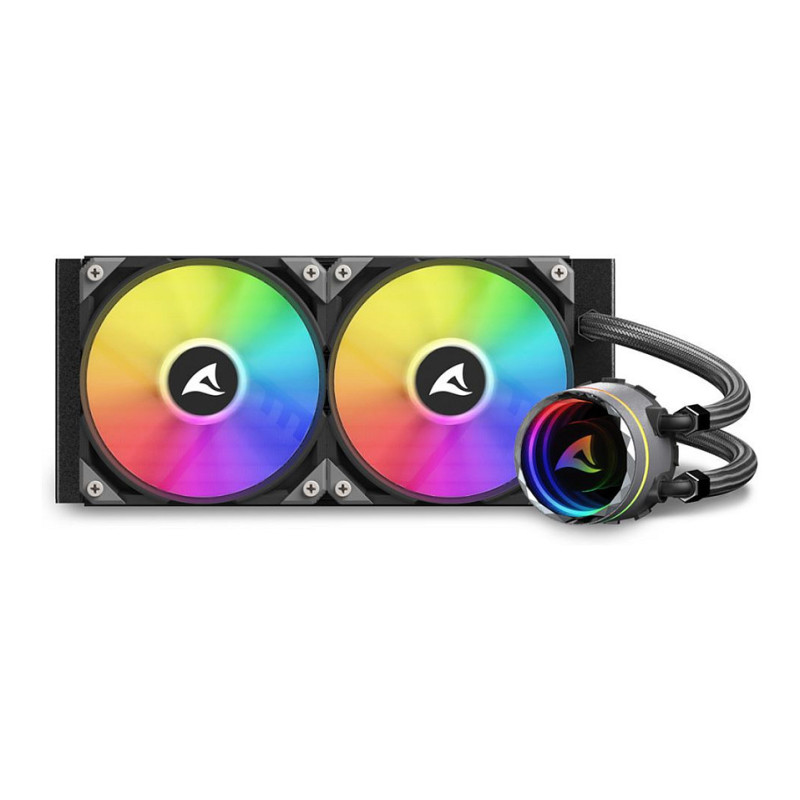

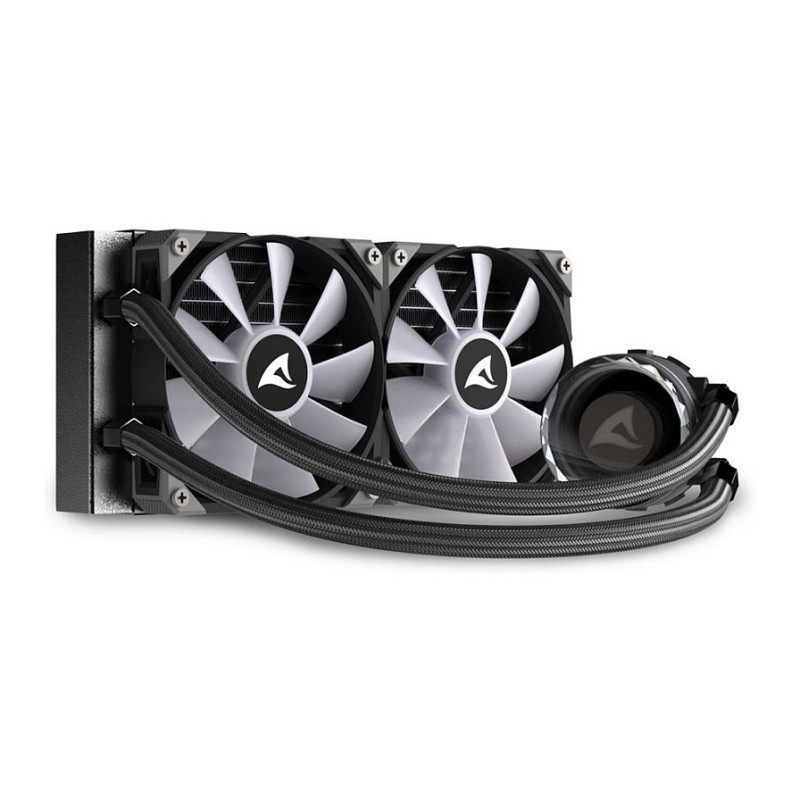

Sharkoon S80 RGB

Sharkoon S80 RGB. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Rotational speed (min): 600 RPM, Rotational speed (max): 2000 RPM, Airflow: 131.93 m³/h, Maximum air pressure: 2.9 mmH2O. Product colour: Black

Performance

Suitable location: Computer case, Processor
Type: All-in-one liquid cooler

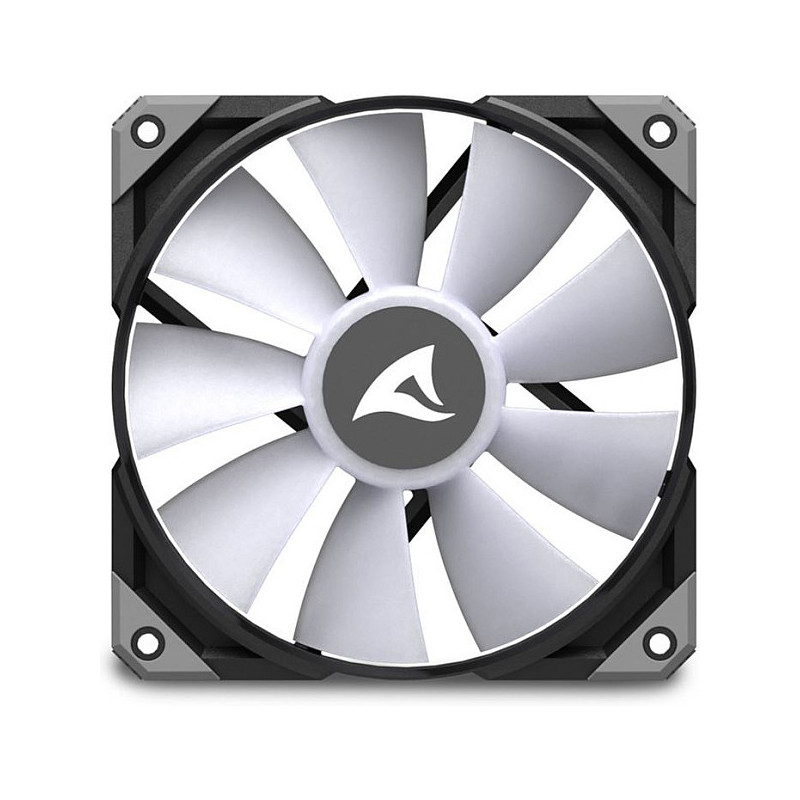

Fan diameter: 12 cm
Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
Rotational speed (min): 600 RPM
Rotational speed (max): 2000 RPM
Noise level (high speed): 35 dB
Airflow: 131.93 m³/h
Maximum air pressure: 2.9 mmH2O
Fan diameter 2: 12 cm
Fan 2 rotational speed (min): 600 RPM
Fan 2 rotational speed (max): 2000 RPM
Fan 2 noise level (high speed): 35 dB
Feature: Pulse-width modulation (PWM) support
Pump connector: 4-pin
Quantity per pack: 1 pc(s)
Pump motor speed (min): 1600 RPM
Pump motor speed (max): 3200 RPM
Fan speed (min): 600 RPM
Fan speed (max): 2000 RPM

Design

Product colour: Black
Material: Aluminium
Radiator material: Aluminum

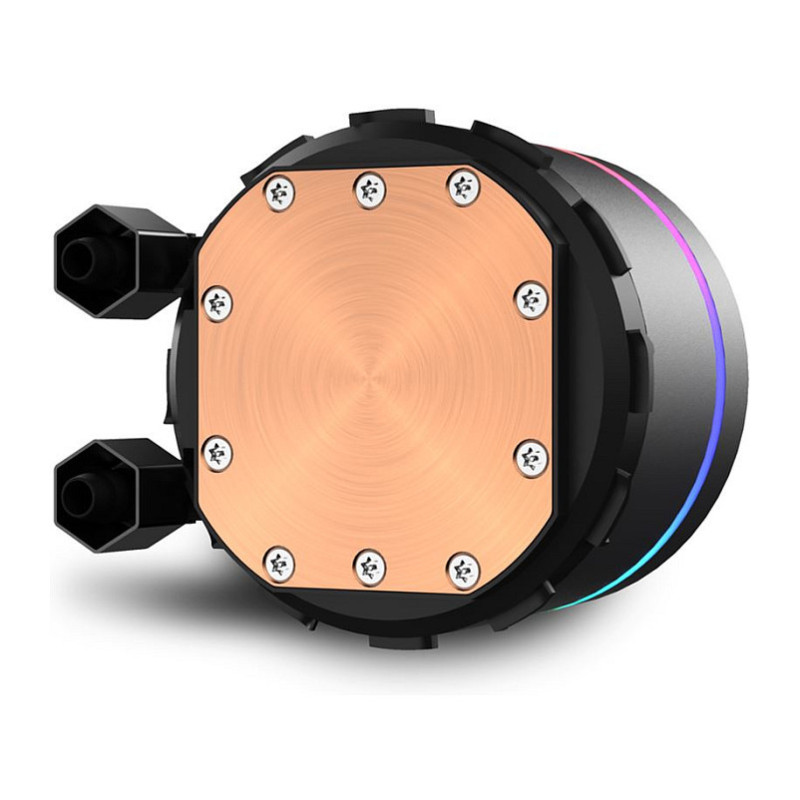

Base plate material: Copper
Number of fans: 2 fan(s)

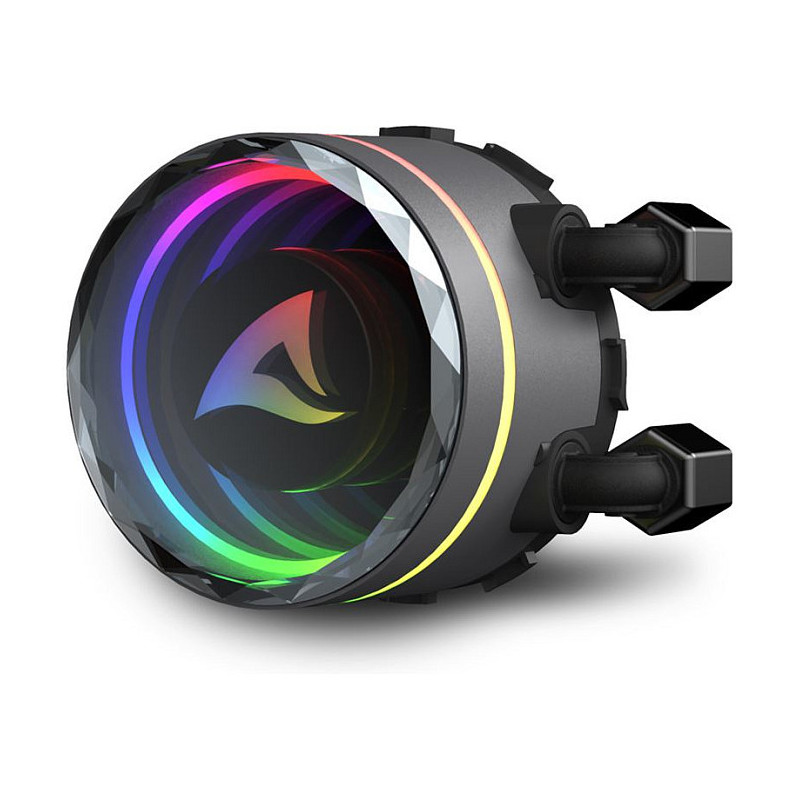

Feature: Illumination LED
Number of LEDs: 12
Illumination colour: Multi
LED connector type: 4-pin
Fan connector: 4-pin
Water block material: Copper

Power

Fan power consumption: 2.52 W
Pump power consumption: 4.2 W
LED voltage: 5 V
Pump voltage: 12 V
Pump current: 0.35 mA
Fan voltage: 12 V
Fan current: 0.21 A
LED power consumption (fan): 2.7 W
LED power consumption (pump): 4 W

Weight & dimensions

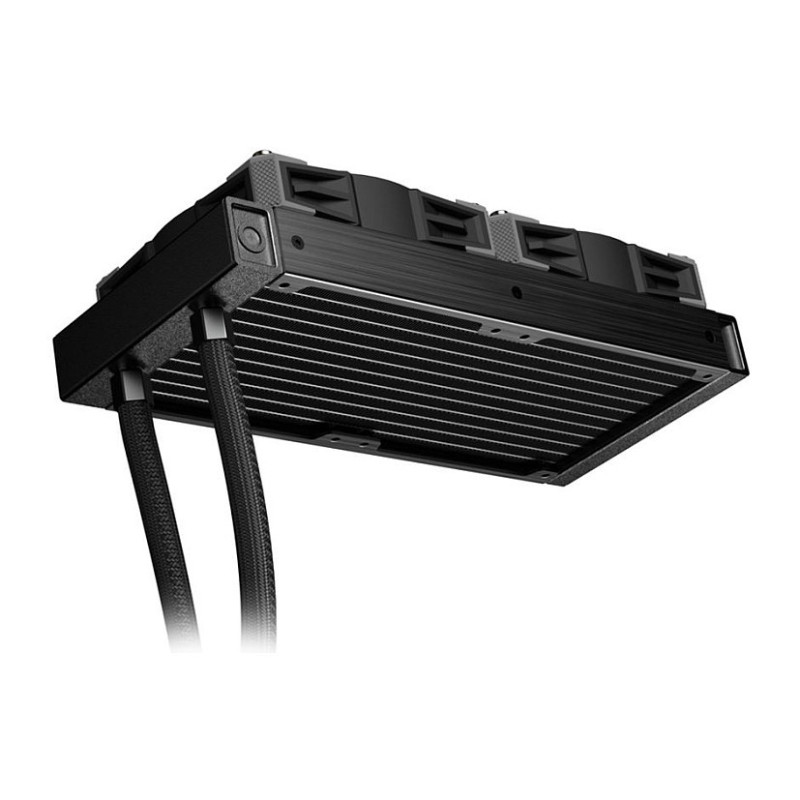

Radiator width: 12.1 cm
Radiator depth: 27.2 cm
Radiator height: 2.75 cm
Tube length: 40 cm
Tube diameter: 7.15 cm
Tube inner diameter: 5.23 cm
Weight: 1.48 kg
Fan thickness: 2.5 cm
Cable length: 0.4 m

Technical details

Compliance certificates: Federal Communications Commission (FCC), REACH, RoHS

Packaging content

Package type: Box
Cables included: 4-pin
Feature: Mounting kit
Feature: Screws included
Feature: Thermal pad included
Feature: Installation instruction
