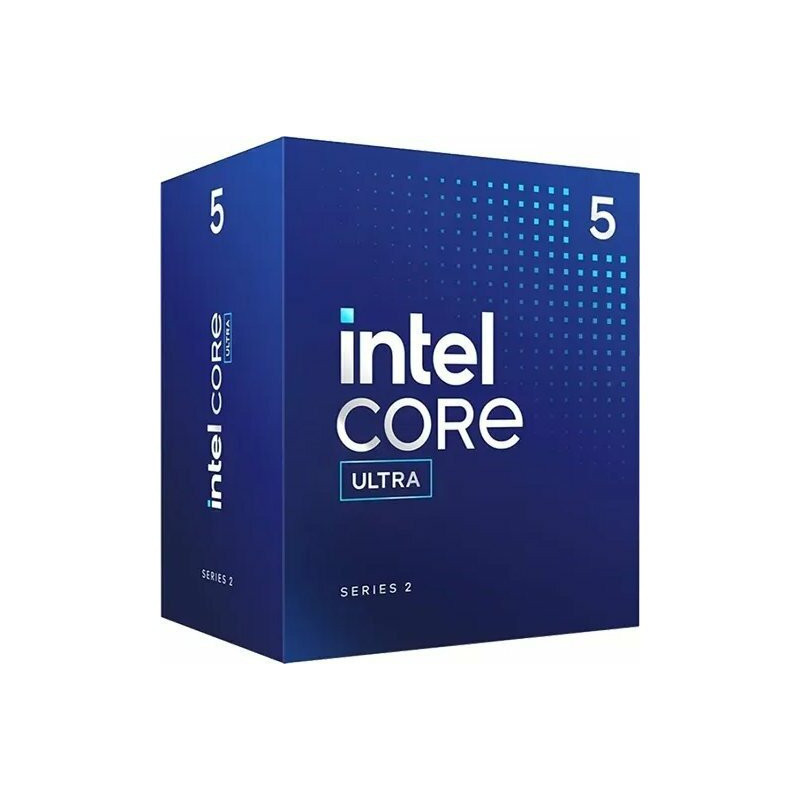

Processor Intel Core Ultra 5 235, 3.4 GHz, 24 MB, BOX (BX80768235)
Product reference:
3-5032037282925
Processor Intel Core Ultra 5 235, 3.4 GHz, 24 MB, BOX (BX80768235)
Processor Intel Core Ultra 5 235, 3.4 GHz, 24 MB, BOX (BX80768235)
Product reference:
3-5032037282925
Processor Intel Core Ultra 5 235, 3.4 GHz, 24 MB, BOX (BX80768235)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
The latest Intel® Core™ Ultra processors (Series 2) enable you to use the most AI experiences across desktop, mobile and edge—making everything you do easier, faster, and better.
| Summary: | Intel Core Ultra 5 235. Processor family: Intel Core Ultra 5, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 27 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. On-board graphics card model: Intel Graphics, On-board graphics card outputs supported: HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 2.1, On-board graphics card base frequency: 300 MHz. Market segment: Desktop, Use conditions: Workstation, PC/Client/Tablet, PCI Express slot version: 4.0, 5.0 |
| Vendor Homepage: | https://www.intel.com/content/www/us/en/products/sku/241674/intel-core-ultra-5-processor-235-24m-cache-up-to-5-00-ghz/ordering.html |
| Category Code: | CPU |
| CnCode: | 85423190 |
| Unit Box Height: | 0.11 |
| Unit Box Length: | 0.12 |
| Unit Box Width: | 0.08 |
| AI software frameworks supported by CPU: | DirectML/ONNX RT/OpenVINO/WebNN/Windows ML |
| Efficient cores: | 8 |
| Efficient-core base frequency: | 2.9GHz |
| Efficient-core boost frequency: | 4.4GHz |
| Maximum number of DMI lanes: | 8 |
| Maximum turbo power: | 121W |
| Package type: | Box |
| Performance cores: | 6 |
| Performance-core base frequency: | 3.4GHz |
| Performance-core boost frequency: | 5GHz |
| Processor ARK ID: | 241674 |
| Processor base power: | 65W |
| Processor boost frequency: | 5GHz |
| Processor cache: | 24MB |
| Processor cache type: | Smart Cache |
| Processor codename: | Arrow Lake |
| Processor cores: | 14 |
| Processor family: | Intel Core Ultra 5 |
| Processor generation: | Intel Core Ultra (Series 2) |
| Processor manufacturer: | Intel |
| Processor model: | 235 |
| Processor operating mode: | 64-bit |
| Processor socket: | LGA 1851 (Socket V1) |
| AI software frameworks supported by NPU: | DirectML/ONNX RT/OpenVINO/WebNN/Windows ML |
| GPU performance up to: | 6TOPs |
| Neural processing unit (NPU): | Intel AI Boost |
| NPU performance up to: | 13TOPs |
| Sparsity support: | Yes |
| Total processor performance up to: | 27TOPs |
| Windows Studio effects support: | Yes |
| ECC: | Yes |
| Maximum internal memory supported by processor: | 192GB |
| Memory channels: | Dual channel |
| Memory clock speeds supported by processor: | 6400MHz |
| Memory types supported by processor: | DDR5-SDRAM |
| Discrete graphics card: | From |
| Discrete graphics card model: | Not available |
| Number of displays supported (on-board graphics): | 4 |
| On-board graphics card: | Yes |
| On-board graphics card base frequency: | 300MHz |
| On-board graphics card DirectX version: | 12.0 |
| On-board graphics card dynamic frequency (max): | 2000MHz |
| On-board graphics card ID: | 0x7D67 |
| On-board graphics card model: | Intel® Graphics |
| On-board graphics card OpenGL version: | 4.5 |
| On-board graphics card outputs supported: | DisplayPort 2.1/Embedded DisplayPort (eDP) 1.4b/HDMI 2.1 |
| On-board graphics card refresh rate at maximum resolution (DisplayPort): | 60Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): | 60Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI): | 60Hz |
| Xe-cores: | 3 |
| Direct Media Interface (DMI) Revision: | 4.0 |
| Embedded options available: | From |
| Execute Disable Bit: | Yes |
| Idle States: | Yes |
| Market segment: | Desktop |
| Maximum number of PCI Express lanes: | 24 |
| PCI Express slot version: | 4.0/5.0 |
| Scalability: | 1S |
| Supported instruction sets: | AVX 2.0/SSE4.1/SSE4.2 |
| Thermal Monitoring Technologies: | Yes |
| Terms of use: | PC/Client/Tablet/Workstation |
| Enhanced Intel SpeedStep Technology: | Yes |
| Intel 64: | Yes |
| Intel Trusted Execution Technology: | Yes |
| Intel Virtualization Technology (VT-x): | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d): | Yes |
| Intel vPro® Enterprise Platform Eligibility: | Yes |
| Intel VT-x with Extended Page Tables (EPT): | Yes |
| Intel® Active Management Technology (Intel® AMT): | Yes |
| Intel® AES New Instructions (Intel® AES-NI): | Yes |
| Intel® Boot Guard: | Yes |
| Intel® Control-flow Enforcement Technology (CET): | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU: | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on GPU: | Yes |
| Intel® Hardware Shield Eligibility: | Yes |
| Intel® One-Click Recovery: | Yes |
| Intel® OS Guard: | Yes |
| Intel® Quick Sync Video Technology: | Yes |
| Intel® Remote Platform Erase (RPE): | Yes |
| Intel® Secure Key: | Yes |
| Intel® Speed Shift Technology: | Yes |
| Intel® Stable IT Platform Program (SIPP): | Yes |
| Intel® Standard Manageability (ISM): | Yes |
| Intel® Thread Director: | Yes |
| Intel® Threat Detection Technology (TDT): | Yes |
| Intel® Thunderbolt 4: | Yes |
| Intel® Total Memory Encryption - Multi Key: | Yes |
| Intel® Turbo Boost Technology: | 2.0 |
| Intel® Virtualization Technology with Redirect Protection (VT-rp): | Yes |
| Intel® Volume Management Device (VMD): | Yes |
| Mode-based Execute Control (MBE): | Yes |
| Maximum operating temperature: | 105°C |
| Launch date: | Q1'25 |
| OpenCL version: | 3.0 |
| Status: | Launched |
| Graphics output: | DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b |
| L2 cache: | 26624KB |
| Maximum internal memory: | 192GB |
| Model: | Intel Core Ultra 5 235 (BX80768235) |
| CPU Family name: | Intel Core Ultra |
| Model number: | U5-235 |
| Units per Pallet: | 0 |
| Units per Shipping Box: | 5 |
| Unit Calculated Volume: | 0.001248m³ |
| Unit Calculated Weight: | 0.492kg |
