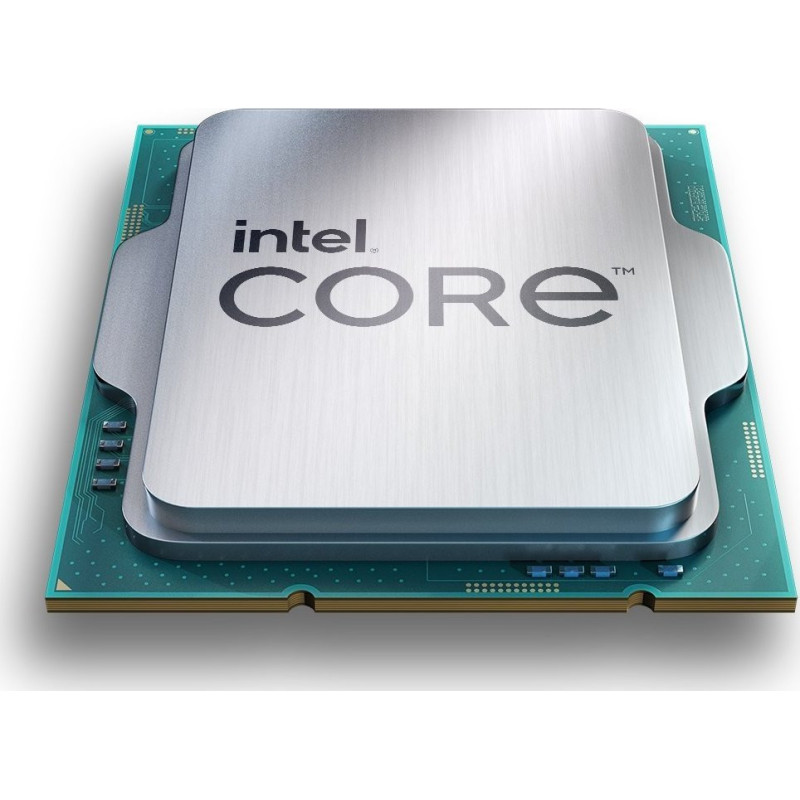

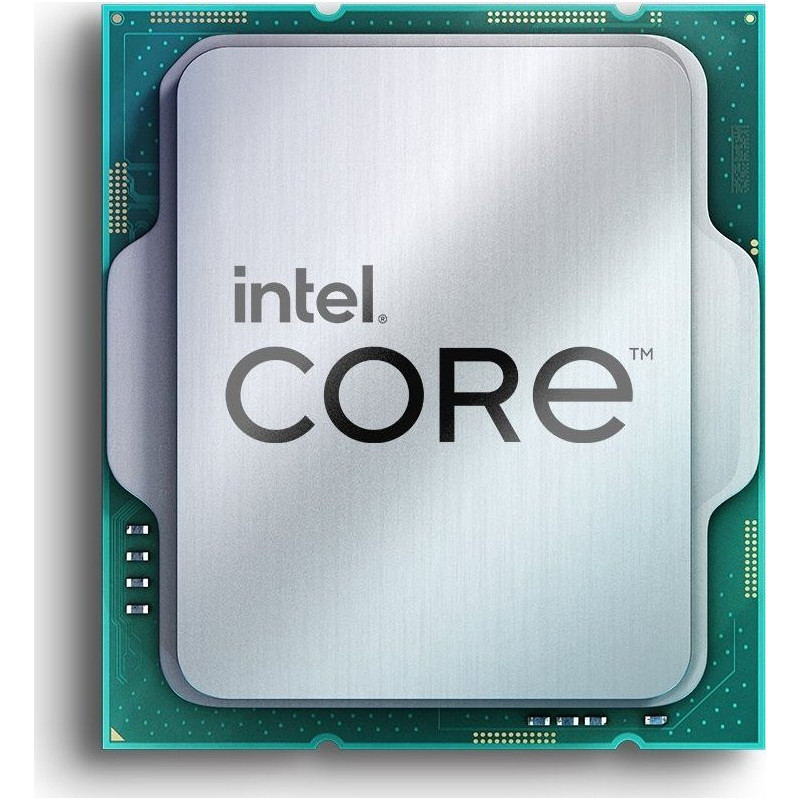

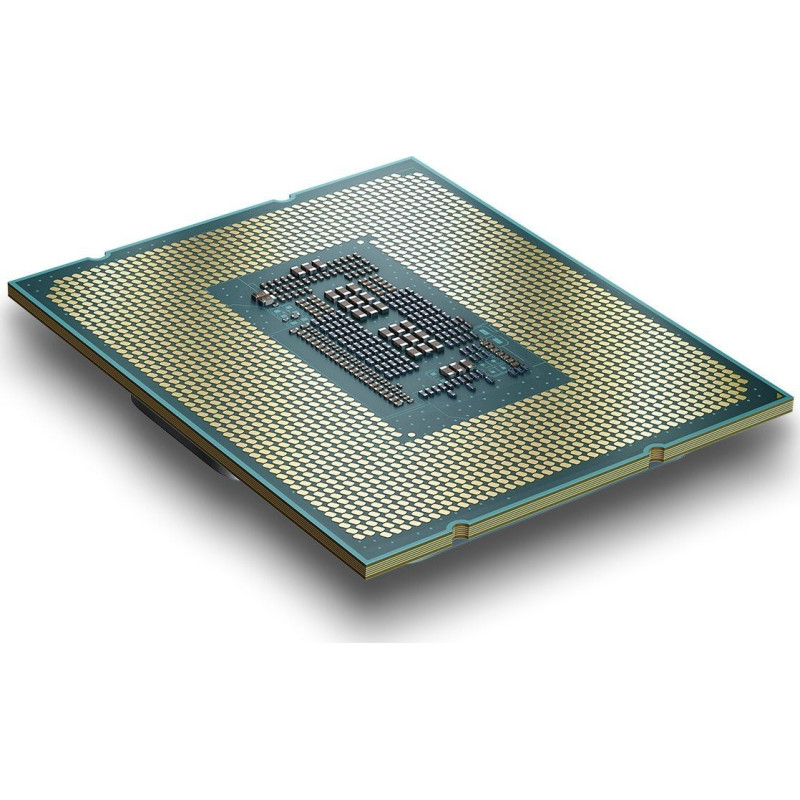

Processor Intel Core i5-14600K, 3.5 GHz, 24 MB, BOX (BX8071514600K)
Product reference:
3-5032037278447
Processor Intel Core i5-14600K, 3.5 GHz, 24 MB, BOX (BX8071514600K)
Processor Intel Core i5-14600K, 3.5 GHz, 24 MB, BOX (BX8071514600K)
Product reference:
3-5032037278447
Processor Intel Core i5-14600K, 3.5 GHz, 24 MB, BOX (BX8071514600K)
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
13 - 18
business days
| Technical details | |
|---|---|
| Status | Launched |
| OpenCL version | 3.0 |
| Launch date | Q4'23 |
| Processor | |
| Maximum number of DMI lanes | 8 |
| Performance-core boost frequency | 5.3 GHz |
| Processor base power | 125 W |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Maximum turbo power | 181 W |
| Performance-core base frequency | 3.5 GHz |
| Memory bandwidth supported by processor (max) | 89.6 GB/s |
| Efficient cores | 8 |
| Box | Yes |
| Performance cores | 6 |
| Stepping | B0 |
| Processor operating modes | 64-bit |
| Processor cache | 24 MB |
| Processor codename | Raptor Lake |
| Processor cores | 14 |
| Processor model | i5-14600K |
| Processor family | Intel® Core™ i5 |
| Cooler included | No |
| Processor threads | 20 |
| Processor socket | LGA 1700 |
| Processor manufacturer | Intel |
| Processor cache type | Smart Cache |
| Processor ARK ID | 236799 |
| Graphics | |
| Multi-Format Codec Engines | 2 |
| On-board graphics card ID | 0xA780 |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 120 Hz |
| On-board graphics card outputs supported | DisplayPort 1.4a, HDMI 2.1, Embedded DisplayPort (eDP) 1.4b |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 5120 x 3200 pixels |
| On-board graphics card dynamic frequency (max) | 1550 MHz |
| Number of displays supported (on-board graphics) | 4 |
| On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2160 pixels |
| On-board graphics card OpenGL version | 4.5 |
| On-board graphics card DirectX version | 12.0 |
| Number of execution units | 32 |
| Discrete graphics card model | Not available |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card | Yes |
| Discrete graphics card | No |
| Features | |
| Direct Media Interface (DMI) Revision | 4.0 |
| Use conditions | PC/Client/Tablet, Workstation |
| Thermal solution specification | PCG 2020A |
| Supported instruction sets | SSE4.2, SSE4.1, AVX 2.0 |
| Scalability | 1S |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Market segment | Desktop |
| Embedded options available | No |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Export Control Classification Number (ECCN) | 5A992C |
| PCI Express slots version | 5.0, 4.0 |
| Maximum number of PCI Express lanes | 20 |
| CPU configuration (max) | 1 |
| PCI Express configurations | 1x16+1x4, 2x8+1x4 |
| Thermal Monitoring Technologies | Yes |
| Memory | |
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
| Memory bandwidth (max) | 89.6 GB/s |
| Non-ECC | Yes |
| Memory channels | Dual-channel |
| ECC | Yes |
| Operational conditions | |
| Tjunction | 100 °C |
| Weight & dimensions | |
| Processor package size | 45 x 37.5 mm |
| Processor special features | |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Thread Director | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Boot Guard | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel 64 | Yes |
| Intel® Secure Key | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Other features | |
| L2 cache | 20480 KB |
| Graphics output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Maximum internal memory | 192 GB |
| Logistics data | |
| Harmonized System (HS) code | 8542310001 |
| Safety warning | |
| Warnings | Ensure that the CPU is properly mounted in the CPU socket to avoid damage., Be careful when handling the processor to avoid damaging the delicate pins., Do not dispose of the processors in the normal rubbish bin - they require special disposal due to their potential environmental impact. |
