Noctua NH-D9 DX-4677 4U computer cooling system

Noctua NH-D9 DX-4677 4U. Type: Air cooler, Fan diameter: 9.2 cm, Rotational speed (min): 400 RPM, Rotational speed (max): 2500 RPM, Bearing type: Self-Stabilising Oil-pressure Bearing (SSO). Voltage: 12 V. Width: 95 mm, Depth: 120 mm, Height: 134 mm. Product colour: Aluminium, Beige, Brown

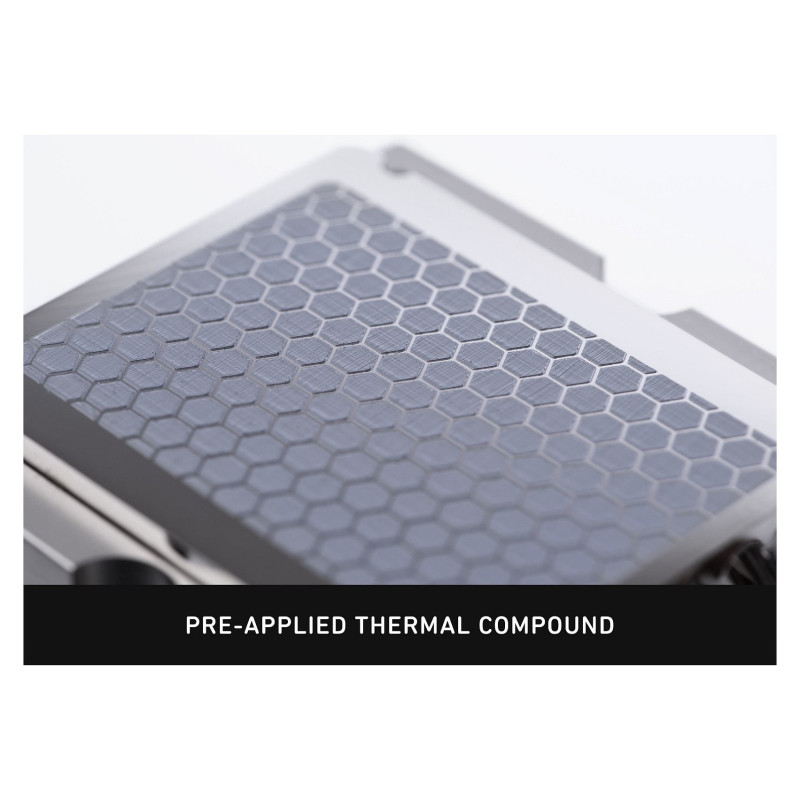

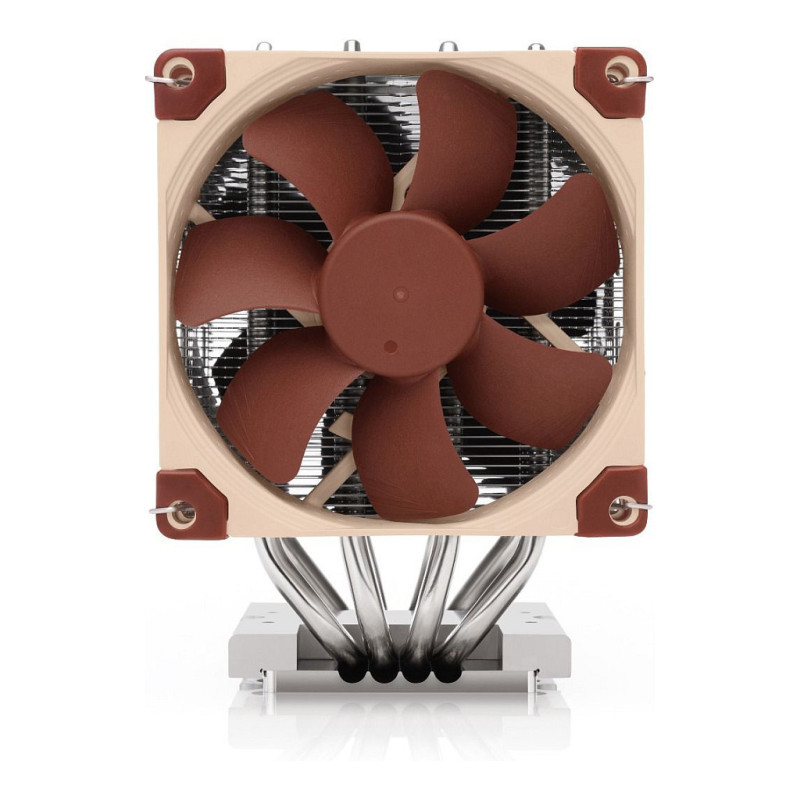

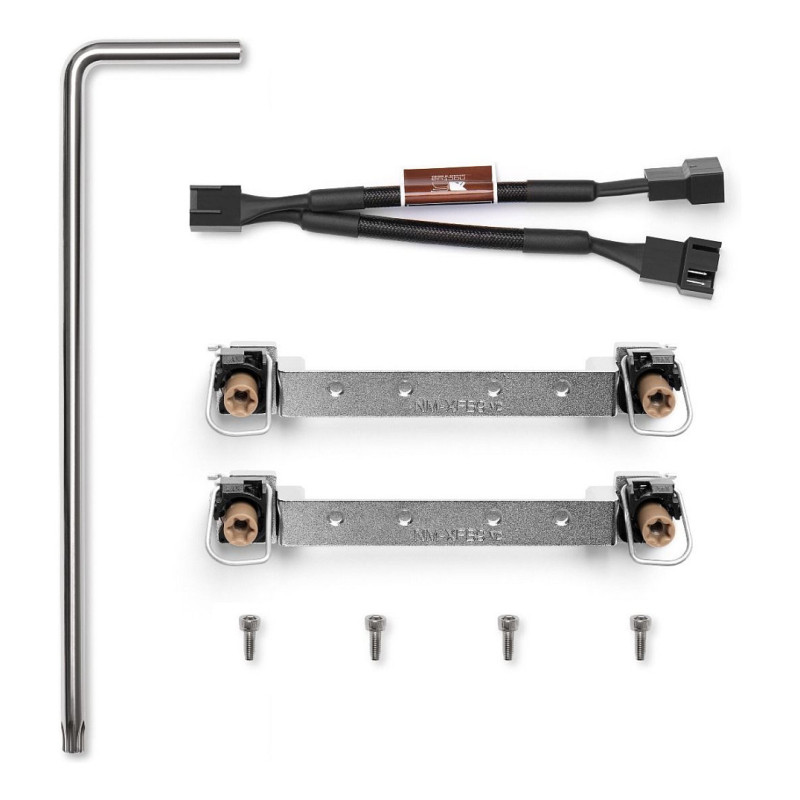

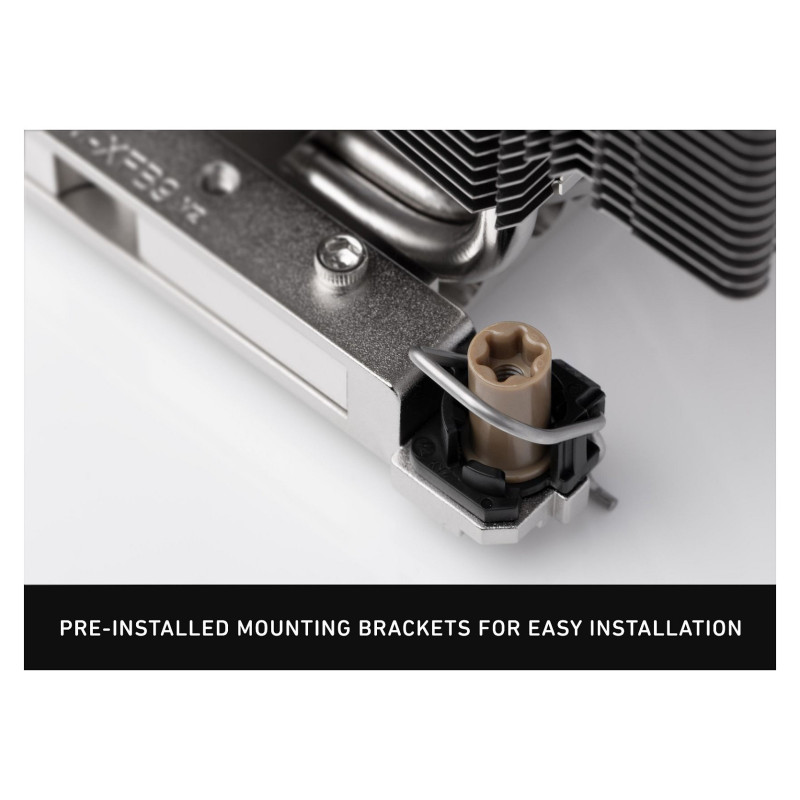

Noctua's DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-D9 DX-4677 4U features a larger, custom-designed contact surface for LGA4677 platforms. Based on the proven, 92mm size NH-D9L heatsink and equipped with two of Noctua's award-winning, PWM controlled NF-A9 92mm fans (high-efficiency 2500rpm version), it combines strong performance with excellent compatibility for 4U systems and other space-restricted applications. The NH-U9's direction of airflow is perpendicular to the long axis of the LGA4677 socket, so it is ideal for systems where the exhaust fans of the chassis are in this direction. For systems that require the airflow to go parallel to the long axis of the socket, please choose the NH-D9 DX-4677 4U. Topped off with the professional SecuFirm2™ mounting system and pre-applied NT-H1 thermal compound, the NH-D9 DX-4677 4U forms a complete premium quality package for quietly cooling LGA4677 based Xeon workstations and servers.

Performance

Suitable location: Processor
Type: Air cooler
Fan diameter: 9.2 cm
Supported processor sockets: LGA 4677 (Socket E)
Compatible processor series: Intel® Xeon®
Rotational speed (min): 400 RPM
Rotational speed (max): 2500 RPM
Noise level (low speed): 16.3 dB
Noise level (high speed): 30.6 dB
Maximum airflow: 96.3 cfm
Bearing type: Self-Stabilising Oil-pressure Bearing (SSO)
Mean time between failures (MTBF): 150000 h

Design

Product colour: Aluminium, Beige, Brown
Material: Aluminium, Copper, Nickel
Radiator material: Aluminum
Number of fans: 2 fan(s)

Power

Power consumption (typical): 1.68 W
Voltage: 12 V

Weight & dimensions

Width: 95 mm
Radiator width: 9.5 cm
Radiator depth: 9.5 cm
Radiator height: 9.5 cm
Depth: 120 mm
Height: 134 mm
Weight: 769 g
Fan dimensions (W x D x H): 92 x 92 x 25 mm
Fan weight: 92.5 g
Fan 2 dimensions (W x D x H): 92 x 92 x 25 mm
Fan 2 weight: 92.5 g

Technical details

Warranty period: 6 year(s)
