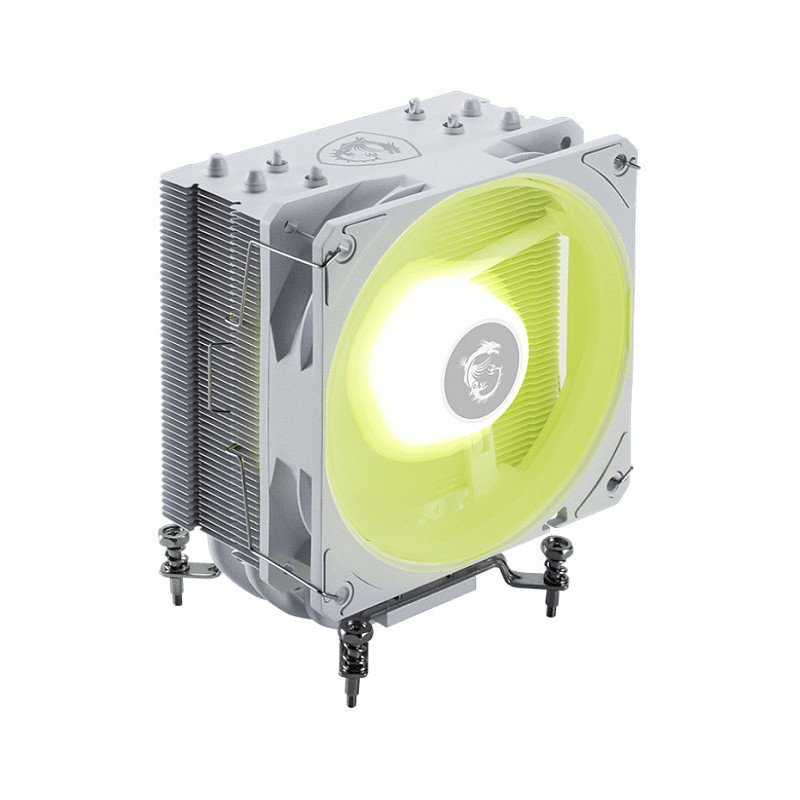

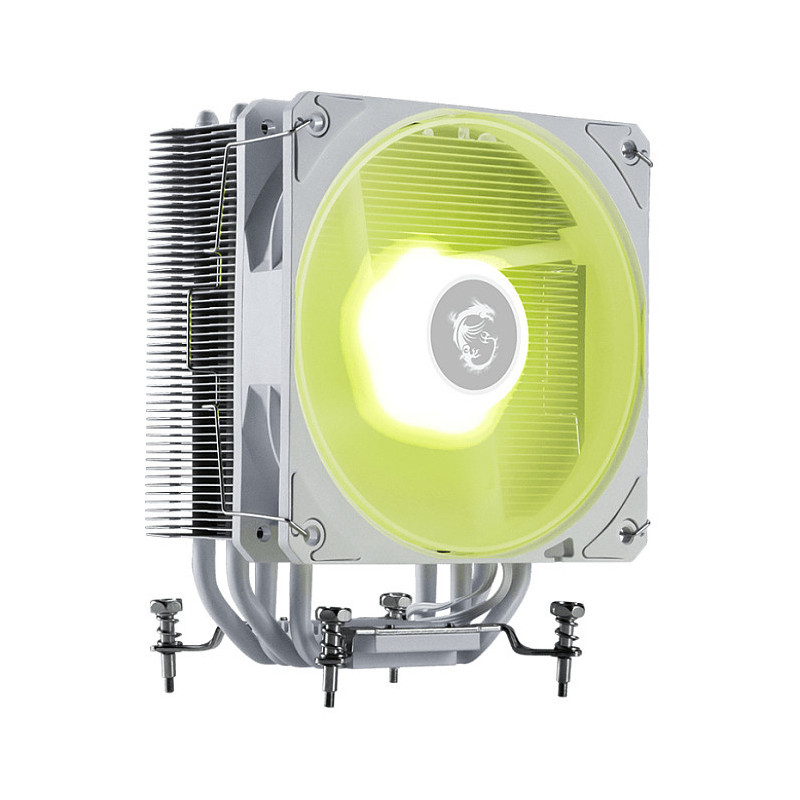

MSI MAG COREFROZR AA13 WHITE computer cooling system

MSI MAG COREFROZR AA13 WHITE. Type: Air cooler, Fan diameter: 12 cm, Bearing type: Rifle bearing. Width: 121 mm, Depth: 94.5 mm, Height: 152 mm. Product colour: White

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.

Compact Design, Powerful Cooling
With a height of just 152mm, the cooler fits most mid-tower cases, offering great compatibility without sacrificing performance.

Direct Touch Heat-pipes
Direct touch heat-pipes ensures better heat transfer by placing copper heat pipes directly against the CPU surface.

Efficient Quad Heat pipes
Four 6mm copper heat pipes rapidly channel heat away from the CPU, enhancing thermal dissipation across the fin array.

TDP 240W
based on internal testing with an Intel Core i9-14900K platform

Pre-Applied Thermal Paste
Comes with pre-applied thermal compound for a hassle-free installation and optimal contact out of the box.

Laser-Etched Dragon Spirit
The top cover features a finely laser-etched MSI Dragon emblem, showcasing iconic detail and craftsmanship.

High-Density Fins & Optimized Airflow Path
Features 50 tightly packed cooling fins with a low-resistance airflow design. This combination ensures focused air pressure, enhanced cooling efficiency, and quieter operation.

Mounting Kit for Intel & AMD
Includes mounting kits for both Intel and AMD platforms, supporting LGA 1700 / 1851 and AM4 / AM5 sockets. Spring-screw design ensures easier installation, with Intel kit pre-installed out of the box.

Performance

Suitable location: Processor
Type: Air cooler
Fan diameter: 12 cm
Supported processor sockets: LGA 1851, LGA 1700, Socket AM4, Socket AM5
Maximum airflow: 62.6 cfm
Feature: Pulse-width modulation (PWM) support
Bearing type: Rifle bearing
Fan noise level (min): 30.11 dB
Fan noise level (max): 34.1 dB
Quantity per pack: 1 pc(s)
Fan speed (min): 510 RPM
Fan speed (max): 2070 RPM
Fan static pressure: 2.36 mmH2O
Fan's mean time to failure (MTTF): 40000 h

Design

Product colour: White
Radiator material: Aluminum
Number of fans: 1 fan(s)
Number of fins: 50
Number of heat pipes: 4
Feature: Illumination LED
Illumination colour: Multi
LED connector type: 3-pin
Display type: Not applicable

Power

Fan power consumption: 1.44 W
Rated current: 0.15 A
Maximum current: 0.18 A
Thermal Design Power (TDP): 240 W
LED voltage: 5 V

Weight & dimensions

Width: 121 mm
Radiator width: 12.1 cm
Radiator depth: 9.45 cm
Radiator height: 15.2 cm
Depth: 94.5 mm
Height: 152 mm
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Cable length: 0.3 m
