Thermal Grizzly DeltaMate Rotary

Thermal Grizzly DeltaMate Rotary. Type: Fitting, Material: Brass, Rubber, EPDM, Product colour: Black. Width: 20.6 mm, Depth: 20.6 mm, Height: 26.1 mm. Quantity per pack: 1 pc(s), Package width: 80 mm, Package depth: 110 mm

Machined brass rotary fitting with EPDM O-ring, G1/4" threads

DeltaMate Rotary Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the rotary fittings are precisely machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper.

General information
The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings ensures seamless integration of individual components.

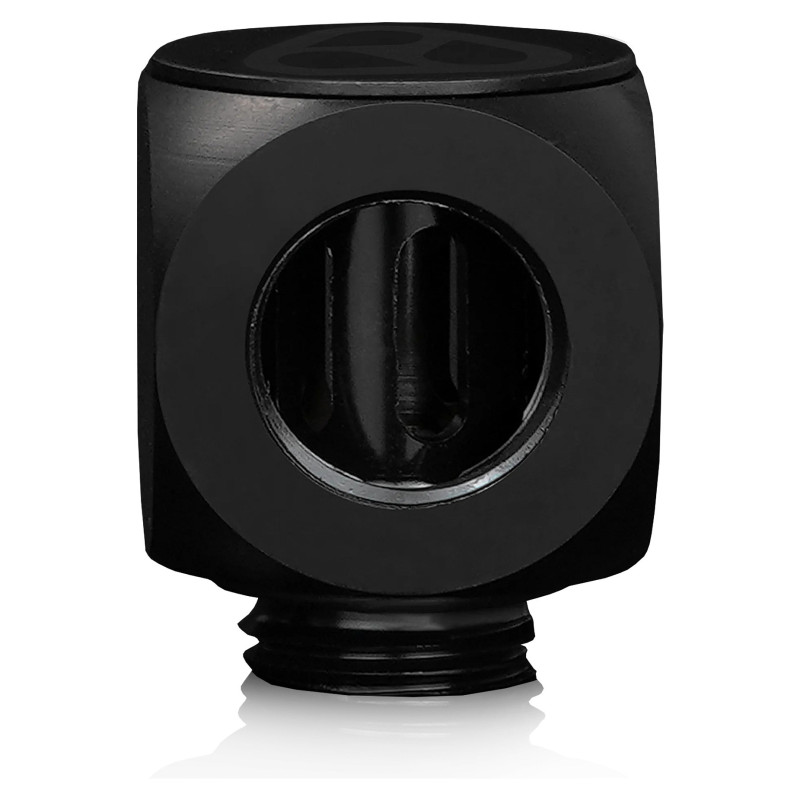

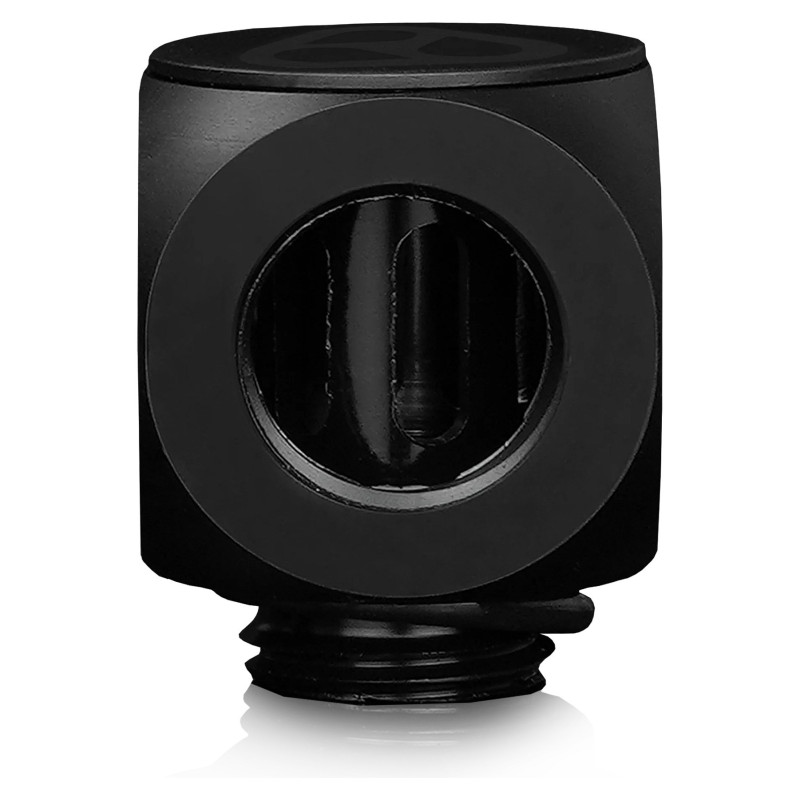

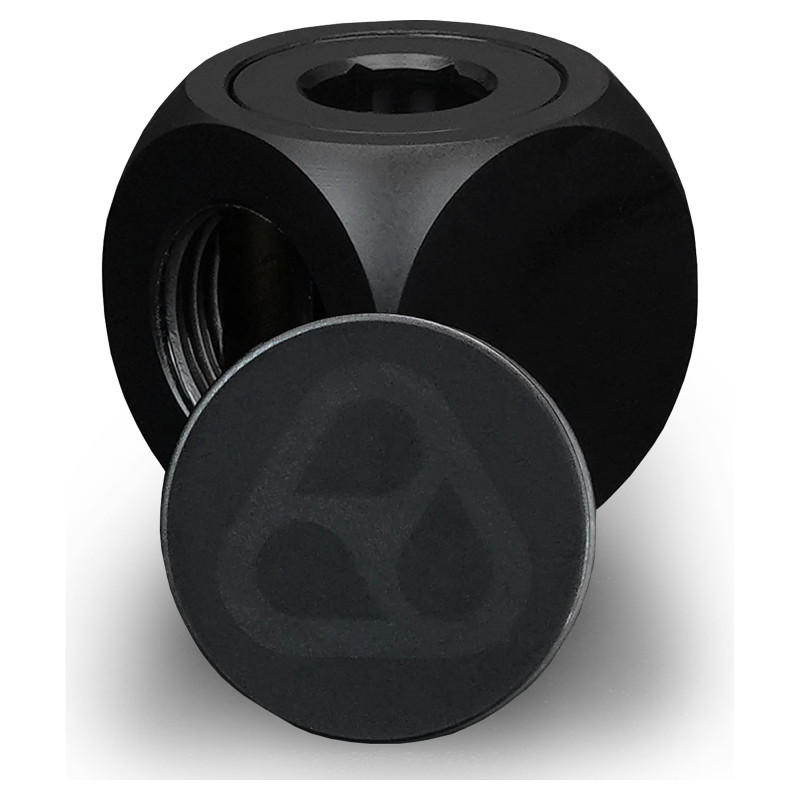

The DeltaMate Rotary - T in black allows for modular combination with other DeltaMate Rotary and Extender Fittings due to its compact dimensions. The DeltaMate Rotary - T has one male and two female G1/4" threads and offers a premium finish in the form of a matt black chromium plating that is also easy to clean. When using additional fittings, they mechanically lock the rotary joint together for maximum security. An optional aesthetic cover with the DeltaMate logo is included, which can be rotated to any orientation.

Features

Type: Fitting
Material: Brass, Rubber, EPDM
Product colour: Black
Connecting thread: 1/4"
Connector 1 gender: Male
Connector 2 gender: Female
Suitable for: Liquid cooling system

Weight & dimensions

Width: 20.6 mm
Depth: 20.6 mm
Height: 26.1 mm
Weight: 43 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 80 mm
Package depth: 110 mm
Package height: 20 mm
Package weight: 45 g
Package type: Polybag
