Thermal Grizzly DeltaMate Fitting

Thermal Grizzly DeltaMate Fitting. Type: Fitting, Material: Brass, Rubber, EPDM, Product colour: Black. Width: 21 mm, Depth: 21 mm, Height: 18.5 mm. Quantity per pack: 1 pc(s), Package width: 80 mm, Package depth: 11 mm

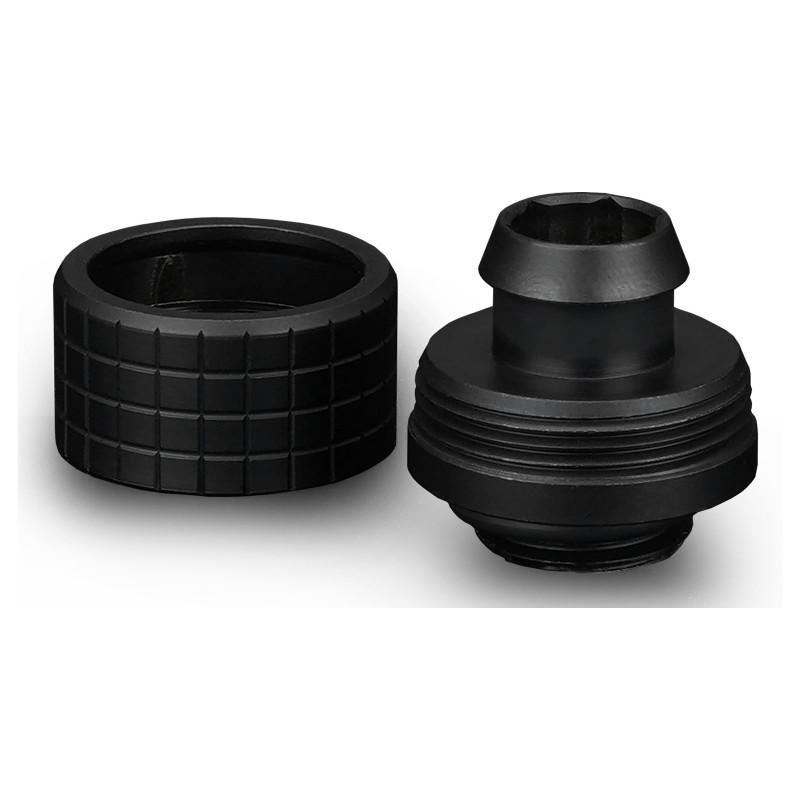

Machined brass fitting with EPDM O-ring and knurled compression ring. Available for both soft (ST) and hard tubes (HT).
DeltaMate Fittings are water cooling connectors designed for the individual components of a custom water cooling loop. As expected from Thermal Grizzly quality, the fittings are precisely machined from brass. Brass, as an alloy of copper and zinc, offers the advantage of being anodically compatible with other metals while being harder and more corrosion-resistant than copper.
General information
The sealing rings (O-rings) are made from highly elastic EPDM (ethylene propylene diene rubber), which is resistant to ozone and UV radiation. The robust design of the DeltaMate fittings allows for installation using an 8 mm hex key. The uniform outer diameter of all DeltaMate fittings ensures seamless integration of individual components.

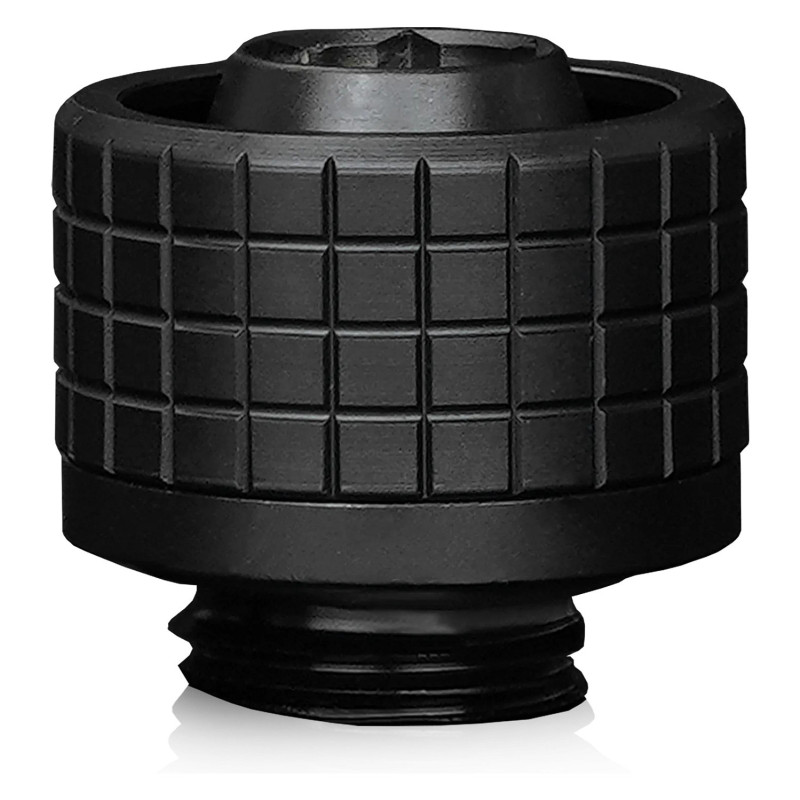

The DeltaMate ST16 fitting in black with a G1/4" thread is suitable for soft tubes made of flexible plastics with a 10/16 mm diameter. For a premium finish that is also easy to clean, the fittings are coated with matt black chromium. A single tapered barb in combination with a knurled compression ring that securely grips the tubing with high retention force allows for easy and secure tube installation.

Features

Type: Fitting
Material: Brass, Rubber, EPDM
Product colour: Black
Connecting thread: 1/4"
Connector 1 gender: Male
Suitable for: Liquid cooling system

Weight dimensions

Width: 21 mm
Depth: 21 mm
Height: 18.5 mm
Weight: 24 g

Packaging data

Quantity per pack: 1 pc(s)
Package width: 80 mm
Package depth: 11 mm
Package height: 20 mm
Package weight: 26 g
Package type: Polybag
