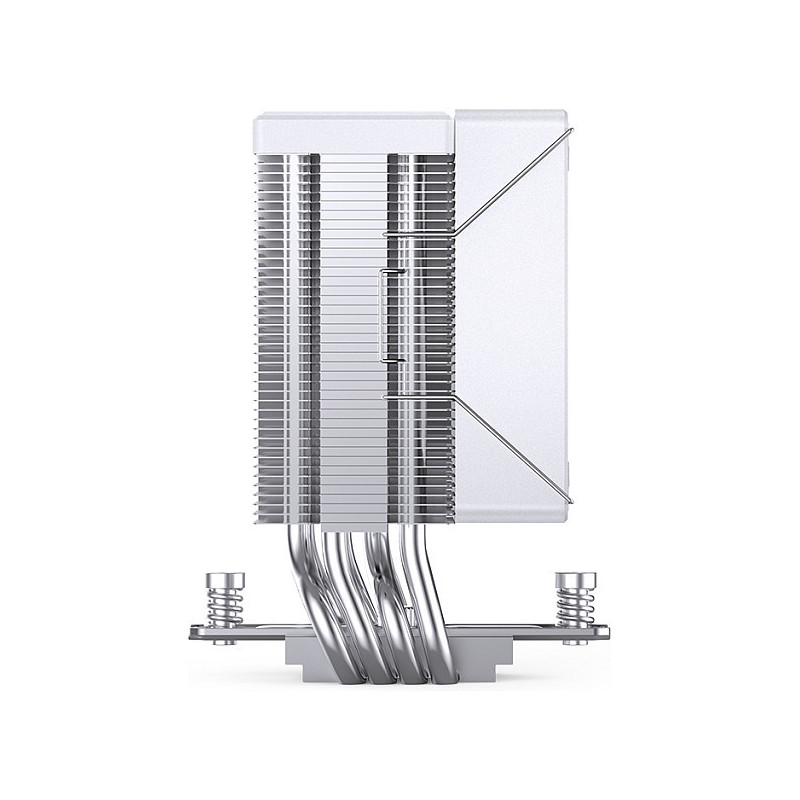

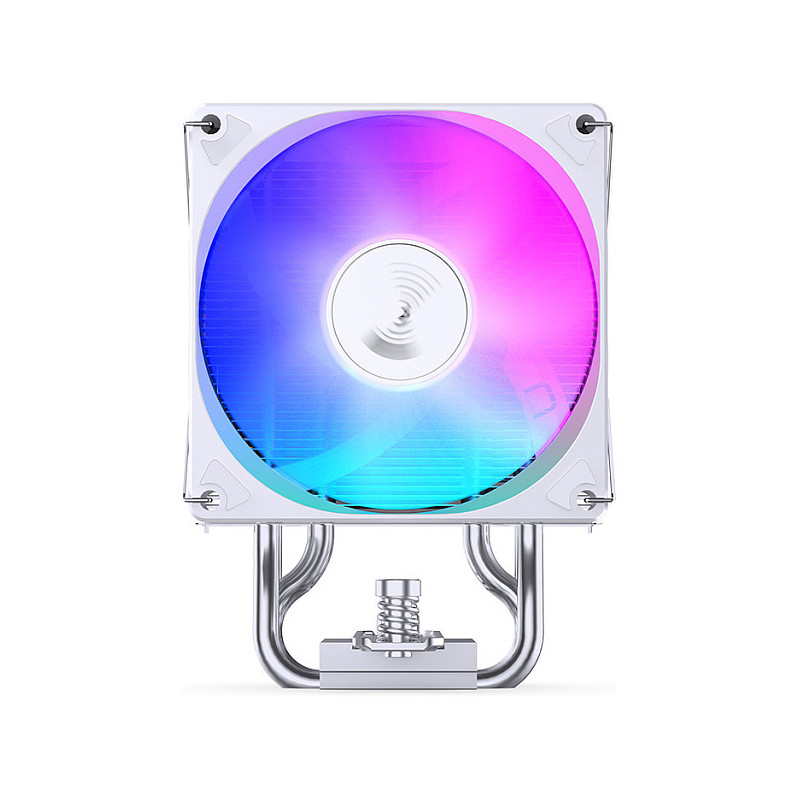

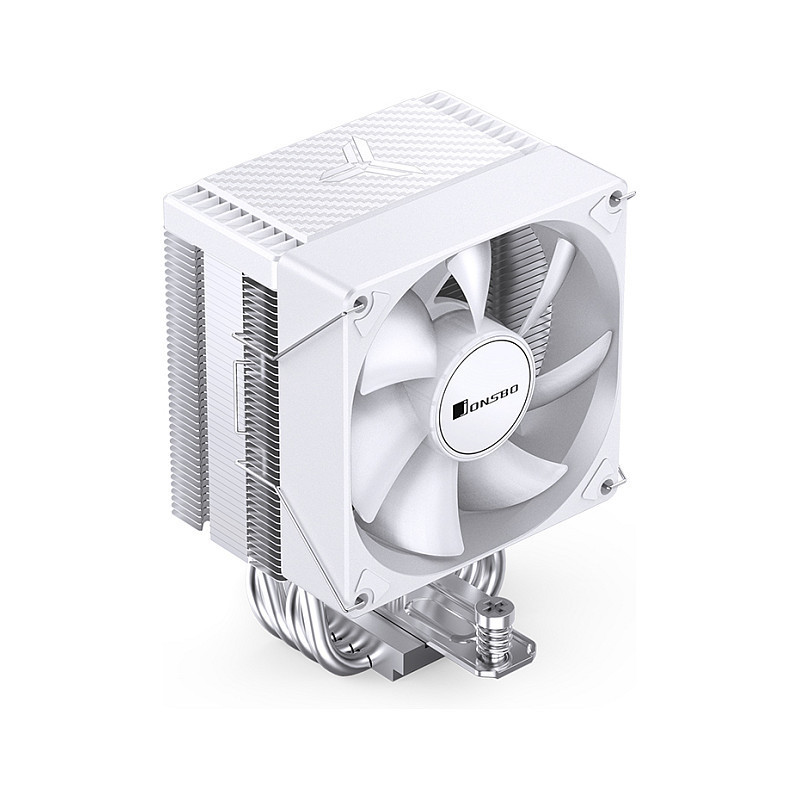

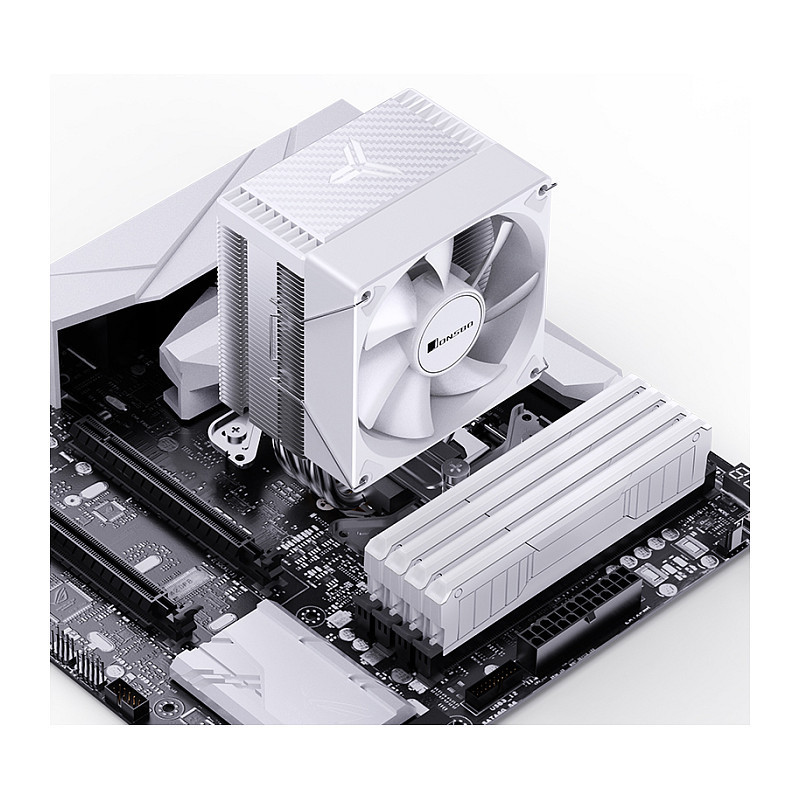

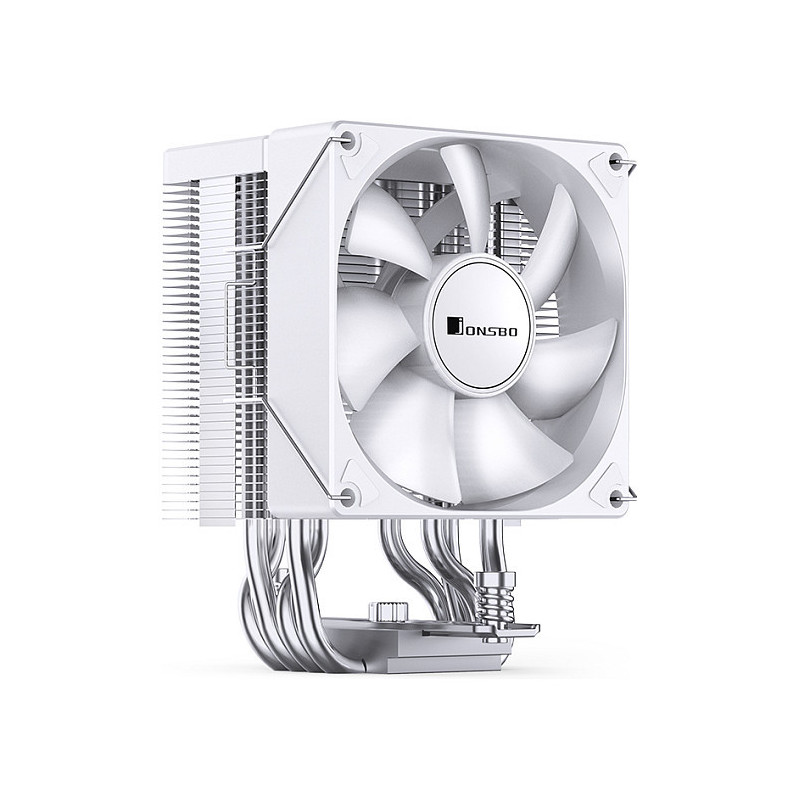

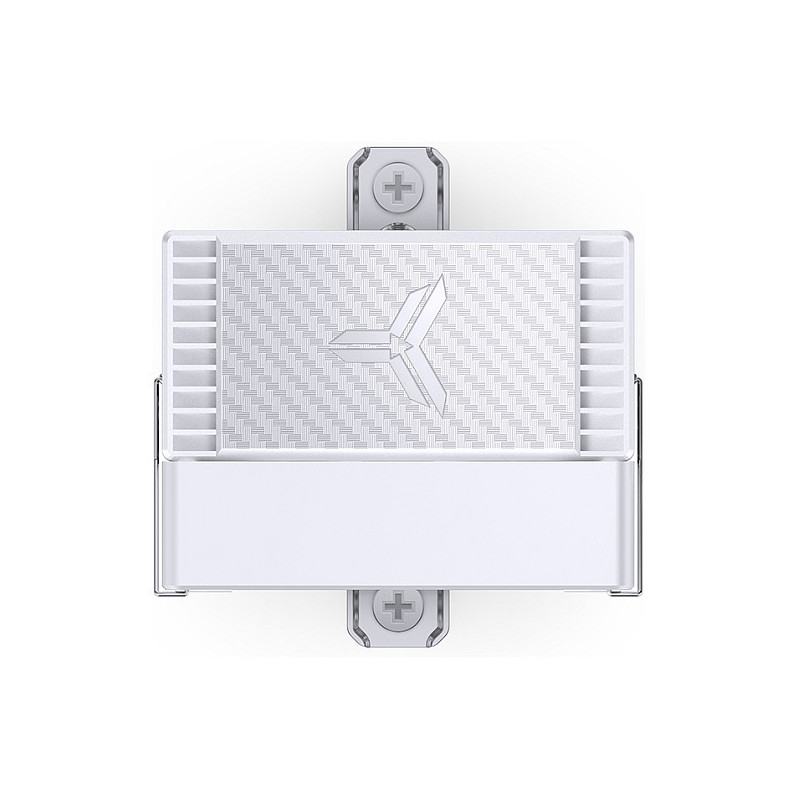

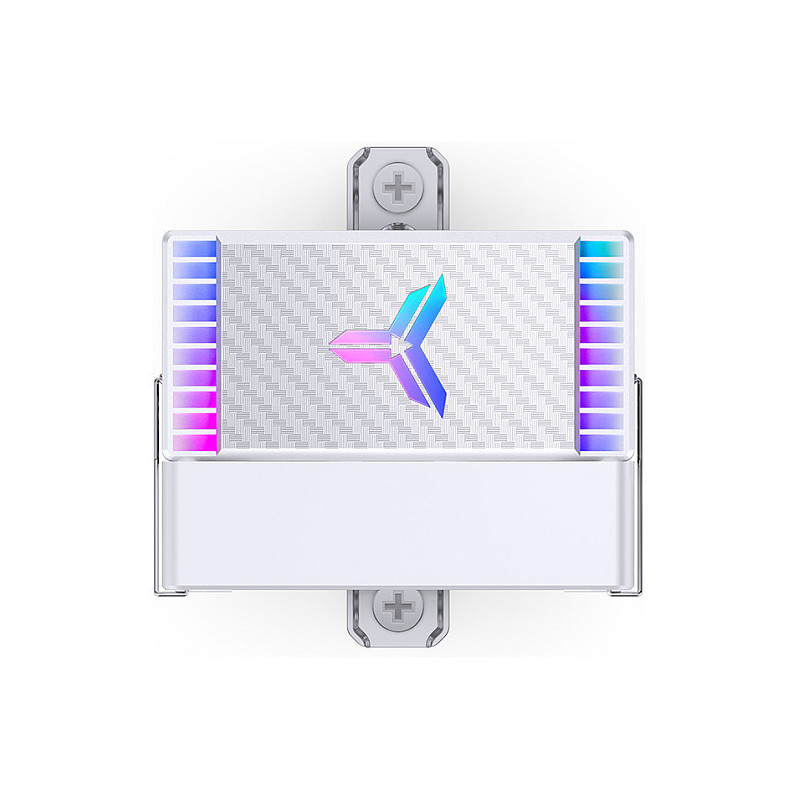

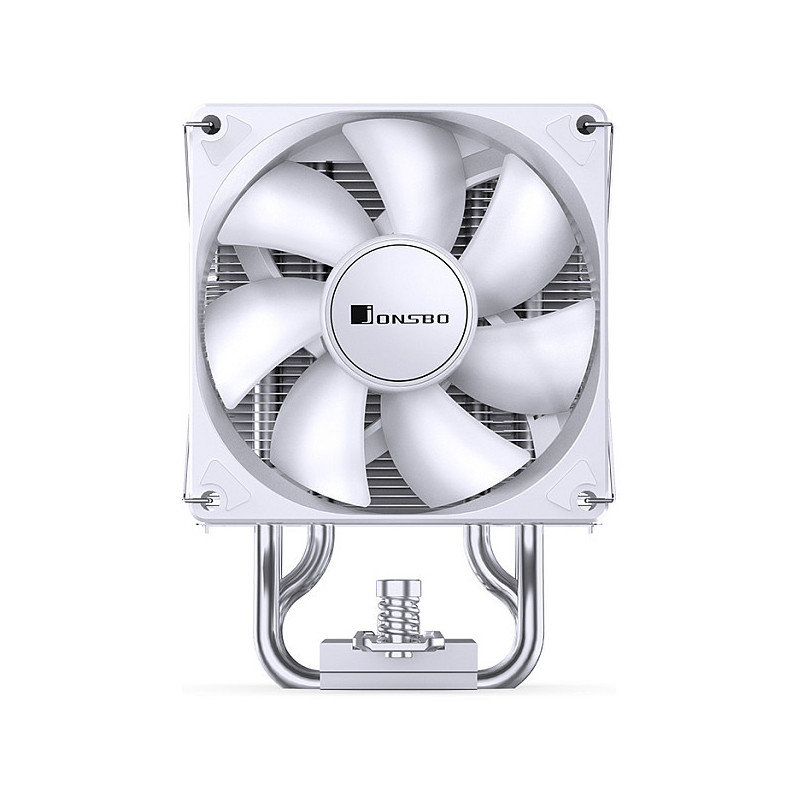

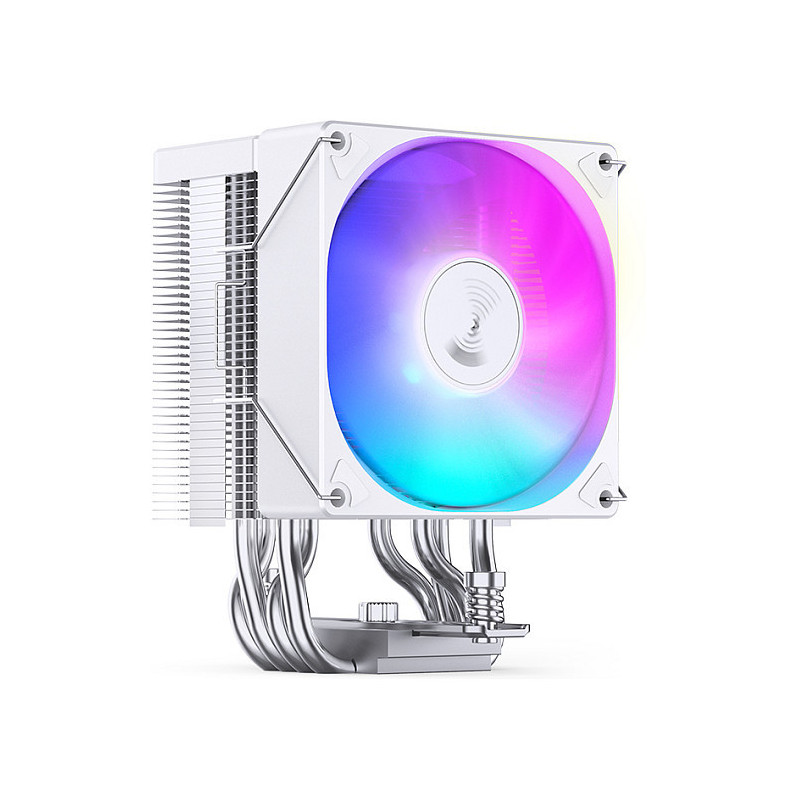

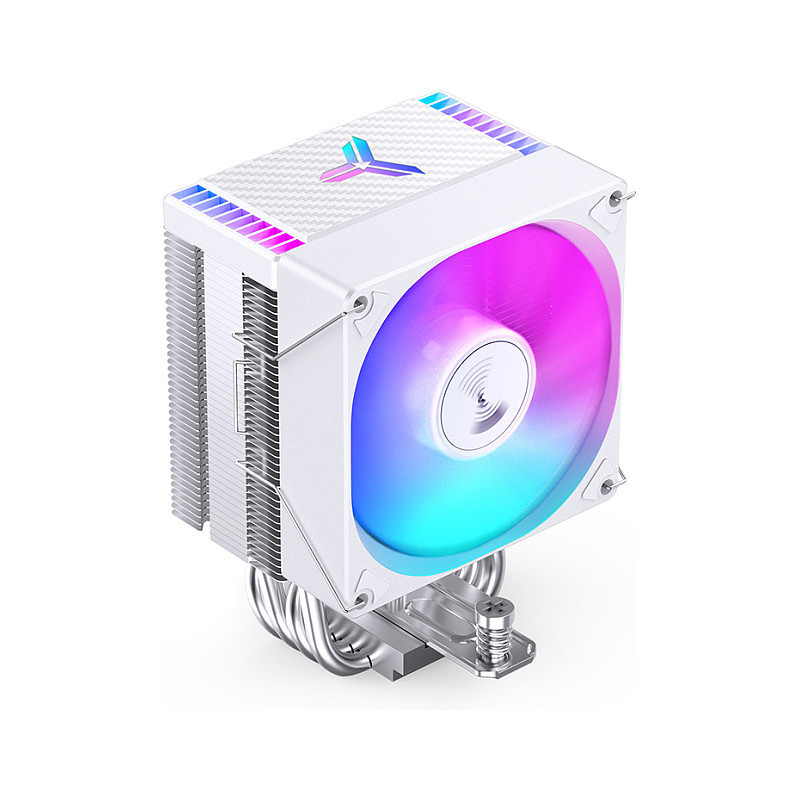

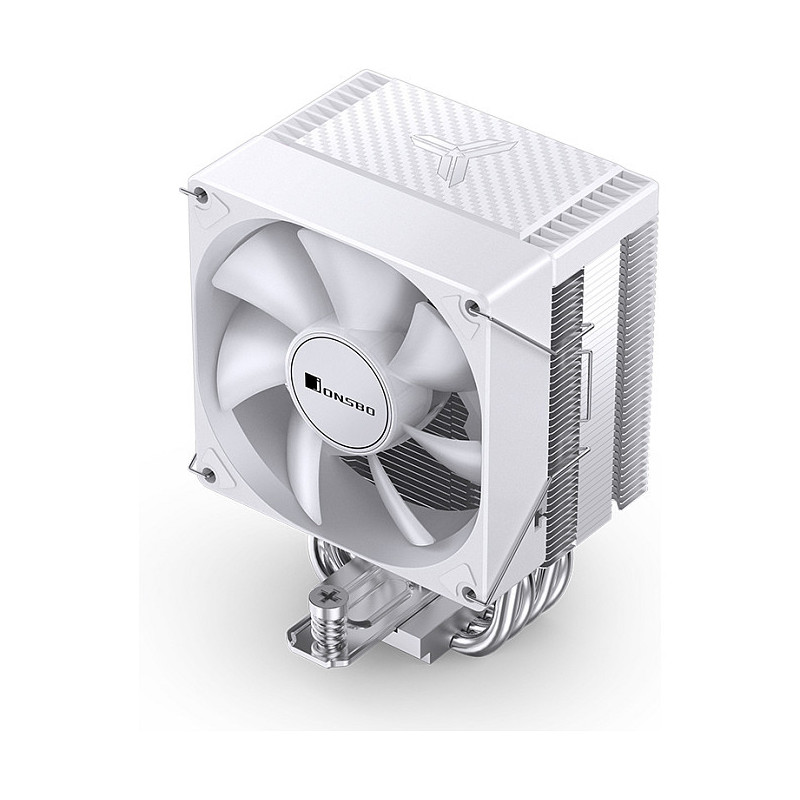

Jonsbo CR-1400 EVO

Jonsbo CR-1400 EVO. Type: Air cooler, Fan diameter: 9.2 cm, Rotational speed (min): 800 RPM, Rotational speed (max): 2200 RPM, Minimum air pressure: 0.25 mmH2O, Maximum air pressure: 2 mmH2O, Bearing type: Hydraulic. Product colour: White

CR-1400 EVO Color White

Performance

Suitable location: Processor
Type: Air cooler
Fan diameter: 9.2 cm
Supported processor sockets: LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Rotational speed (min): 800 RPM
Rotational speed (max): 2200 RPM
Noise level (low speed): 22.3 dB
Noise level (high speed): 33.8 dB
Minimum airflow (imperial): 11.95 cfm
Maximum airflow: 38.2 cfm
Minimum air pressure: 0.25 mmH2O
Maximum air pressure: 2 mmH2O
Bearing type: Hydraulic
Quantity per pack: 1 pc(s)
Fan's mean time to failure (MTTF): 40000 h

Design

Product colour: White
Number of fan blades: 7

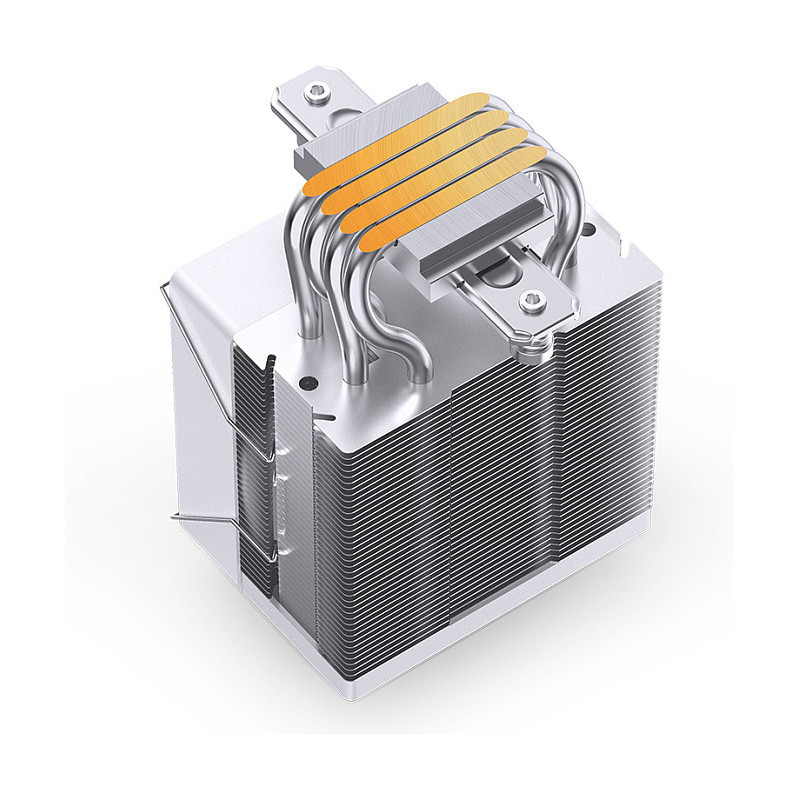

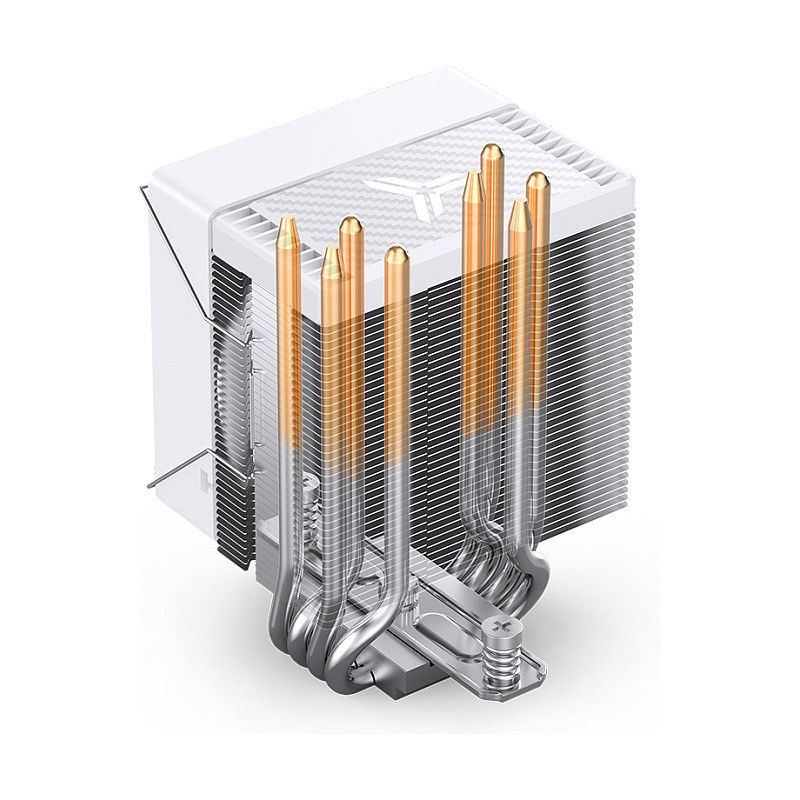

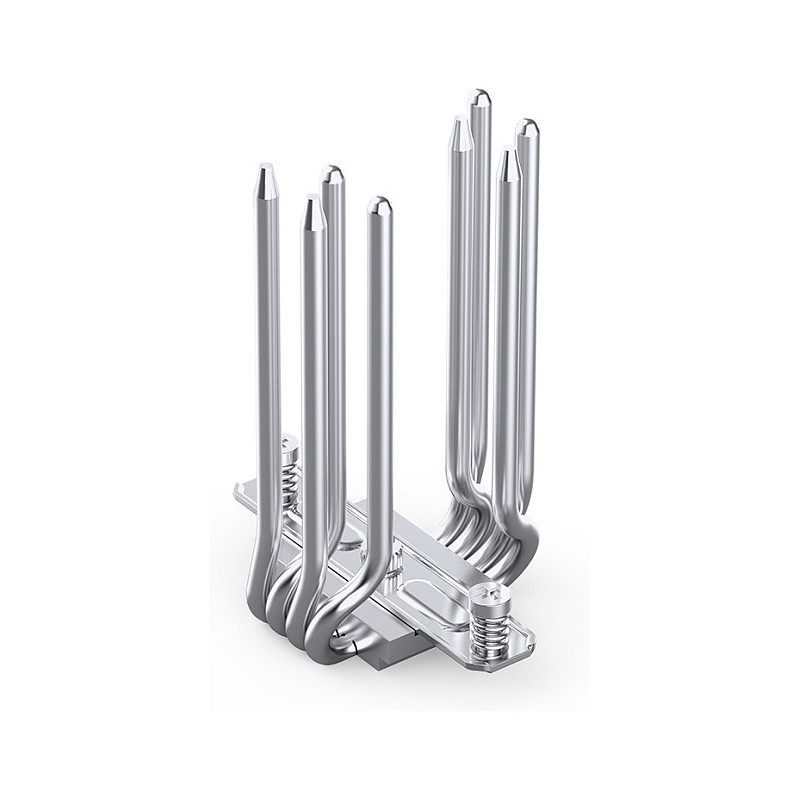

Number of heat pipes: 4
Fan connector: 4-pin

Power

Power consumption (typical): 2.28 W
Rated voltage: 12 V
Rated current: 0.19 A
Thermal Design Power (TDP): 180 W

Weight & dimensions

Radiator width: 7.1 cm
Radiator depth: 12 cm
Radiator height: 15.4 cm
Weight: 341 g

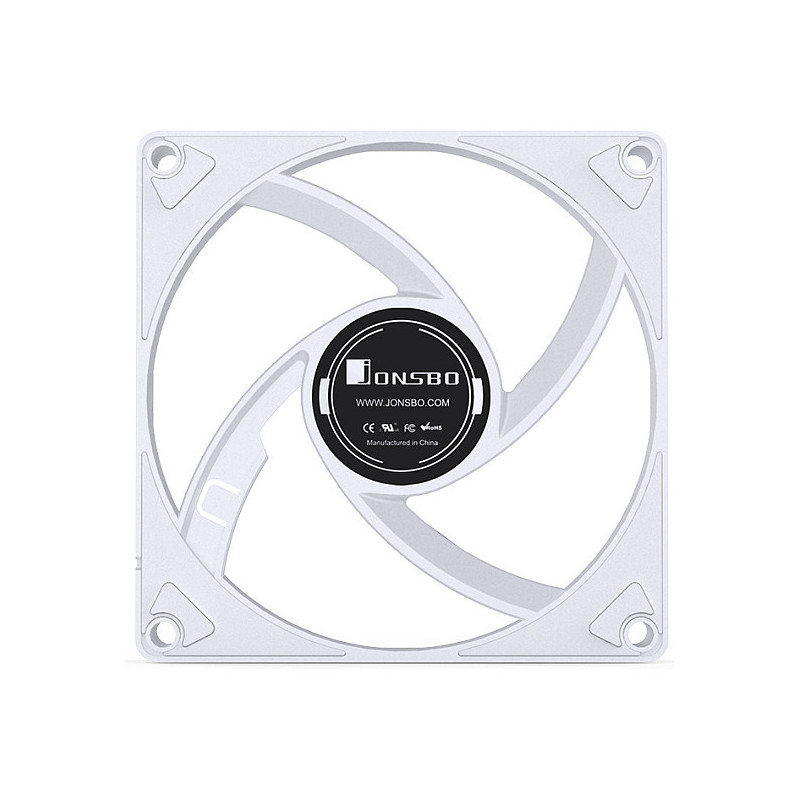

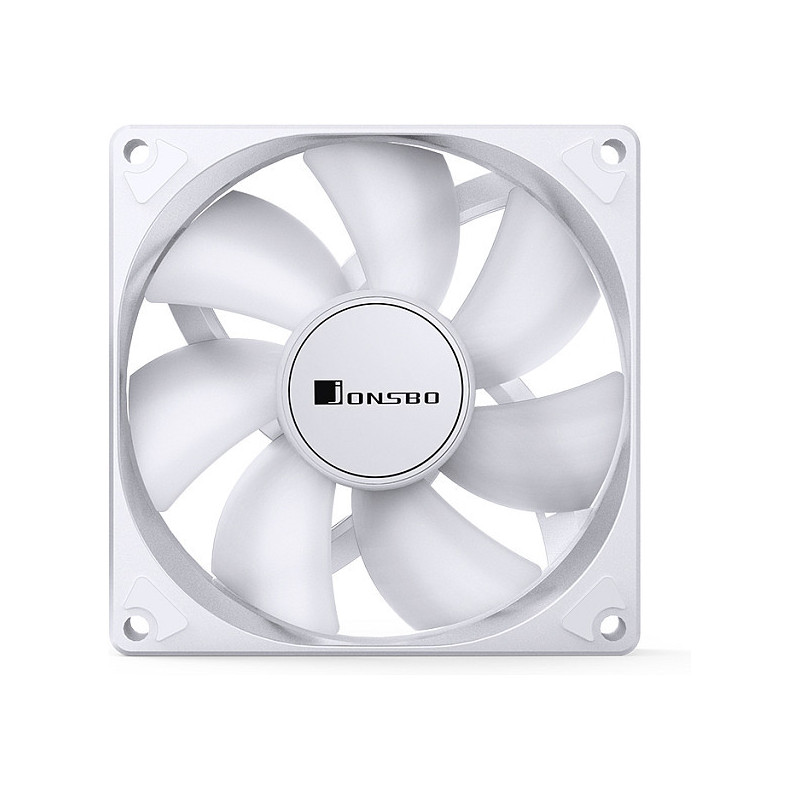

Fan dimensions (W x D x H): 92 x 92 x 25 mm
Fan thickness: 2.5 cm

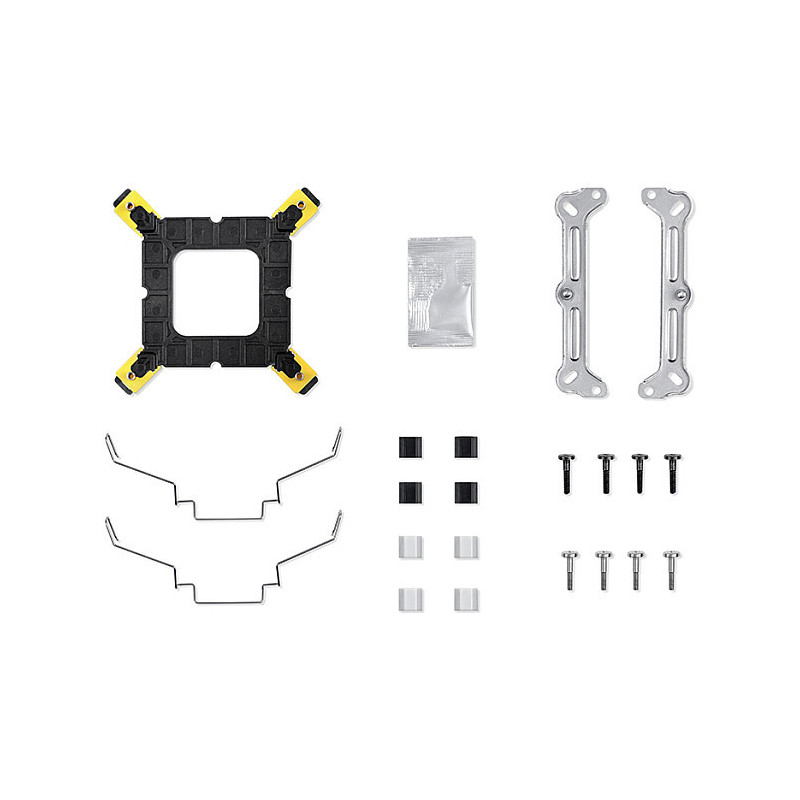

Packaging content

Feature: Screws included
Number of screws: 8
Feature: Adapter frame included
