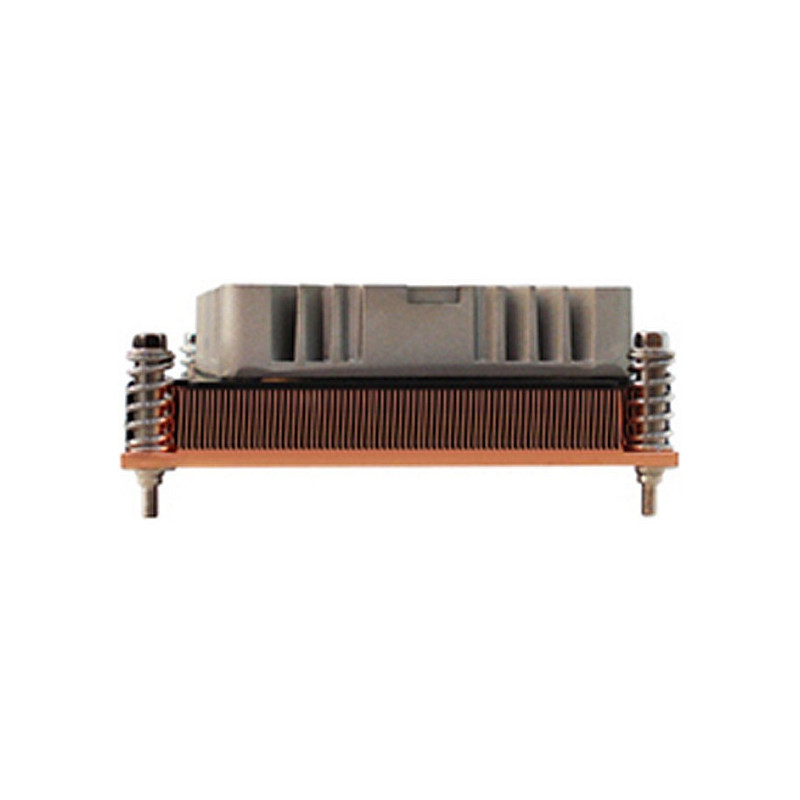

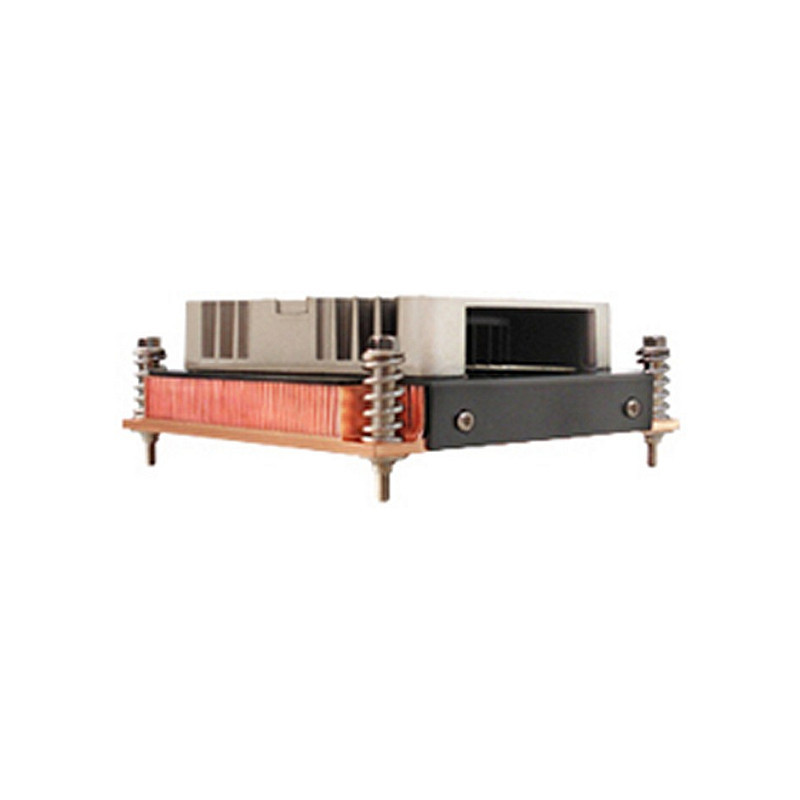

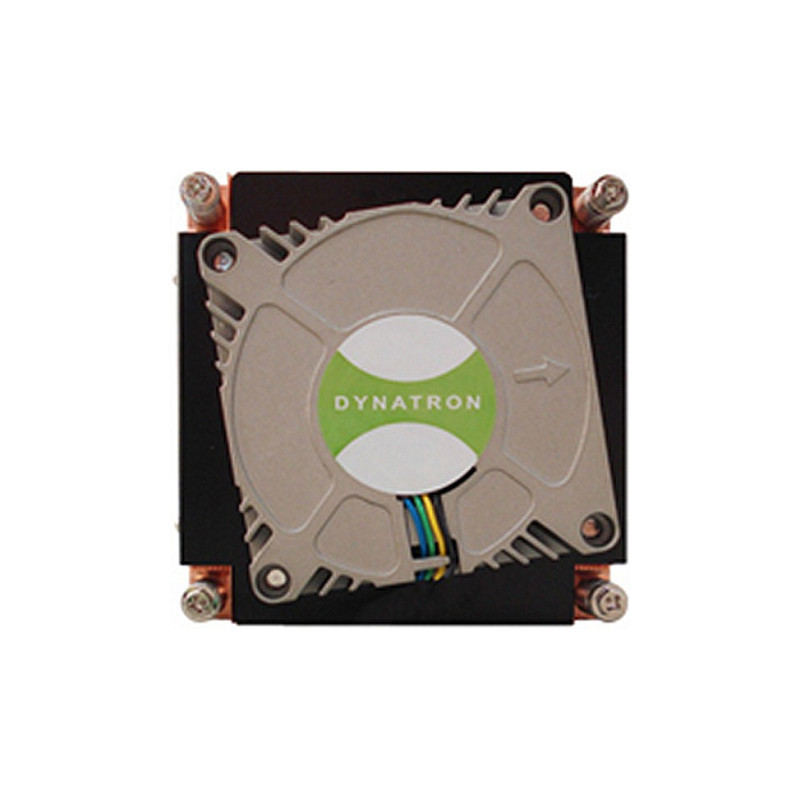

Dynatron G199

Dynatron G199. Type: Cooler, Fan diameter: 7 cm, Rotational speed (min): 1100 RPM, Rotational speed (max): 6000 RPM. Voltage: 12 V. Width: 70 mm, Depth: 70 mm, Height: 15 mm

- For Intel® Nehalem Processor, Socket LGA 1366
- Active Cooler For 1U Server
- RoHS Compliant

Performance

Suitable location: Processor
Type: Cooler
Fan diameter: 7 cm
Supported processor sockets: LGA 1366 (Socket B)
Rotational speed (min): 1100 RPM
Rotational speed (max): 6000 RPM
Noise level (high speed): 53.8 dB
Minimum airflow (imperial): 2.45 cfm
Maximum airflow: 14.32 cfm

Design

Material: Copper
Rack capacity: 1U

Power

Voltage: 12 V

Weight & dimensions

Width: 70 mm
Depth: 70 mm
Height: 15 mm
Weight: 475 g

Technical details

Bearing technology: Double ball bearing

Other features

Heatsink dimensions (W x D x H): 90 x 90 x 27.7 mm
Connector(s): 4-pin PWM

Logistics data

Harmonized System (HS) code: 84733080
