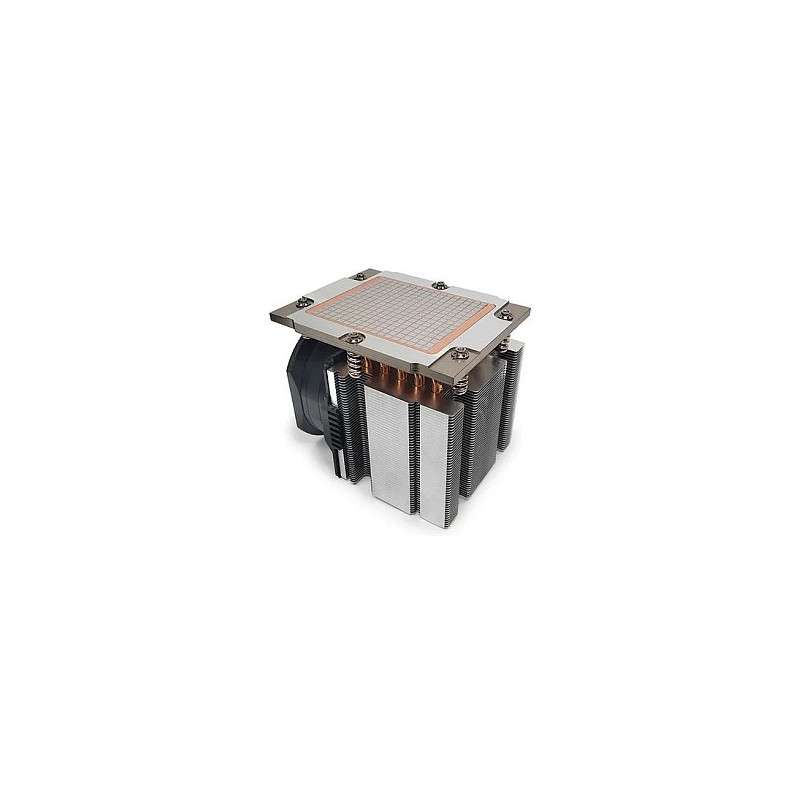

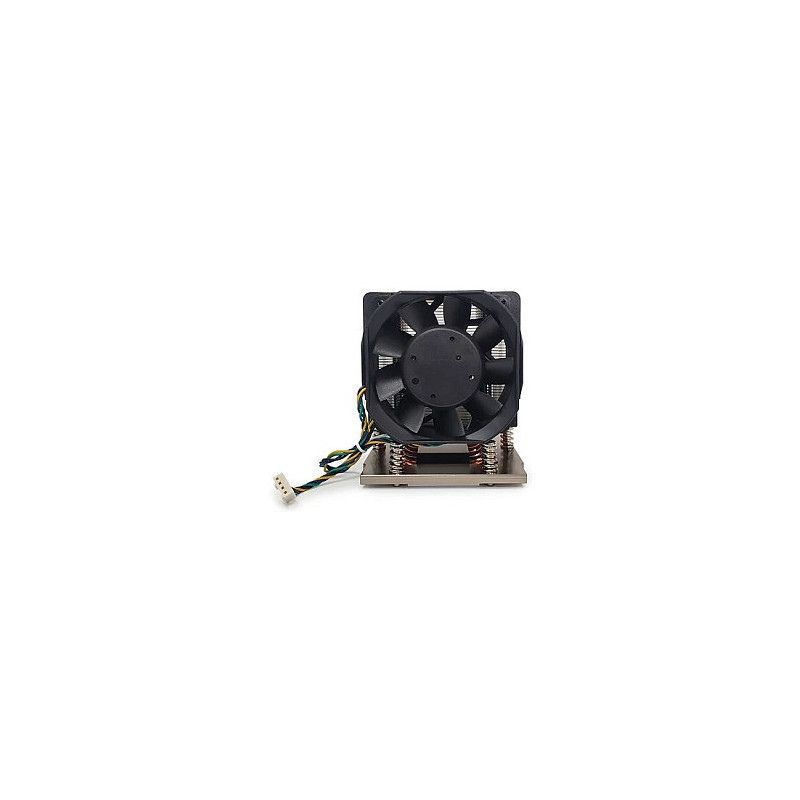

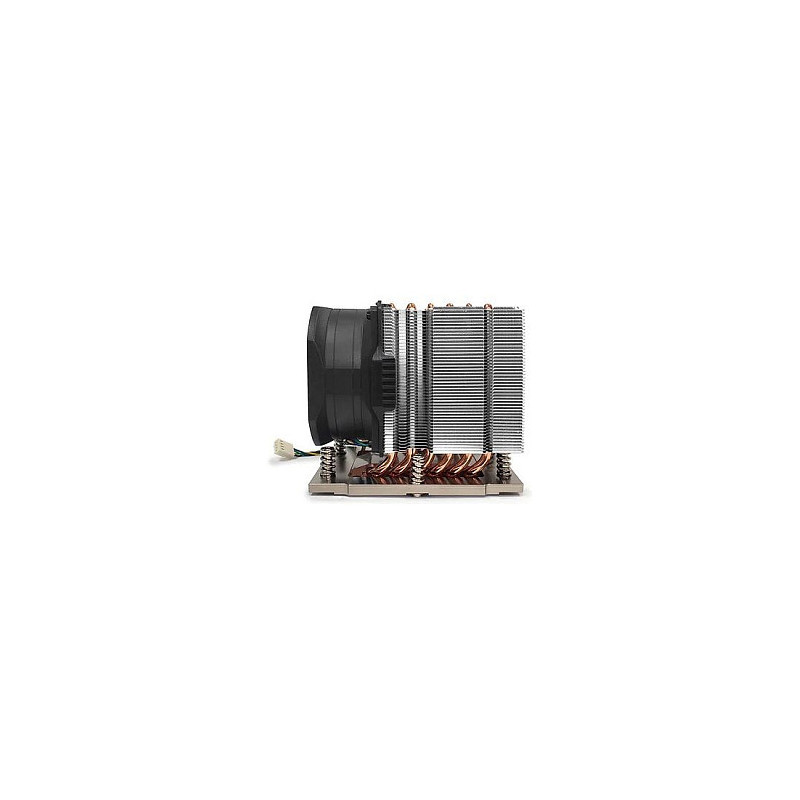

Inter-Tech J-12

Inter-Tech J-12. Type: Air cooler, Fan diameter: 8 cm, Bearing type: Dual ball bearing. Voltage: 12 V. Width: 118 mm, Depth: 92.4 mm, Height: 105 mm. Product colour: Black, Silver

Performance

Suitable location: Processor
Type: Air cooler
Fan diameter: 8 cm
Supported processor sockets: Socket SP5
Maximum airflow: 196.4 cfm
Feature: Pulse-width modulation (PWM) support
Bearing type: Dual ball bearing
Fan noise level (min): 25.63 dB
Fan noise level (max): 64.4 dB
Quantity per pack: 1 pc(s)
Fan speed (min): 2400 RPM
Fan speed (max): 8000 RPM
Fan static pressure: 34.06 mmH2O
Operating temperature (T-T): -10 - 65 °C

Design

Product colour: Black, Silver
Radiator material: Aluminum
Base plate material: Copper
Number of fans: 1 fan(s)
Number of fan blades: 9
Number of heat pipes: 6
Rack capacity: 3U

Power

Power supply: 24.72 W
Voltage: 12 V
Thermal Design Power (TDP): 500 W

Weight & dimensions

Width: 118 mm
Depth: 92.4 mm
Height: 105 mm
Weight: 798 g
Fan dimensions (W x D x H): 80 x 80 x 38 mm
Package weight: 895 g
