DeepCool LE520 WH

DeepCool LE520 WH. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Maximum air pressure: 3.27 mmH2O. Product colour: White
LE520 WH

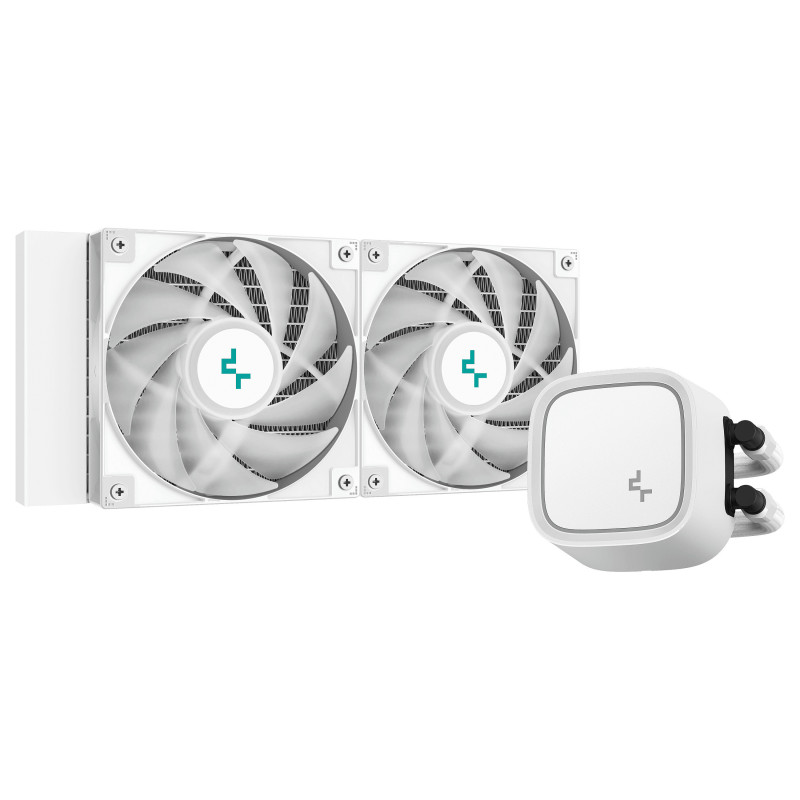

The DeepCool LE520 WH is a white all-in-one liquid cooler that is equipped with new high-performance ARGB fans, thermal paste, and DeepCool's new liquid cooler series design elements.
LE520 WH
White 240mm ARGB Liquid Cooler
POWERFUL HEAT DISSIPATION

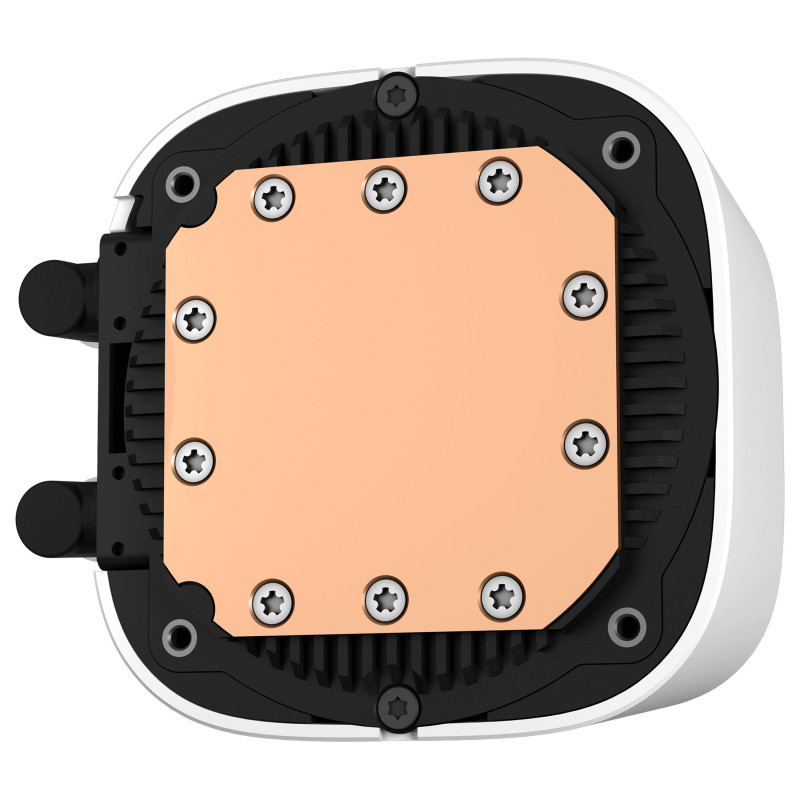

Thanks to an efficient micro-channel water block, thickened copper cold plate, and new high-performance ARGB fans, the LE520 WH achieves excellent heat dissipation of 220W TDP.
NEW SERIES DESIGN
The LE520 WH features a new series pump with rounded corners, a square shape, bright ARGB, and additional durability. The low pump height of 52mm provides excellent compatibility for various ITX cases. Did we mention that it now comes in a frosty white color scheme?

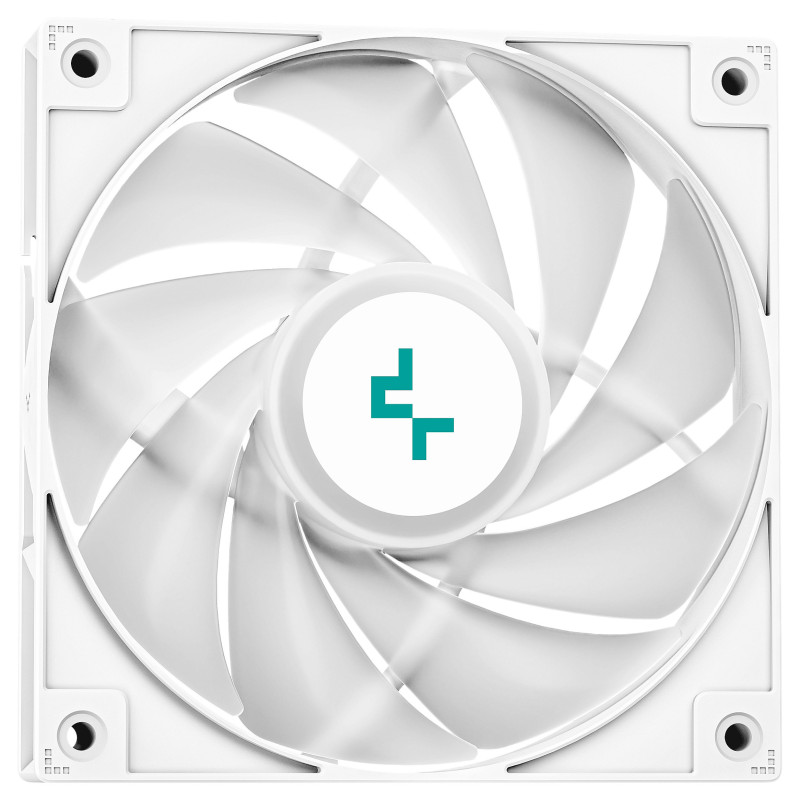

HIGH-PERFORMANCE ARGB FANS
The included high-performance ARGB fans are vibrant, bright, and support various motherboard synchronizations. The fans provide maximum CFM and static pressure at higher RPMs while maintaining a quiet noise level of below 30dB at lower speeds.
ANTI-LEAK TECHNOLOGY
The LE520 WH liquid cooler features DeepCool's patented Anti-Leak Technology. The internal valve regulates pressure and will purge it when internal pressure exceeds atmospheric pressure, this leads to a longer useful life while reducing the possibility of leaks.
SIMPLE AND SECURE
The installation is simple and compatible with the latest mainstream Intel and AMD processors.

Performance

Suitable location: Processor
Type: All-in-one liquid cooler
Fan diameter: 12 cm
Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Maximum airflow: 85.85 cfm
Maximum air pressure: 3.27 mmH2O
Feature: Pulse-width modulation (PWM) support
Fan noise level (max): 32.9 dB
Pump noise level: 17.8 dB
Fan bearing technology: Hydro bearing
Pump connector: 3-pin
Quantity per pack: 1 pc(s)
Pump motor speed: 2400 RPM
Fan speed (min): 500 RPM
Fan speed (max): 2250 RPM

Design

Product colour: White

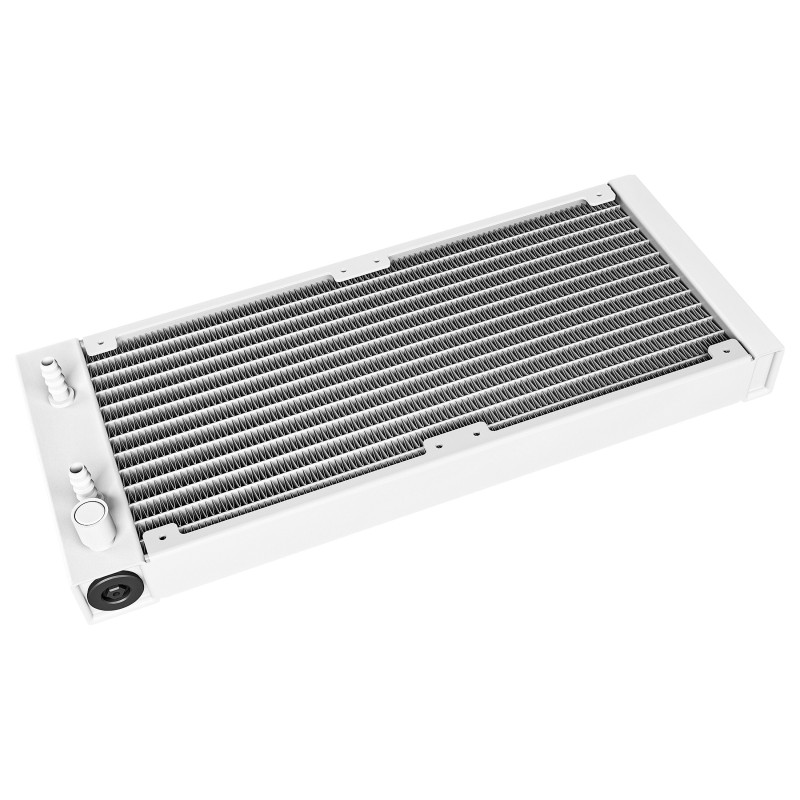

Radiator material: Aluminum
Base plate material: Copper
Number of fans: 2 fan(s)
Number of fan blades: 9
Feature: Illumination LED
Illumination colour: Multi
LED connector type: 3-pin
Fan connector: 4-pin

Power

Fan power consumption: 3 W
Pump power consumption: 2.4 W
Thermal Design Power (TDP): 220 W
LED voltage: 5 V
Pump voltage: 12 V
Pump current: 0.2 mA
Fan voltage: 12 V
Fan current: 0.25 A
LED power consumption (fan): 2.1 W
LED power consumption (pump): 2.25 W

Weight dimensions

Radiator width: 12 cm
Radiator depth: 28.2 cm
Radiator height: 2.7 cm
Tube length: 41 cm
Pump width: 9.1 cm
Pump depth: 8 cm
Pump height: 5.2 cm
Weight: 1.24 kg
Fan dimensions (W x D x H): 120 x 120 x 25 mm

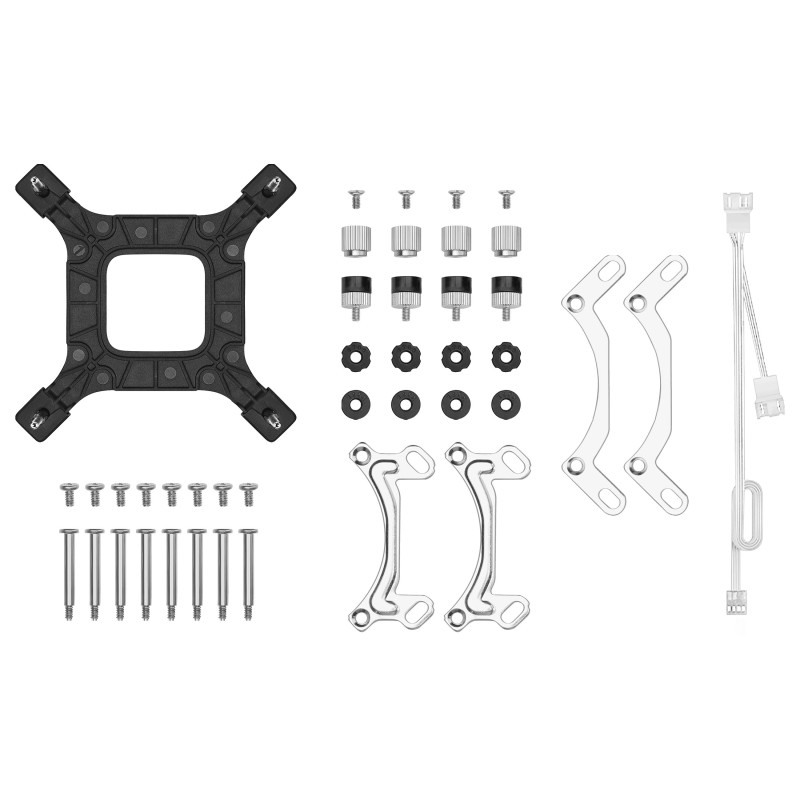

Packaging content

Package type: Box
Feature: Mounting kit
Feature: Screws included
Feature: CPU bracket(s)
