be quiet! LIGHT LOOP IO LCD , 360mm

be quiet! Light Loop IO LCD 360 mm Black. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Airflow: 105.1 m³/h, Maximum air pressure: 2.51 mmH2O, Bearing type: Rifle bearing. Height: 52 mm. Product colour: Black

QUIET AND BREATHTAKING
Light Loop IO LCD 360mm White is an extremely high-performing All-in-One water cooler featuring an IPS display and RGB lighting, designed for heavily overclocked systems.

YOU ARE BREATHTAKING
Outstanding IPS display
The Light Loop IO LCD 360mm White has an eye-catching cooling unit with a progressive round IPS display and RGB lighting. With a size of 2.1 inches, a high-resolution display and a display brightness of 500 nits, there are as many customization options as there are unique ways to display information. Whether it's CPU temperatures, coolant temperatures, fan speeds, images, videos, a wide range of presets and much, much more, your CPU cooler will definitely stand out!

WHISPER-QUIET TECHNOLOGIES
One step ahead in every aspect

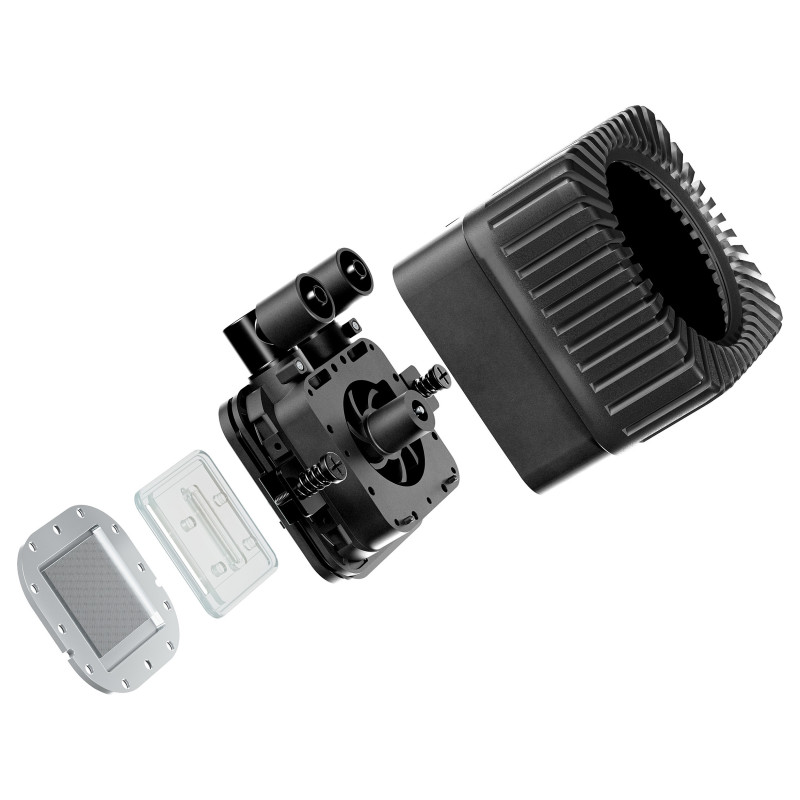

Jet plate, pump, and cold plate of the Light Loop IO LCD 360mm White are engineered for optimal performance at a whisper-quiet noise level. The precision-engineered metal jet plate accelerates cooling liquid flow velocity, delivering superior efficiency. Featuring a high-density fin stack design, the cold plate maximizes heat dissipation for today's flagship and high-performance CPUs. An advanced integrated circuit within the motor minimizes switching noise, ensuring whisper-quiet pump operation.

LIGHT WINGS LX FANS
Performant, yet quiet operation
The setup includes 3 daisy-chained Light Wings LX PWM high-speed fans. Each fan features 16 LEDs that are perfectly distributed across the blades and are key to the stunning visuals the Light Loop IO LCD 360mm White offers. The fan's 9 airflow-optimized fan blades not only reduce noise-generating turbulences but also ensure that Light Wings LX PWM high-speed fans provide the performance that is needed, even in demanding scenarios.

EXTREMELY HIGH COOLING PERFORMANCE
Designed for intensive gaming sessions
Experience reliable performance for the most intensive applications. With its powerful cooling capacity, Light Loop IO LCD 360mm White keeps CPU temperatures down even under maximum load, ensuring you're ready for any demanding task or gaming marathon.

ONE CONTROLLER TO RULE THEM ALL
IO Controller included

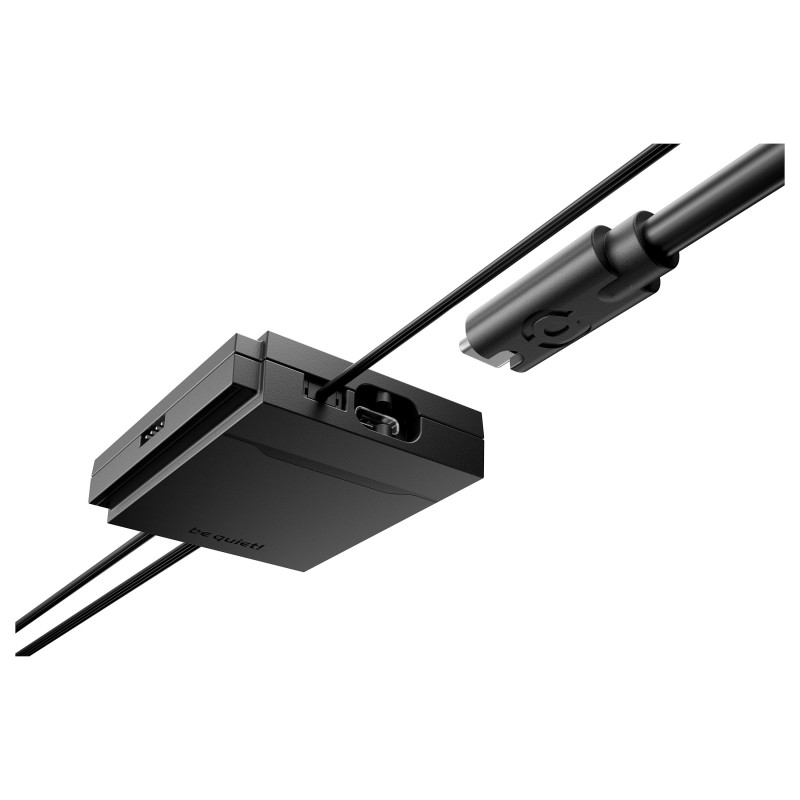

Our newly included IO Controller transmits the signal and power to the all-in-one water cooler with just a single cable, allowing for control of the ARGB, PWM and display signals all in one place. In addition, the fan cables are now hidden along the tubes. So, with the Light Loop IO LCD 360mm White, no additional cables need to be laid from the daisy-chained fans to the mainboard or to a fan hub!

ALL UNDER CONTROL
Customize with the IO Center
The IO Center for Windows offers many excellent options for customizing the IPS display and lighting of the Light Loop IO LCD 360mm White. To optimize the water-cooling experience, background effects and the sensor data shown on the display can be adjusted, the lighting of the pump head and fans can be configured, fan profiles can be set up, and the system status can be monitored. In addition, you can save the displayed background and lighting effects directly on the AiO without the need for the software to run continuously.

EASY TO REFILL
For a long lifespan
The refill port is easy to access, which makes refilling safe and convenient. The coolant bottle included in the scope of delivery makes it easy to achieve a long lifespan.

Performance

Suitable location: Processor
Type: All-in-one liquid cooler
Fan diameter: 12 cm
Supported processor sockets: LGA 1851, LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Compatible processor series: AMD Ryzen 9000 Series, Intel® Core™ i9
Noise level (low speed): 17.2 dB
Noise level (high speed): 36.8 dB
Maximum airflow: 61.8 cfm
Airflow: 105.1 m³/h
Maximum air pressure: 2.51 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Rifle bearing
Quantity per pack: 1 pc(s)
Pump motor speed: 2900 RPM
Pump motor speed (min): 2900 RPM
Pump motor speed (max): 2900 RPM
Fan speed (max): 2100 RPM
Fan's mean time to failure (MTTF): 60000 h

Design

Product colour: Black
Radiator material: Aluminum
Base plate material: Copper
Number of fans: 3 fan(s)
Number of fan blades: 9
Feature: Illumination LED
Illumination colour: Multi
Display type: Not applicable
Feature: Daisy chain

Power

Fan power consumption: 5.4 W
Fan voltage: 12 V
Fan current: 0.17 A

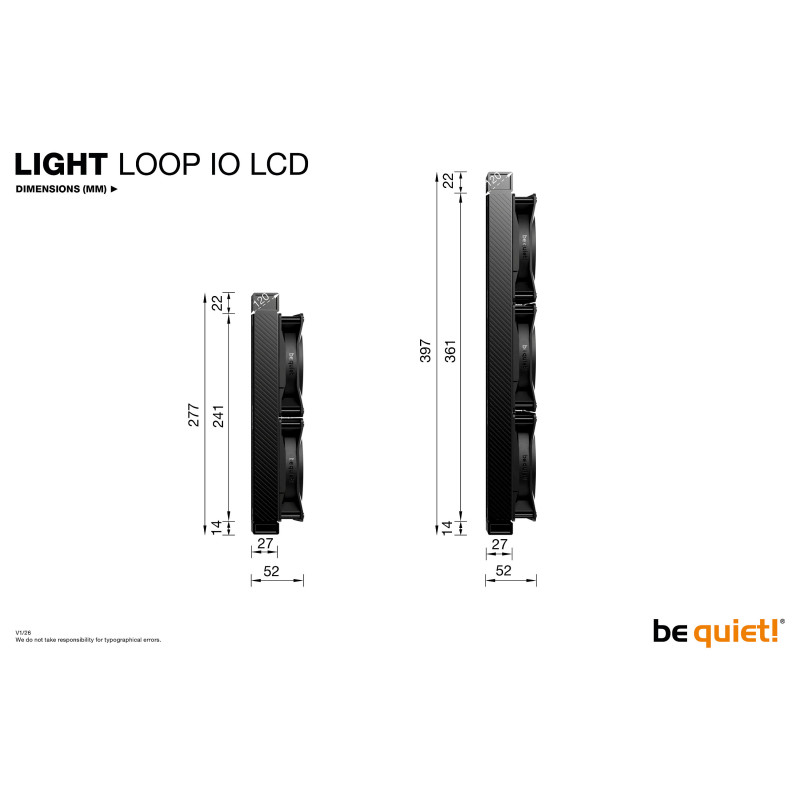

Weight & dimensions

Height: 52 mm
Radiator width: 12 cm
Radiator depth: 39.7 cm
Radiator height: 2.7 cm
Tube length: 40 cm
Waterblock width: 6.19 cm
Waterblock depth: 6.38 cm
Waterblock height: 5.4 cm
Weight: 1.6 kg
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Package width: 205 mm
Package depth: 448 mm
Package height: 137 mm
Package weight: 2.61 kg

Technical details

Doesn't contain: Cadmium, Lead, Mercury
Warranty period: 3 year(s)
Compliance certificates: CE, Federal Communications Commission (FCC), RoHS, UKCA

Certificates

Feature: Waste Electrical and Electronic Equipment (WEEE) compliance

Packaging content

Package type: Box
Feature: Mounting kit
Feature: Manual

Other features

Feature: Thermal grease
