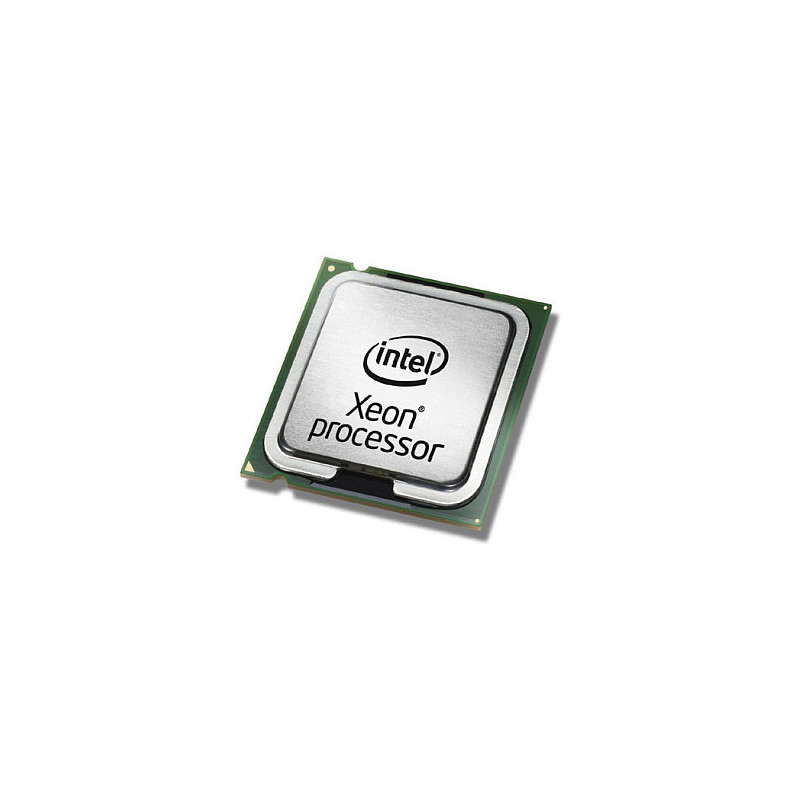

Intel Xeon E5-2623V4 processor

Intel Xeon E5-2623V4. Processor family: Intel® Xeon® E5 v4, Processor socket: LGA 2011-v3, Processor lithography: 14 nm. Memory channels: Quad-channel, Maximum internal memory supported by processor: 1.53 TB, Memory types supported by processor: DDR4-SDRAM. Market segment: Server, Supported instruction sets: AVX 2.0, Scalability: 2S. Intel® Turbo Boost Technology 2.0 frequency: 3.2 GHz. Processor package size: 45mm x 52.5mm
The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.
Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.

Processor

Processor manufacturer: Intel
Processor model: E5-2623V4
Processor base frequency: 2.6 GHz
Processor family: Intel® Xeon® E5 v4
Processor cores: 4
Processor socket: LGA 2011-v3
Component for: Server/workstation
Processor lithography: 14 nm
Processor series: Intel Xeon E5-2600 v4
Processor threads: 8
System bus rate: 8 GT/s
Processor operating modes: 64-bit
Processor boost frequency: 3.2 GHz
Processor cache: 10 MB
Processor cache type: Smart Cache
Thermal Design Power (TDP): 85 W
Package type: Tray
Cooler included: No
VID Voltage Range: 0 - 0 V
Stepping: R0
Bus type: QPI
Number of QPI links: 2
Memory bandwidth supported by processor (max): 68.3 GB/s
Processor codename: Broadwell
Processor code: SR2PJ
Processor ARK ID: 92980

Memory

Maximum internal memory supported by processor: 1.53 TB
Memory types supported by processor: DDR4-SDRAM
Memory clock speeds supported by processor: 1600,1866,2133 MHz
Memory channels: Quad-channel
ECC: Yes

Graphics

On-board graphics card: No

Features

Execute Disable Bit: Yes
Idle States: Yes
Thermal Monitoring Technologies: Yes
Market segment: Server
Maximum number of PCI Express lanes: 40
PCI Express slots version: 3.0
Supported instruction sets: AVX 2.0
Scalability: 2S
Physical Address Extension (PAE): Yes
CPU configuration (max): 2
Embedded options available: No
Physical Address Extension (PAE): 46 bit
PCI Express CEM revision: 3.0
Export Control Classification Number (ECCN): 5A992C
Commodity Classification Automated Tracking System (CCATS): G077159

Processor special features

Intel® Hyper Threading Technology (Intel® HT Technology): Yes
Intel® Identity Protection Technology (Intel® IPT): No
Intel® Turbo Boost Technology: 2.0
Intel Flex Memory Access: No
Intel® AES New Instructions (Intel® AES-NI): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel Trusted Execution Technology: Yes
Intel® Turbo Boost Technology 2.0 frequency: 3.2 GHz
Intel® Transactional Synchronization Extensions: Yes
Intel Enhanced Halt State: Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel Demand Based Switching: Yes
Intel® Secure Key: Yes
Intel TSX-NI: Yes
Intel® OS Guard: Yes
Intel 64: Yes
Intel Identity Protection Technology version: 0.00
Intel Secure Key Technology version: 1.00
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel TSX-NI version: 1.00
Conflict-Free processor: Yes
Intel® vPro™ Platform Eligibility: Yes

Operational conditions

Tcase: 73 °C

Technical details

Bus bandwidth: 8
Bus type units: GT/s
Launch date: Q1'16
Processor cache: 10240 KB
Product type: Processor
Status: Launched
Processor brand name: Intel Xeon
Supported memory types: DDR4-SDRAM
Last change: 63903513
Product family: Intel Xeon Processor E5 v4 Family
Bus speed: 8 GT/s
Servicing status: End of Servicing Updates
End of servicing updates date: Thursday, June 30, 2022

Logistics data

Harmonized System (HS) code: 85423119

Weight dimensions

Processor package size: 45mm x 52.5mm

Other features

Compatibility: Intel Server System R1208WT2GSRIntel Server System R1208WTTGSRIntel Server System R1304WT2GSRIntel Server System R1304WTTGSRIntel Server System R2208WTTYSRIntel Server System R2208WT2YSRIntel Server System R2208WTTYC1RIntel Server System R2308WTTYSRIntel Server System R2312WTTYSRIntel Server System R2224WTTYSRIntel Server Board S2600CW2RIntel Server Board S2600CW2SRIntel Server Board S2600CWTRIntel Server Board S2600CWTSRIntel Server Board S2600KPRIntel Server Board S2600KPFRIntel Server Board S2600KPTRIntel Server Board S2600TPRIntel Server Board S2600TPFRIntel Server Board S2600WTTRIntel Server Board S2600WT2RIntel Server Board S2600WTTS1RIntel Compute Module HNS2600KPFRIntel Compute Module HNS2600KPRIntel Compute Module HNS2600TP24RIntel Compute Module HNS2600TPFRIntel Compute Module HNS2600TPRIntel Compute Module HNS2600TP24SR
Maximum internal memory: 1.5 TB
Maximum internal memory: 1572864 MB
