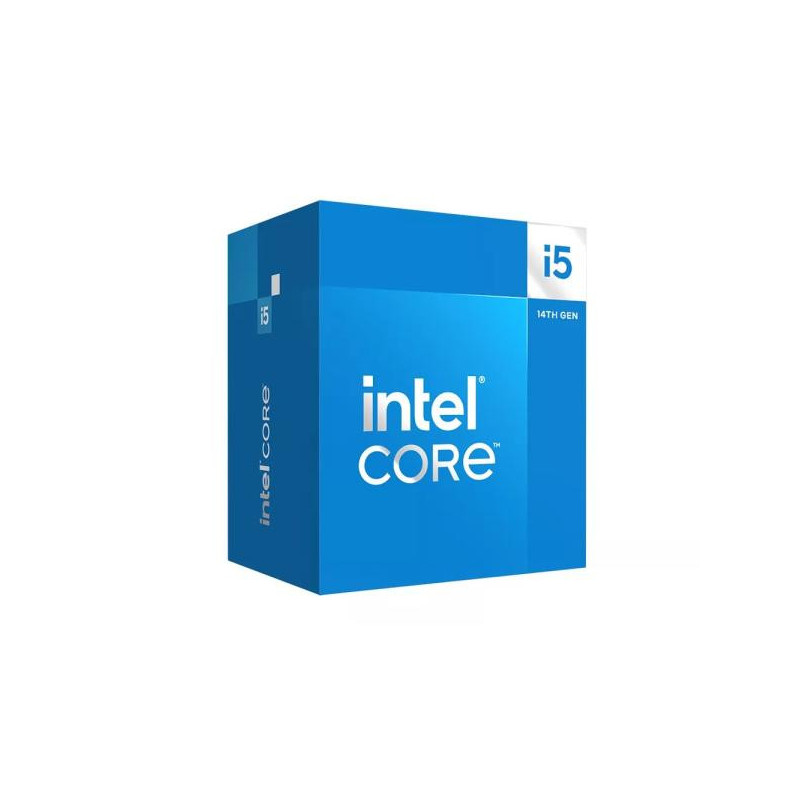

Intel® Core™i5-14500 processor, 2.60GHz,24MB,LGA1700, UHD Graphics, BOX, s chladičom
Product reference:
3-5032037279178
Intel® Core™i5-14500 processor, 2.60GHz,24MB,LGA1700, UHD Graphics, BOX, s chladičom
Intel® Core™i5-14500 processor, 2.60GHz,24MB,LGA1700, UHD Graphics, BOX, s chladičom
Product reference:
3-5032037279178
Intel® Core™i5-14500 processor, 2.60GHz,24MB,LGA1700, UHD Graphics, BOX, s chladičom
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
10 - 15
business days
| Technical details | |
|---|---|
| Launch date | Q1'24 |
| Status | Launched |
| OpenCL version | 3.0 |
| Processor | |
| Processor cache | 24MB |
| Processor operating mode | 64-bit |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-14500 |
| Box | Yes |
| Processor cores | 14 |
| Processor codename | Raptor Lake |
| Performance-core boost frequency | 5GHz |
| Maximum number of DMI lanes | 8 |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Bus type | DMI4 |
| Processor cache type | Smart Cache |
| Processor generation | Intel® Core™ i5 14th generation |
| Processor manufacturer | Intel |
| Processor threads | 20 |
| Processor base power | 65W |
| Processor socket | LGA 1700 |
| Maximum turbo power | 154W |
| Performance cores | 6 |
| Performance-core base frequency | 2.6 GHz |
| Efficient cores | 8 |
| Graphics | |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP) 1.4b, HDMI 2.1, DisplayPort 1.4a |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board graphics card dynamic frequency (max) | 1550MHz |
| Number of displays supported (on-board graphics) | 4 |
| Discrete graphics card model | Not available |
| On-board graphics card | Yes |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 5120 x 3200 pixels |
| Discrete graphics card | From |
| On-board graphics card OpenGL version | 4.5 |
| Number of execution units | 32 |
| On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2160 pixels |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 120Hz |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60Hz |
| On-board graphics card base frequency | 300MHz |
| Features | |
| Thermal Monitoring Technologies | Yes |
| PCI Express configurations | 1x16+1x4, 2x8+1x4 |
| CPU configuration (max) | 1 |
| Idle States | Yes |
| Supported instruction sets | SSE4.2, AVX 2.0, SSE4.1 |
| Market segment | Desktop |
| PCI Express slot version | 5.0, 4.0 |
| Direct Media Interface (DMI) Revision | 4.0 |
| Embedded options available | Yes |
| Maximum number of PCI Express lanes | 20 |
| Terms of use | PC/Client/Tablet, Workstation |
| Execute Disable Bit | Yes |
| Scalability | 1S |
| Memory | |
| Maximum internal memory supported by the processor | 192GB |
| Memory types supported by processor | DDR4-SDRAM, DDR5-SDRAM |
| Memory channels | Dual channel |
| Memory bandwidth (max) | 76.8 GB/s |
| Operational conditions | |
| Tjunction | 100°C |
| Weight dimensions | |
| Processor package size | 45 x 37.5 mm |
| Processor special features | |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel Turbo Boost Max Technology 3.0 | From |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel® vPro™ Platform Eligibility | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® Boot Guard | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Active Management Technology (Intel® AMT) | Yes |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® One-Click Recovery | Yes |
| Intel® Hardware Shield Eligibility | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Remote Platform Erase (RPE) | Yes |
| Intel vPro® Essentials Platform Eligibility | Yes |
| Intel® Virtualization Technology with Redirect Protection (VT-rp) | Yes |
| Intel® Threat Detection Technology (TDT) | Yes |
| Intel® Thread Director | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel vPro® Enterprise Platform Eligibility | Yes |
| Intel® Gaussian Neural Accelerator (Intel® GNA) 3.0 | Yes |
| Intel® Total Memory Encryption - Multi Key | Yes |
| Other features | |
| Graphics output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Maximum internal memory | 192GB |
| Safety warning | |
| Warnings | Do not dispose of the processors in the normal garbage bin - they require special disposal due to their potential environmental impact. |
