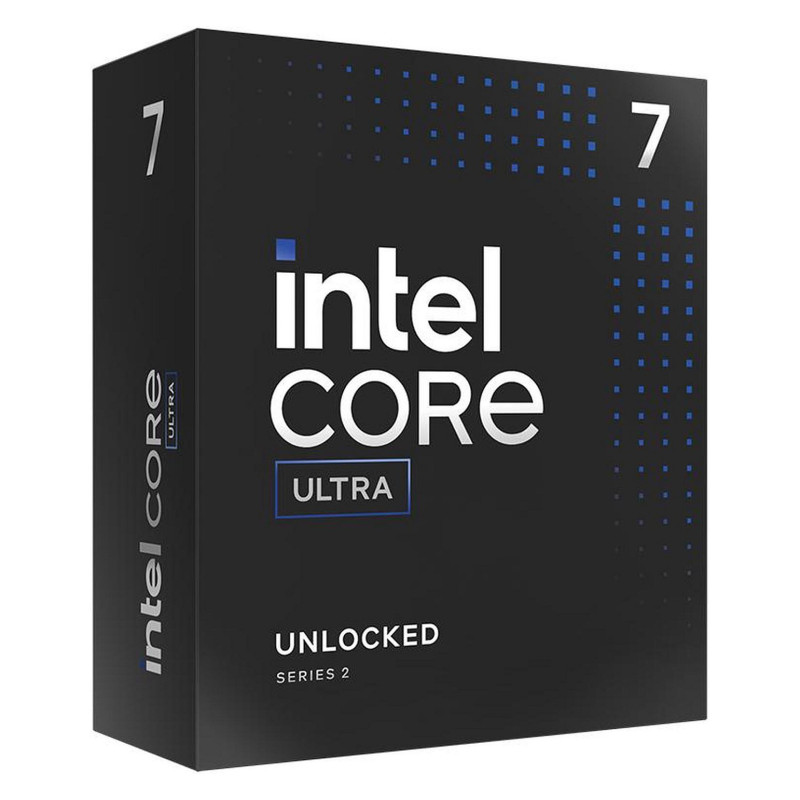

Intel Core Ultra 7 265F processor

Intel Core Ultra 7 265F. Processor family: Intel Core Ultra 7, Processor socket: LGA 1851 (Socket V1), Package type: Box. Neural processor unit (NPU): Intel AI Boost, AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN, Total processor performance up to: 25 TOPs. Memory channels: Dual-channel, Maximum internal memory supported by processor: 192 GB, Memory types supported by processor: DDR5-SDRAM. Market segment: Desktop, Use conditions: PC/Client/Tablet, PCI Express slots version: 4.0, 5.0. Intel® Turbo Boost Max Technology 3.0 frequency: 5.3 GHz

The latest Intel® Core™ Ultra processors (Series 2) enable you to use the most AI experiences across desktop, mobile and edge—making everything you do easier, faster, and better.

Processor

Processor manufacturer: Intel
Processor generation: Intel Core Ultra (Series 2)
Processor model: 265F
Processor family: Intel Core Ultra 7
Processor cores: 20
Processor socket: LGA 1851 (Socket V1)
Processor threads: 20
Processor operating modes: 64-bit
Performance cores: 8
Efficient cores: 12
Processor boost frequency: 5.3 GHz
Performance-core boost frequency: 5.2 GHz
Performance-core base frequency: 2.4 GHz
Efficient-core boost frequency: 4.6 GHz
Efficient-core base frequency: 1.8 GHz
Processor cache: 30 MB
Processor cache type: Smart Cache
Package type: Box
Processor base power: 65 W
Maximum turbo power: 182 W
AI software frameworks supported by CPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Maximum number of DMI lanes: 8
Processor codename: Arrow Lake
Processor ARK ID: 241064

Neural processor unit (NPU)

Neural processor unit (NPU): Intel AI Boost
Feature: Sparsity support
Feature: Windows Studio effects support
AI software frameworks supported by NPU: DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to: 25 TOPs
NPU performance up to: 13 TOPs

Memory

Maximum internal memory supported by processor: 192 GB
Memory types supported by processor: DDR5-SDRAM
Memory clock speeds supported by processor: 6400 MHz
Memory channels: Dual-channel

Graphics

On-board graphics card model: Not available
Discrete graphics card model: Not available

Features

Feature: Execute Disable Bit
Feature: Idle States
Feature: Thermal Monitoring Technologies
Market segment: Desktop
Use conditions: PC/Client/Tablet
Maximum number of PCI Express lanes: 24
PCI Express slots version: 4.0, 5.0
Supported instruction sets: AVX 2.0, SSE4.1, SSE4.2
Scalability: 1S
Direct Media Interface (DMI) Revision: 4.0

Processor special features

Intel® Turbo Boost Technology: 2.0
Feature: Intel® AES New Instructions (Intel® AES-NI)
Feature: Enhanced Intel SpeedStep Technology
Feature: Intel Trusted Execution Technology
Feature: Intel® Speed Shift Technology
Intel® Turbo Boost Max Technology 3.0 frequency: 5.3 GHz
Feature: Intel® Thunderbolt 4
Feature: Intel® Control-flow Enforcement Technology (CET)
Feature: Intel® Thread Director
Feature: Intel VT-x with Extended Page Tables (EPT)
Feature: Intel® Secure Key
Feature: Intel® OS Guard
Feature: Intel 64
Feature: Intel Virtualization Technology (VT-x)
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel Turbo Boost Max Technology 3.0
Feature: Intel® Boot Guard
Feature: Intel® Deep Learning Boost (Intel® DL Boost) on CPU
Feature: Intel® Volume Management Device (VMD)
Feature: Mode-based Execute Control (MBE)
Feature: Intel® Standard Manageability (ISM)

Operational conditions

Maximum operating temperature: 105 °C

Technical details

Launch date: Q1'25
Status: Launched

Other features

L2 cache: 36864 KB
Maximum internal memory: 192 GB
