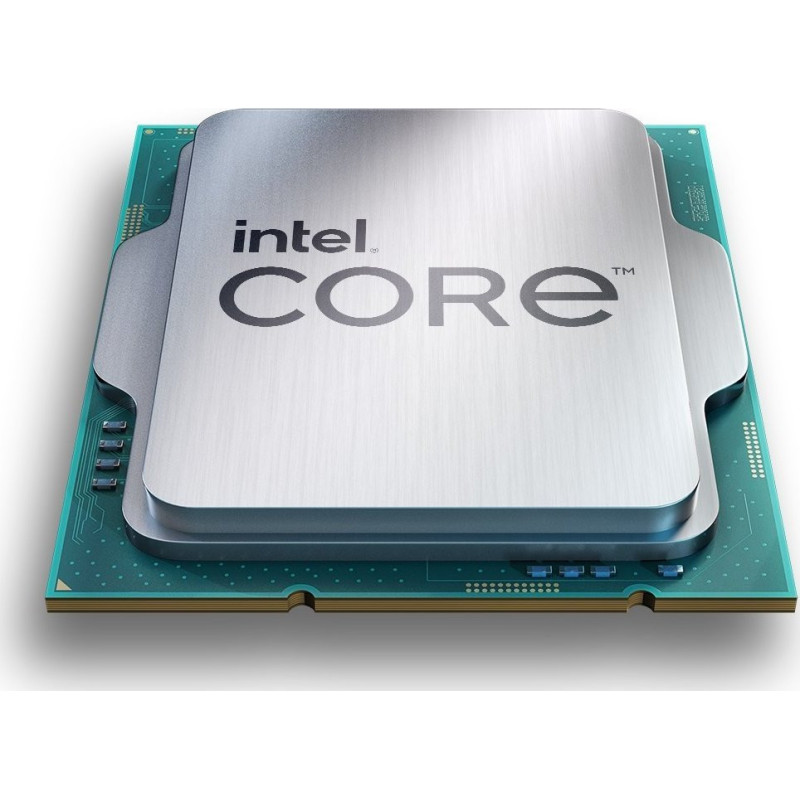

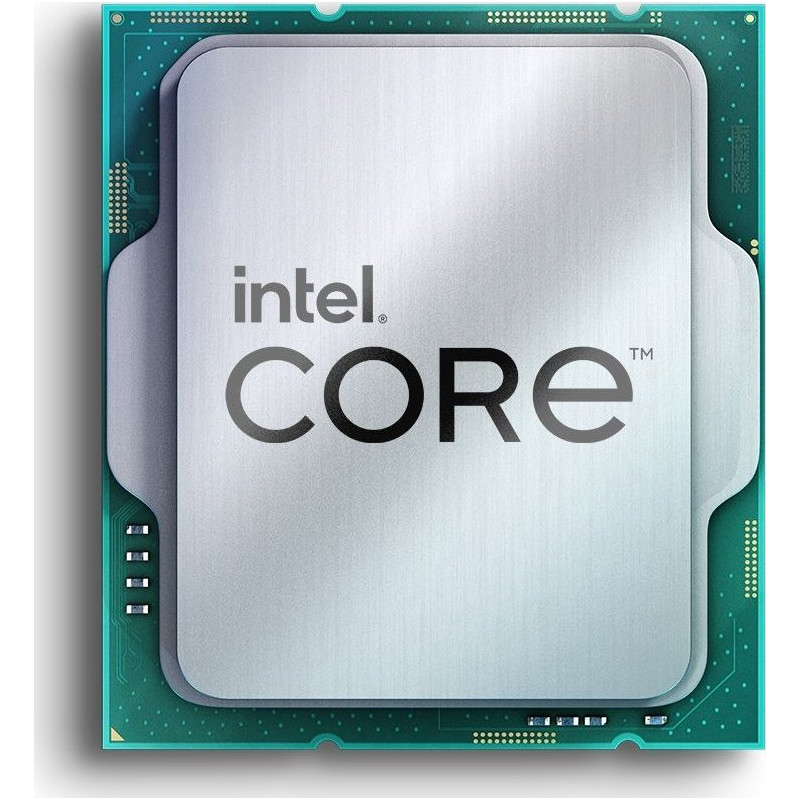

Intel Core i7-14700K processor
Product reference:
3-5032037278485
Intel Core i7-14700K processor
Intel Core i7-14700K processor
Product reference:
3-5032037278485
Intel Core i7-14700K processor
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
11 - 20
business days
| Technical details | |
|---|---|
| OpenCL version | 3.0 |
| Launch date | Q4'23 |
| Status | Launched |
| Processor | |
| Stepping | B0 |
| Processor family | Intel® Core™ i7 |
| Processor codename | Raptor Lake |
| Processor base power | 125 W |
| Maximum number of DMI lanes | 8 |
| Processor threads | 28 |
| Processor operating modes | 64-bit |
| Processor cache type | Smart Cache |
| Efficient cores | 12 |
| Maximum turbo power | 253 W |
| Performance-core boost frequency | 5.5 GHz |
| Cooler included | No |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor cache | 33 MB |
| Performance cores | 8 |
| Processor socket | LGA 1700 |
| Performance-core base frequency | 3.4 GHz |
| Processor cores | 20 |
| Processor manufacturer | Intel |
| Processor model | i7-14700K |
| Processor ARK ID | 236783 |
| Memory bandwidth supported by processor (max) | 89.6 GB/s |
| Box | Yes |
| Graphics | |
| On-board graphics card model | Intel UHD Graphics 770 |
| On-board graphics card DirectX version | 12.0 |
| Number of execution units | 32 |
| Discrete graphics card model | Not available |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2160 pixels |
| On-board graphics card | Yes |
| On-board graphics card maximum resolution (eDP - Integrated Flat Panel) | 5120 x 3200 pixels |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel) | 120 Hz |
| Discrete graphics card | No |
| On-board graphics card OpenGL version | 4.5 |
| Multi-Format Codec Engines | 2 |
| Number of displays supported (on-board graphics) | 4 |
| On-board graphics card dynamic frequency (max) | 1600 MHz |
| On-board graphics card outputs supported | HDMI 2.1, Embedded DisplayPort (eDP) 1.4b, DisplayPort 1.4a |
| On-board graphics card ID | 0xA780 |
| Features | |
| PCI Express configurations | 1x16+1x4, 2x8+1x4 |
| CPU configuration (max) | 1 |
| Thermal Monitoring Technologies | Yes |
| Embedded options available | No |
| PCI Express slots version | 4.0, 5.0 |
| Execute Disable Bit | Yes |
| Maximum number of PCI Express lanes | 20 |
| Use conditions | PC/Client/Tablet, Workstation |
| Direct Media Interface (DMI) Revision | 4.0 |
| Idle States | Yes |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
| Export Control Classification Number (ECCN) | 5A992C |
| Scalability | 1S |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal solution specification | PCG 2020A |
| Market segment | Desktop |
| Memory | |
| Non-ECC | Yes |
| Memory bandwidth (max) | 89.6 GB/s |
| ECC | Yes |
| Memory channels | Dual-channel |
| Memory types supported by processor | DDR5-SDRAM, DDR4-SDRAM |
| Maximum internal memory supported by processor | 192 GB |
| Operational conditions | |
| Tjunction | 100 °C |
| Weight & dimensions | |
| Processor package size | 45 x 37.5 mm |
| Processor special features | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® Turbo Boost Max Technology 3.0 frequency | 5.6 GHz |
| Intel® Volume Management Device (VMD) | Yes |
| Intel® Thread Director | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Secure Key | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Yes |
| Intel® Speed Shift Technology | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® OS Guard | Yes |
| Intel® Standard Manageability (ISM) | Yes |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Intel 64 | Yes |
| Intel® Boot Guard | Yes |
| Other features | |
| Maximum internal memory | 192 GB |
| L2 cache | 28672 KB |
| Graphics output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Logistics data | |
| Harmonized System (HS) code | 8542310001 |
| Safety warning | |
| Warnings | Avoid shocks and drops so as not to damage delicate components., Do not touch the processor pins to avoid electrostatic damage., Ensure that the processor is adequately cooled to prevent overheating. |
