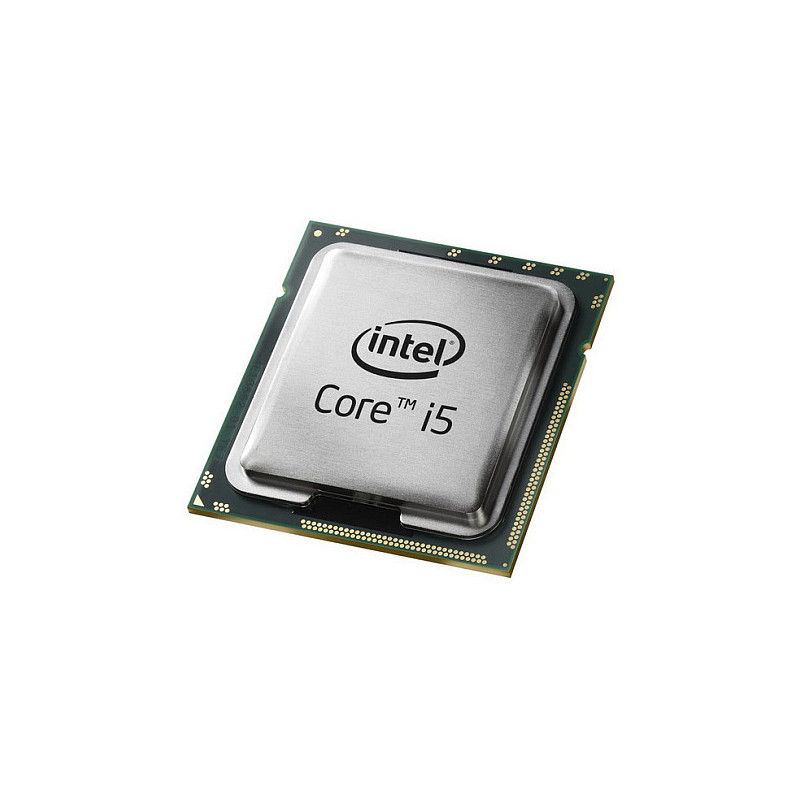

Intel Core i5-4460 processor

Intel Core i5-4460. Processor family: Intel® Core™ i5, Processor socket: LGA 1150 (Socket H3), Processor lithography: 22 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 32 GB, Memory types supported by processor: DDR3-SDRAM, DDR3L-SDRAM. On-board graphics card model: Intel® HD Graphics 4600, On-board graphics card memory: 1.7 GB, Maximum on-board graphics card memory: 2 GB. Market segment: Desktop, PCI Express configurations: 1x16, 2x8, 1x8+2x4, Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 3.4 GHz
Amazing performance and stunning visuals with a boost. Raise the bar on your PC experience with rich visuals plus an automatic burst of speed when you need it. The 4th generation Intel® Core™ i5 processor delivers amazing performance, stunning visuals, and built-in security for deeper protection.
Discover the thrill of an automatic burst of speed when you need it with Intel® Turbo Boost Technology 2.0. Experience your movies, photos, and games smoothly and seamlessly with a built-in suite of visual enhancements—and enjoy them even more with longer battery life.
Get a boost in your performance that you can truly see and feel, along with extra peaceof mind from enhanced security. Because the only thing more amazing than Intel® technology is what you'll do with it.

Processor

Processor manufacturer: Intel
Processor generation: 4th gen Intel® Core™ i5
Processor model: i5-4460
Processor base frequency: 3.2 GHz
Processor family: Intel® Core™ i5
Processor cores: 4
Processor socket: LGA 1150 (Socket H3)
Component for: PC
Processor lithography: 22 nm
Processor series: Intel Core i5-4400 Desktop series
Processor threads: 4
System bus rate: 5 GT/s
Processor operating modes: 64-bit
Processor boost frequency: 3.4 GHz
Processor cache: 6 MB
Processor cache type: Smart Cache
Thermal Design Power (TDP): 84 W
Package type: Tray
Cooler included: No
Generation: 4th Generation
Stepping: C0
Bus type: DMI2
Memory bandwidth supported by processor (max): 25.6 GB/s
Processor codename: Haswell
Processor ARK ID: 80817

Memory

Maximum internal memory supported by processor: 32 GB
Memory types supported by processor: DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor: 1333,1600 MHz
Memory channels: Dual-channel
ECC: No

Graphics

On-board graphics card: Yes
On-board graphics card model: Intel® HD Graphics 4600
On-board graphics card memory: 1.7 GB
Maximum on-board graphics card memory: 2 GB
On-board graphics card outputs supported: Embedded DisplayPort (eDP), DisplayPort, HDMI, VGA (D-Sub)
On-board graphics card base frequency: 350 MHz
On-board graphics card dynamic frequency (max): 1100 MHz
Number of displays supported (on-board graphics): 3
On-board graphics card DirectX version: 11.2/12
On-board graphics card OpenGL version: 4.3
On-board graphics card maximum resolution (DisplayPort): 3840 x 2160 pixels
On-board graphics card maximum resolution (eDP - Integrated Flat Panel): 3840 x 2160 pixels
On-board graphics card maximum resolution (HDMI): 4096 x 2304 pixels
On-board graphics card maximum resolution (VGA): 1920 x 1200 pixels
On-board graphics card refresh rate at maximum resolution (DisplayPort): 60 Hz
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60 Hz
On-board graphics card refresh rate at maximum resolution (HDMI): 24 Hz
On-board graphics card refresh rate at maximum resolution (VGA): 60 Hz
On-board graphics card ID: 0x412

Features

Execute Disable Bit: Yes
Idle States: Yes
Thermal Monitoring Technologies: Yes
Market segment: Desktop
Maximum number of PCI Express lanes: 16
PCI Express slots version: 3.0
PCI Express configurations: 1x16, 2x8, 1x8+2x4
Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0
Scalability: 1S
CPU configuration (max): 1
Embedded options available: No
Graphics IMC lithography: 22 nm
Thermal solution specification: PCG 2013D
Export Control Classification Number (ECCN): 5A992C
Commodity Classification Automated Tracking System (CCATS): G077159

Processor special features

Intel® Anti-Theft Technology (Intel® AT): Yes
Intel® Hyper Threading Technology (Intel® HT Technology): No
Intel® Identity Protection Technology (Intel® IPT): Yes
Intel® My WiFi Technology (Intel® MWT): Yes
Intel® Turbo Boost Technology: 2.0
Intel® Quick Sync Video Technology: Yes
Intel® InTru™ 3D Technology: Yes
Intel® Wireless Display (Intel® WiDi): Yes
Intel FDI Technology: Yes
Intel® Clear Video HD Technology (Intel® CVT HD): Yes
Intel® Insider™: Yes
Intel® AES New Instructions (Intel® AES-NI): Yes
Enhanced Intel SpeedStep Technology: Yes
Intel Trusted Execution Technology: No
Intel® Turbo Boost Technology 2.0 frequency: 3.4 GHz
Intel® Transactional Synchronization Extensions: No
Intel Enhanced Halt State: Yes
Intel VT-x with Extended Page Tables (EPT): Yes
Intel® Secure Key: Yes
Intel TSX-NI: No
Intel Stable Image Platform Program (SIPP): No
Intel® OS Guard: Yes
Intel 64: Yes
Intel Identity Protection Technology version: 1.00
Intel Secure Key Technology version: 1.00
Intel Small Business Advantage (SBA) version: 1.00
Intel Stable Image Platform Program (SIPP) version: 0.00
Intel Virtualization Technology (VT-x): Yes
Intel Virtualization Technology for Directed I/O (VT-d): Yes
Intel TSX-NI version: 0.00
Conflict-Free processor: Yes
Intel® vPro™ Platform Eligibility: No

Operational conditions

Tcase: 72.72 °C

Technical details

Maximum resolution refresh rate (Integrated Flat Panel): 3840x2160@60Hz
Processor cache: 6144 KB
Bus bandwidth: 5
Bus type units: GT/s
Launch date: Q2'14
Maximum resolution refresh rate (DisplayPort): 3840x2160@60Hz
Maximum resolution refresh rate (HDMI): 4096x2304@24Hz
Product type: Processor
Maximum resolution refresh rate (VGA): 1920x1200@60Hz
Supported memory types: DDR3-SDRAM, DDR3L-SDRAM
Number of graphics cores: 20
Status: Discontinued
Maximum memory: 32 GB
Processor brand name: Intel Core i5Intel Core i5 Processor
Last change: 63903513
Product family: 4th Generation Intel Core i5 Processors
Bus speed: 5 GT/s
Maximum graphics card memory: 2 GB
Processor ID: 0x412

Logistics data

Harmonized System (HS) code: 8542310001

Packaging data

Package width: 70 mm
Package depth: 116 mm
Package height: 101 mm
Package weight: 373 g

Weight dimensions

Processor package size: 37.5 x 37.5 mm

Other features

Intel® Virtualization Technology (Intel® VT): VT-d, VT-x
Maximum internal memory: 32 GB
Maximum internal memory: 32768 MB
Graphics output: eDP/DP/HDMI/VGA
Video decoding: Yes
