FSP NE

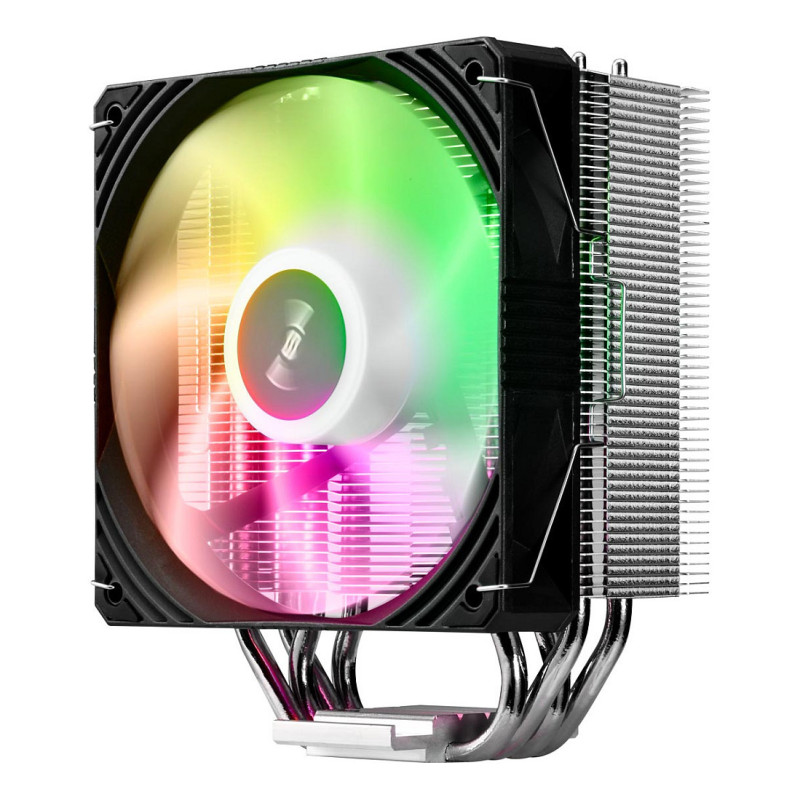

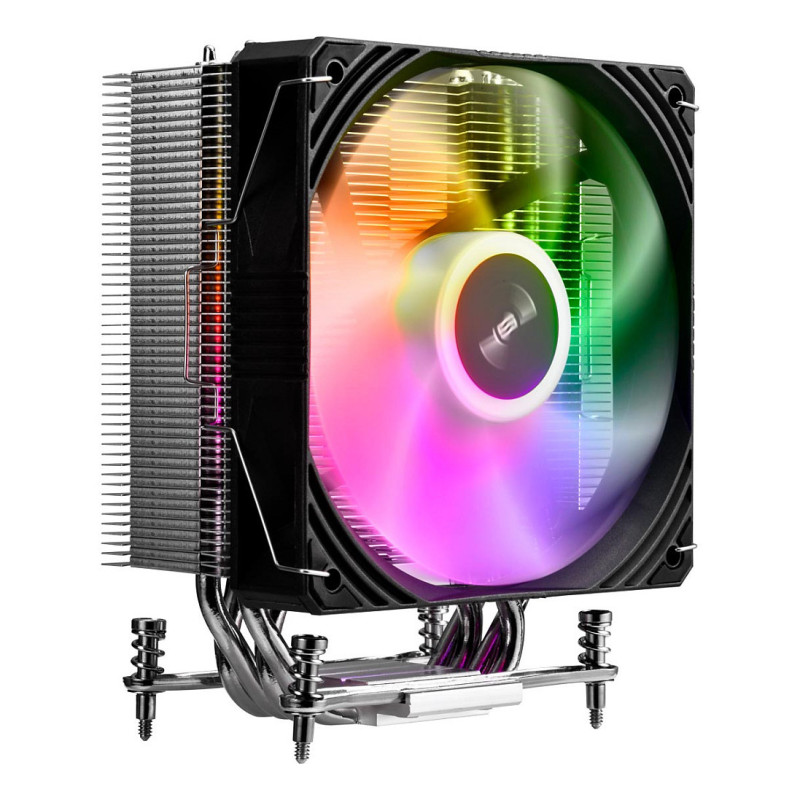

FSP NE5 Processor Cooler Air 120 mm Black ARGB. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 800 RPM, Rotational speed (max): 1600 RPM, Noise level: 28 sone, Maximum air pressure: 1.8 mmH2O, Bearing type: Hydro Dynamic Bearing (HDB). Width: 71 mm, Depth: 120 mm, Height: 150 mm. Product colour: Black

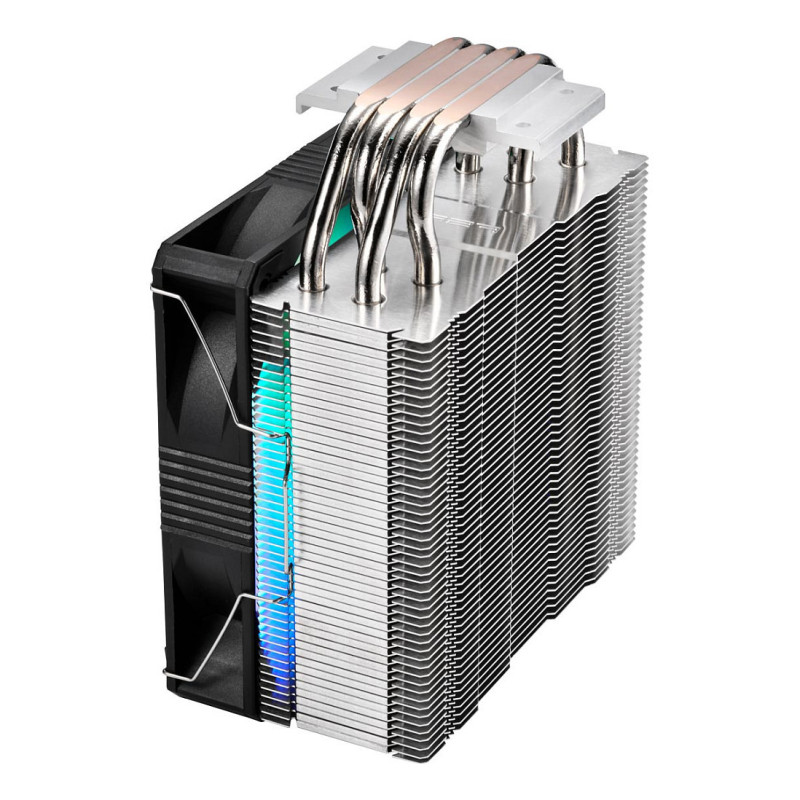

Advanced Gravity Heat Pipe
Ensure the best performance of the NE5 when it is installed vertically on the motherboard.

Superior Heat Dissipation
The aluminum alloy construction offers excellent thermal conductivity, ensuring rapid and efficient heat transfer.

28 dBA ± 10%
Silent Operation
Enjoy powerful performance that doesn't compromise on silence.

120mm
ARGB FANS
Built with a 120mm PWM fan and anti-vibration rubber pads, it provides a low-noise experience during heavy load operation.

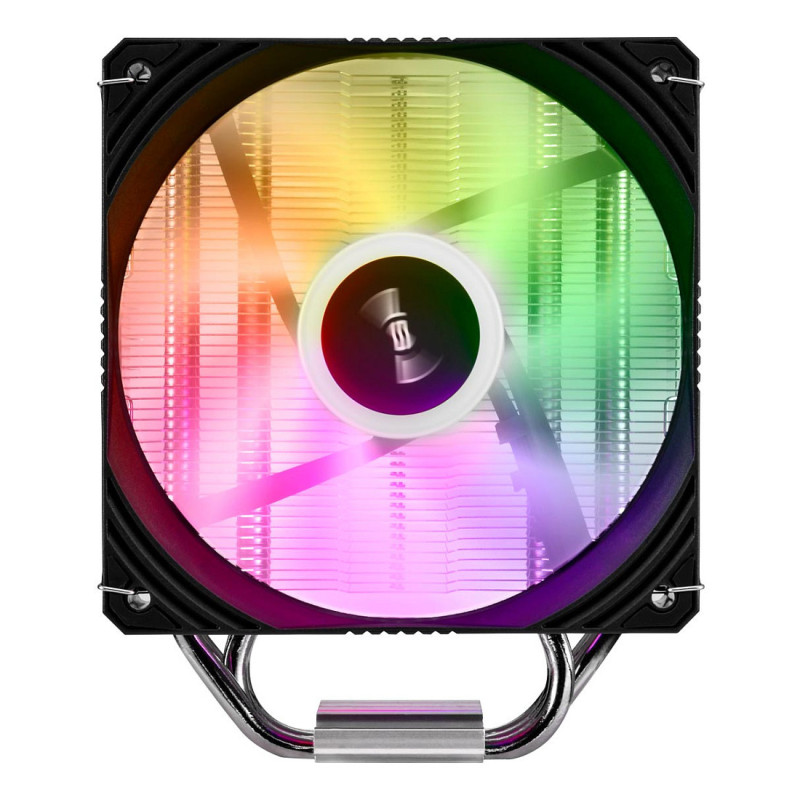

Illuminate Your Build with Infinite ARGB Radiance
FSP NE5 equipped with ARGB fan, it delivers an infinite array of dazzling lighting effect.

Compact Size and Effortless Installation

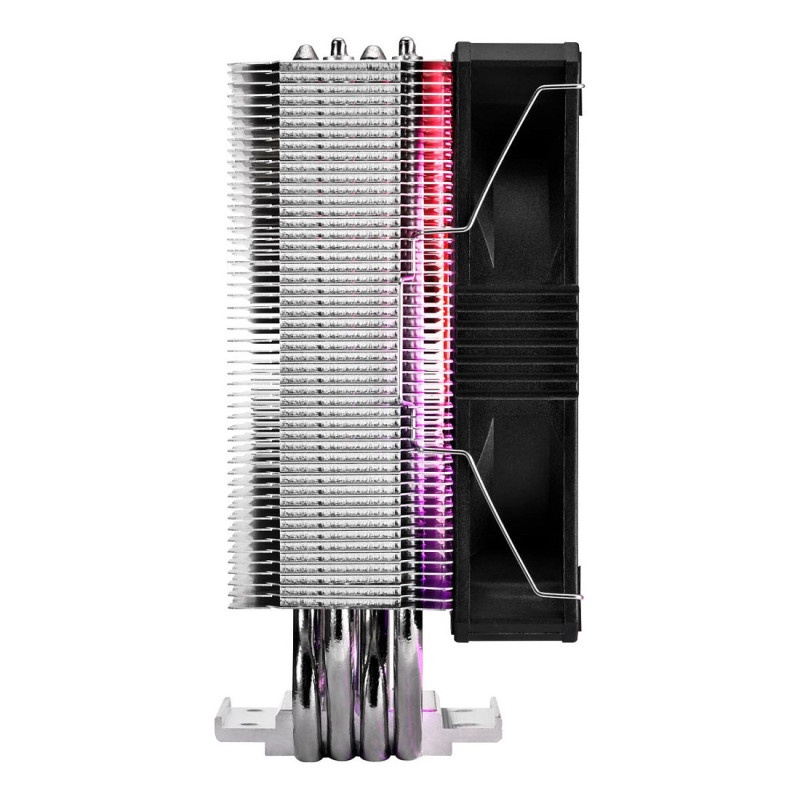

Measuring 71mm in depth and 150mm in height, and provides 100% clearance for RAM. The intuitive mounting bracket ensures an easy and enjoyable installation process.

Seamless Compatibility with Latest CPU
NE5 Compatible with the latest AM5 / AM4 and LGA 1851 / LGA 1700 / LGA 1200 sockets, it offers optimal compatibility and does not interfere with RAM.

Performance

Suitable location: Processor
Type: Fan
Fan diameter: 12 cm
Supported processor sockets: LGA 1851, LGA 1200 (Socket H5), LGA 1700, Socket AM4, Socket AM5
Rotational speed (min): 800 RPM
Rotational speed (max): 1600 RPM
Noise level: 28 sone
Maximum airflow: 62 cfm
Maximum air pressure: 1.8 mmH2O
Bearing type: Hydro Dynamic Bearing (HDB)

Design

Product colour: Black
Material: Aluminium
Radiator material: Aluminum
Number of fans: 1 fan(s)
Number of heat pipes: 4
Feature: Illumination LED
Illumination colour: Multi

Power

Rated voltage: 12 V
Rated current: 0.2 A

Weight & dimensions

Width: 71 mm
Radiator width: 4.5 cm
Radiator depth: 12 cm
Radiator height: 15 cm
Depth: 120 mm
Height: 150 mm
Weight: 553 g
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Heat pipes diameter: 6 mm

Technical details

Warranty period: 3 year(s)
