Dynatron S5 computer cooling system

Dynatron S5. Type: Air cooler, Fan diameter: 6 cm, Number of speeds: 3, Rotational speed (min): 2300 RPM, Rotational speed (max): 11000 RPM, Minimum air pressure: 1.48 mmH2O, Maximum air pressure: 28.8 mmH2O, Bearing type: Ball bearing. Voltage: 12 V. Width: 82 mm, Depth: 118 mm, Height: 66 mm. Product colour: Aluminium, Black, Copper
S5

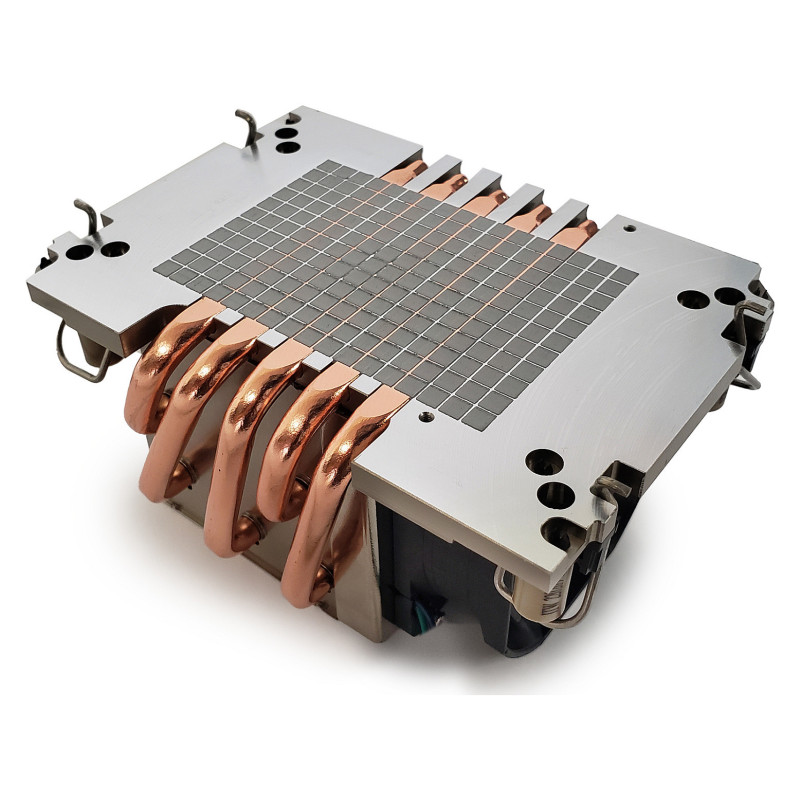

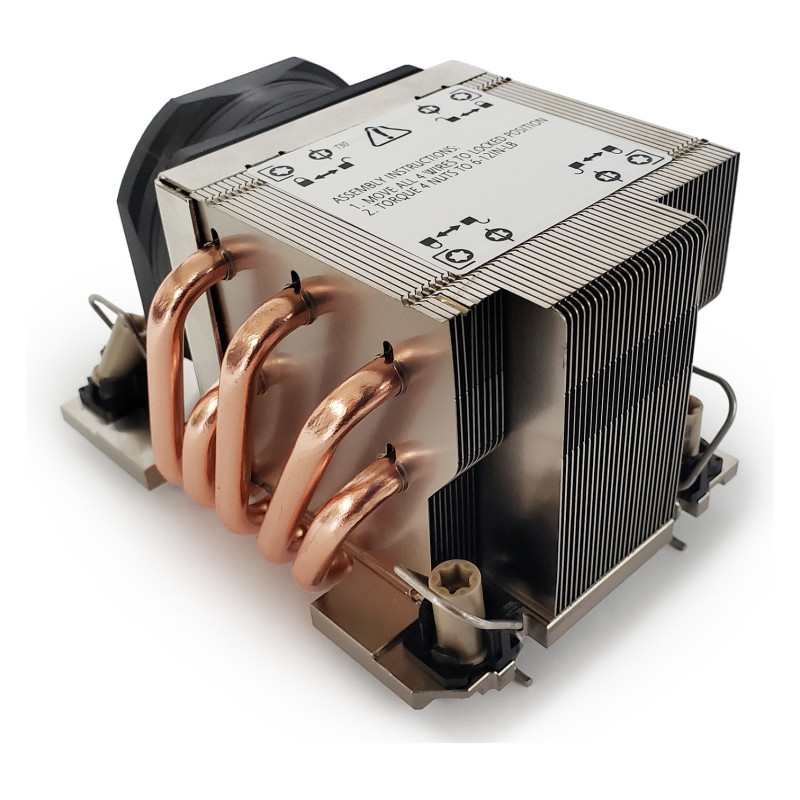

Recommend for Intel® Sapphire Rapids Processor, Socket FCLGA 4677, Active Cooler for 2U Server and up, Aluminum Fin stack with 5 Heat Pipes embedded, Side-blow fan with PWM Function, Support 350 Watts CPU Power Heat Dissipation.
Note:

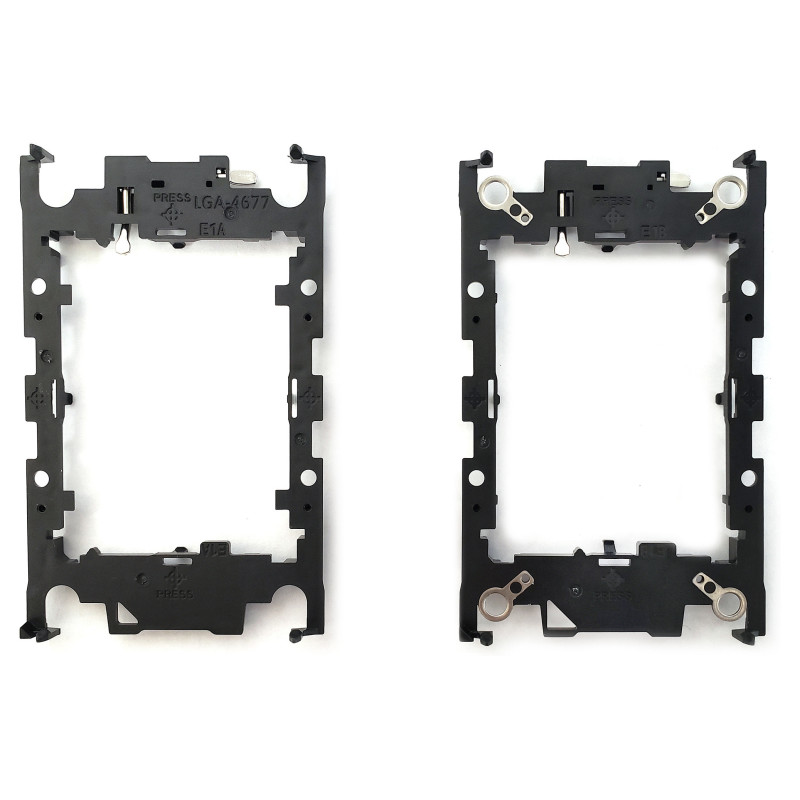

Dynatron S2, S3, S4, S5, S6, and S7 each comes with E1B Package Carrier.
E1A and E1C Package Carriers are not included but they are available upon request.

Performance

Suitable location: Processor
Type: Air cooler
Fan diameter: 6 cm
Supported processor sockets: LGA 4677 (Socket E)
Compatible processor series: Intel® Xeon®
Number of speeds: 3
Rotational speed (min): 2300 RPM
Rotational speed (max): 11000 RPM
Noise level (low speed): 25.8 dB
Noise level (high speed): 59.8 dB
Minimum airflow (imperial): 11.91 cfm
Maximum airflow: 58.31 cfm
Minimum air pressure: 1.48 mmH2O
Maximum air pressure: 28.8 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Ball bearing
Fan noise level (min): 25.8 dB
Fan noise level (max): 59.8 dB
Fan bearing technology: Double ball bearing
Quantity per pack: 1 pc(s)

Design

Product colour: Aluminium, Black, Copper
Material: Aluminium, Copper, Plastic
Base plate material: Aluminium
Number of fans: 1 fan(s)
Fins material: Aluminium
Number of heat pipes: 5
Fan connector: 4-pin
Rack capacity: 2U

Power

Power supply: 18 W
Voltage: 12 V
Thermal Design Power (TDP): 350 W

Weight dimensions

Width: 82 mm
Depth: 118 mm
Height: 66 mm
Weight: 470 g
Fan dimensions (W x D x H): 60 x 60 x 25 mm
Fan thickness: 2.5 cm

Packaging content

Feature: Mounting kit
Feature: CPU bracket(s)

Other features

Feature: Thermal grease
