COUGAR CGR-PSDUTRGB-B-240

COUGAR CPU Water Cooling Poseidon Ultra 240, ARGB, Black. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Rotational speed (min): 500 RPM, Rotational speed (max): 2200 RPM, Maximum air pressure: 3.26 mmH2O. Product colour: Black

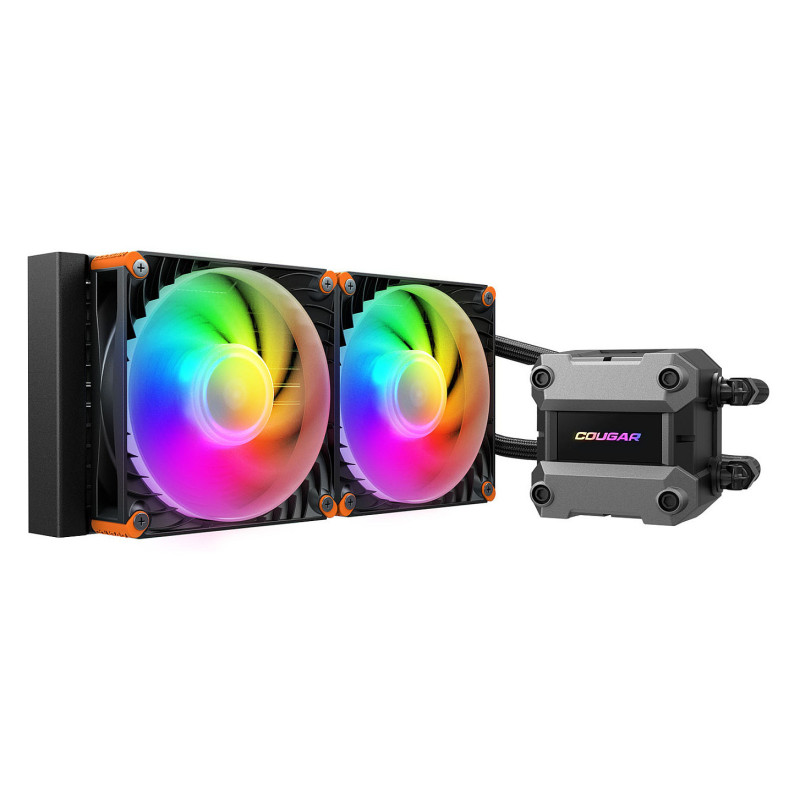

POSEIDON ULTRA ARGB
The Coming of Winter
The Poseidon Ultra ARGB stands at the pinnacle of PC liquid cooling. Its Vortent radiator fan achieves the perfect ratio of performance and silence, with its unique frame design generating a vortex effect that optimizes airflow and air pressure. The water cooling block pushes the limits of conduction tech, simultaneously reducing cooling plate thickness and increasing cooling fin surface area, as well as boosting coolant flow speed.
* Support the latest AMD AM5 and Intel LGA1851 CPU sockets.

The Coanda Effect

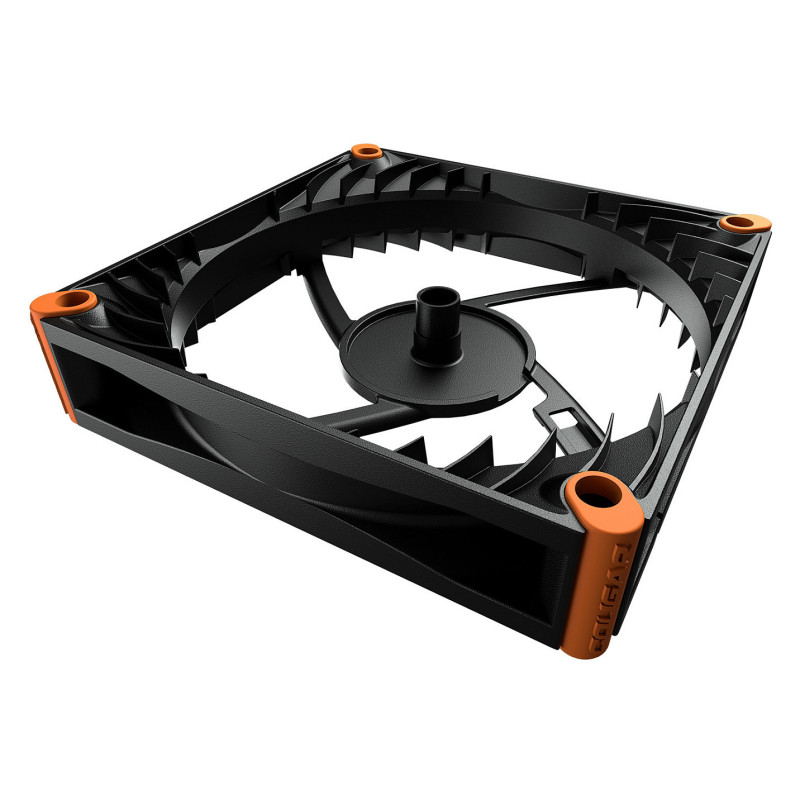

Defined as the tendency of a fluid jet to stay attached to a convex surface, this principle of fluid mechanics is the science behind the Poseidon Ultra ARGB's fan frame design: convex ridges generate a vortex, concentrating airflow velocity to maximize its cooling effect.

Perfectly Balanced

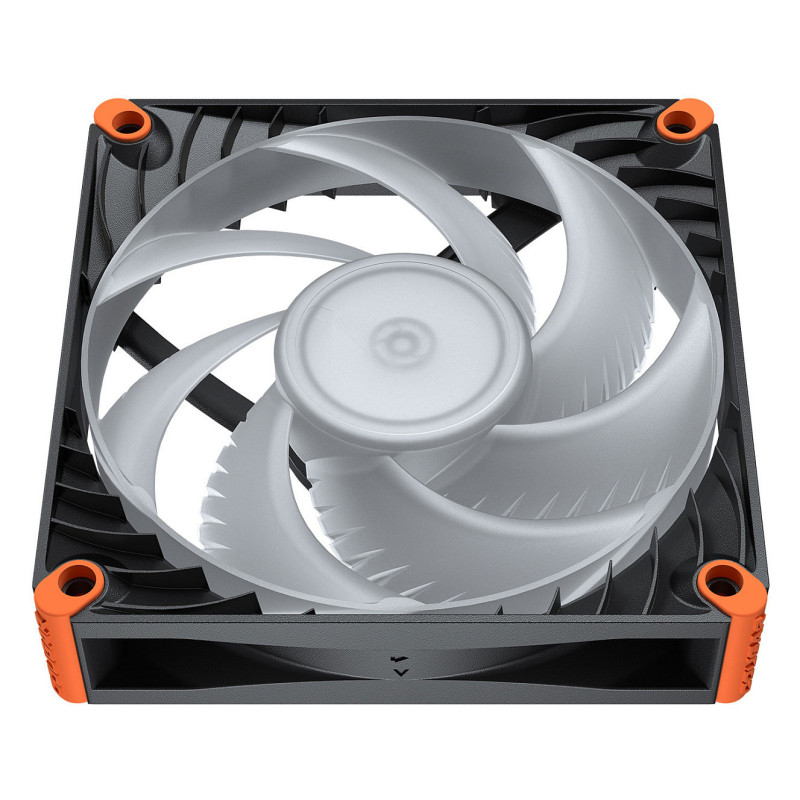

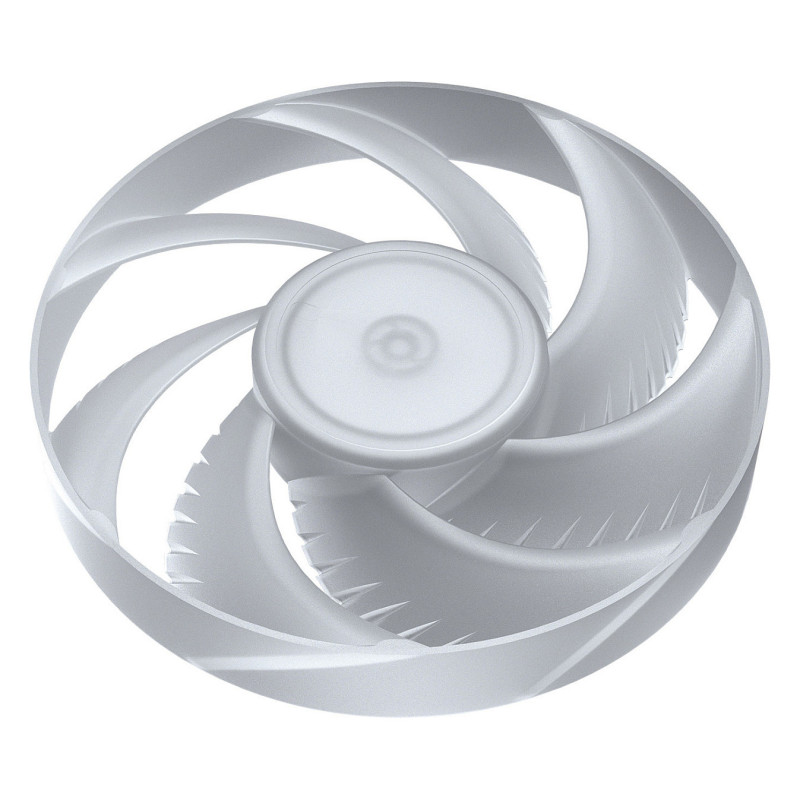

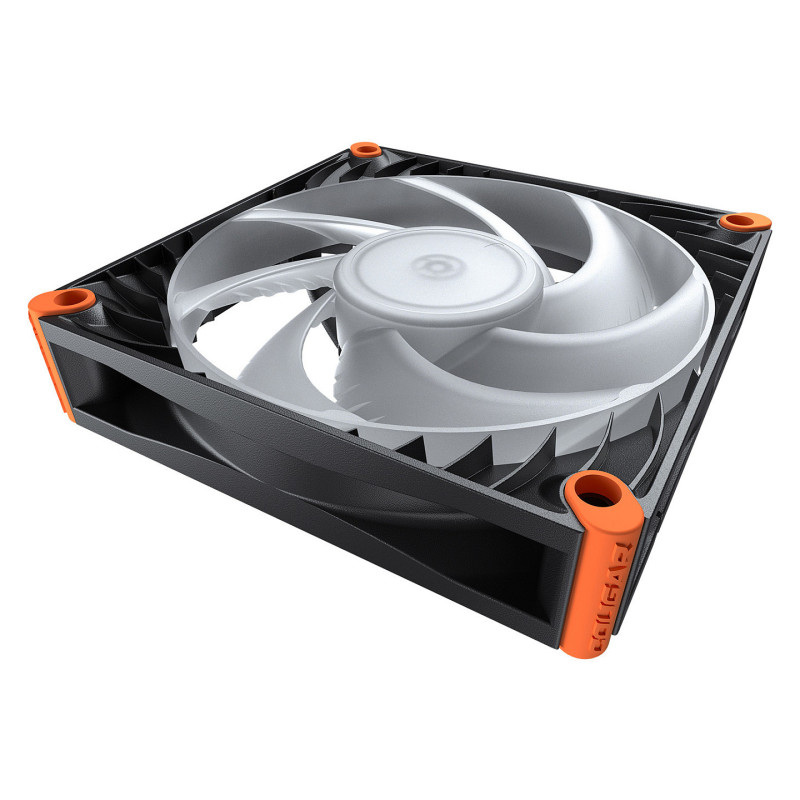

In regular fans, performance is inversely proportional to noise: the stronger the performance, the louder the fan. The Poseidon Ultra ARGB surpasses this conventional compromise to achieve an ideal ratio of performance to noise with a grooved impeller molded with an integrated stabilizing ring, minimizing flex and turbulence during rotation for optimal and silent cooling. Corner dampeners further suppress oscillation, reducing vibration noise.

Cold Current

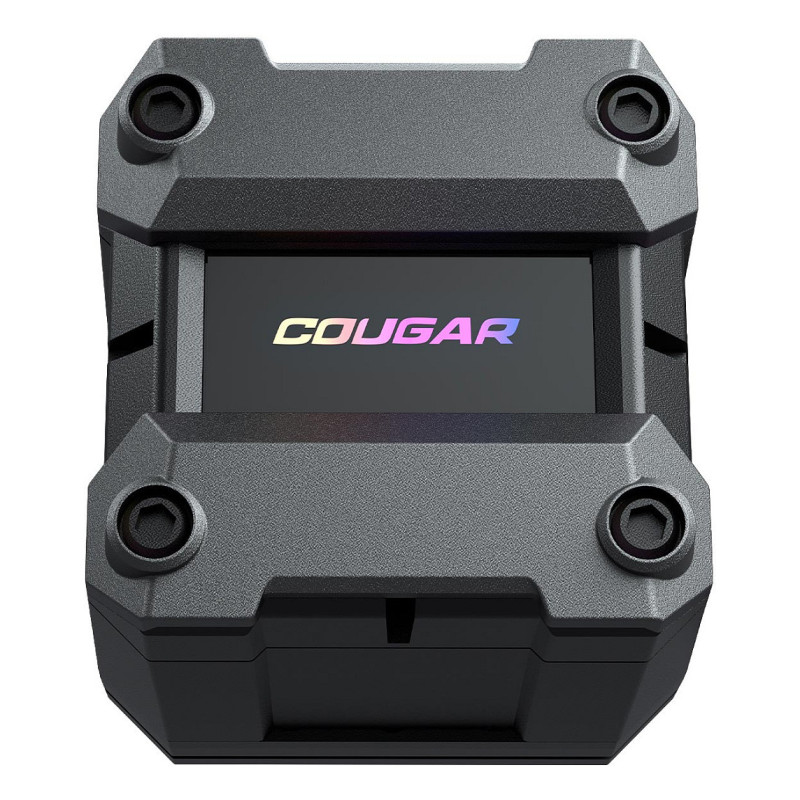

The Poseidon Ultra ARGB's water cooling block raises the bar for liquid conduction tech.

25 % Boost
in coolant flow, enhancing the rate and volume of coolant delivery to active components.

28% Increase
in cooling fin surface area, maxing out heat transfer contact area and heat transfer efficiency.

50% Reduction
in copper plate thickness achieves peak conduction.

Cutting-Edge Compatibility

The Poseidon Ultra ARGB supports the latest AMD AM5 and Intel LGA1851 sockets and comes complete with all the mounting hardware to make installation a matter of mere minutes.

Control Fans & Lighting
with Motherboard Sync Software
The Poseidon Ultra ARGB is able to control ARGB lighting with motherboard software. Experience the next level of system-wide control.

Performance

Suitable location: Processor
Type: All-in-one liquid cooler
Fan diameter: 12 cm
Rotational speed (min): 500 RPM
Rotational speed (max): 2200 RPM
Noise level (high speed): 32.1 dB
Maximum airflow: 64.95 cfm
Maximum air pressure: 3.26 mmH2O
Feature: Pulse-width modulation (PWM) support
Pump connector: 3-pin
Quantity per pack: 1 pc(s)
Pump motor speed: 3000 RPM

Design

Product colour: Black
Radiator material: Aluminum
Base plate material: Copper
Number of fans: 2 fan(s)
Feature: Illumination LED
Illumination colour: Multi
LED connector type: 3-pin
Fan connector: 4-pin

Power

Rated voltage: 12 V
Fan power consumption: 4.44 W
Pump power consumption: 2.76 W
Rated current: 0.37 A
LED voltage: 5 V
Pump voltage: 12 DC
Pump current: 230 mA
Fan voltage: 12 V
Fan current: 0.37 A
LED power consumption (fan): 1.75 W

Weight & dimensions

Radiator width: 27.7 cm
Radiator depth: 12 cm
Radiator height: 2.7 cm
Tube length: 40 cm
Waterblock width: 8.35 cm
Waterblock depth: 7.1 cm
Waterblock height: 6.8 cm
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Package width: 240 mm
Package depth: 337 mm
Package height: 139 mm
Package weight: 2 kg
