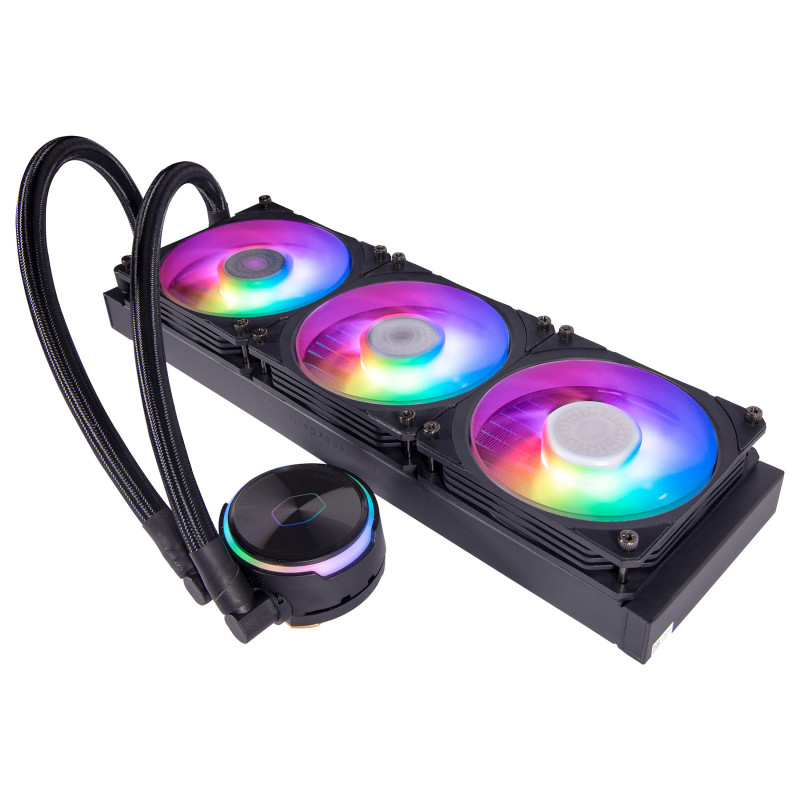

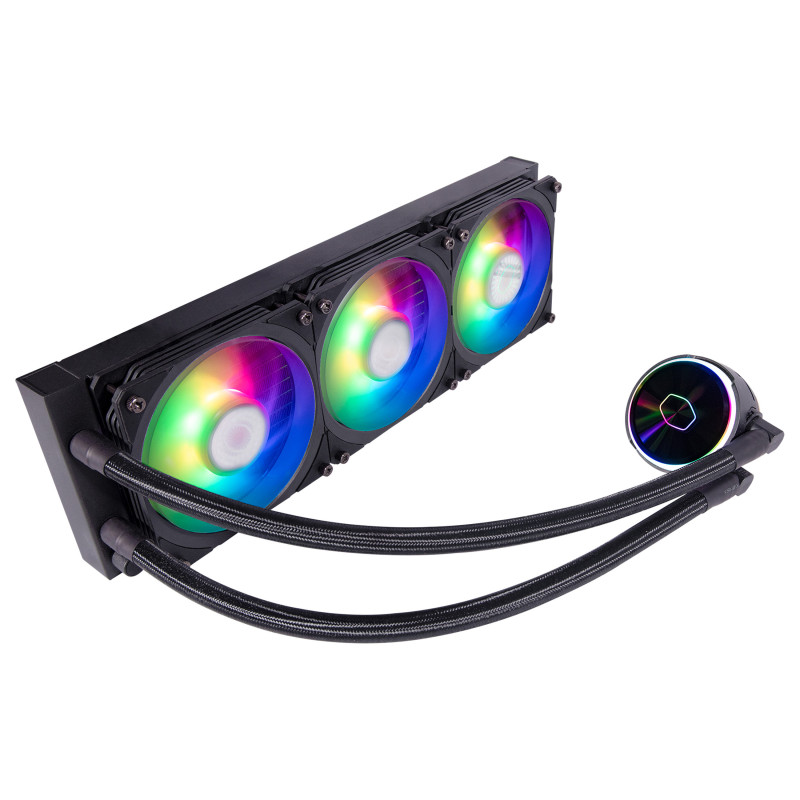

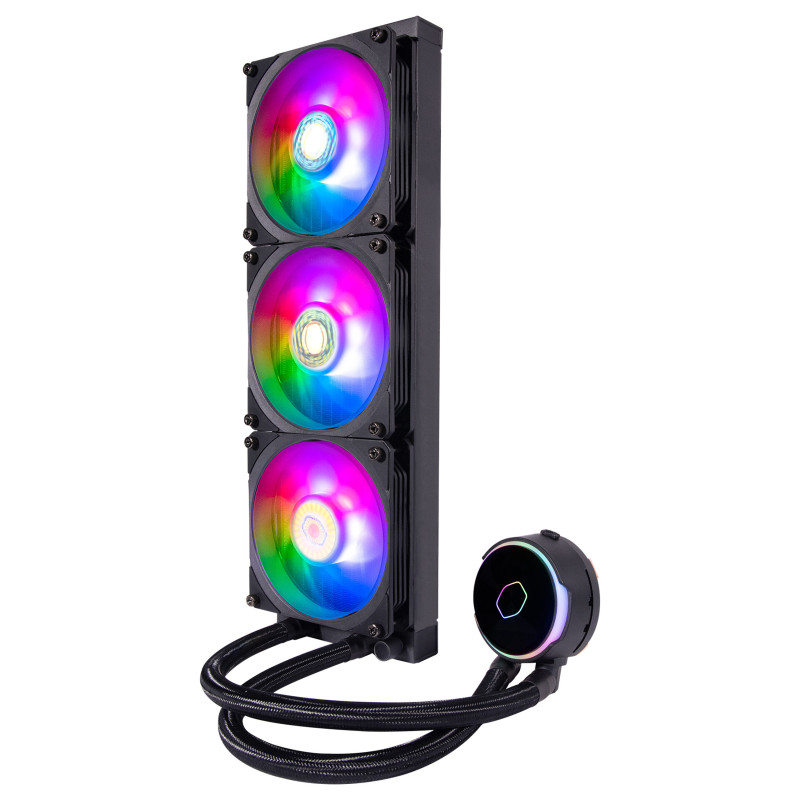

Cooler Master MasterLiquid PL360 Flux

Cooler Master MasterLiquid PL360 Flux. Type: Liquid cooling kit, Fan diameter: 12 cm, Rotational speed (min): 0 RPM, Rotational speed (max): 2300 RPM, Maximum air pressure: 2.96 mmH2O. Product colour: Black

Cooling Uncompromised
Cooler Master's Flux Series is the materialization of revolutionary cooling performance. With enhancements from the pump to the radiator and fans, the Flux Series delivers precisely tuned performance for superior heat dissipation and cooling capabilities.

Premium Dual Chamber Pump
New Dual Chamber Pump more compact than before while delivering the perfect volume of flow to pressure for impressive cooling performance.

Fine Tuned Performance Ratio
Precision engineered ultra-thin spaded fins maximize microchannels to accurately target heat spots. Enlarged copper base surface area with optimized base thickness further accelerates heat transfer.

Ultimate Heat Exchange
High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.

Slim & Sleek Radiator
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.

Redesigned Flux Series Fan
Unique air balance fan featuring interconnecting blades specifically designed for the Flux Series. Strengthened structure provides better stability for steady high speed operation. Angled inner fan frame rim boosts air intake, with frame gap generating increased air pressure for improved cooling.

Dual Loop ARGB Pump
Dual loop pump ARGB with independent lighting customization showcases your visual creativity without sacrificing cooling capability.

Addressable Gen 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master's MasterPlus+ software to customize individual LED colors, effects, brightness and more - all from an intuitive, convenient interface.

Performance

Suitable location: Processor
Type: Liquid cooling kit
Fan diameter: 12 cm
Rotational speed (min): 0 RPM
Rotational speed (max): 2300 RPM
Maximum airflow: 72.37 cfm
Maximum air pressure: 2.96 mmH2O
Feature: Pulse-width modulation (PWM) support
Fan noise level (max): 32 dB
Pump noise level: 15 dB
Pump connector: 4-pin
Pump's mean time to failure (MTTF): 210000 h
Fan's mean time to failure (MTTF): 160000 h

Design

Product colour: Black
Radiator material: Aluminum
Number of fans: 3 fan(s)
Feature: Illumination LED
Illumination colour: Multi
Fan connector: 4-pin

Power

Pump power consumption: 6 W
Safety current: 0.3 Ah
Pump voltage: 12 V
Fan voltage: 12 V
Fan current: 0.15 A

Weight & dimensions

Radiator width: 12 cm
Radiator depth: 39.4 cm
Radiator height: 2.72 cm
Pump width: 7.5 cm
Pump depth: 8.9 cm
Pump height: 4 cm
Weight: 1.98 kg
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Package width: 232 mm
Package depth: 437 mm
Package height: 144 mm
Package weight: 3.01 kg

Other features

Country of origin: China

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 455 mm
Master (outer) case length: 570 mm
Master (outer) case height: 265 mm
Products per master (outer) case: 4 pc(s)
