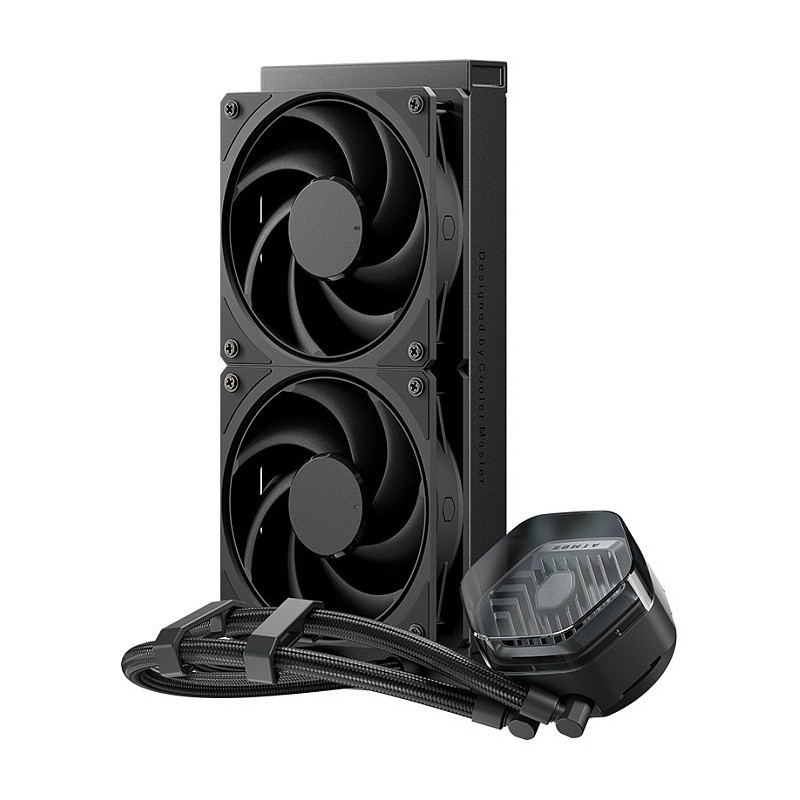

Cooler Master MasterLiquid ATMOS Stealth Series

Cooler Master MasterLiquid ATMOS Stealth Series. Type: Liquid cooling kit, Fan diameter: 12 cm, Rotational speed (min): 0 RPM, Rotational speed (max): 2400 RPM, Airflow: 127.6 m³/h, Maximum air pressure: 3.63 mmH2O, Bearing type: Loop Dynamic Bearing (LDB). Product colour: Black

MasterLiquid ATMOS Stealth Series

360 Degrees of Cool
Cooler Master unveils the next generation of liquid cooling engineering with the MasterLiquid ATMOS STEALTH SERIES , our new AIO liquid cooler. With the ATMOS series, we are introducing a multitude of modern designs and features. Our signature dual chamber pump has been refined for enhanced cooling synergy.

The latest Mobius 120 Black fans are included to silently improve air flow and are preinstalled to simplify installation and the overall user experience.

The pump cover is manufactured from eco friendly recycled plastics and features a transparent, removable top cover that allows you to customize it with your own logo or badge. This version of the ATMOS is also an all blackout, non LED release, allowing for a super stealthy aesthetic. Cooler Master is leaping into the future with the ATMOS series.

DUAL CHAMBER DESIGN

Patented design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

Improved Quality
Fully automated production and assembly of the pump with fully recorded production history.

TUBE CLIPS INCLUDED
Tube clips are made for AIO tube size that not only to improve and strengthen your cooler setup，but also can fix your ARGB or PWM cables.

Eco-friendly construction
The pump top cover has been constructed from recycled plastic materials, while 35% of the cooler's metal materials are recycable. Along with sustainable packaging materials and a 30% reduction in total packaging size, the Atmos is an eco-pioneer.

MOBIUS 120 BLACK FANS
Pre-installed Mobius 120mm black fans further improve cooling performance and simplify user installation.

Performance

Suitable location: Processor
Type: Liquid cooling kit
Fan diameter: 12 cm
Rotational speed (min): 0 RPM
Rotational speed (max): 2400 RPM
Noise level (high speed): 30 dB
Maximum airflow: 75.2 cfm
Airflow: 127.6 m³/h
Maximum air pressure: 3.63 mmH2O
Bearing type: Loop Dynamic Bearing (LDB)
Pump noise level: 25 dB
Pump motor speed: 3400 RPM
Pump's mean time to failure (MTTF): 210000 h
Fan's mean time to failure (MTTF): 200000 h

Design

Product colour: Black
Radiator material: Aluminum
Number of fans: 2 fan(s)
Fan connector: 4-pin

Power

Rated voltage: 12 V
Fan power consumption: 2.16 W
Pump power consumption: 3.84 W
Rated current: 0.18 A
Safety current: 0.35 Ah
Pump voltage: 12 V

Weight & dimensions

Radiator width: 11.9 cm
Radiator depth: 27.7 cm
Radiator height: 2.72 cm
Pump width: 8.49 cm
Pump depth: 8.1 cm
Pump height: 5.32 cm
Weight: 1.34 kg
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Package width: 211 mm
Package depth: 292 mm
Package height: 136 mm
Package weight: 1.97 kg

Other features

Master (outer) cases per pallet: 4 pc(s)

Logistics data

Master (outer) case width: 320 mm
Master (outer) case length: 440 mm
Master (outer) case height: 310 mm
