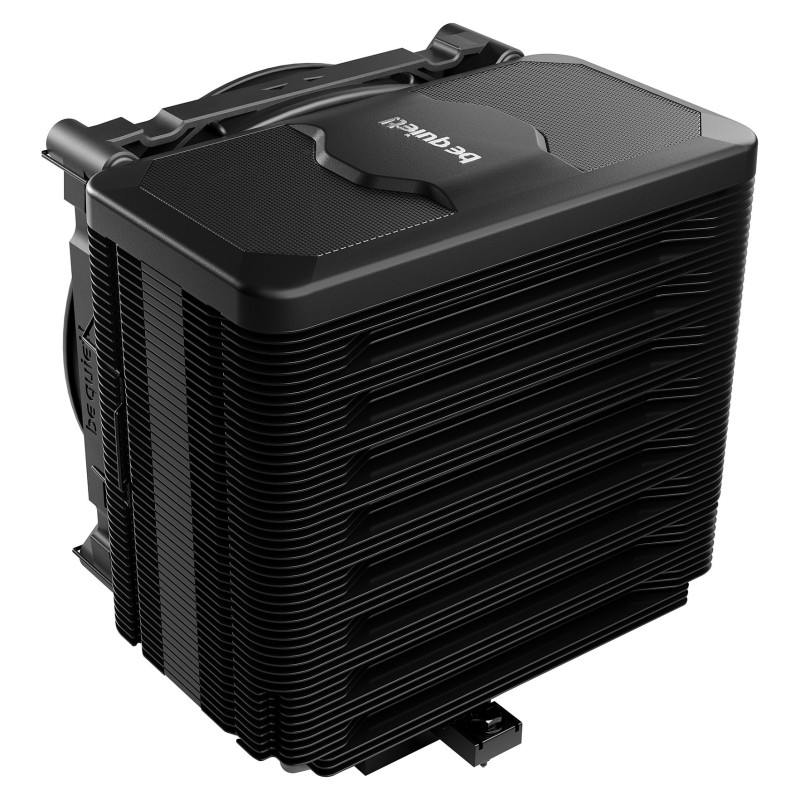

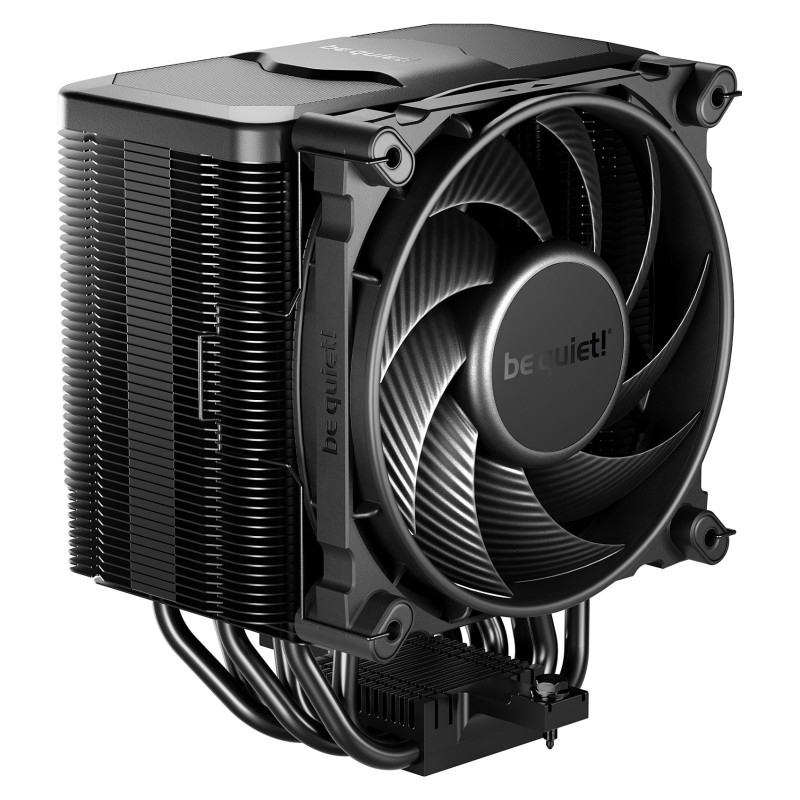

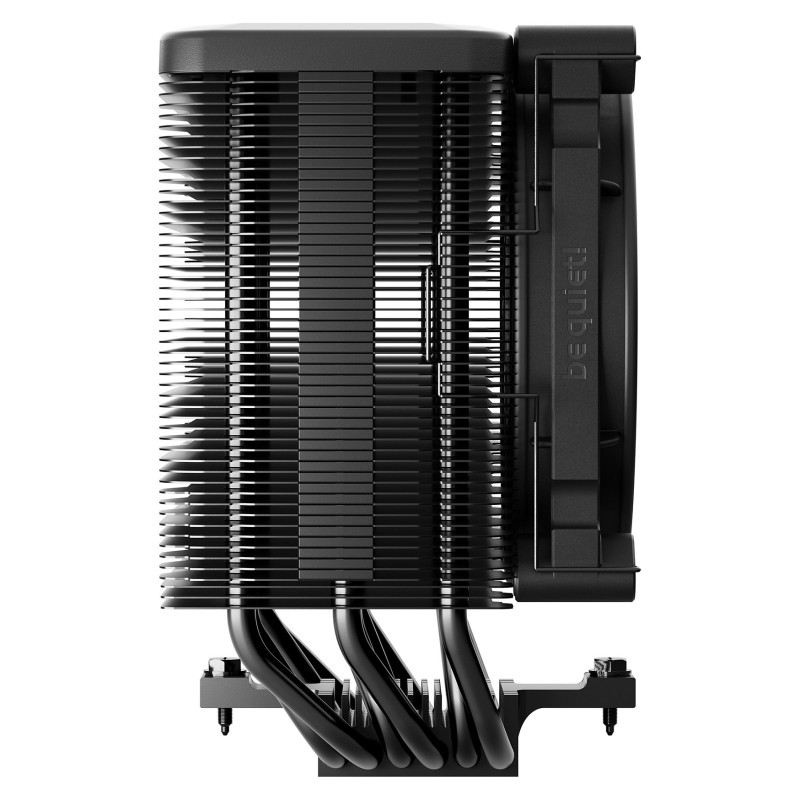

be quiet! DARK ROCK 5

be quiet! DARK ROCK 5. Type: Air cooler, Fan diameter: 12 cm, Rotational speed (max): 2100 RPM, Airflow: 93.5 m³/h, Maximum air pressure: 2.73 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Width: 136 mm, Depth: 101 mm, Height: 161 mm. Product colour: Black

Unleashed performance and compatibility
Dark Rock 5 is the compact embodiment of performance and high compatibility. With effortless installation and a silent fan, it is designed for passionate gamers of all kinds.

Performance

Suitable location: Processor
Type: Air cooler
Fan diameter: 12 cm
Supported processor sockets: LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1200 (Socket H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5
Rotational speed (max): 2100 RPM
Noise level (low speed): 11.9 dB
Noise level (high speed): 29.8 dB
Maximum airflow: 55 cfm
Airflow: 93.5 m³/h
Maximum air pressure: 2.73 mmH2O

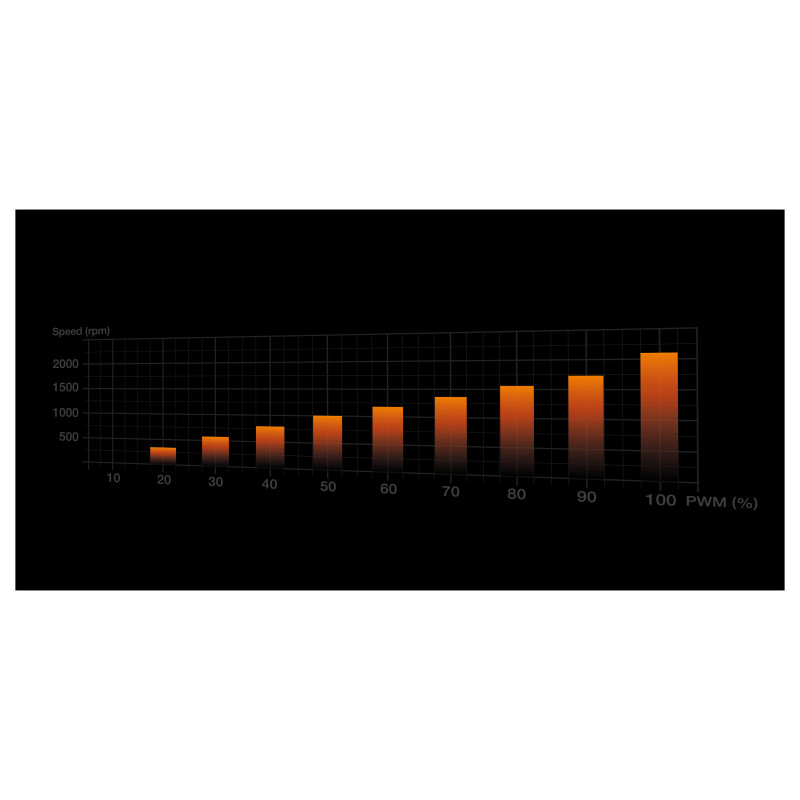

Feature: Pulse-width modulation (PWM) support
Bearing type: Fluid Dynamic Bearing (FDB)
Quantity per pack: 1 pc(s)
Fan's mean time to failure (MTTF): 300000 h

Design

Product colour: Black
Base plate material: Copper
Number of fans: 1 fan(s)
Fins material: Aluminium

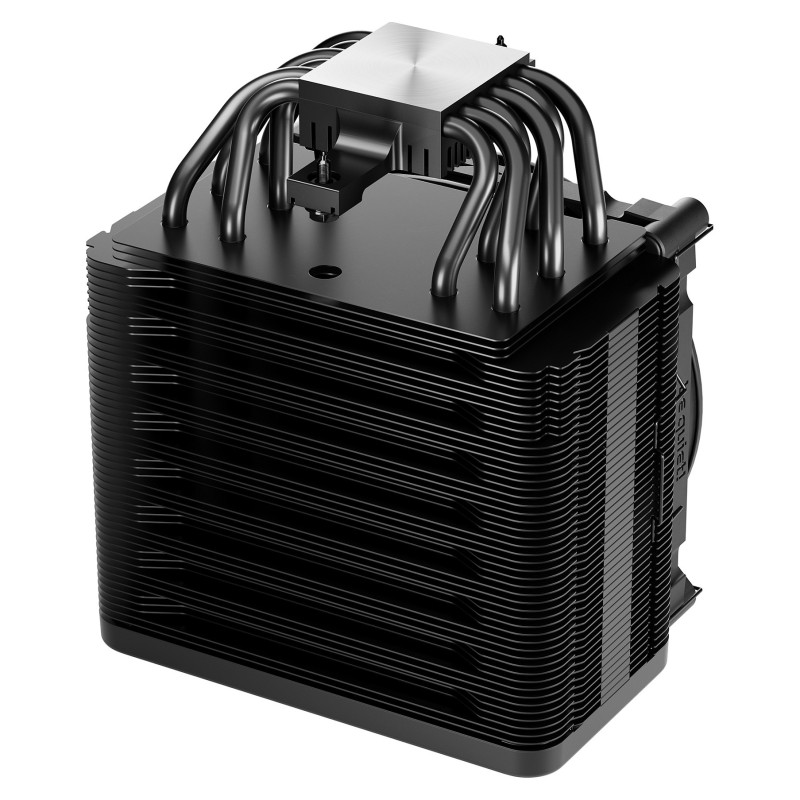

Number of heat pipes: 6
Fan connector: 4-pin
Display type: Not applicable

Power

Rated voltage: 12 V
Fan power consumption: 2.4 W
Maximum current: 0.2 A
Thermal Design Power (TDP): 210 W
Fan current: 0.1 A

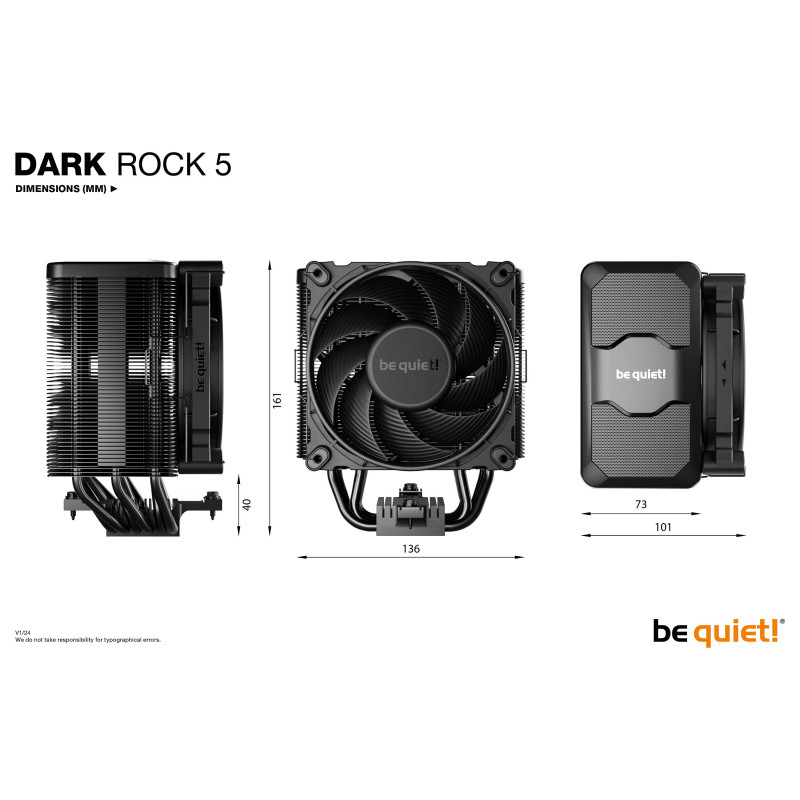

Weight & dimensions

Width: 136 mm
Radiator width: 13.6 cm
Radiator depth: 7.6 cm
Radiator height: 16.1 cm
Depth: 101 mm
Height: 161 mm
Weight: 1.03 kg
Fan dimensions (W x D x H): 120 x 120 x 25 mm
Heat pipes diameter: 6 mm
Cable length: 0.22 m
Package width: 146 mm
Package depth: 198 mm
Package height: 224 mm
Package weight: 1.5 kg

Technical details

Warranty period: 3 year(s)
Compliance certificates: CE, RoHS, TÜV mark, UKCA, UL, WEEE

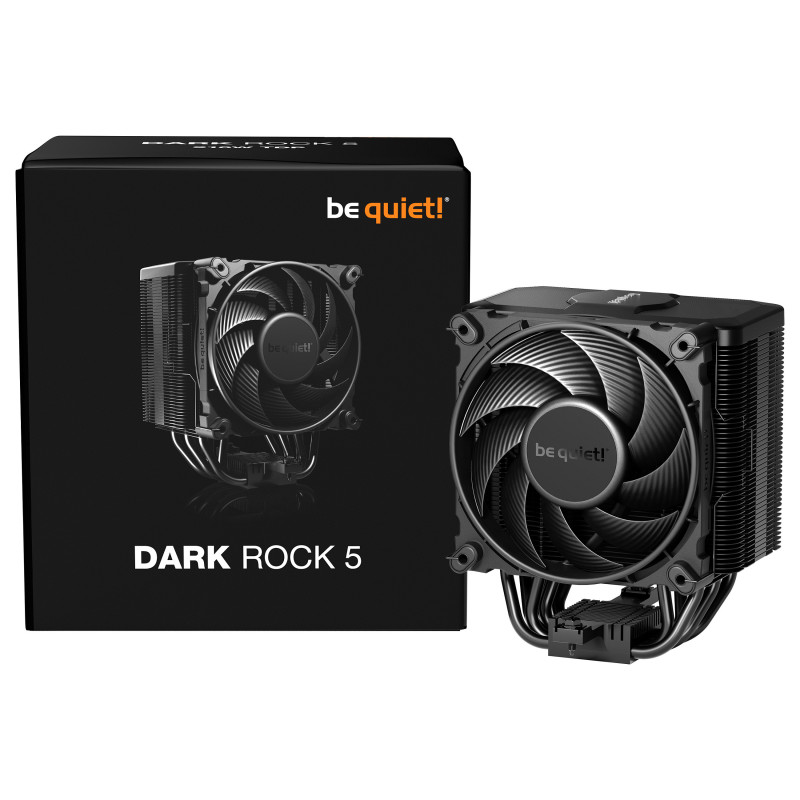

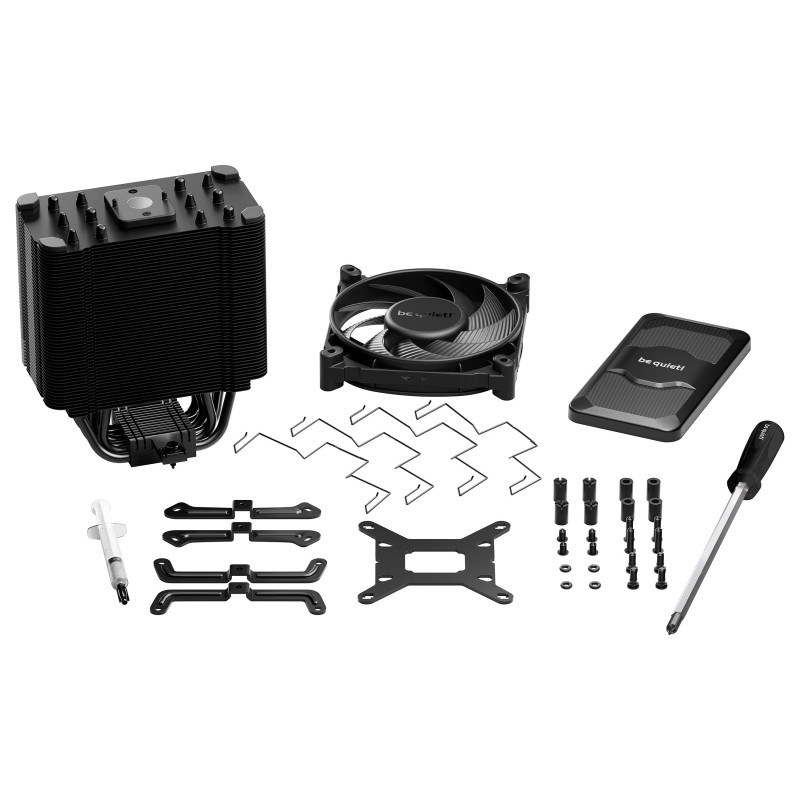

Packaging content

Feature: Mounting kit
Feature: Screws included
Number of screws: 8
Number of nuts: 4
Feature: Installation instruction
Feature: CPU bracket(s)

Other features

Feature: Thermal grease

Logistics data

Products per shipping (inner) case: 12 pc(s)
Shipping (inner) case width: 31 cm
Shipping (inner) case length: 61 cm
Shipping (inner) case height: 48.3 cm
Shipping (inner) case gross weight: 18.6 kg
