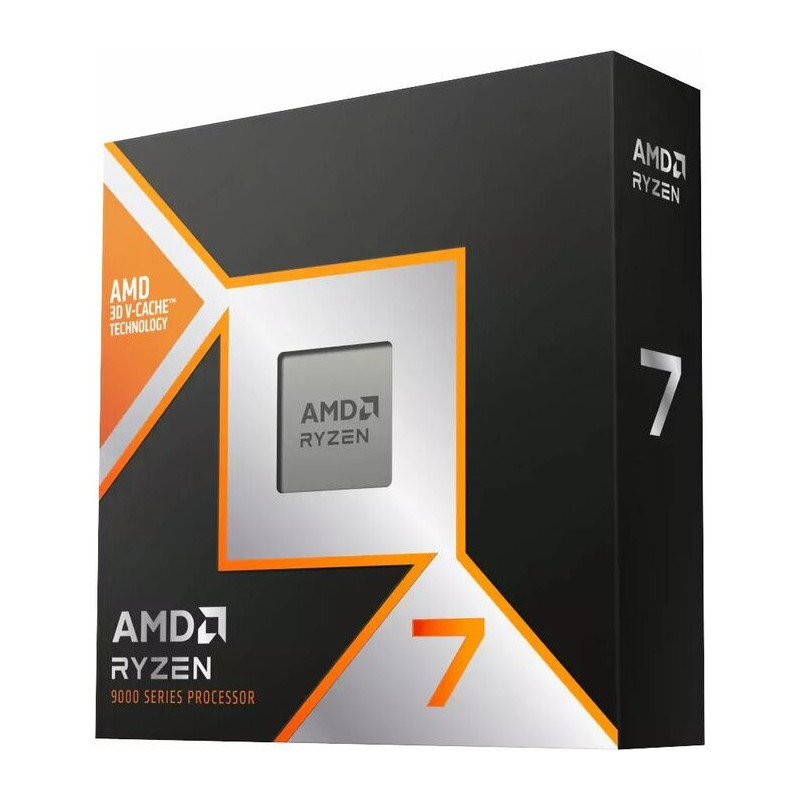

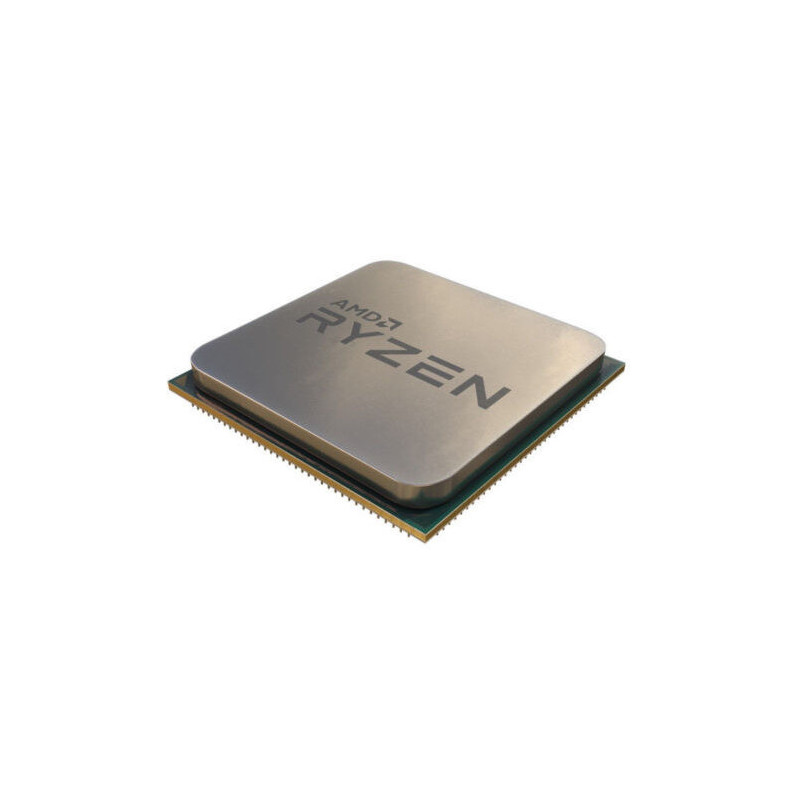

AMD Ryzen 7 9800X3D 5,2GHz AM5 104MB cache

AMD Ryzen™ 7 9800X3D Desktop Processor
Harness the ultimate gaming edge with AMD Ryzen™ 7 9800X3D Processor. Enjoy faster gaming with 2nd gen AMD 3D V-Cache™ technology for low latency.

General

•


  Family: Ryzen™





•


  Series: Ryzen 9000 Series





•


  Form factor: Desktop, boxed processor





•


  Market segment: Enthusiast desktop





•


  AMD PRO Technologies: No





•


  Consumer use: Yes





•


  Regional availability: Global





•


  Former codename: Granite Ridge (AM5)




Architecture & performance

•


  Architecture: Zen 5





•


  Cores / Threads: 8 / 16





•


  Multithreading (SMT): Yes





•


  Base clock: 4.7 GHz





•


  Max boost clock: Up to 5.2 GHz





•


  Boost technology: Precision Boost 2




Cache

•


  L1 cache: 640 KB





•


  L2 cache: 8 MB





•


  L3 cache: 96 MB




Power & process technology

•


  Default TDP: 120W





•


  CPU core process: TSMC 4nm FinFET





•


  I/O die process: TSMC 6nm FinFET





•


  Package die count: 2




Overclocking & features

•


  Unlocked for overclocking: Yes





•


  AMD EXPO™ memory overclocking: Yes





•


  Precision Boost Overdrive: Yes





•


  Curve Optimizer voltage offsets: Yes





•


  AMD Ryzen™ Master support: Yes




Platform

•


  CPU socket: AM5





•


  Supported chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850




Instruction set & extensions

•


  Instruction set: x86-64





•


  Supported extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64




Cooling & thermals

•


  Thermal solution (PIB): Not included





•


  Recommended cooler: Liquid cooler recommended for optimal performance





•


  Max operating temperature (Tjmax): 95°C




Launch & OS support

•


  Launch date: 11/07/2024





•


  OS support: Windows 11 (64-bit), Windows 10 (64-bit), RHEL x86 (64-bit), Ubuntu x86 (64-bit)
