Thermaltake TS120 EX

Thermaltake TS120 EX. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 500 RPM, Rotational speed (max): 2000 RPM, Maximum air pressure: 2.45 mmH2O, Bearing type: Hydraulic. Voltage: 12 V 5 V. Width: 120 mm, Depth: 25 mm, Height: 120 mm. Product colour: Black
TS EX RGB is Thermaltake's first fan series equipped with a built-in temperature sensor. With Individual Temperature Sensing, each fan's fan speed can be independently adjusted based on the surrounding airflow temperature, enabling more precise and efficient cooling. Featuring MagForce 2.0, the TS120 EX RGB fan allows for faster magnetic connections while reducing cable clutter. Its linear lighting design creates a distinctive Music Staff Lighting Effect, delivering a perfect blend of aesthetics and functionality.

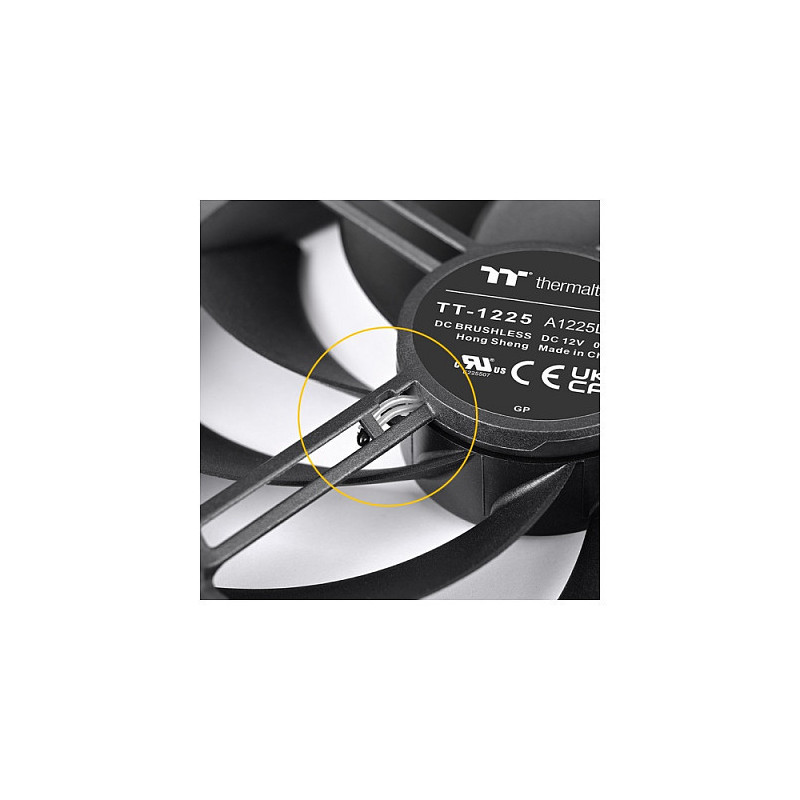

Built-in Temperature Sensor for Real-Time Fan Speed Adjustment
With a temperature sensor at the rear of the fan, the TS EX RGB provides an additional fan speed control. This sensor can monitor the air temperature near fan, enabling dynamic speed management based on localized conditions.
Smart Cooling with Individual Temperature Sensing
Compared with standard PWM fans that adjust all fan speeds based on only one hotspot, the TS EX RGB fan features an Individual Temperature Sensing, detecting the airflow temperature of each fan to achieve the optimal operating temperature inside the chassis.
Automatically Enhances Cooling Saves Energy
As the surrounding airflow temperature increases, the fan speed rises accordingly to improve cooling; as the temperature decreases, the fan speed reduces to minimize noise and power consumption. This real-time response ensures efficient performance across workloads.
F an Speed Control with TT RGB PLUS 3.0
Through the new TT RGB PLUS 3.0 software, you can monitor fan speed, PWM %, and real-time temperature. It offers five fan speed control modes, including Silent, Standard, Performance, Full Speed, and Customize. You can also assign different modes to individual fans to meet specific cooling requirements.
Stylish from Every Angle
The TS EX RGB is designed with visual appeal in mind, featuring vibrant linear RGB lighting on the fan ring and both non-magnetic sides. Every detail is crafted to shine, ensuring it looks stunning from every angle. This fan delivers a dazzling visual experience that elevates your build to extraordinary.
Do Re Mi Fa So COOL! Music Staff Lighting Effect
Inspired by a musical staff, the TS EX RGB comes with five parallel RGB lighting strips when viewed from the side. This eye-catching Music Staff Lighting Effect design not only adds a playful artistic touch to your setup, but also supports customizable lighting effects, allowing for even more creative and dynamic visual expressions.
Easily Personalize Lighting Effects
The TS EX RGB fan features addressable LEDs, each section can be customized independently through the TT RGB PLUS 3.0 software. Create striking lighting effects with great coverage of 16.8 million colors, perfectly tailored to complement your unique PC build.

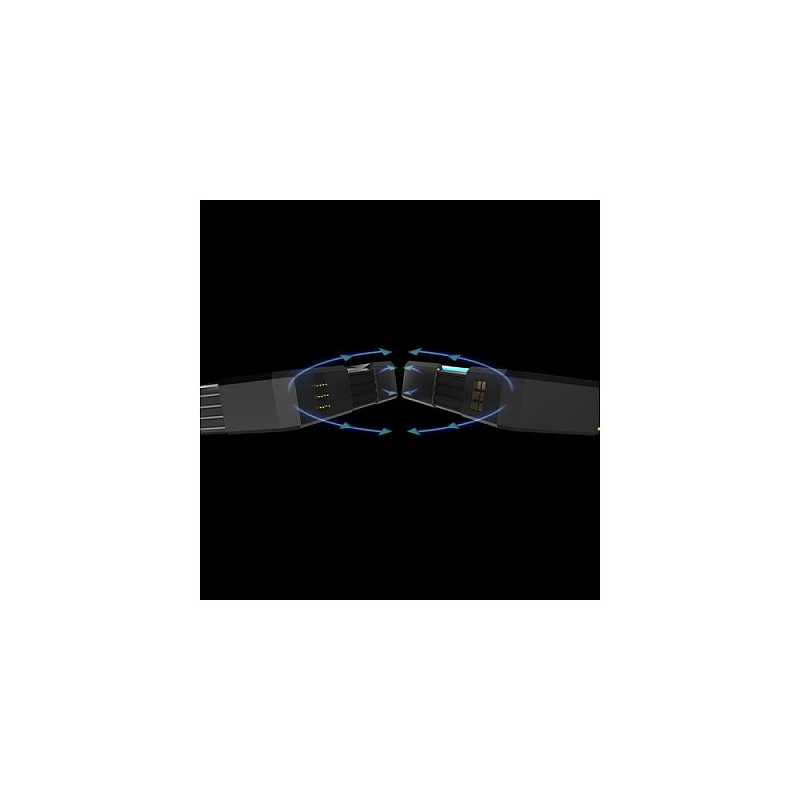

Steady Connection with MagForce 2.0
Evolved from SWAFAN EX's Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Say Goodbye to Excessive Cables
Connect your fans with TS EX RGB's MagForce 2.0 Quick Connect Design and be free from messy cables!
Remarkable Cooling Performance
The TS120 EX RGB fan is built to keep your system cool under demanding conditions. The fan delivers an airflow of 56.01 CFM and a static pressure of 2.45 mm- H2O, while maintaining a noise level of 27.3 dB-A, providing optimal thermal efficiency for high-end setups.
Enhanced Stability with Vibration Reduction
TS EX RGB is equipped with anti-vibration rubber pads on each of the fan's corners. They are designed to be stable and dampen the fan's vibration, allowing the fans to spin at a higher speeds under certain noise levels.
TT RGB PLUS Ecosystem
Light up your system with almost limitless possibilities and synchronize your TT RGB PLUS compatible products to create a RGB ecosystem that is truly unique to you.
TT RGB PLUS 3.0 Software
The new version of Thermaltake's TT RGB PLUS patented software features a redesigned interface, providing a variety of dynamic lighting effects and PC monitoring functions.

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Rotational speed (min): 500 RPM
Rotational speed (max): 2000 RPM
Noise level (high speed): 27.3 dB
Maximum airflow: 56.01 cfm
Maximum air pressure: 2.45 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Hydraulic
Quantity per pack: 3 pc(s)
Fan static pressure: 2.45 mmH2O
Fan's mean time to failure (MTTF): 40000 h

Design

Product colour: Black
Number of fan blades: 9
Feature: Illumination LED
Number of LEDs: 9
Illumination colour: Multi
Fan connector: 6-pin

Power

Voltage: 12 V 5 V
Rated voltage: 12 V
Starting voltage: 5 V
Rated current: 0.2 A
Maximum current: 0.4 A
LED voltage: 5 V
Fan voltage: 12 V

Weight dimensions

Width: 120 mm
Depth: 25 mm
Height: 120 mm
Fan dimensions (W x D x H): 120 x 120 x 25 mm

Packaging content

Package type: Box
Cables included: 6-pin
Feature: Screws included

Other features

Fan rated voltage: 12v x 5v
Product life: 40000 h
