Thermaltake CL-F171-PL12BL-A computer cooling system

Thermaltake CL-F171-PL12BL-A. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 500 RPM, Rotational speed (max): 2000 RPM, Minimum air pressure: 2.6 mmH2O, Maximum air pressure: 3.19 mmH2O, Bearing type: Hydraulic. Product colour: Black
By adding the MagForce 2.0 and swappable fan blade design to the powerful TOUGFHAN Pro, the new TOUGHFAN EX Pro can provide supreme cooling performance with a quick magnetic connection, allowing you to swap the fan blades to fit installation preferences.

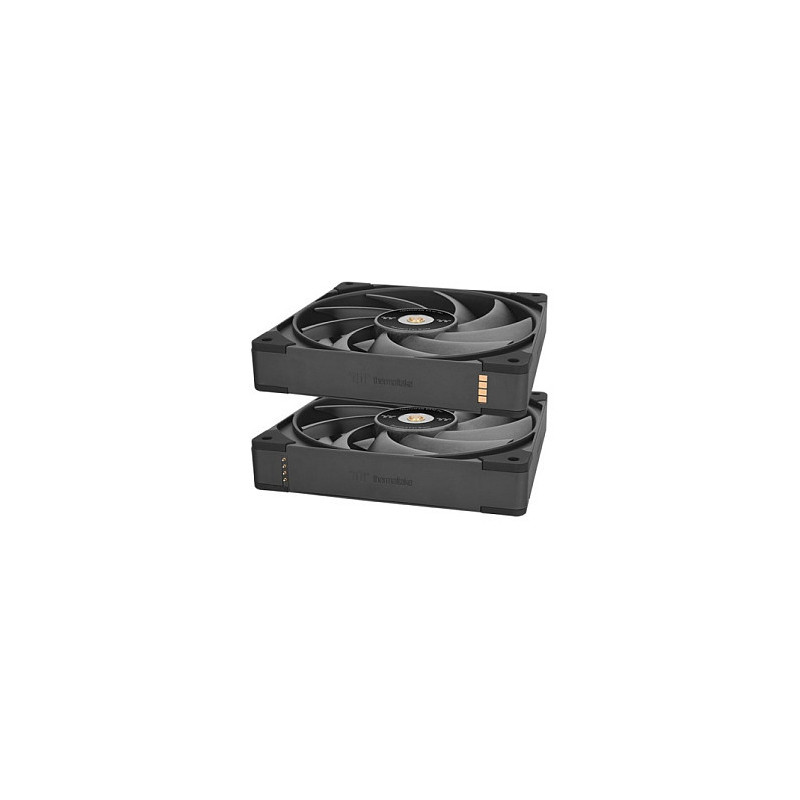

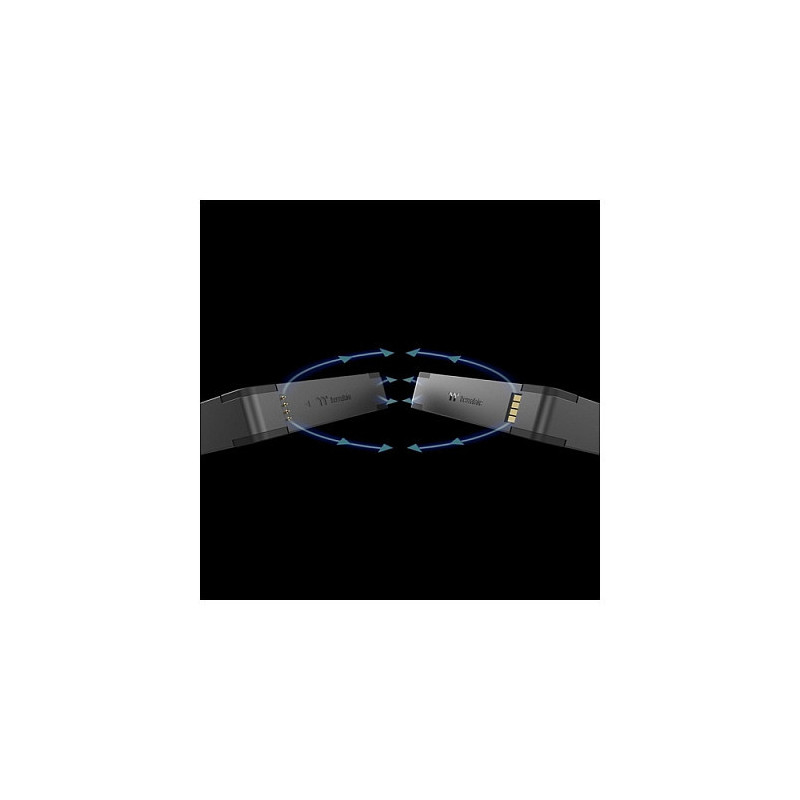

Steady Connection with MagForce 2.0
Evolved from SWAFAN EX's Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.
Say Goodbye to Excessive Cables
Connect your fans with TOUGHFAN EX Pro's MagForce 2.0 Quick Connect Design and be free from messy cables!
Specially Engineered Fan blade
TOUGHFAN EX Pro incorporates nine lengthened fan blades that have been restructured through the precision adjustment software, guaranteeing higher airflow and stronger static pressure could be delivered through the operation. The fan blades are also made from liquid crystal polymer (LCP), a compound that minimizes vibration at full-speed spinning.
Stronger than Ever
With new technology and craftsmanship, the TOUGHFAN EX12 Pro has a maximum operating speed of 2000 RPM.
Improved Structure for Superior Performance
The TOUGHFAN EX Pro is designed with a square fan frame featuring a new outline that prevents air leakage effectively while installed on a chassis or radiator during operation.
Stare No More at the Back of the Fan!
Never compromise aesthetics for airflow direction ever again!
TOUGHFAN EX Pro's design allow your fans to always face forward!

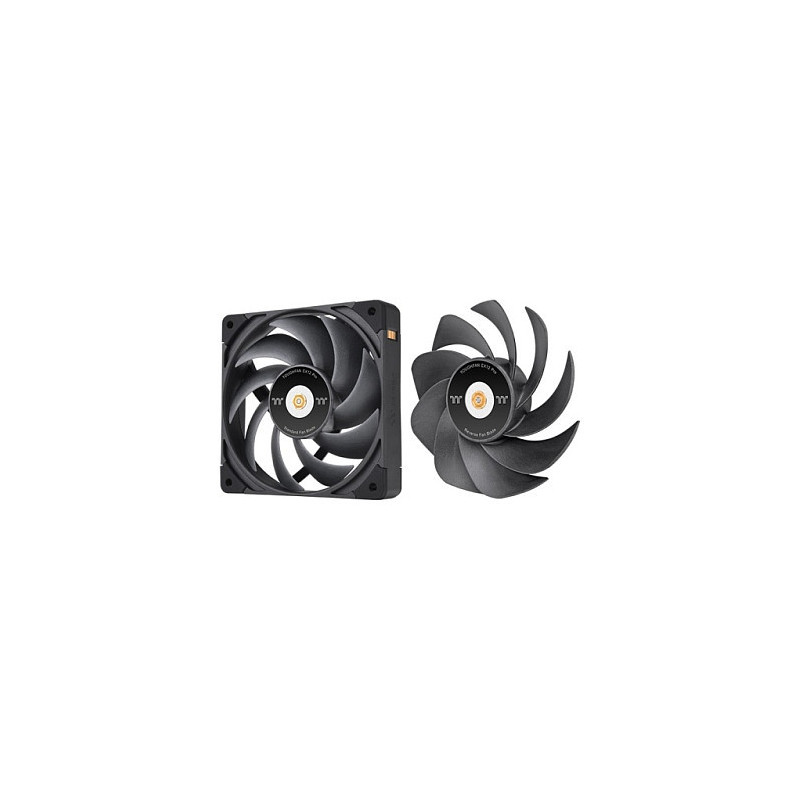

Cleaning Made Easy!
You can even pop out the fan blades and rinse them with water if you want. Just dry them thoroughly and apply the bearing lubricant included in the package if needed.
Anti-vibration Mounting System
The TOUGHFAN EX Pro is designed with 80% coverage for all corners, with the in-mold injection anti-vibration rubber pads dampening the fan's vibration, allowing the fan to spin at a higher level while maintaining a low noise level.

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Rotational speed (min): 500 RPM
Rotational speed (max): 2000 RPM
Noise level (low speed): 22.6 dB
Noise level (high speed): 29.8 dB
Minimum airflow (imperial): 64.21 cfm
Maximum airflow: 70.8 cfm
Minimum air pressure: 2.6 mmH2O
Maximum air pressure: 3.19 mmH2O
Bearing type: Hydraulic
Quantity per pack: 3 pc(s)
Fan's mean time to failure (MTTF): 40000 h

Design

Product colour: Black
Material: Plastic
Number of fan blades: 9

Power

Rated voltage: 12 V
Starting voltage: 6 V
Fan power consumption: 2.04 W
Rated current: 0.17 A

Weight dimensions

Fan dimensions (W x D x H): 120 x 120 x 25 mm
Fan thickness: 2.5 cm

Packaging content

Feature: Installation instruction
