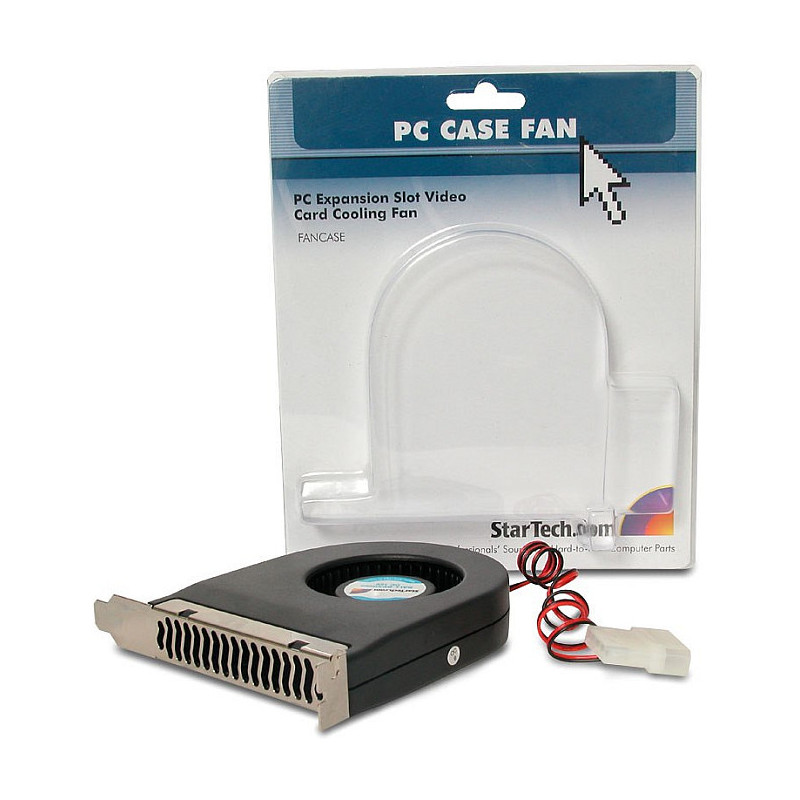

StarTech.com FANCASE computer cooling system

StarTech.com Expansion Slot Rear Exhaust Cooling Fan with LP4 Connector. Type: Cooler, Rotational speed (max): 2200 RPM, Bearing type: Ball bearing. Voltage: 12 V. Width: 90 mm, Depth: 110 mm, Height: 20 mm. Product colour: Black

Remove hot air from a computer case with a rear exhaust fan

This high quality PCI Fan is an add-in cooling fan designed to fit in the PCI, ISA or AGP expansion slots of any computer. The PCI fan helps improve expansion card (video card, etc.) performance, by preventing overheating, making it a great video card cooler for older, hot-running 3D graphics cards like the Voodoo, TNT2, GeForce256 and more. Powered through a simple LP4 connection to the computer power supply, the quiet-running PCI Fan utilizes a brushless DC motor that helps maintain expansion card temperatures while creating minimal noise levels. Compact enough to fit into almost any expansion slot such that airflow can be directed as needed most, StarTech.com's PCI Fan is backed by 2-year warranty and free lifetime technical support.

Performance

Suitable location: Graphics card
Type: Cooler
Rotational speed (max): 2200 RPM
Noise level (high speed): 32 dB
Maximum airflow: 6.9 cfm
Bearing type: Ball bearing
Operating temperature (T-T): -10 - 80 °C

Design

Product colour: Black
Material: Plastic
Number of fans: 1 fan(s)
Display type: Not applicable

Power

Voltage: 12 V

Weight & dimensions

Width: 90 mm
Depth: 110 mm
Height: 20 mm
Weight: 100 g
Package width: 127 mm
Package depth: 157 mm
Package height: 32 mm
Package weight: 130 g

Technical details

Bearing technology: Ball bearing
Compliance certificates: RoHS

Other features

Dimensions (WxDxH): 90 x 110 x 20 mm
Connector(s): 1 - LP4 Male
Airflow: 6.9 CFM
Rotational speed: 2200 RPM

Logistics data

Harmonized System (HS) code: 84733080
Master (outer) case width: 541 mm
Master (outer) case length: 336 mm
Master (outer) case height: 289 mm
Products per master (outer) case: 80 pc(s)
