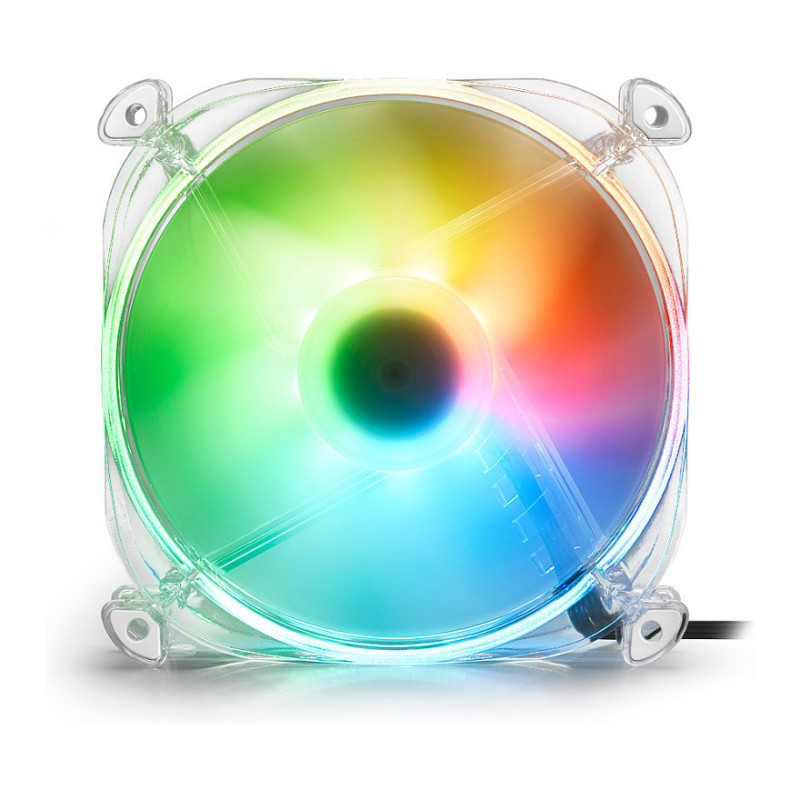

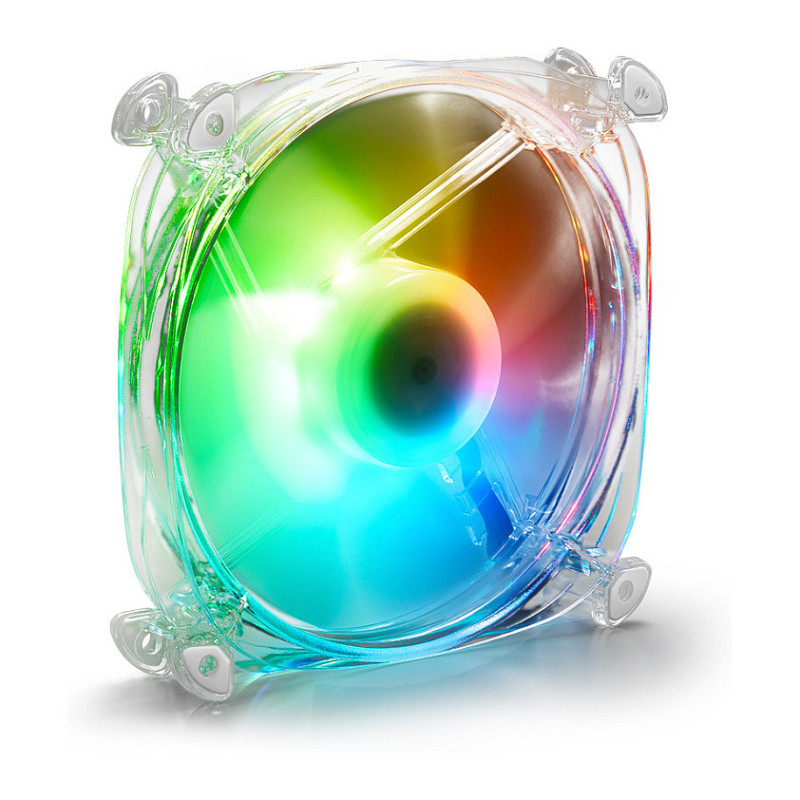

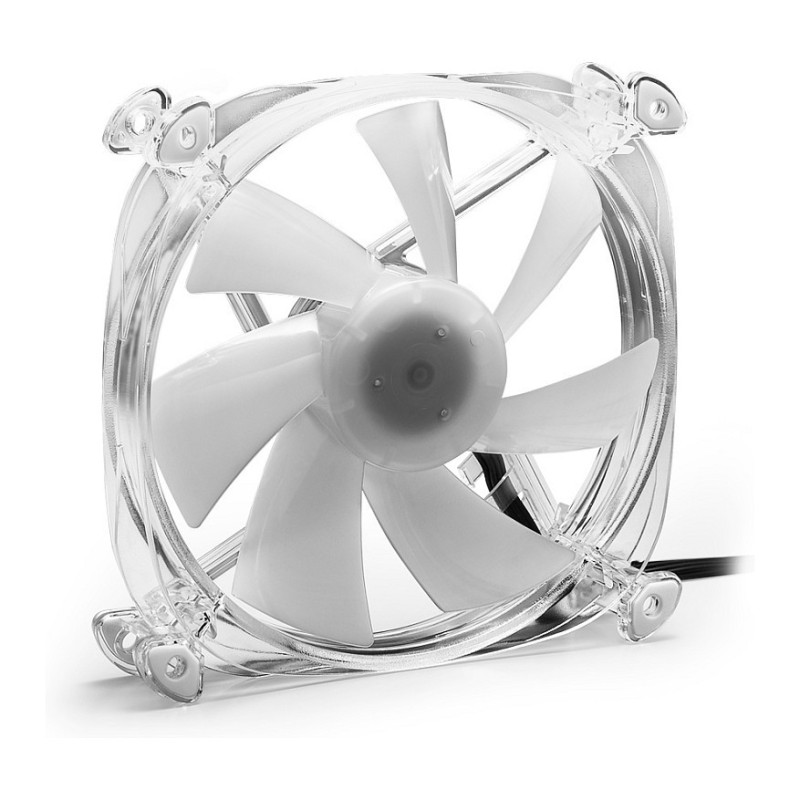

Sharkoon Shark Disc PWM

Sharkoon Shark Disc PWM. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 400 RPM, Rotational speed (max): 1400 RPM, Airflow: 82.35 m³/h, Maximum air pressure: 1.85 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Transparent

Inside any PC case, a strong cooling is the most important thing of all. But it also has to look good. That's why Sharkoon now offers the SHARK Disc PWM - a mainboard-controlled RGB fan with a fluid dynamic bearing for smooth performance. With a fan speed of up to 1,400 rpm, it will provide the desired cooling of the case interior, while an average service life of at least 50,000 hours will ensure a long time of use.

Unremitting Performance. With its 1,400 revolutions per minute and its maximum airflow of up to 82.35 cubic meters per hour, the SHARK Disc PWM enables optimal cooling performance at all times for a carefree gaming experience. With an average working life at least 50,000 hours, the user will be able to enjoy this fan for a long time. The rubberized contact points reduce the vibration onto the PC case and ensure that the fan runs as smoothly as possible.

Cool Tranquility. High performance does not always mean that there is a lot of noise. The SHARK Disc PWM proves this without a doubt. At just 24.8 dB(A) at full rotational speed, the fan is hardly noticeable to the ears during operation. Its fluid dynamic bearing also ensures that even during the highest speed of rotation, the maximum noise level will cause no distraction at all.

Colorful Cooling. The illumination of the nine addressable RGB LEDs can be customized as desired, and the PC case can radiate in the most vivid of colors within the RGB spectrum. The fan can glow in up to 16.8 million different colors, and these can be varied as desired using the software on the mainboard.

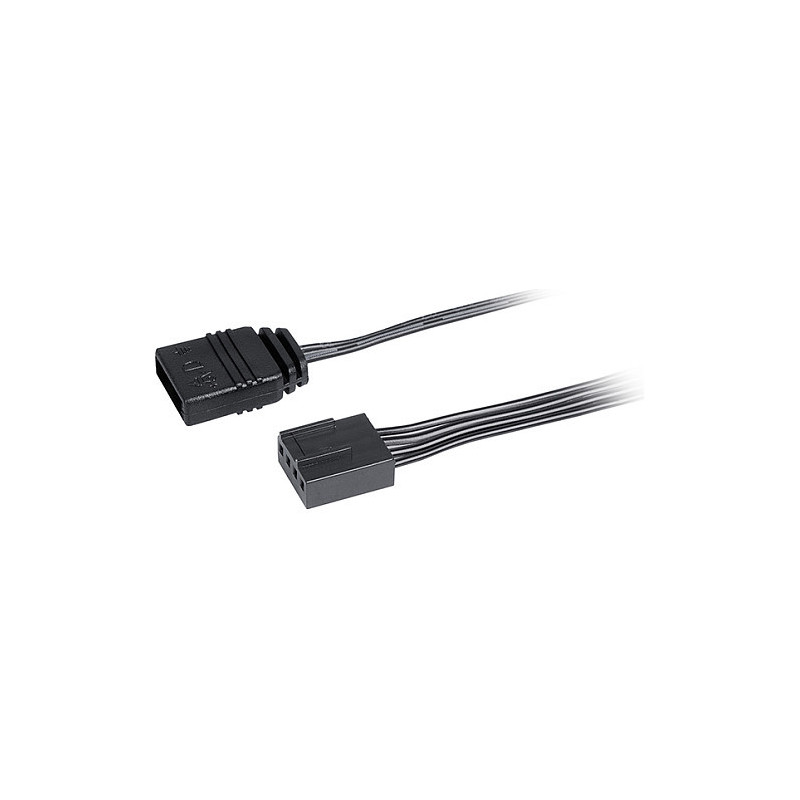

Problem-Free to Connect. To ensure the greatest possible compatibility, the fan can be attached to the mainboard using the fan's 4-pin PWM connector. Via a 5V-D-G or a 4-pin 5V-D-coded-G mainboard header, the RGB LEDs can be connected to a compatible addressable RGB controller.

Easy Integration. The SHARK Disc PWM can be synchronized with almost any commonly available addressable RGB controller - the choice of which lies with the user: For example, Aura Sync from Asus, Mystic Light Sync from MSI, Fusion from Gigabyte, or other addressable RGB controllers can be used that have either a 3-pin 5V-D-G or a 4-pin 5V-D-coded-G connector.

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Rotational speed (min): 400 RPM
Rotational speed (max): 1400 RPM
Noise level (high speed): 24.8 dB
Airflow: 82.35 m³/h
Maximum air pressure: 1.85 mmH2O
Feature: Pulse-width modulation (PWM) support
Bearing type: Fluid Dynamic Bearing (FDB)
Quantity per pack: 1 pc(s)
Mean time between failures (MTBF): 50000 h

Design

Product colour: Transparent
Number of fans: 1 fan(s)
Number of fan blades: 7
Feature: Illumination LED
Number of LEDs: 9
Illumination colour: Multi
Fan connector: 3-pin + 4-pin

Power

Power consumption (typical): 1.8 W
Rated voltage: 12 V
Rated current: 0.15 A
Maximum current: 0.55 A

Weight & dimensions

Width: 120 mm
Depth: 120 mm
Height: 25 mm
Weight: 97 g
Cable length: 0.45 m

Packaging content

Feature: Mounting kit

Logistics data

Harmonized System (HS) code: 84733080
