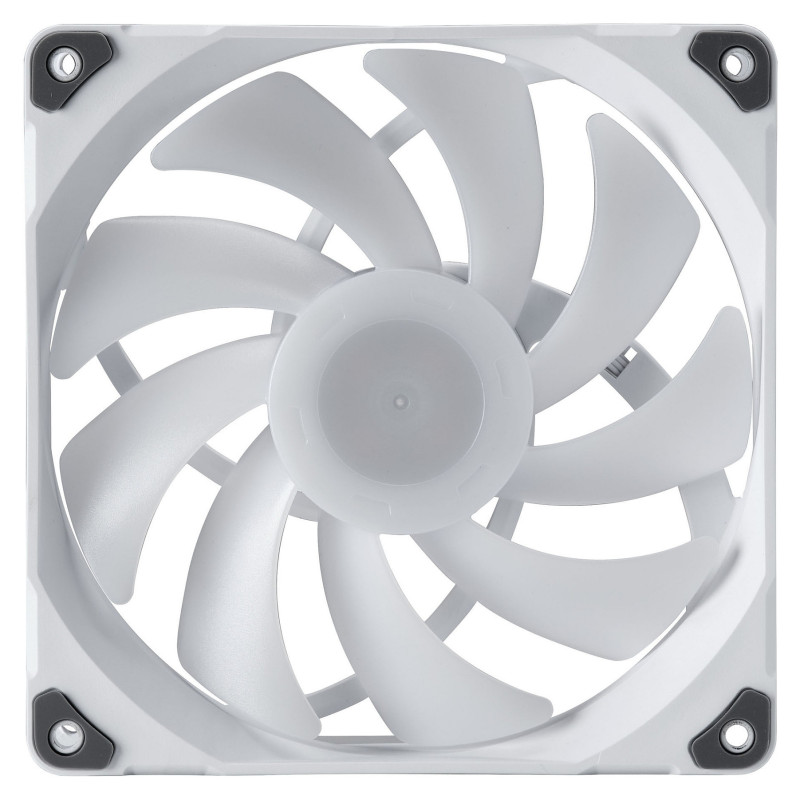

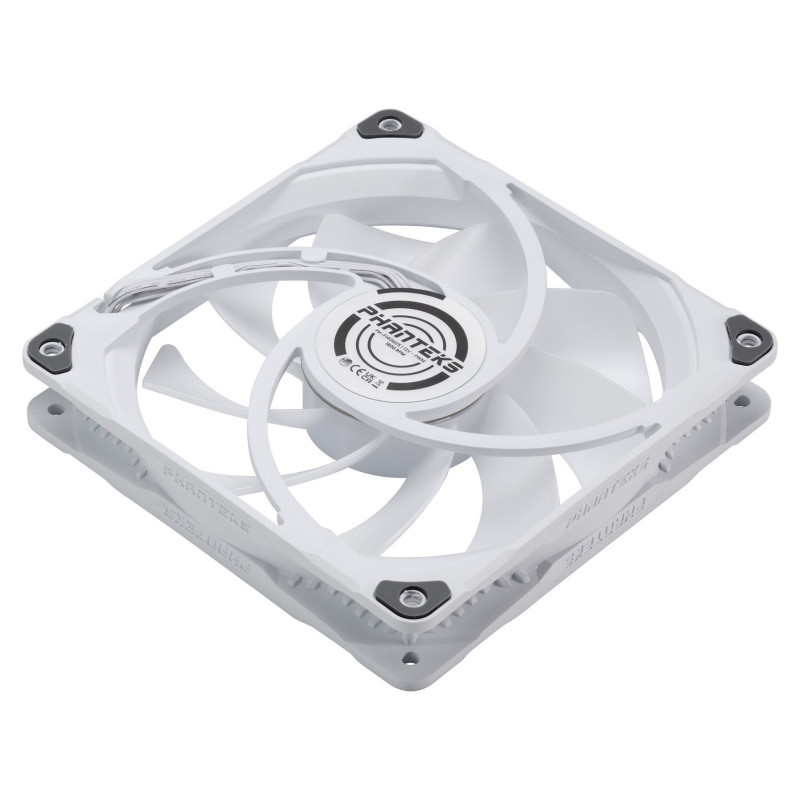

Phanteks M25

Phanteks M25. Type: Fan, Fan diameter: 14 cm, Rotational speed (min): 500 RPM, Rotational speed (max): 1800 RPM, Maximum air pressure: 2.8 mmH2O. Voltage: 7 - 13.2 V. Product colour: White

The Phanteks M25 fans build upon the award winning T30 fan to keep next gen hardware cool with high airflow cooling performance. The M25 fan blades are specifically optimized to perform the best with fine mesh/dust filters, heatsinks and radiators with reduced RPM levels. This optimization keeps unwanted bearing noises at a minimum while also leaving plenty of cooling headroom, when necessary, by going full speed.

By sharing some of its design with the T30, the M25 stands out by delivering higher airflow through heatsinks and radiators with lower RPM levels with exceptional value. The wide RPM range, up to 2000 RPM, can be precisely controlled through PWM to ensure the M25 is excellent for both quiet and high-end gaming systems.

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 14 cm
Rotational speed (min): 500 RPM
Rotational speed (max): 1800 RPM
Maximum airflow: 104.62 cfm
Maximum air pressure: 2.8 mmH2O
Feature: Pulse-width modulation (PWM) support
Quantity per pack: 1 pc(s)
Fan static pressure: 2.8 mmH2O
Mean time between failures (MTBF): 30000 h

Design

Product colour: White
Number of fans: 1 fan(s)
Number of fan blades: 9

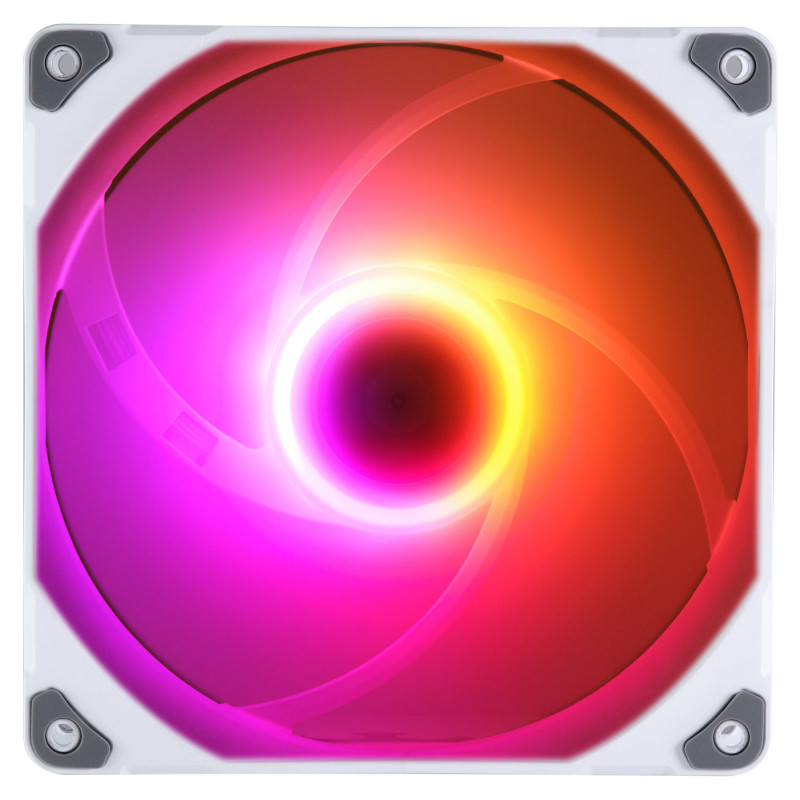

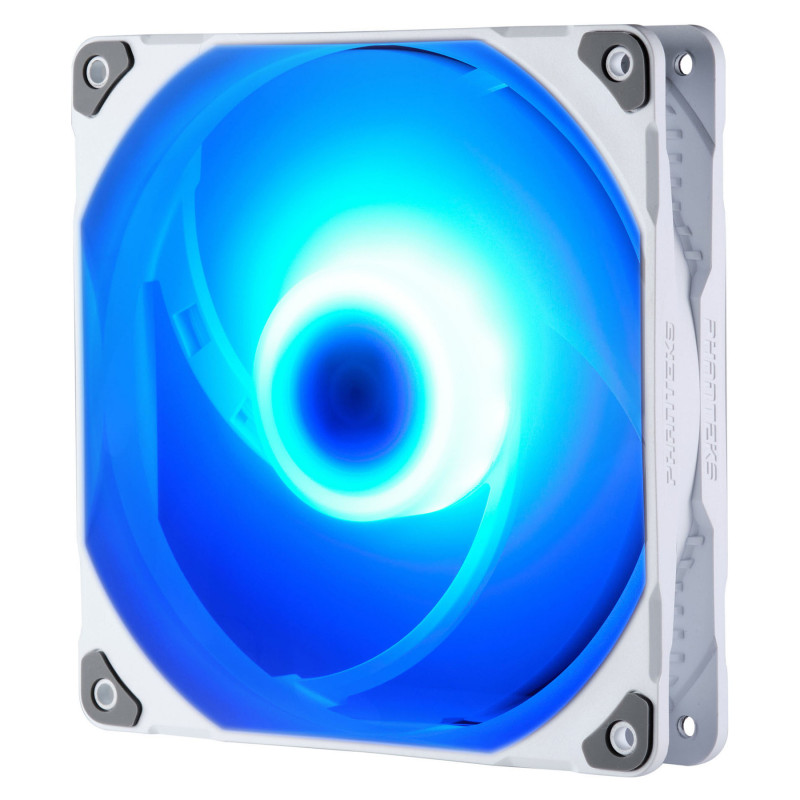

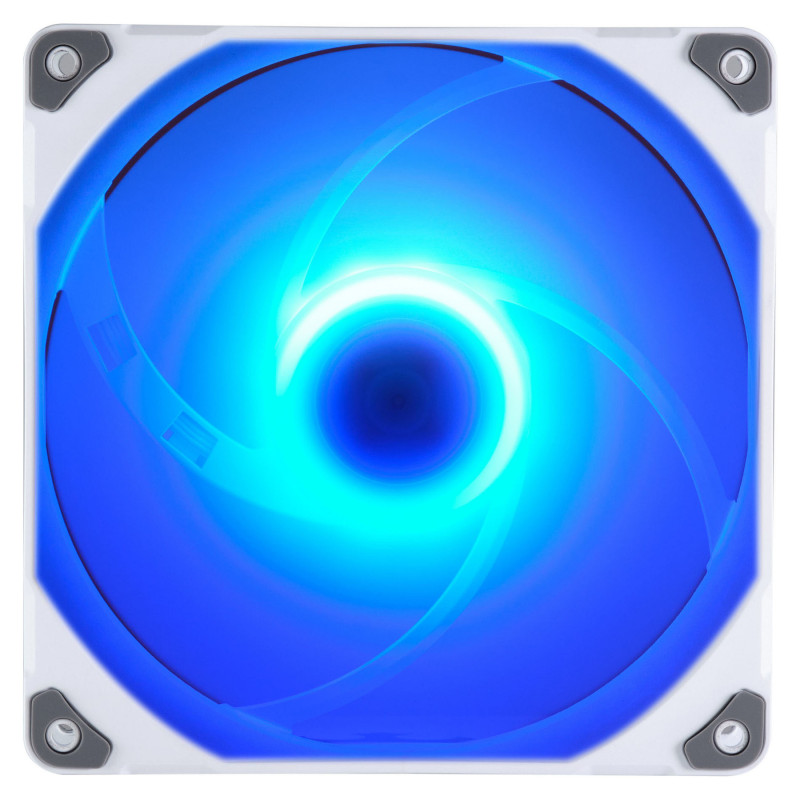

Feature: Illumination LED
Number of LEDs: 12
Illumination colour: Multi
LED connector type: 3-pin
Fan connector: 4-pin
Feature: Fan controller
Feature: Daisy chain

Power

Voltage: 7 - 13.2 V
Rated voltage: 12 V

Weight & dimensions

Fan dimensions (W x D x H): 140 x 140 x 25 mm
Fan weight: 193 g
Cable length: 0.12 m

Technical details

Warranty period: 5 year(s)

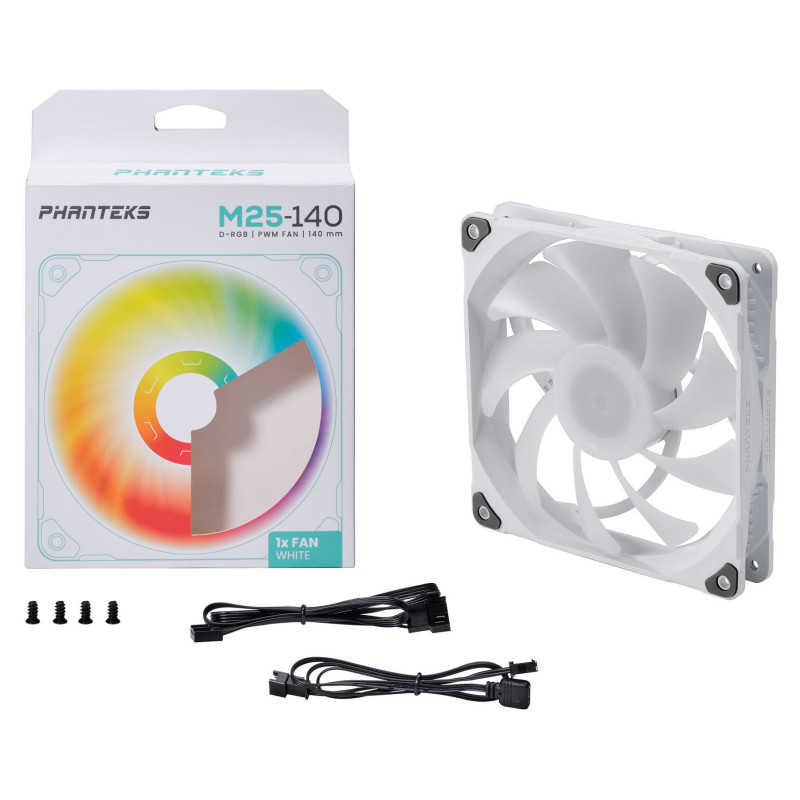

Packaging content

Feature: Screws included
Number of screws: 4

Other features

Noise level: 36.57 dB
