NZXT F420 RGB Core

NZXT F420 RGB Core. Type: Fan, Fan diameter: 14 cm, Bearing type: Fluid Dynamic Bearing (FDB). Width: 140 mm, Depth: 26 mm, Height: 420 mm. Product colour: Black

NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.

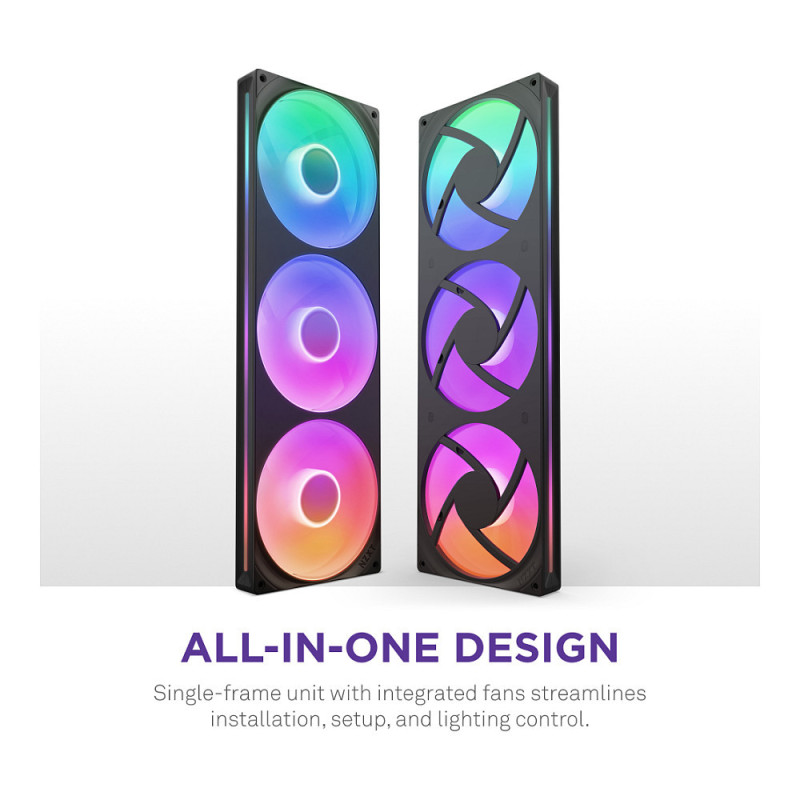

All-in-one Design
Single-frame unit with integrated fans streamlines installation, setup, and lighting control.

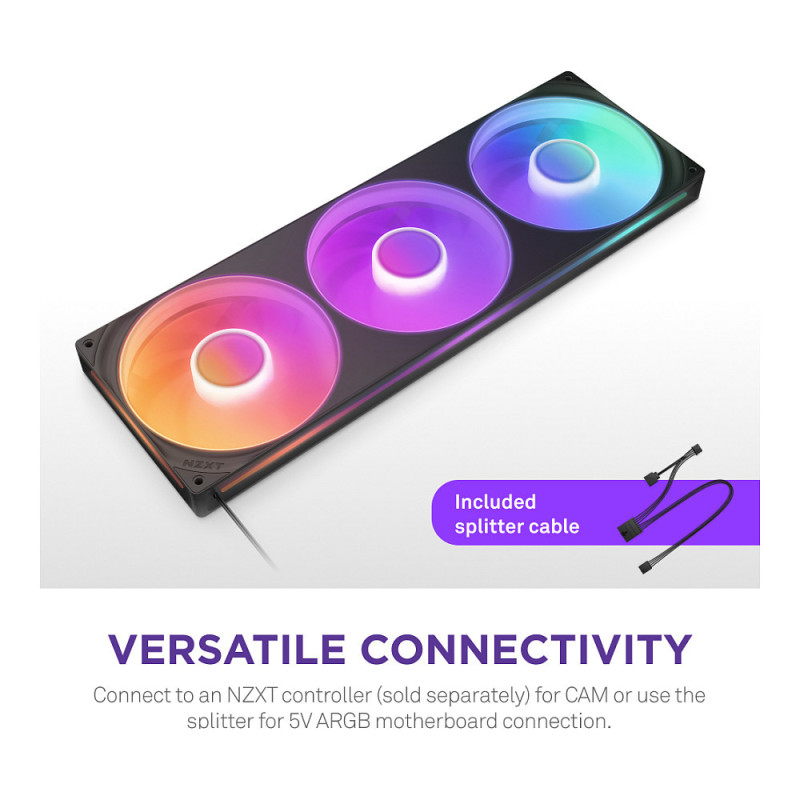

Versatile Connectivity
Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.

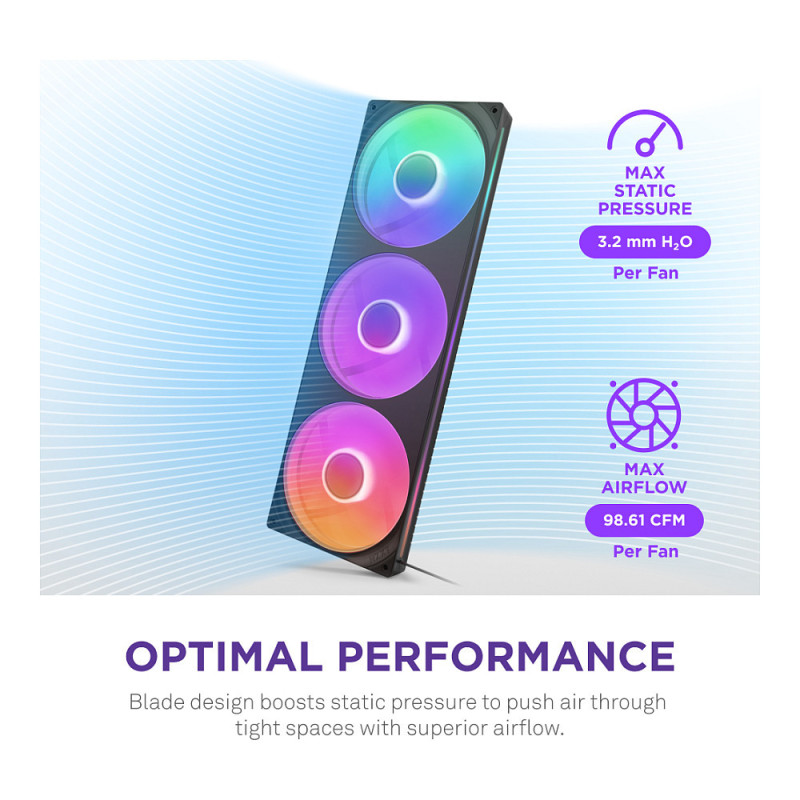

Optimal Performance
Blade design boosts static pressure to push air through tight spaces with superior airflow.

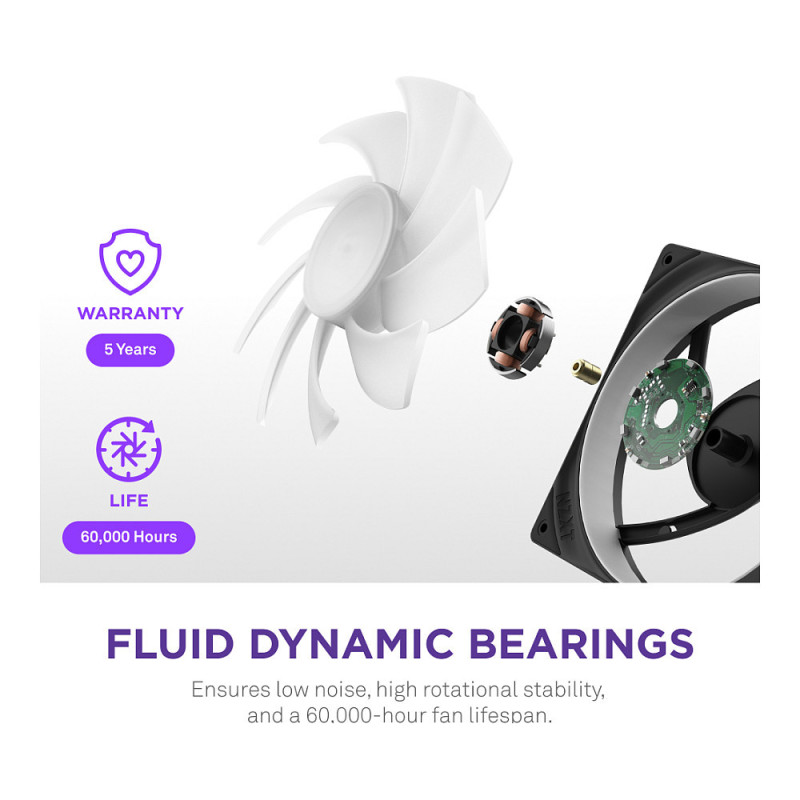

Fluid Dynamic Bearings
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.

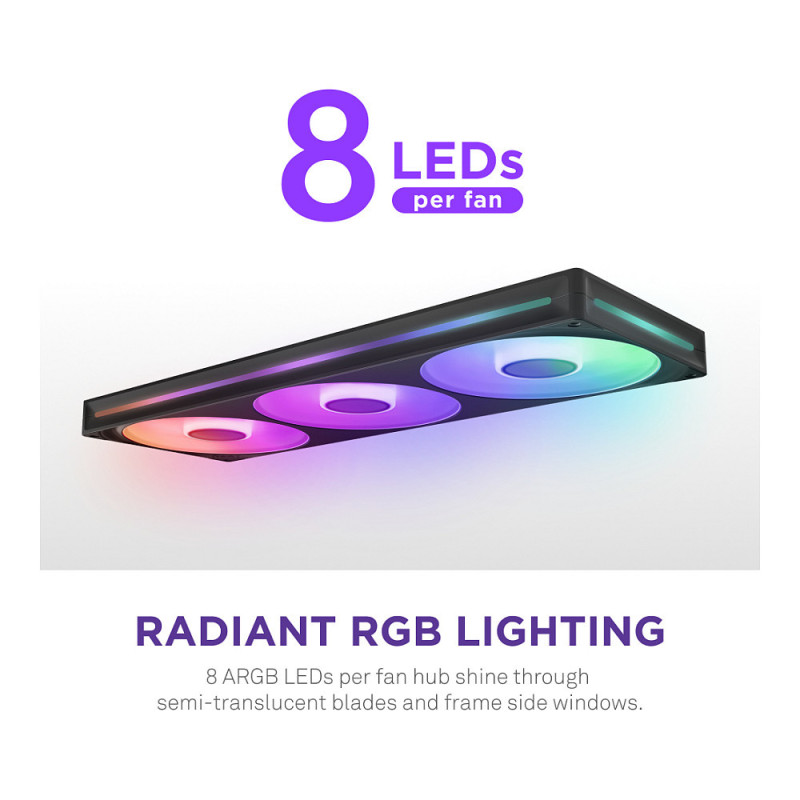

Radiant RGB Lighting
8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.

PWM Control
Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency.

Silent Operation
Anti-vibration rubber corners dampen noise and Zero RPM Mode* shuts fans off during light loads.

Do More with CAM
Control fan speeds, personalize lighting effects, and sync with other NZXT products.

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 14 cm
Maximum airflow: 98.61 cfm
Feature: Pulse-width modulation (PWM) support
Bearing type: Fluid Dynamic Bearing (FDB)
Quantity per pack: 1 pc(s)
Fan speed (min): 500 RPM
Fan speed (max): 2000 RPM
Fan static pressure: 3.2 mmH2O
Fan's mean time to failure (MTTF): 60000 h

Design

Product colour: Black
Material: Plastic, Rubber
Number of fans: 3 fan(s)
Feature: Illumination LED
Number of LEDs: 8
Illumination colour: Multi
Fan connector: 8-pin

Power

Fan power consumption: 11.4 W
Fan voltage: 12 V
Fan current: 0.95 A

Weight & dimensions

Width: 140 mm
Depth: 26 mm
Height: 420 mm
Fan dimensions (W x D x H): 140 x 140 x 26 mm
Cable length: 600 m

Technical details

Warranty period: 5 year(s)

Packaging content

Feature: Screws included
Number of screws: 4

Other features

Noise level: 34.5 dB
