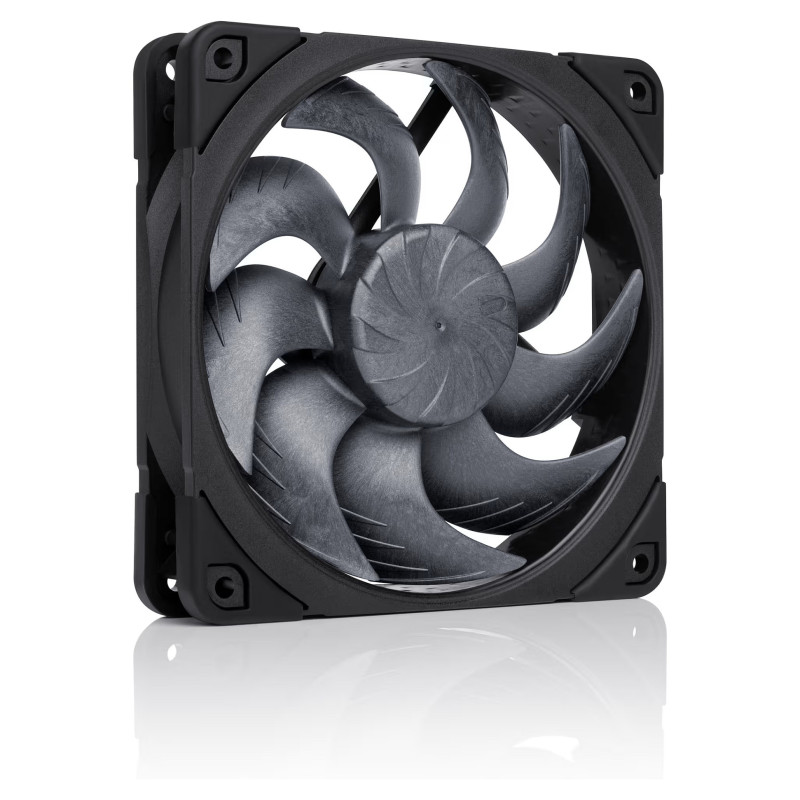

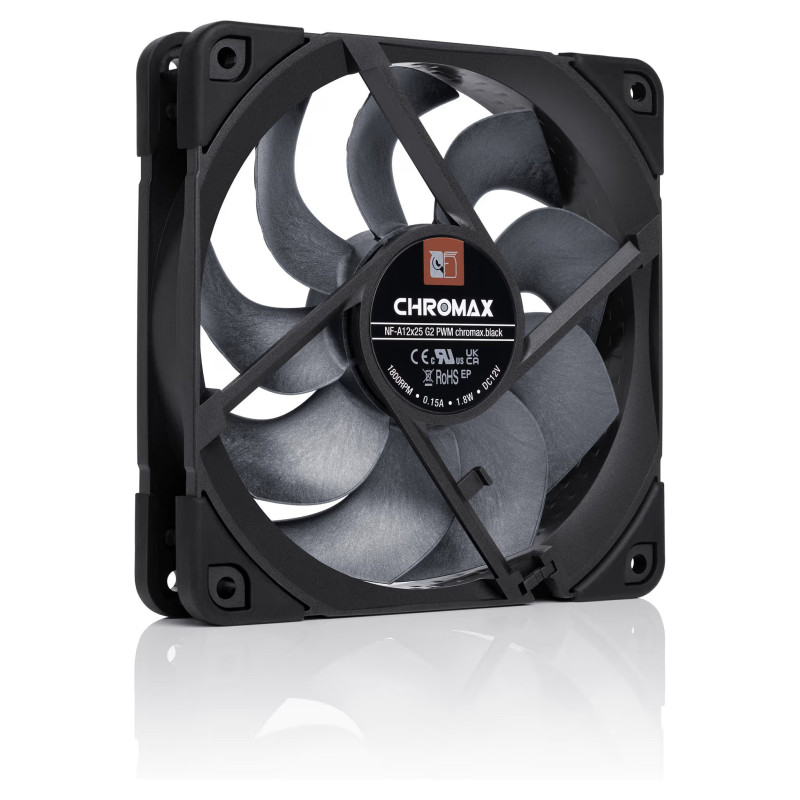

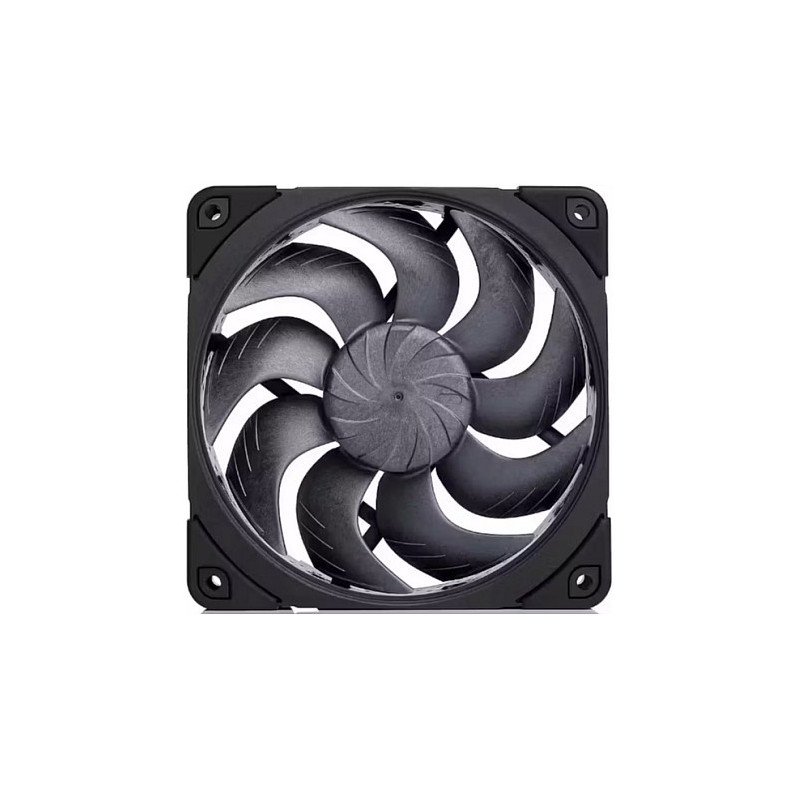

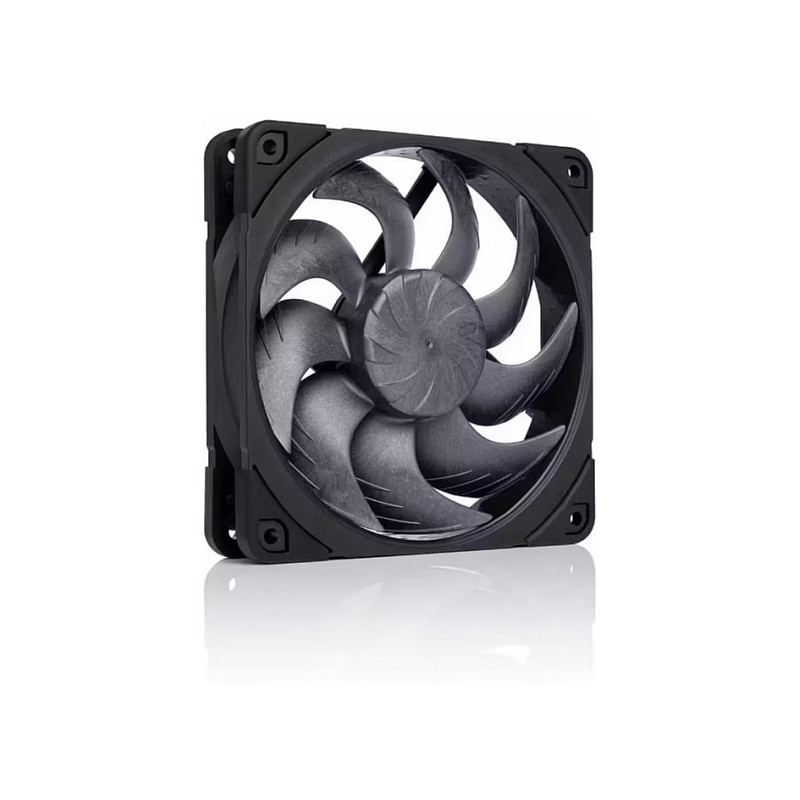

Noctua NF-A12x25 G2 PWM chromax.black

Noctua NF-A12x25 G2 PWM chromax.black. Type: Fan, Fan diameter: 12 cm, Number of speeds: 4, Rotational speed (min): 0 RPM, Rotational speed (max): 1800 RPM, Airflow: 107.3 m³/h, Bearing type: Self-Stabilising Oil-pressure (SSO2) bearing. Voltage: 13.2 V. Width: 120 mm, Depth: 25 mm, Height: 120 mm. Product colour: Black

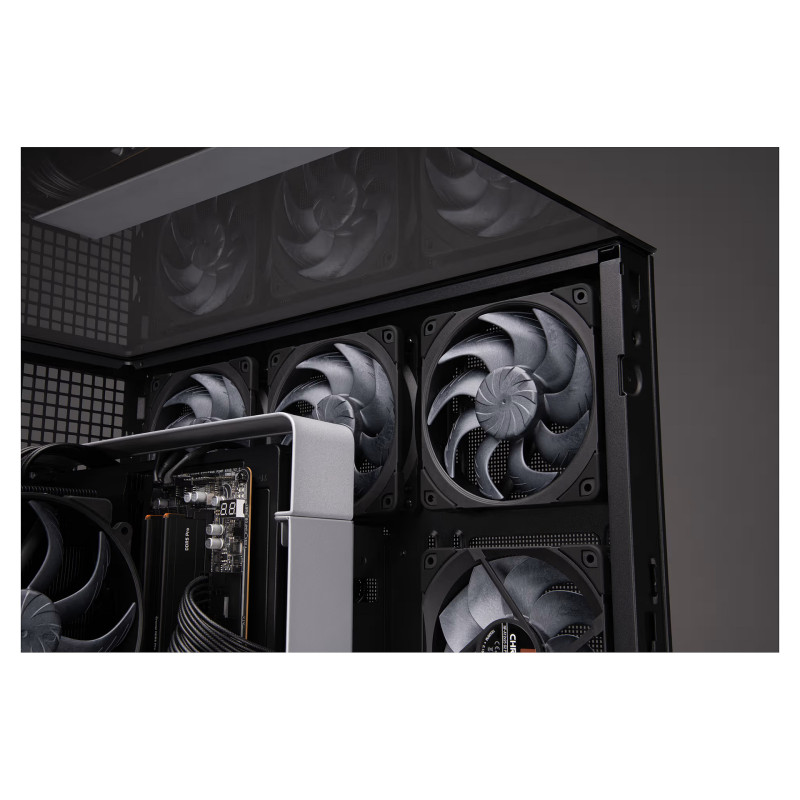

State-of-the-art quiet cooling performance for PC cases and water cooling radiators in a sleek all-black design: The chromax.black version of the award-winning NF-A12x25 G2 120mm fan.

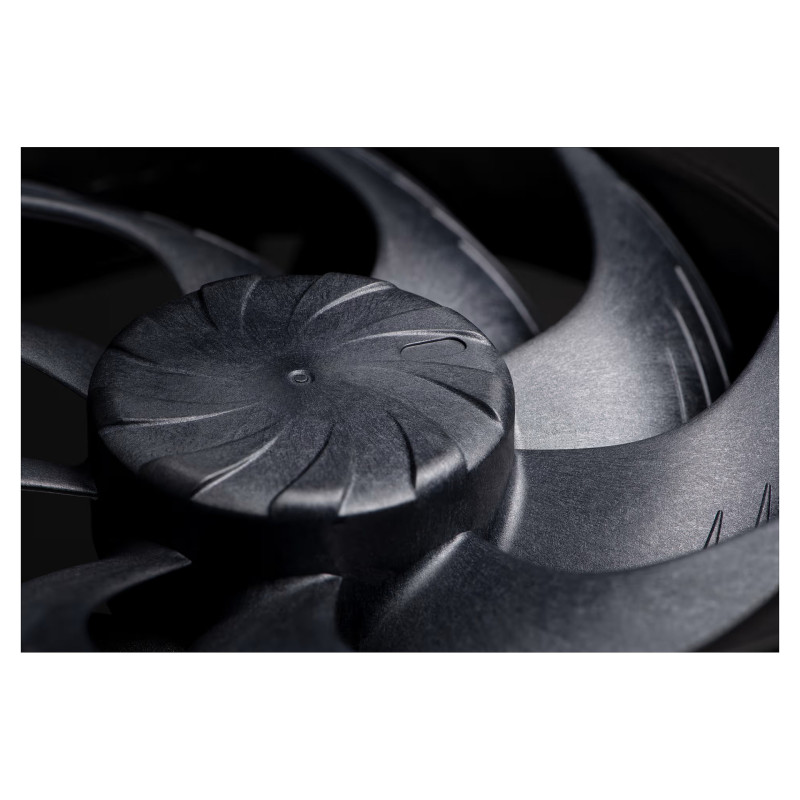

Succeeding the iconic NF-A12x25, the NF-A12x25 G2 has quickly established itself as a new benchmark for premium quality quiet 120x25mm fans. Its advanced aerodynamic engineering featuring a novel Progressive Bend impeller design with a Centrifugal Turbulator hub, winglets, and a record tight tip clearance of only 0.5mm enables the G2 model to provide a significant boost in performance-to-noise efficiency over its renowned predecessor: Whether it's in low-impedance, airflow-oriented applications such as case cooling, or high-impedance, pressure-demanding scenarios such as on water cooling radiators, where its etaPERF™ motor with SupraTorque™ allows leveraging extra torque headroom, the NF-A12x25 G2 is a proven winner.

The chromax.black edition combines the NF-A12x25 G2's Sterrox® liquid-crystal polymer impeller, comprehensive feature set and breakthrough quiet cooling proficiency with an attractive black design, which can be customised with coloured anti-vibration pads that are available separately.

Topped off with Noctua's trusted premium-grade SSO2 bearing, an MTTF rating of more than 150,000 hours and a 6-year manufacturer's warranty, the NF-A12x25 G2 PWM chromax.black is the perfect choice for users who are looking for cutting-edge quality, quietness and performance in an all-black style.

Award-winning NF-A12x25 G2 design
Providing a significant performance boost over the renowned first-generation NF-A12x25, the NF-A12x25 G2 has become a new favourite among quiet cooling enthusiasts. With rave reviews and dozens of awards from hardware media around the world, the G2 model is a proven premium choice for the highest demands.

chromax.black edition

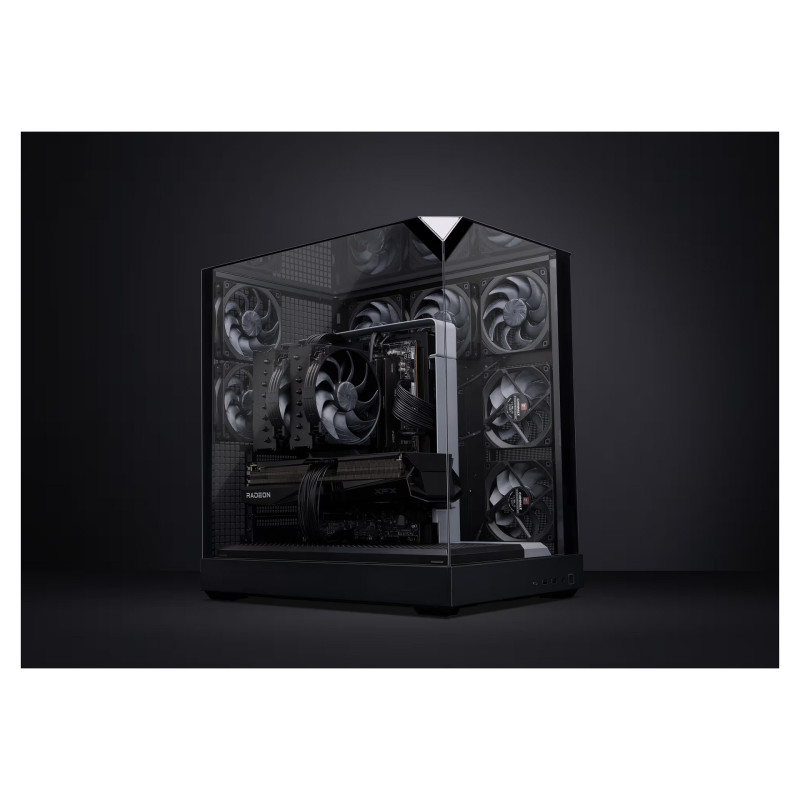

From the impeller and fan frame to the anti-vibration pads, anti-vibration gasket, anti-vibration mounts, screws and cables, the chromax.black edition is black from head to toe, making it easy to integrate into all-black PC builds and various other environments.

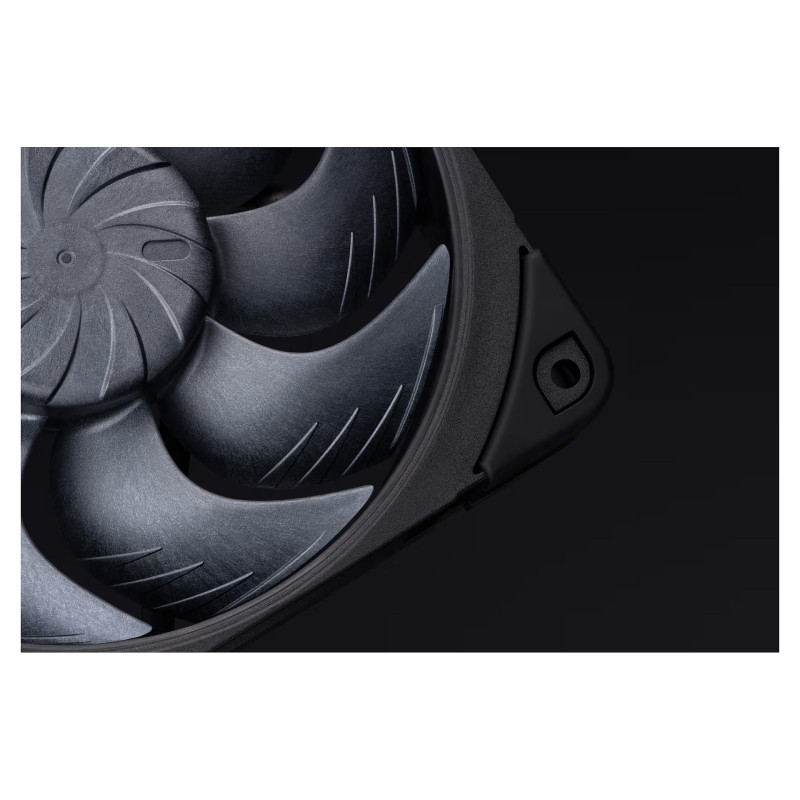

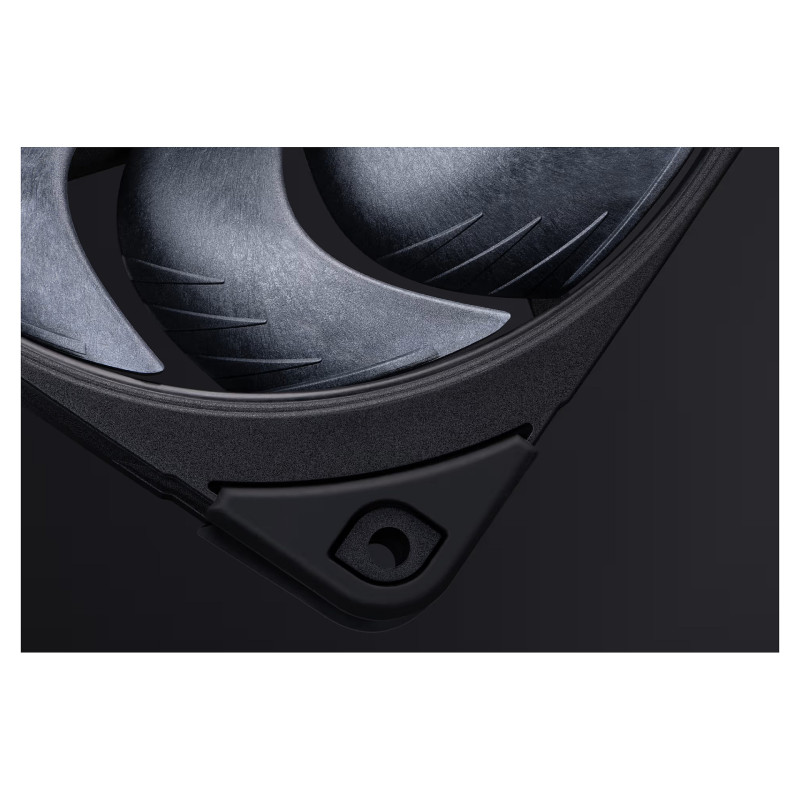

Ultra-tight tip clearance
The NF-A12x25 G2 has an extremely tight tip clearance (distance between the blade tips and the inside of the frame) of only 0.5mm. This highly ambitious design helps the NF-A12x25 G2 to work more efficiently against back pressure, such as on heatsinks or radiators, by reducing leak flows through the gap between impeller and frame.

Highly optimised P/Q curve for all applications
The NF-A12x25 G2's sophisticated aerodynamic design allows for a pressure to airflow (P/Q) curve that is extremely strong in the critical mid-section. This means that the NF-A12x25 G2 is a true jack-of-all-trades with excellent performance in both static pressure demanding and airflow demanding applications.

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Number of speeds: 4
Rotational speed (min): 0 RPM
Rotational speed (max): 1800 RPM
Noise level (high speed): 22.5 dB
Minimum airflow (imperial): 63.15 cfm
Airflow: 107.3 m³/h
Feature: Pulse-width modulation (PWM) support
Bearing type: Self-Stabilising Oil-pressure (SSO2) bearing
Quantity per pack: 1 pc(s)
Fan static pressure: 3.14 mmH2O
Pump's mean time to failure (MTTF): 150000 h
Operating temperature (T-T): -10 - 60 °C

Design

Product colour: Black
Material: Thermoplastic polyester (PBT), Acrylonitrile butadiene styrene (ABS), Liquid Crystal Polymer (LCP), Rubber
Number of fans: 1 fan(s)
Number of fan blades: 9
Fan connector: 4-pin

Power

Power supply: 1.8 W
Voltage: 13.2 V
Rated voltage: 12 V
Starting voltage: 7 V
Power protection features: Over current, Over voltage
Maximum current: 0.15 A

Weight & dimensions

Width: 120 mm
Depth: 25 mm
Height: 120 mm
Weight: 195 g
Cable length: 0.5 m

Technical details

Compliance certificates: UL, CE, UKCA, TÜV mark, REACH, RoHS

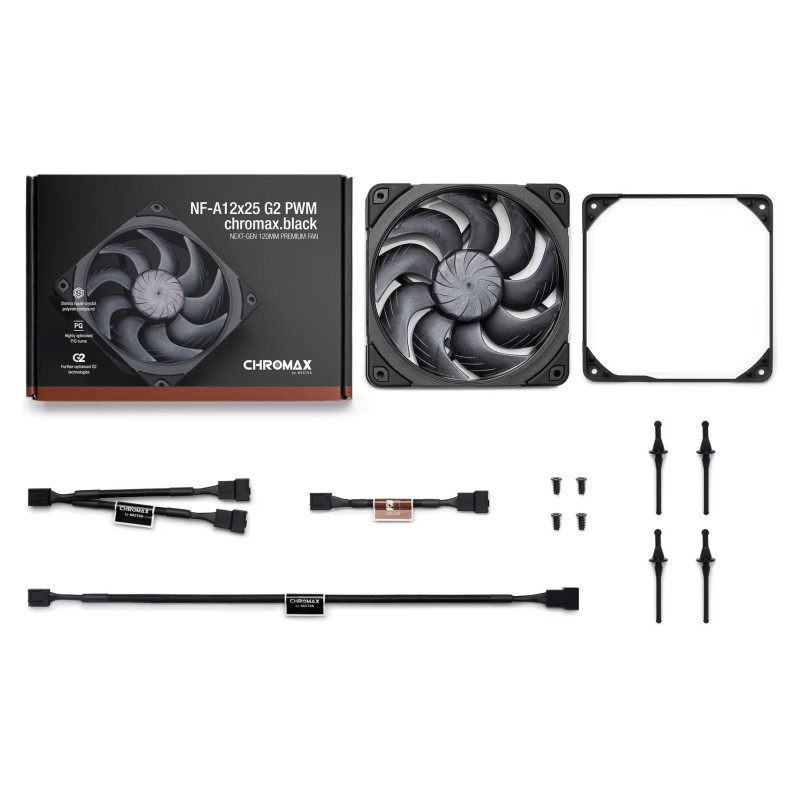

Packaging content

Package type: Box
Cables included: 4-pin
Feature: Mounting kit
