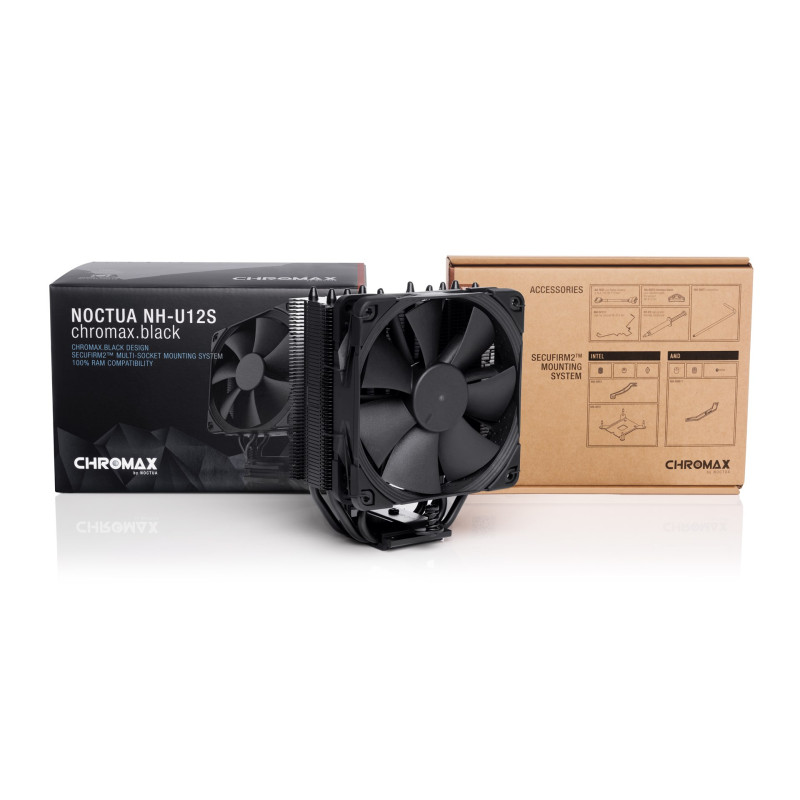

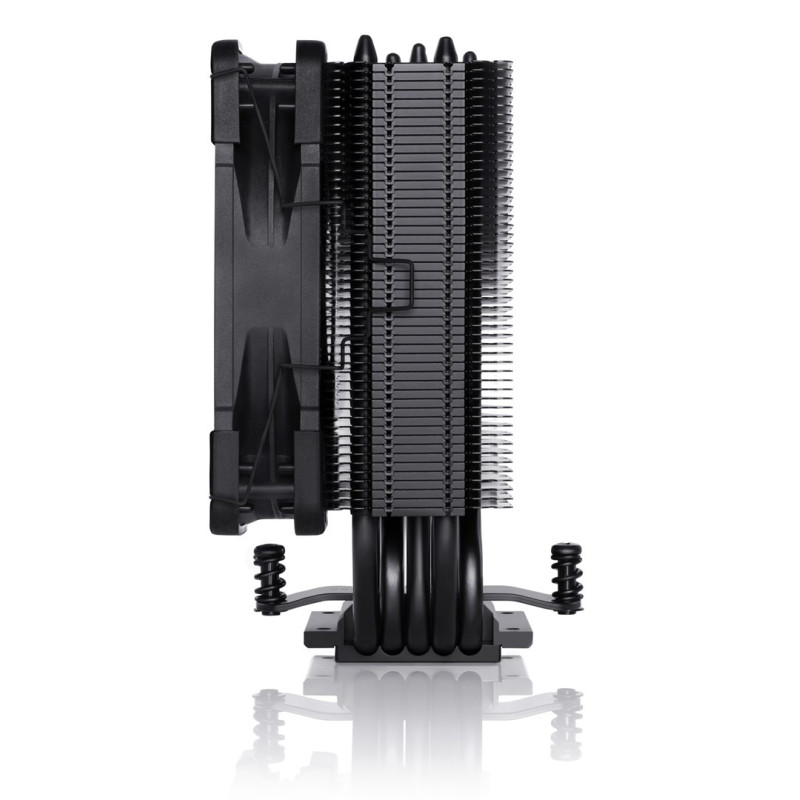

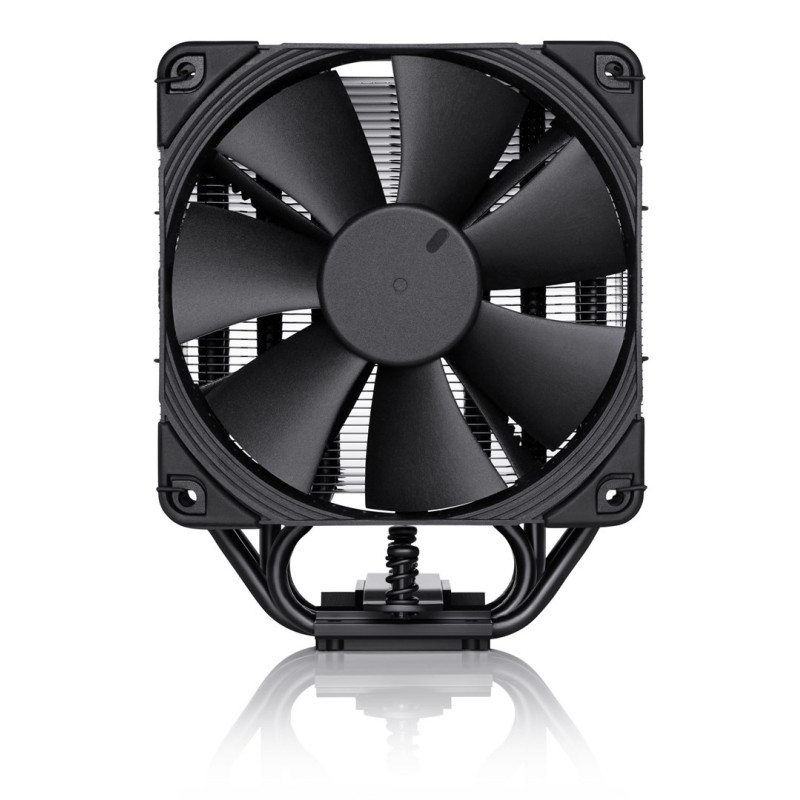

Noctua NH-U12S chromax.black Processor Cooler 12 cm
Product reference:
3-9010018000177
Noctua NH-U12S chromax.black Processor Cooler 12 cm
Noctua NH-U12S chromax.black Processor Cooler 12 cm
Product reference:
3-9010018000177
Noctua NH-U12S chromax.black Processor Cooler 12 cm
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
13 - 18
business days
| Design | |
|---|---|
| Number of fans | 1 fan(s) |
| Base plate material | Copper |
| Fan connector | 4-pin |
| Product colour | Black |
| Fins material | Aluminium |
| Power | |
| Power supply | 0.6 W |
| Rated voltage | 12 V |
| Weight & dimensions | |
| Width | 125 mm |
| Depth | 71 mm |
| Weight | 755 g |
| Package depth | 145 mm |
| Package width | 169 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Package weight | 1.44 kg |
| Package height | 212 mm |
| Height | 158 mm |
| Heatsink weight | 580 g |
| Performance | |
| Supported processor sockets | LGA 1156 (Socket H), Socket FM2, LGA 1151 (Socket H4), LGA 2011-v3 (Socket R), Socket AM2+, Socket AM4, LGA 1155 (Socket H2), Socket AM3, LGA 1150 (Socket H3), Socket FM1, LGA 2066, Socket AM1, Socket AM2, LGA 2011 (Socket R), Socket AM3+, Socket FM2+ |
| Rotational speed (min) | 300 RPM |
| Maximum air pressure | 2.61 mmH2O |
| Rotational speed (max) | 1500 RPM |
| Maximum air pressure with LNA | 1.83 mmH2O |
| Airflow | 93.4 m³/h |
| Compatible processor series | Intel® Pentium®, AMD A, Intel® Core™ i7, Intel® Core™ i9, Intel® Core™ i5, Intel® Celeron®, Intel® Core™ i3 |
| Type | Cooler |
| Pulse-width modulation (PWM) support | Yes |
| Fan diameter | 12 cm |
| Airflow with LNA (max) | 74.3 m³/h |
| Rotational speed with LNA (max) | 1200 RPM |
| Suitable for | Processor |
| Noise level (high speed) | 22.4 dB |
| Bearing type | Self-Stabilising Oil-pressure Bearing (SSO) |
| Noise level with LNA (max) | 18.6 dB |
| Packaging content | |
| Package type | Box |
| Other features | |
| Heatsink dimensions (W x D x H) | 125 x 45 x 158 mm |
| Mean time to failure (MTTF) | 150000 h |
| Logistics data | |
| Master (outer) case height | 460 mm |
| Products per master (outer) case | 12 pc(s) |
| Master (outer) case length | 440 mm |
| Master (outer) case gross weight | 18.5 kg |
| Master (outer) case width | 355 mm |
