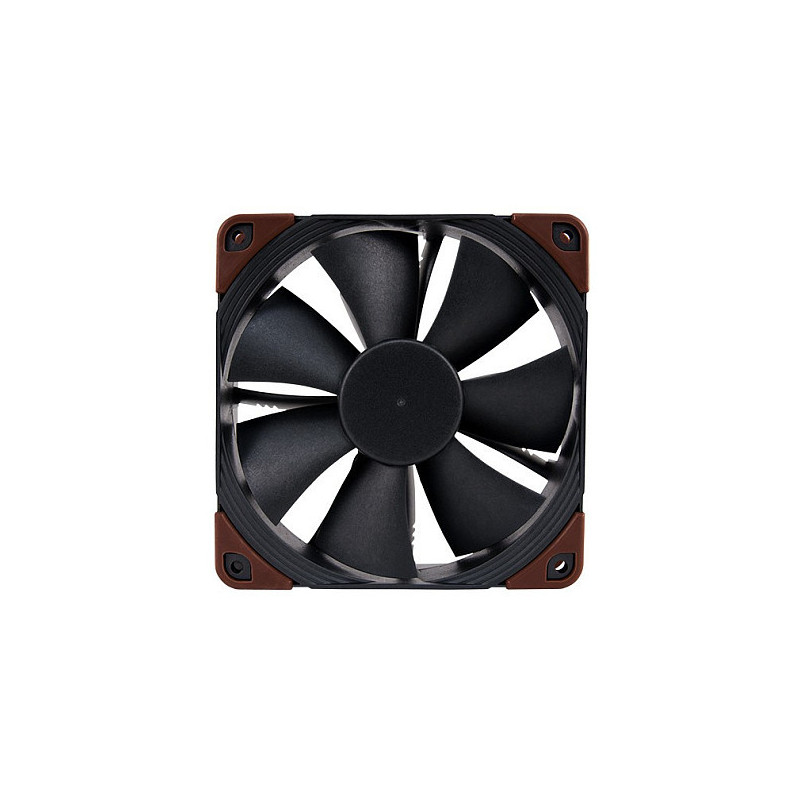

Noctua NF-F12 industrialPPC-2000 PWM

Noctua NF-F12 industrialPPC-2000 PWM. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 450 RPM, Rotational speed (max): 2000 RPM, Airflow: 121.8 m³/h, Maximum air pressure: 3.94 mmH2O. Voltage: 12 V. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black, Brown

Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology guarantees an MTBF of over 150.000hrs. Topped off with Noctua's trusted reliability and 6 years manufacturer's warranty, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.

Performance

Suitable location: Computer case
Type: Fan
Fan diameter: 12 cm
Supported processor sockets: Not supported
Compatible processor series: Not supported
Rotational speed (min): 450 RPM
Rotational speed (max): 2000 RPM
Noise level (high speed): 29.7 dB
Airflow: 121.8 m³/h
Maximum air pressure: 3.94 mmH2O
Mean time between failures (MTBF): 150000 h

Design

Product colour: Black, Brown
Material: Fiberglass, Polyamide

Power

Power consumption (typical): 1.2 W
Voltage: 12 V
Rated current: 0.1 A

Weight & dimensions

Width: 120 mm
Depth: 120 mm
Height: 25 mm

Technical details

Bearing technology: SSO2

Logistics data

Harmonized System (HS) code: 84733080
